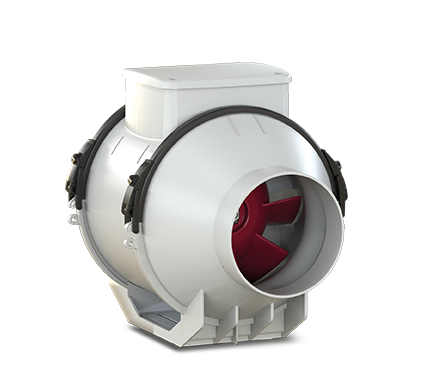

Description
• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 100 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• Equipped with an electronic timer for automatic operation at maximum speed, which can be set in the 3-20' range at the installation (default setting 3').
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
• Nominal diameter 100 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• Equipped with an electronic timer for automatic operation at maximum speed, which can be set in the 3-20' range at the installation (default setting 3').
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Certifications
-
Download
CE
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,07
-
Max absorbed current at Min speed (A)0,05
-
Max absorbed power at Max speed (W)15
-
Max ambient temperature for continuous operation (°C)60
-
Power absorbed at 1st speed (W)12
-
Voltage (V)220-240
-
Weight (Kg)1,25
-
Airflow at 1st speed (l/s)43,1
-
Airflow at 1st speed (m³/h)155
-
Breakout sound power LWA at Max speed [dB (A)]51,7
-
Breakout sound power LWA at Min speed [dB (A)]43,8
-
Breakout sound pressure at 3m at Max speed Lp [dB (A)]31,2
-
Breakout sound pressure at 3m at Min speed Lp [dB (A)]23,3
-
Max airflow at Max speed (l/s)55,6
-
Max airflow at Max speed (m³/h)200
-
Max pressure at Max speed (mmH20)7,5
-
Max pressure at Max speed (Pa)73,6
-
Max RPM2450
-
Min RPM1860
-
Potenza sonora at supply side at Min speed LWA [dB (A)]56,0
-
Pressure at 1st speed (mmH20)6,5
-
Pressure at 1st speed (Pa)63,8
-
Sound power at extract side at Max speed LWA [dB (A)]62,5
-
Sound power at extract side at Min speed LWA [dB (A)]55,5
-
Sound power at supply side at Max speed LWA [dB (A)]61,0
-
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]45,0
-
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]37,9
-
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]43,5
-
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]38,5
-

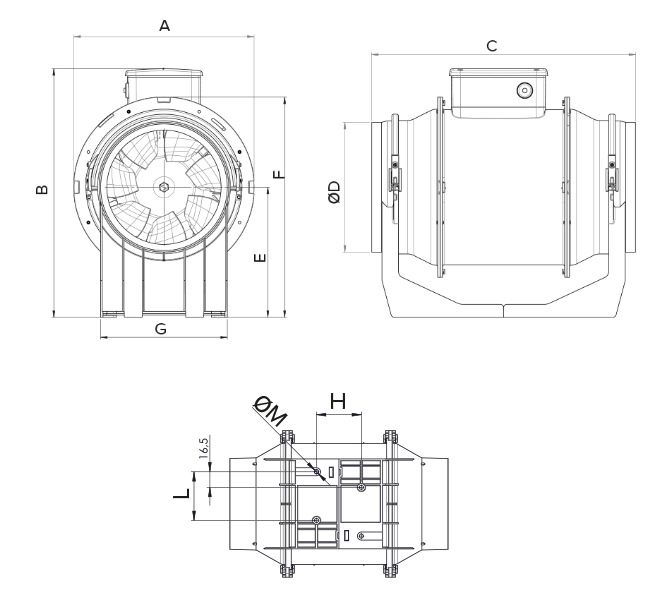

Size A (mm)156
-
Size B (mm)174
-
Size C (mm)231
-
Size D (mm)96
-
Size E (mm)82
-
Size F (mm)152
-
Size G (mm)95
-
Size H (mm)47,5
-
Size L (mm)51,5
-
Size M (mm)4,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product

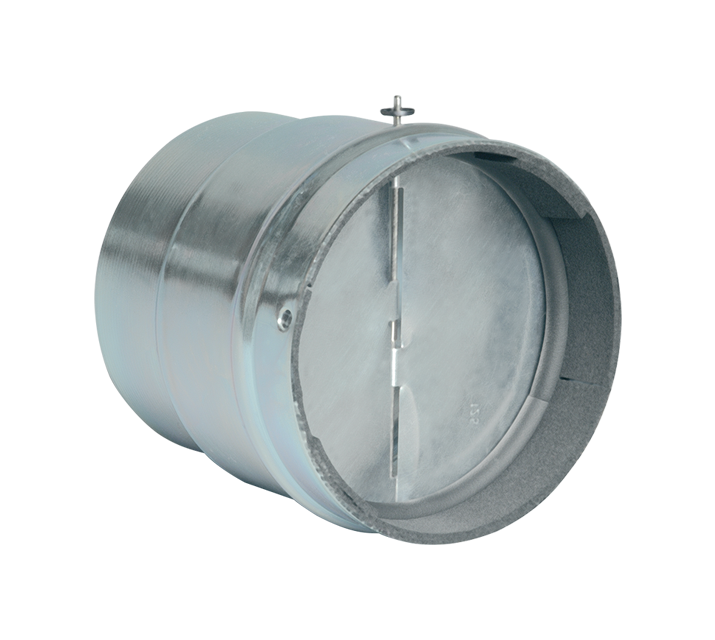

IN-LINE-S 100
Galvanized steel sheet backdraught shutter with aluminium fins and return springs to prevent air back-draughts or penetration of rain when the unit is turned off.
