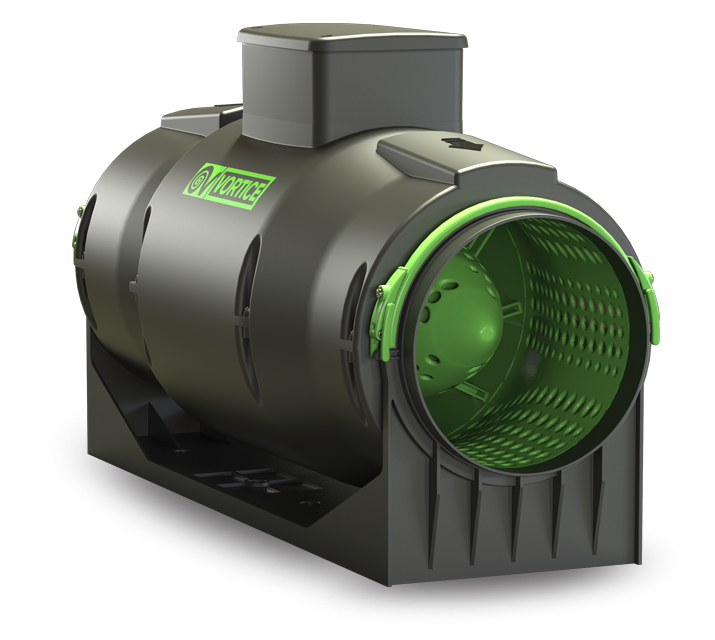

LINEO 200 QUIET ES

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 200 mm.
• EC (brushless) motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• High water resistance: IPX5 (if installed in a duct).
• Equipped with a thermal fuse overheating safety device.
• Speed adjustable through potentiometer (0-10V signal) or two-speed switch (to be set at the installation in a preset range).

Read full descriptionClose description

Certifications

CE
Download
UKCA
CB TEST CERTIFICATE

Technical Data Sheet

Corrente max assorbita a 2V (A)

0,10
Frequency (Hz)

50-60
Insulation class

II°
IP

45
Max absorbed current at 10V (A)

0,78
Max absorbed current at 4V (A)

0,18
Max absorbed current at 6V (A)

0,27
Max absorbed current at 8V (A)

0,52
Max absorbed power at 10V (W)

88
Max absorbed power at 4V (W)

15,2
Max absorbed power at 6V (W)

25,3
Max absorbed power at 8V (W)

52,4
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

200
Potenza max assorbita a 2V (W)

6,2
Voltage (V)

220-240
Weight (Kg)

8,6
Breakout sound power at 10V Lw [dB (A)]

56,3
Breakout sound power at 2V LWA [dB (A)]

34,2
Breakout sound power at 4V Lw [dB (A)]

40,2
Breakout sound power at 6V Lw [dB (A)]

45,3
Breakout sound power at 8V Lw [dB (A)]

51,4
Breakout sound pressure at 3m at 10V Lp [dB (A)]

35,8
Breakout sound pressure at 3m at 4V Lp [dB (A)]

19,7
Breakout sound pressure at 3m at 6V Lp [dB (A)]

24,8
Breakout sound pressure at 3m at 8V Lp [dB (A)]

30,9
Max airflow at 10V (l/s)

318,1
Max airflow at 10V (m³/h)

1145
Max airflow at 4V (l/s)

158,3
Max airflow at 4V (m³/h)

570
Max airflow at 6V (l/s)

200
Max airflow at 6V (m³/h)

720
Max airflow at 8V (l/s)

262,5
Max airflow at 8V (m³/h)

945
Max pressure at 10V (Pa)

329,5
Max pressure at 4V (Pa)

84,3

Max pressure at 6V (Pa)

136,3
Max pressure at 10V (mmH2O)

33,6
Max pressure at 4V (mmH2O)

8,6
Max pressure at 6V (mmH2O)

13,9
Max pressure at 8V (mmH2O)

22,9
Max pressure at 8V (Pa)

224,6
Portata max a 2V (l/s)

95,8
Portata max a 2V (m3/h)

345
Potenza sonora Lw [dB (A)] IN ASPIRAZIONE - a 2V

55,1
Potenza sonora Lw [dB (A)] IN MANDATA - a 2V

53,9
Pressione max a 2V (mmH2O)

3,2
Pressione max a 2V (Pa)

31,4
Pressione sonora Lp [dB (A)] 3m IN ASPIRAZIONE - a 2V

37,6
Pressione sonora Lp [dB (A)] 3m IN MANDATA - a 2V

36,4
Pressione sonora Lp [dB (A)] 3m IRRADIATO - a 2V

13,7
RPM 2V

810
RPM at 10V

2700
RPM at 4V

1380
RPM at 6V

1705
RPM at 8V

2245
Sound power at extract side at 10V speed LWA [dB (A)]

65,5
Sound power at extract side at 4V speed LWA [dB (A)]

48,7
Sound power at extract side at 6V speed LWA [dB (A)]

54,3
Sound power at extract side at 8V speed LWA [dB (A)]

60,8
Sound power at supply side at 10V speed LWA [dB (A)]

65,2
Sound power at supply side at 4V speed LWA [dB (A)]

48,1
Sound power at supply side at 6V speed LWA [dB (A)]

53,6
Sound power at supply side at 8V speed LWA [dB (A)]

60,4
Sound pressure at extract side at 3m at 10V Lp [dB (A)]

48
Sound pressure at extract side at 3m at 4V Lp [dB (A)]

31,2
Sound pressure at extract side at 3m at 6V Lp [dB (A)]

36,8
Sound pressure at extract side at 3m at 8V Lp [dB (A)]

43,3
Sound pressure at suply side at 3m at 10V Lp [dB (A)]

47,7
Sound pressure at suply side at 3m at 4V Lp [dB (A)]

30,6
Sound pressure at suply side at 3m at 6V Lp [dB (A)]

36,1
Sound pressure at suply side at 3m at 8V Lp [dB (A)]

42,9

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
