CA-RM 100 ES

Description

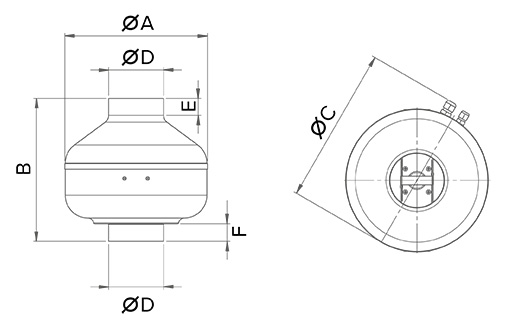

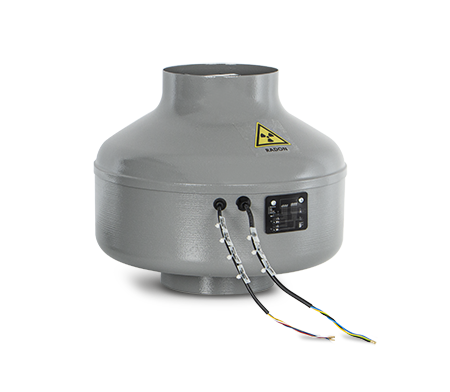

CA-RM 100 ES is a centrifugal extractor fan specifically designed for the mitigation of RADON gas.
Product is designed for duct installation and boasts a very high (IPX7) degree of protection against water, which makes it particularly suitable for installation in underground manholes subject to flooding risks.

• Enclosures made of epoxy powder coated sheet steel, glued using water and light resistant epoxy resins, to guarantee perfect sealing over time.
• Motor support made of galvanized sheet steel integrating the flow rectifiers, with optimized geometry to maximize fan performance, reducing pressure drops and noise emissions caused by turbulence.
• Centrifugal fan consisting of a centrifugal impeller with backward blades, designed to ensure high pressure with low consumption for the continuous operation, 7/24, of the product. Electronically controlled motor (EC brushless), the same technology adopted by the most modern electric cars, speed adjustable through 0-10 V signal and virtually maintenance-free.
• Remote control panel (available as optional) for wall installation, with wired connection, LCD display and access door with lock, to prevent inappropriate alterations on system settings. The device allows:
• the independent setting of the performance provided by up to 2 fans,
• the control of its correct power supply,
• the monitoring of regular fans operation,

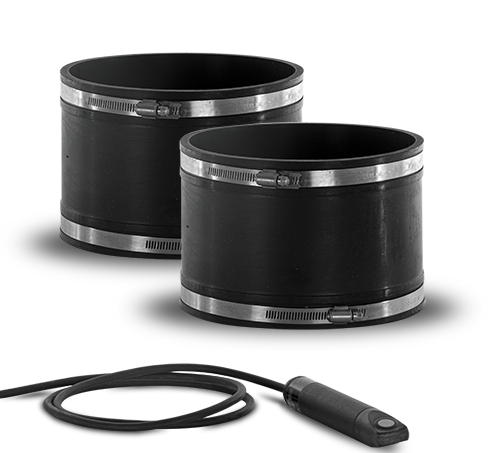

• the control of the regular flow of extracted air (if the flow switch , available as optional, is installed),
• to program, on an hourly basis and weekly scale, the fans operation,
• to notify, by means of an acoustic signal and showing error codes on the display, of any system malfunctions. The device is also set up for connecting external alarm sirens.

Read full descriptionClose description

Technical Data Sheet

Frequency (Hz)

50-60
Insulation class

I°
IP

IP47
Max absorbed current at 10V (A)

0,75
Max absorbed current at 4V (A)

0,12
Max absorbed current at 6V (A)

0,30
Max absorbed current at 8V (A)

0,70
Max absorbed power at 10V (W)

90
Max absorbed power at 4V (W)

11
Max absorbed power at 6V (W)

33
Max absorbed power at 8V (W)

85
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

100
Voltage (V)

220-240
Weight (Kg)

3,5
Breakout sound power at 10V Lw [dB (A)]

63,2
Breakout sound power at 4V Lw [dB (A)]

44,2
Breakout sound power at 6V Lw [dB (A)]

53,3
Breakout sound power at 8V Lw [dB (A)]

61,1
Breakout sound pressure at 3m at 10V Lp [dB (A)]

42,6
Breakout sound pressure at 3m at 4V Lp [dB (A)]

23,7
Breakout sound pressure at 3m at 6V Lp [dB (A)]

32,8
Breakout sound pressure at 3m at 8V Lp [dB (A)]

40,5

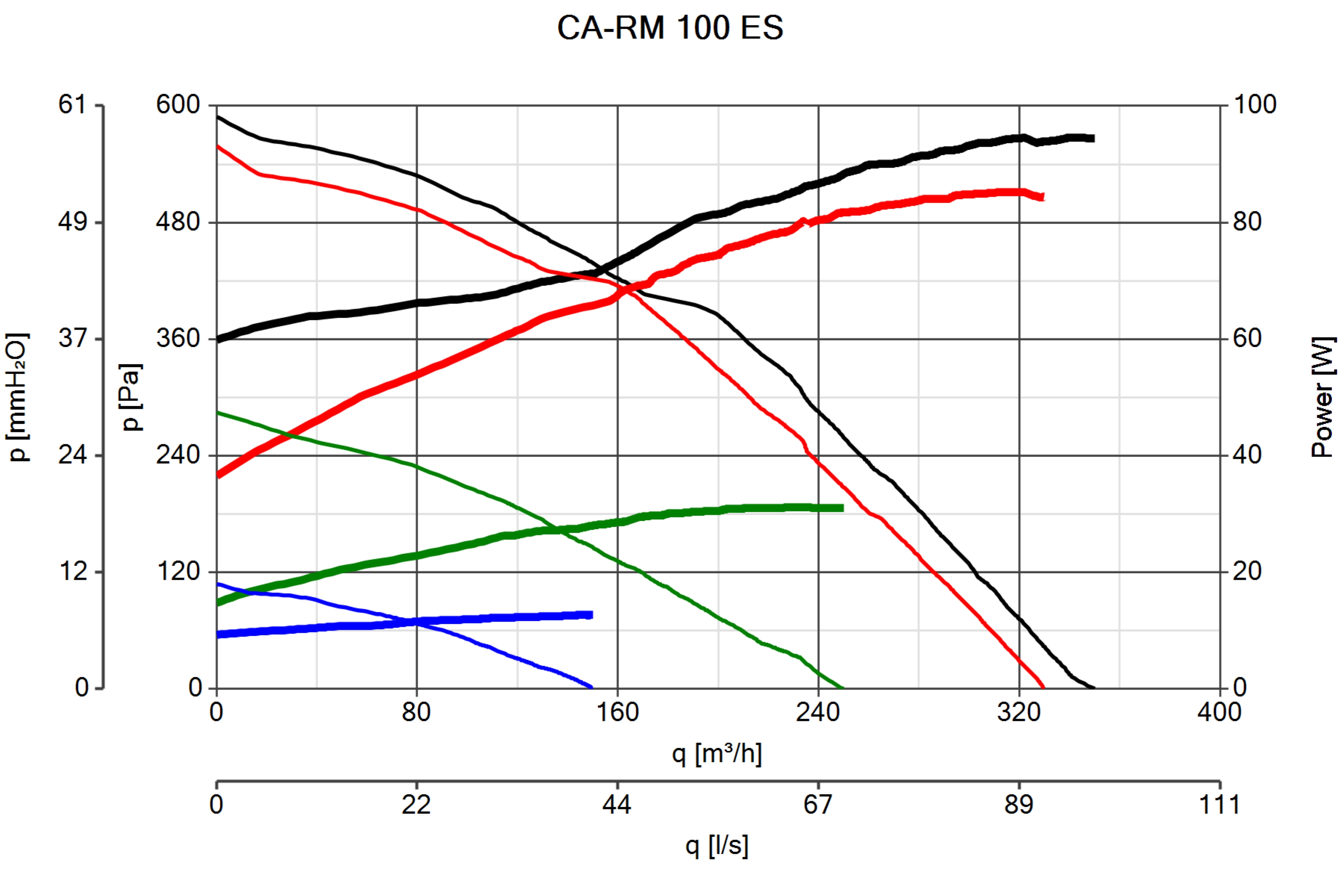

Max airflow at 10V (l/s)

97
Max airflow at 10V (m³/h)

350
Max airflow at 4V (l/s)

42
Max airflow at 4V (m³/h)

150
Max airflow at 6V (l/s)

69
Max airflow at 6V (m³/h)

250
Max airflow at 8V (l/s)

92

Max airflow at 8V (m³/h)

330
Max pressure at 10V (Pa)

589
Max pressure at 4V (Pa)

108
Max pressure at 6V (Pa)

285
Max pressure at 10V (mmH2O)

60
Max pressure at 4V (mmH2O)

11
Max pressure at 6V (mmH2O)

29
Max pressure at 8V (mmH2O)

57
Max pressure at 8V (Pa)

559
RPM at 10V

3335
RPM at 4V

1670
RPM at 6V

2450
RPM at 8V

3190
Sound power at extract side at 10V speed LWA [dB (A)]

77,2
Sound power at extract side at 4V speed LWA [dB (A)]

59,2
Sound power at extract side at 6V speed LWA [dB (A)]

68
Sound power at extract side at 8V speed LWA [dB (A)]

75,3
Sound power at supply side at 10V speed LWA [dB (A)]

76
Sound power at supply side at 4V speed LWA [dB (A)]

63,7
Sound power at supply side at 6V speed LWA [dB (A)]

70,1
Sound power at supply side at 8V speed LWA [dB (A)]

74,7
Sound pressure at extract side at 3m at 10V Lp [dB (A)]

59,7
Sound pressure at extract side at 3m at 4V Lp [dB (A)]

41,6
Sound pressure at extract side at 3m at 6V Lp [dB (A)]

50,5
Sound pressure at extract side at 3m at 8V Lp [dB (A)]

57,7
Sound pressure at suply side at 3m at 10V Lp [dB (A)]

58,5
Sound pressure at suply side at 3m at 4V Lp [dB (A)]

46,2
Sound pressure at suply side at 3m at 6V Lp [dB (A)]

52,5
Sound pressure at suply side at 3m at 8V Lp [dB (A)]

57,2

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
