Code 16271

CA IL 125 QUIET ES

Low profile sound proof and energy saving in-line centrifugal fans

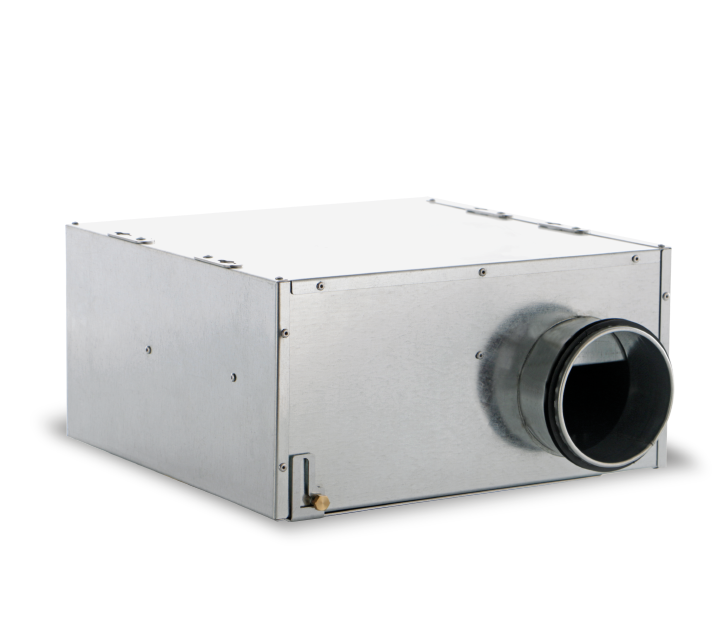

ca_il_quiet_01

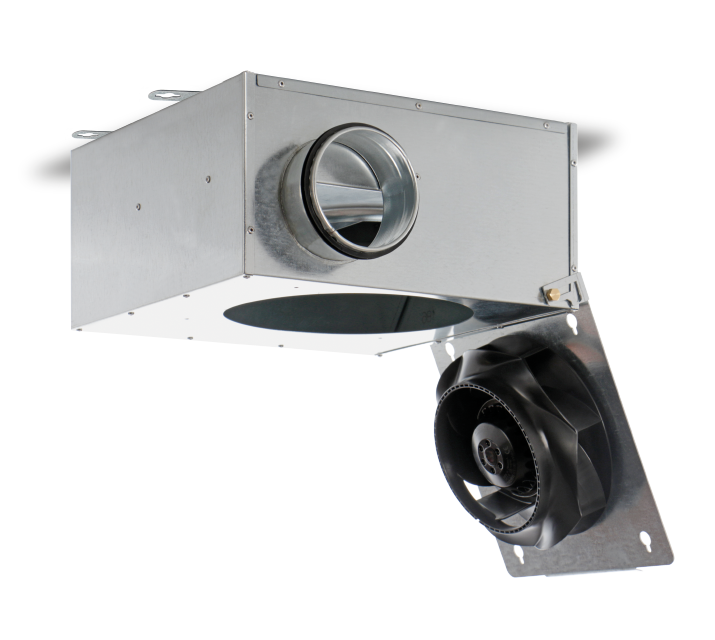

ca_il_quiet_02

Description

• Casing and motor-support made of galvanized sheet steel; lined internally with melamine sound-proof panel (thickness 50 mm).
• Circular spigots for connection to standard tubes, equipped with double lip rubber seal for perfect air tightness.
• Nominal diameter: 125 mm.
• External rotor EC (brushless) motorfan, with shaft turning in ball bearings, coupled to a backward curved centrifugal impeller; speed adjustable through potentiometer (0-10V signal).
• Galvanized steel sheet brackets, directly coupled to casing.
• 3 alternative installation: wall, ceiling and false-ceiling.
• Easy maintenance: motor is directly fixed to the cover, in turn hinged to the casing, allowing easy external rotation and motorfan direct access.
• Protection against dust and water: IP44.
• Electric insulation class: I (grounding is required).
Read full descriptionClose description

Certifications

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    I°
  • Max ambient temperature for continuous operation (°C)
    40
  • Motor class
    B
  • Motor protection IP
    44
  • Nominal current at Max speed (A)
    0,74
  • Nominal diameter (mm)
    125
  • Nominal power at Max speed (W)
    85
  • Voltage (V)
    230
  • Weight (Kg)
    5,4
  • Breakout sound power LWA [dB(A)]
    59
  • Max airflow (l/s)
    105
  • Max airflow (m³/h)
    380
  • Max pressure (mmH2O)
    71,4
  • Max pressure (Pa)
    700
  • Sound power at exhaust inlet LWA [dB(A)]
    62
  • Sound power at supply outlet LWA [dB(A)]
    71
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    con variatore di velocità: VSD
  • Drive type
    con variatore di velocità: VSD
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Nominal NRVU airflow (m3/s)
    0,0883
  • ([m3/s)
    0,0883
  • Real absorbed electric power (KW)
    0,085
  • Effective electic power input [kW]
    0,085
  • AEC annual electric energy consuption (kWh of primary energy/y)
    770,82
  • SFPint (W/m3/s)
    770,82
  • Face velocity at nominal airflow (m/s)
    7,1980
  • Face velocity at nominal flowrate (m/s)
    7,1980
  • Nominal external pressure (Pa)
    78
  • Nominal external pressure (Pa)
    78
  • Inner pressure drop of ventilation components (Pa)
    314
  • Internal pressure drop of ventilation components (Pa)
    314
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    40,7
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    40,7
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning:
    NA
  • Description of visual filter warning
    NA
  • Casing sound power level LWA [dB(A)]
    59
  • Casing sound power level (LWA) [dB(A)]
    59

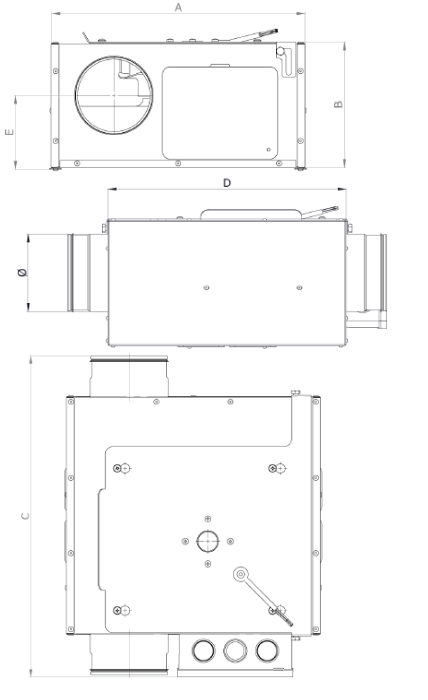

  • Ø (mm)
    125
  • Size A (mm)
    120.5
  • Size B (mm)
    203
  • Size C (mm)
    427
  • Size D (mm)
    307
  • Size E (mm)
    411.5
quota

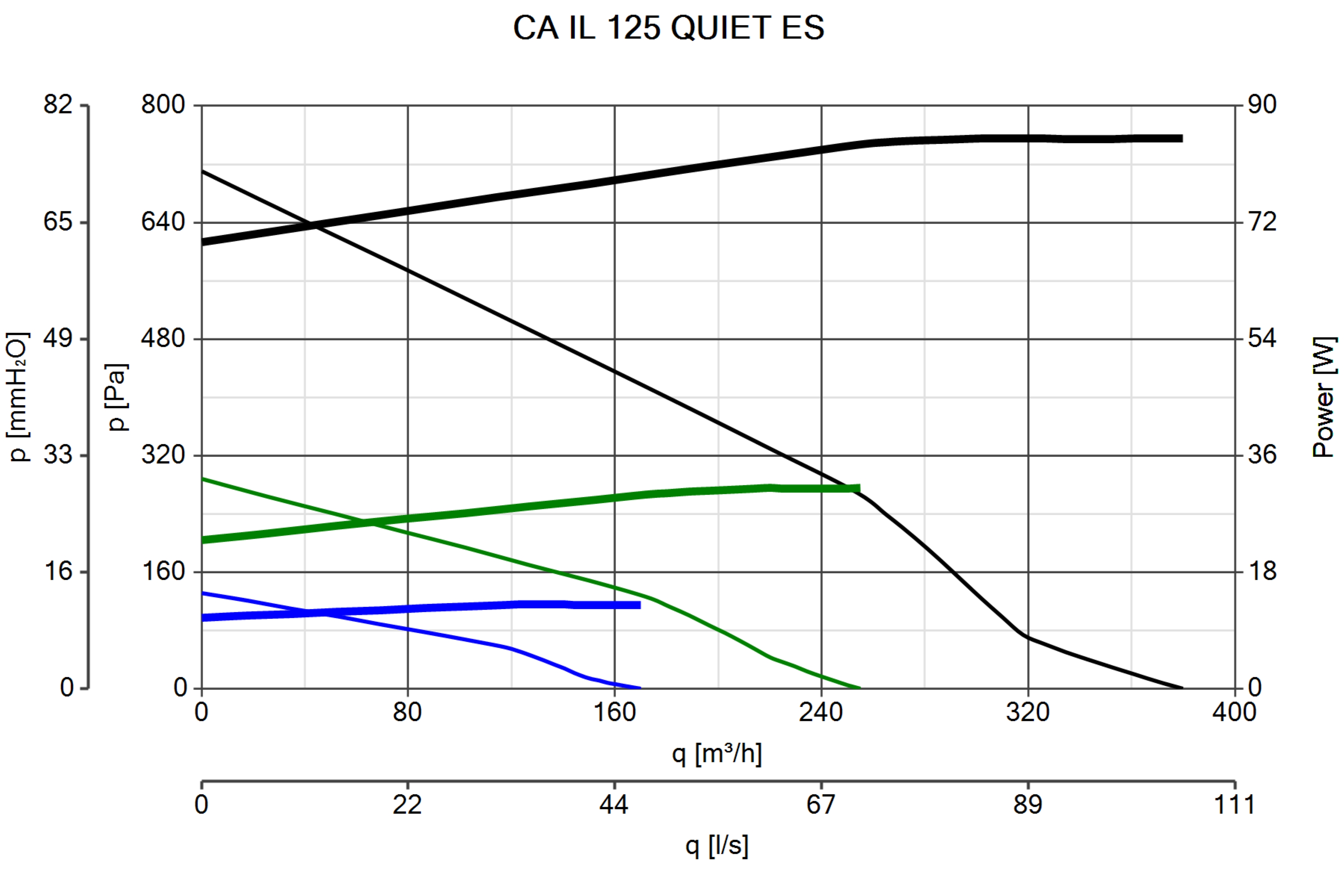

Curva_JPG_16271-Curve_per_Catalogo
