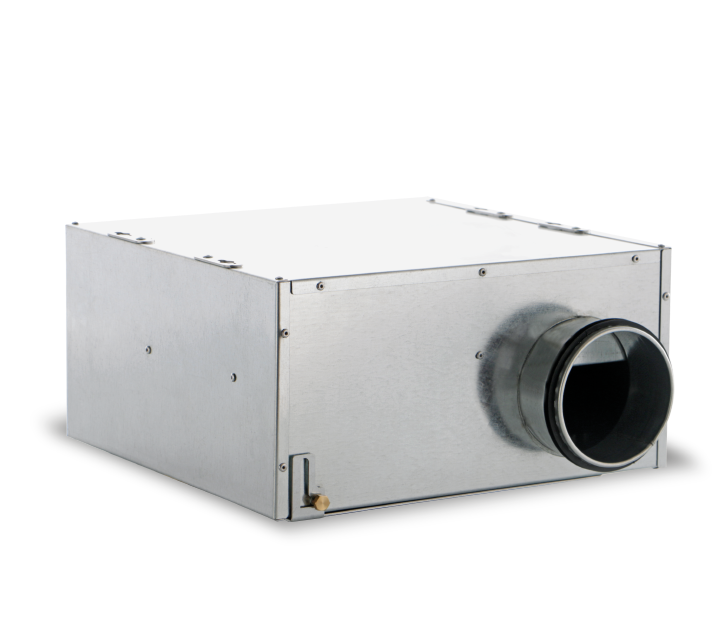

Low profile sound proof in-line centrifugal fans

ca_il_quiet_01

Description

• Casing and motor-support made of galvanized sheet steel; lined internally with melamine sound-proof panel (thickness 50 mm).
• Circular spigots for connection to standard tubes, equipped with double lip rubber seal for perfect air tightness.
• Nominal diameter: 200 mm.
• External rotor AC motorfan, with shaft turning in ball bearings, coupled to a backward curved centrifugal impeller.
• Galvanized steel sheet brackets, directly coupled to casing.
• Electric connection box accomodating capacitors, molded with shock-proof plastic resin resistant against aggressive agents, integrating cable cages and cable glands to ensure high protection (IP55) against dust and water.
• 3 alternative installation: wall, ceiling and false-ceiling.
• Easy maintenance: motor is directly fixed to the cover, in turn hinged to the casing, allowing easy external rotation and motorfan direct access.
• Protection against dust and water: IP44.
• Electric insulation class: I (grounding is required).
Read full descriptionClose description

Certifications

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    I°
  • Max ambient temperature for continuous operation (°C)
    40
  • Motor class
    F
  • Motor protection IP
    44
  • Nominal current at Max speed (A)
    0,61
  • Nominal current at Min speed (A)
    0,47
  • Nominal diameter (mm)
    200
  • Nominal power at Max speed (W)
    140
  • Nominal power at Min speed (W)
    50
  • Number of speeds
    3
  • Voltage (V)
    230
  • Weight (Kg)
    9,6
  • Breakout sound power LWA [dB(A)]
    59
  • Max airflow (l/s)
    231
  • Max airflow (m³/h)
    830
  • Max pressure (mmH2O)
    55,3
  • Max pressure (Pa)
    550
  • Sound power at exhaust inlet LWA [dB(A)]
    66
  • Sound power at supply outlet LWA [dB(A)]
    76
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Nominal NRVU airflow (m3/s)
    0,2183
  • ([m3/s)
    0,2183
  • Real absorbed electric power (KW)
    0,141
  • Effective electic power input [kW]
    0,141
  • AEC annual electric energy consuption (kWh of primary energy/y)
    569,95
  • SFPint (W/m3/s)
    569,95
  • Face velocity at nominal airflow (m/s)
    6,9497
  • Face velocity at nominal flowrate (m/s)
    6,9497
  • Nominal external pressure (Pa)
    34
  • Nominal external pressure (Pa)
    34
  • Inner pressure drop of ventilation components (Pa)
    255
  • Internal pressure drop of ventilation components (Pa)
    255
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    44,8
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    44,8
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning:
    NA
  • Description of visual filter warning
    NA
  • Casing sound power level LWA [dB(A)]
    59
  • Casing sound power level (LWA) [dB(A)]
    59
  • Ø (mm)
    200
  • Size A (mm)
    490
  • Size B (mm)
    278
  • Size C (mm)
    468.5
  • Size D (mm)
    372
  • Size E (mm)
    158

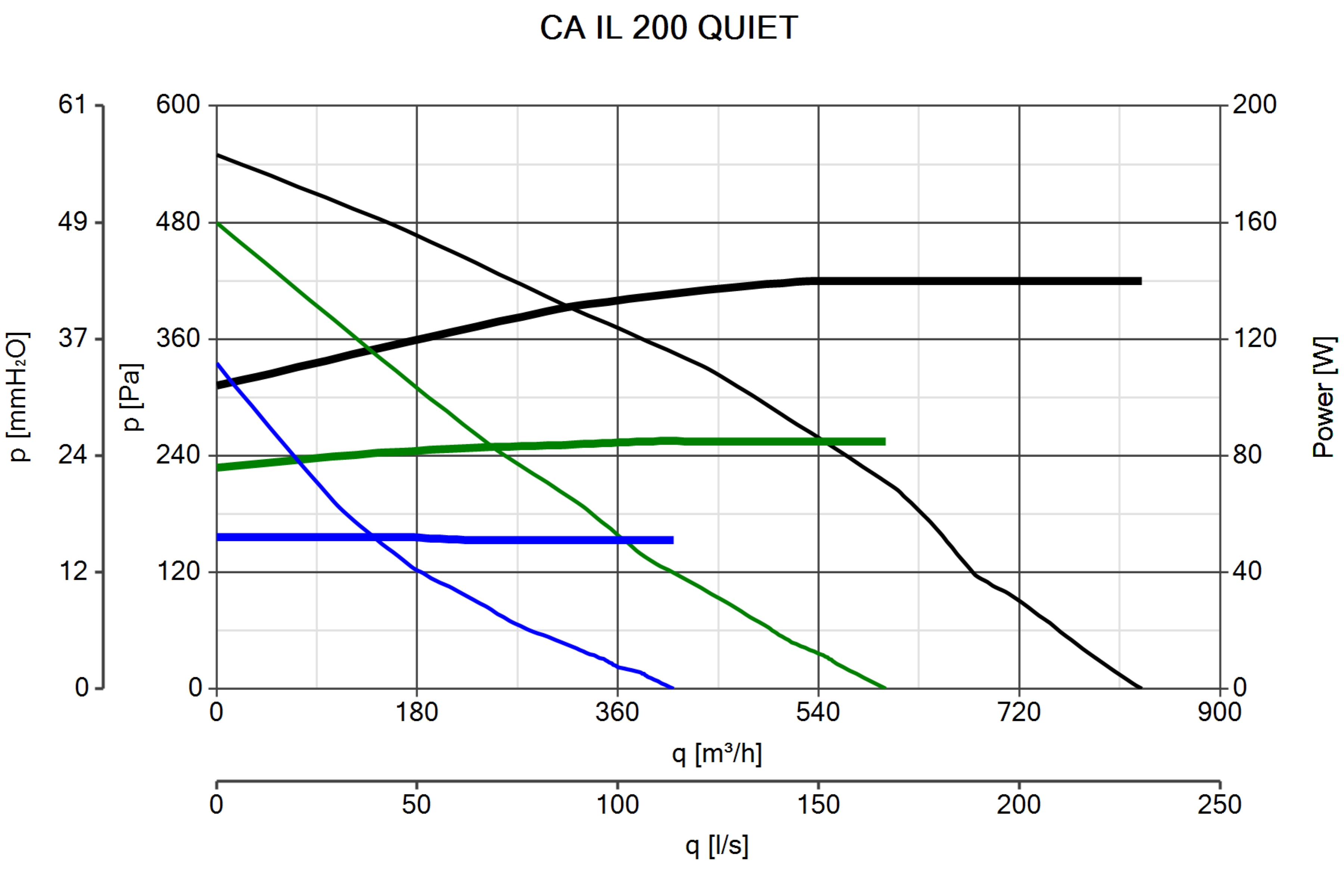

Curva_JPG_16266-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

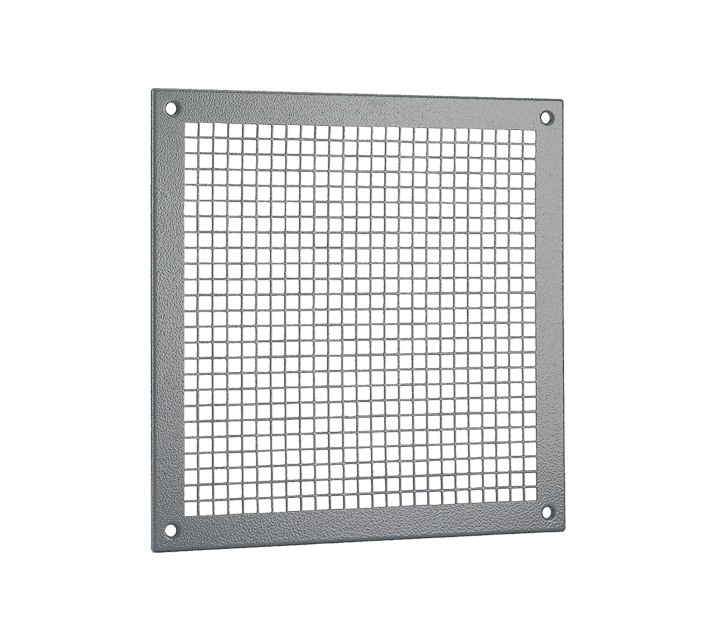

TRA 250 (TELAIO CON RETE ANTINF.)
