Code 16202

CA 150 Q ES

Energy saving in-line centrifugal fans

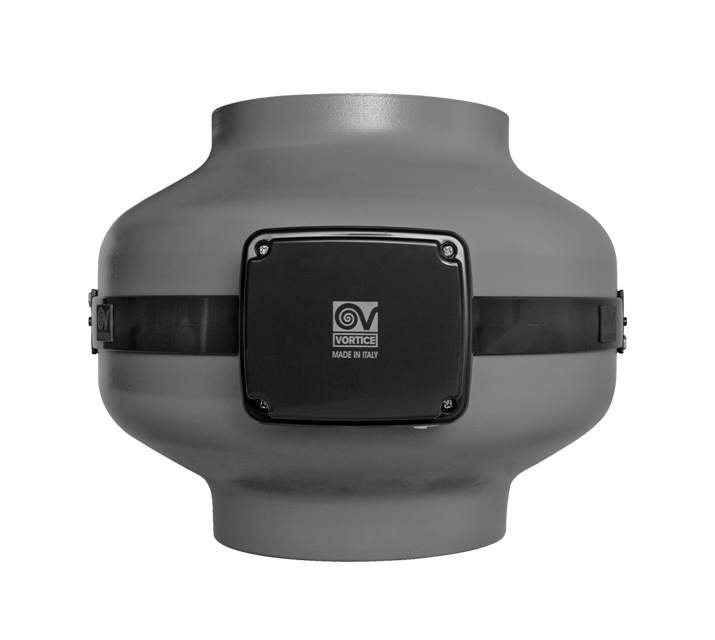

ca_es_01

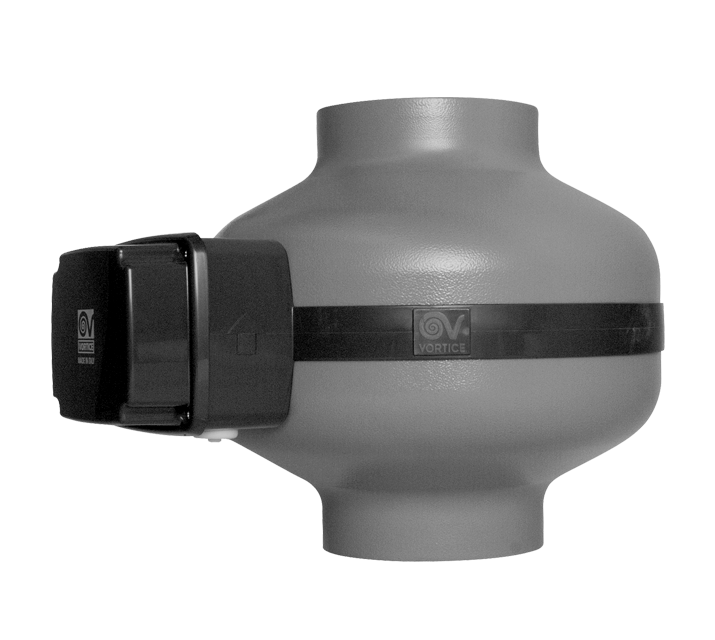

ca_es_02

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant against aggressive atmospheric agents.
• Nominal diameter: 150 mm
• High efficiency ES (brushless) motor coupled to a backward impeller.
• Possibility of connection to remote sensors.
• Zinc-coated steel brackets for wall mounting, supplied as standard.
• A dedicated dip-switch allows to choice:
o 2 speed product functioning, settable during the installation and adjustable through optional two-speed switch,
o 1 speed product functioning, adjustable through 0-10V signal potentiometer (supplied as optional).
Read full descriptionClose description

Certifications

ca_es_ambiente01
ca_es_ambiente02

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    44
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal current at Max speed (A)
    0,7
  • Nominal current at Min speed (A)
    0,05
  • Nominal diameter (mm)
    150
  • Nominal power at Max speed (W)
    80
  • Nominal power at Min speed (W)
    3
  • Voltage (V)
    220-240
  • Weight (Kg)
    3
  • Airflow at 1st speed (l/s)
    16
  • Airflow at 1st speed (m³/h)
    56
  • Max airflow at Max speed (l/s)
    156
  • Max airflow at Max speed (m³/h)
    560
  • Max pressure at Max speed (mmH20)
    45
  • Max pressure at Max speed (Pa)
    441
  • Max RPM
    2670
  • Min RPM
    300
  • Pressure at 1st speed (mmH20)
    0,5
  • Pressure at 1st speed (Pa)
    5
  • Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    49,6
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    con variatore di velocità: VSD
  • Type of heat recovery system HRS
    nessuno
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    con variatore di velocità: VSD
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint (W/m3/s)
    212,69
  • AEC annual electric energy consuption (kWh of primary energy/y)
    212,69
  • Thermal efficiency of heat recovery (%)
    NA
  • Heat recovery nominal efficiency (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,078
  • ([m3/s)
    0,078
  • Real absorbed electric power (KW)
    0,084
  • Effective electic power input [kW]
    0,084
  • Face velocity at nominal airflow (m/s)
    4,401
  • Face velocity at nominal flowrate (m/s)
    4,401
  • Nominal external pressure (Pa)
    233
  • Nominal external pressure (Pa)
    233
  • Inner pressure drop of ventilation components (Pa)
    57
  • Internal pressure drop of ventilation components (Pa)
    57
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    26,8
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    26,8
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    2,4
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    2,4
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    NA
  • Casing sound power level (LWA) [dB(A)]
    NA

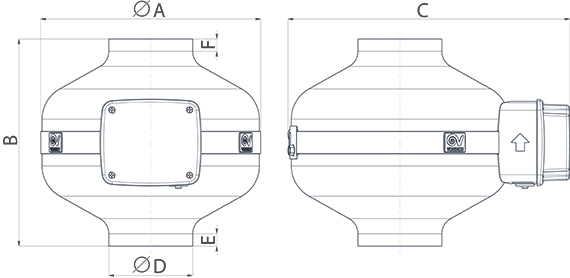

  • Size A (mm)
    ø 255
  • Size B (mm)
    239
  • Size C (mm)
    330
  • Size D (mm)
    ø 147
  • Size E (mm)
    30
  • Size F (mm)
    30
quota

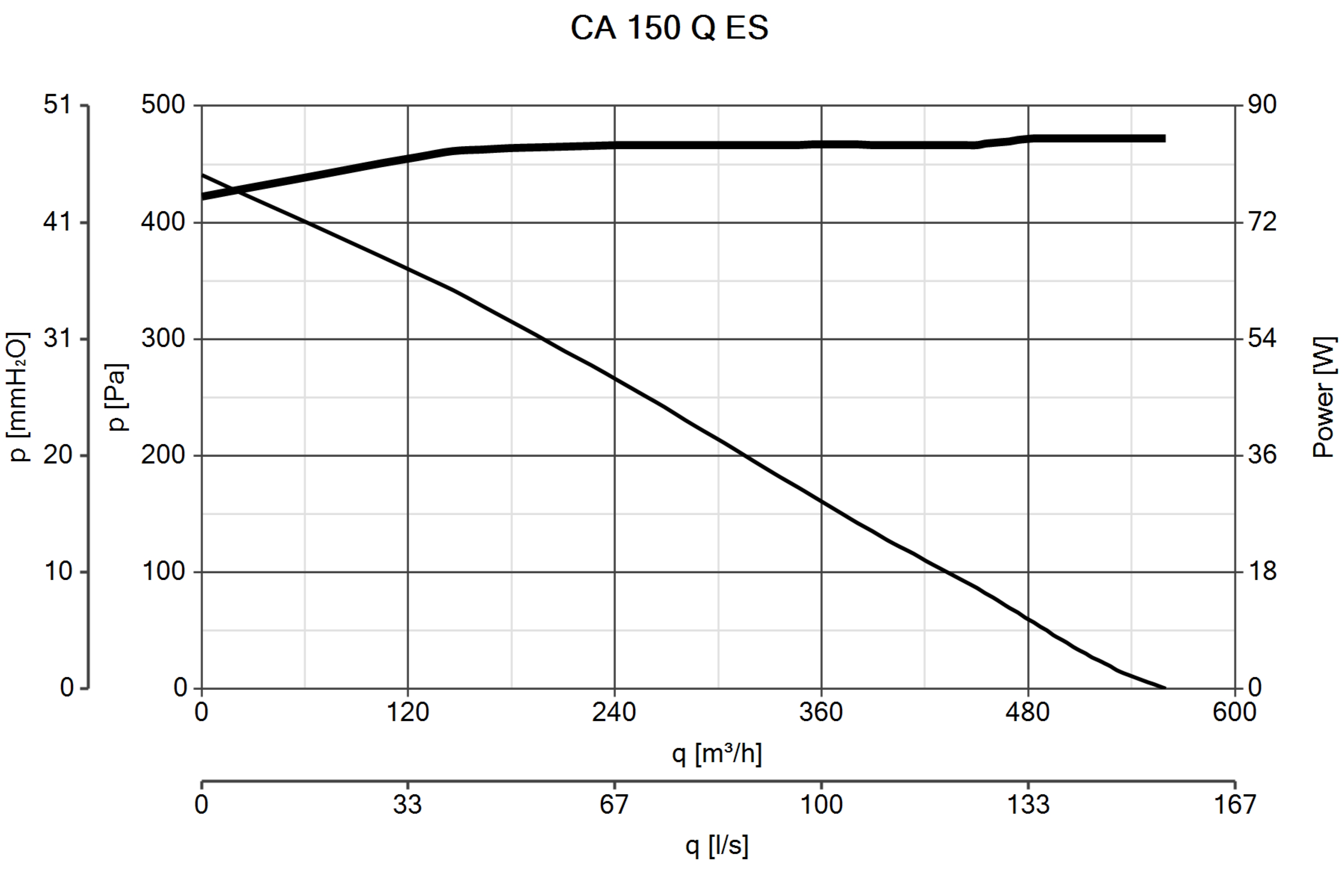

Curva_JPG_16202-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

POT
POT
Potentiometer for installation in Standard DIN box.
Go to data sheet
POT-IT
POT-IT
Potentiometer equipped with On/Off switch, for installation in 503 Standard Box.
Go to data sheet
C PIR
C PIR
• Passive infrared sensor.
Go to data sheet
C TIMER
C TIMER
• Adjustable over-run timer.
Go to data sheet
CA-MU (STAFFE DI SOSTEGNO)
CA-MU (STAFFE DI SOSTEGNO)
• Galvanized sheet-metal brackets for wall or ceiling mounting. Complete in packs of 2.
Go to data sheet
DUO
DUO
• Two speeds switch.
• On/off switch.
Go to data sheet
C TEMP
C TEMP
Environmental sensor for temperature control.
Go to data sheet
C SMOKE
C SMOKE
Environmental sensor for air quality.
Go to data sheet
C HCS
C HCS
Environmental sensor for relative humidity control.
Go to data sheet

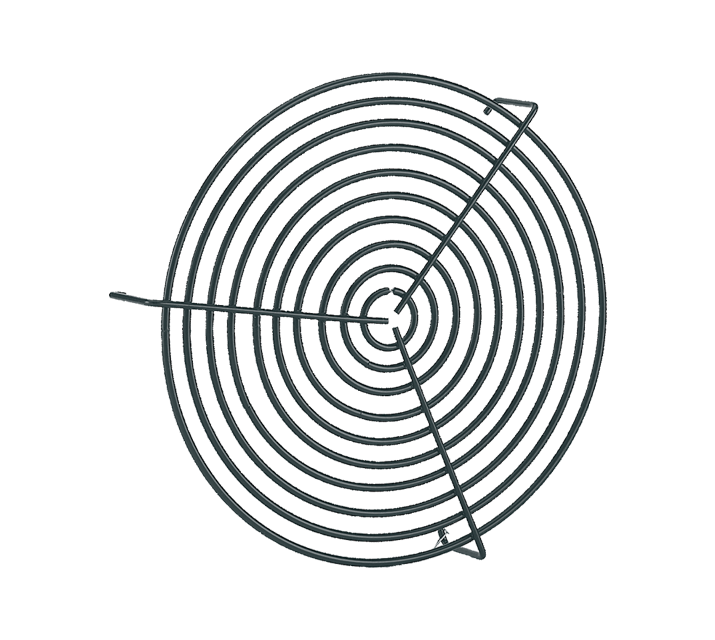

CA-G 150 (GRIGLIA DI PROTEZIONE)
CA-G 150 (GRIGLIA DI PROTEZIONE)
• Protection grille for use in the intake port when unit is mounted within reach.
Go to data sheet
