Code 16165

CA 200 MD E

In-line centrifugal fans in metal

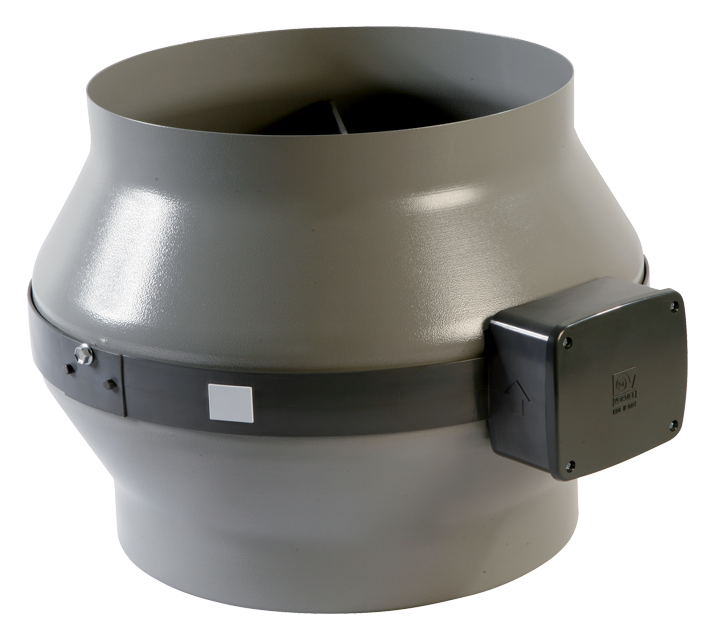

ca_md_e_01

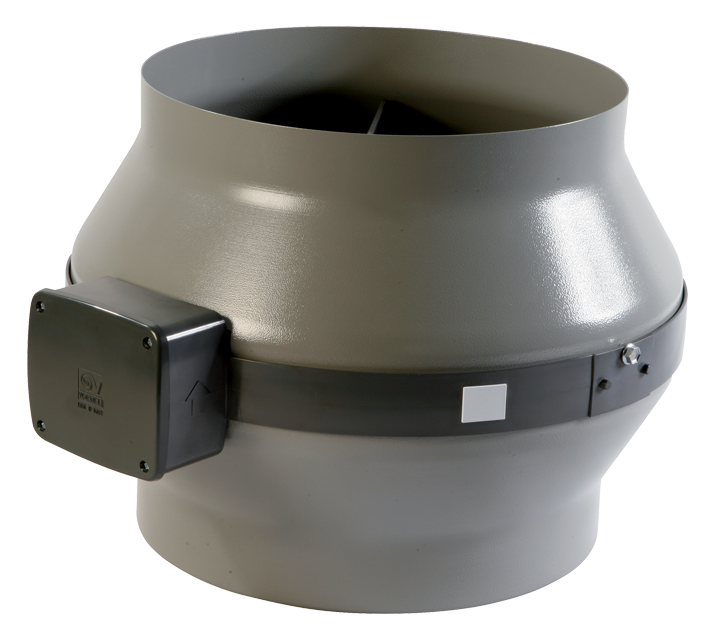

ca_md_e_02

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 200 mm.
• 3 speed fan consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,

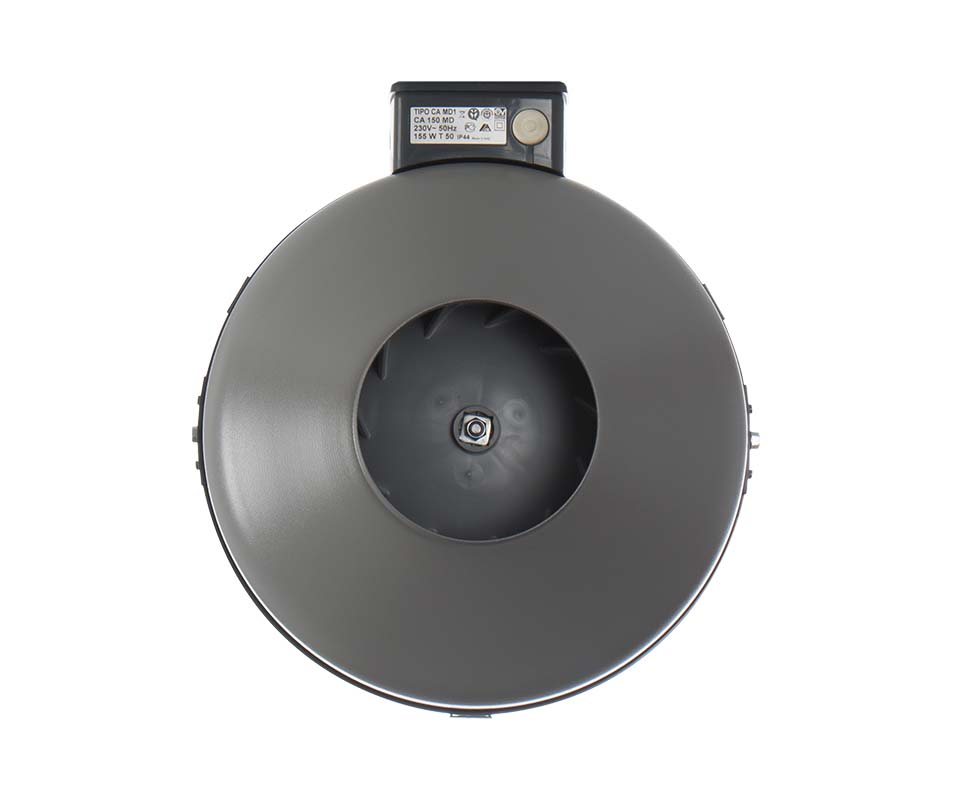

• backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.

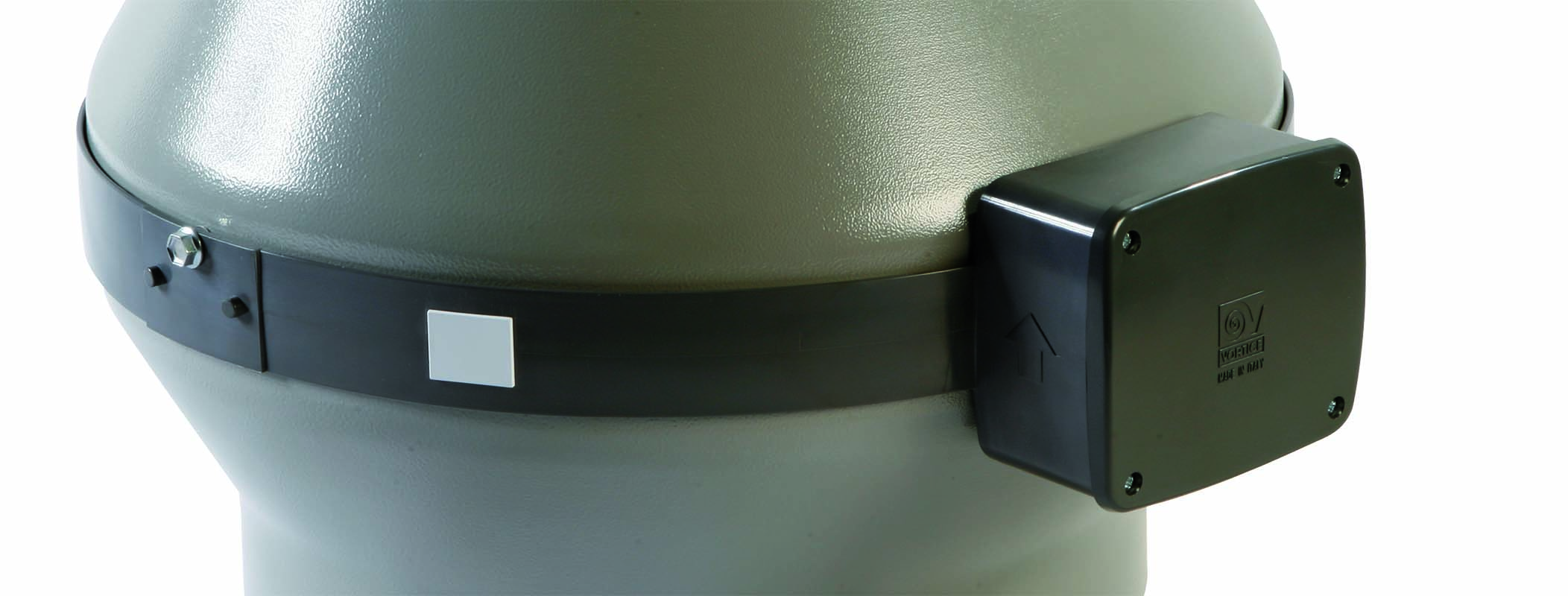

• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_e_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,38
  • Max absorbed current at Max speed (A)
    0,40
  • Max absorbed current at Max speed at 60 Hz (A)
    0,50
  • Max absorbed current at Mid speed (A)
    0,38
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,45
  • Max absorbed current at Min speed (A)
    0,33
  • Max absorbed power at Max speed (W)
    68
  • Max absorbed power at Max speed at 60 Hz (W)
    80
  • Max absorbed power at Mid speed (W)
    50
  • Max absorbed power at Mid speed at 60 Hz (W)
    62
  • Max absorbed power at Min speed at 60 Hz (W)
    0,38
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    200
  • Power absorbed at 1st speed (W)
    0,33
  • Voltage (V)
    220-240
  • Weight (Kg)
    6
  • Airflow at 1st speed (l/s)
    115
  • Airflow at 1st speed (m³/h)
    415
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    53,8
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    49,5
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    43,4
  • Breakout sound power LWA at Max speed [dB (A)]
    55,9
  • Breakout sound power LWA at Mid speed [dB (A)]
    50,5
  • Breakout sound power LWA at Min speed [dB (A)]
    42,1
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    33,3
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    35,3
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    29
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    30
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    22,9
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    21,6
  • Max airflow at Max speed (l/s)
    186
  • Max airflow at Max speed (m³/h)
    670
  • Max airflow at Max speed at 60 Hz (l/s)
    168
  • Max airflow at Max speed at 60 Hz (m³/h)
    605
  • Max airflow at Mid speed (m³/h)
    580
  • Max airflow at Mid speed at 60 Hz (l/s)
    154
  • Max airflow at Mid speed at 60 Hz (m³/h)
    555
  • Max airflow at Min speed (l/s)
    161
  • Max airflow at Min speed at 60 Hz (l/s)
    121
  • Max airflow at Min speed at 60 Hz (m³/h)
    435
  • Max pressure at 60 Hz (mmH2O)
    30,8
  • Max pressure at Max speed (mmH20)
    40,2
  • Max pressure at Max speed (Pa)
    394
  • Max pressure at Max speed at 60Hz (Pa)
    302
  • Max pressure at Mid speed (mmH2O)
    35,1
  • Max pressure at Mid speed (Pa)
    344
  • Max pressure at Mid speed at 60Hz (mmH2O)
    26,9
  • Max pressure at Mid speed at 60Hz (Pa)
    264
  • Max pressure at Min speed at 60Hz (mmH2O)
    24,1
  • Max pressure at Min speed at 60Hz (Pa)
    236
  • Max RPM
    2330
  • Max speed at 60 Hz (Rpm)
    2090
  • Mid speed at 60 Hz (Rpm)
    1850
  • Min RPM
    1400
  • Min speed at 60 Hz (Rpm)
    1450
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    65,9
  • Pressure at 1st speed (mmH20)
    26,2
  • Pressure at 1st speed (Pa)
    257
  • RPM at Mid speed
    1920
  • Sound power at extract side at Max speed LWA [dB (A)]
    82,3
  • Sound power at extract side at Mid speed LWA [dB (A)]
    76,6
  • Sound power at extract side at Min speed LWA [dB (A)]
    68,5
  • Sound power at supply side at Max speed LWA [dB (A)]
    80,3
  • Sound power at supply side at Mid speed LWA [dB (A)]
    74,6
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    80,3
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    75,8
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    69,9
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    78,2
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    73,8
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    67,3
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    62,8
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    64,8
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    56,3
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    59,1
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    52,3
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    51
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    62,7
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    57,1
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    48,4
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    60,7
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    58,2
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    49,8


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • AEC annual electric energy consuption (kWh of primary energy/y)
    301,34
  • SFPint (W/m3/s)
    341,30
  • Heat recovery nominal efficiency (%)
    NA
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,16858
  • ([m3/s)
    0,17010
  • Real absorbed electric power (KW)
    0,067
  • Effective electic power input [kW]
    0,071
  • Face velocity at nominal airflow (m/s)
    9,62585
  • Face velocity at nominal flowrate (m/s)
    21,46470
  • Nominal external pressure (Pa)
    40
  • Nominal external pressure (Pa)
    31
  • Inner pressure drop of ventilation components (Pa)
    199
  • Internal pressure drop of ventilation components (Pa)
    100
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    58,4
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    33,2
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    1,09
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    56,3
  • Casing sound power level (LWA) [dB(A)]
    55,9

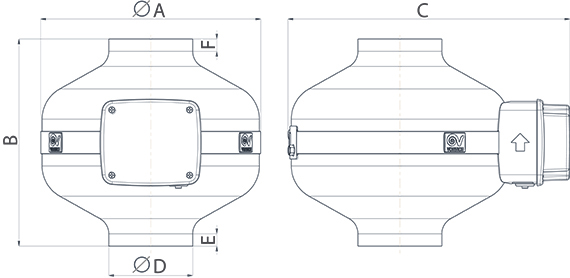

  • Size A (mm)
    347
  • Size B (mm)
    275
  • Size C (mm)
    424
  • Size D (mm)
    197
  • Size E (mm)
    20
  • Size F (mm)
    17

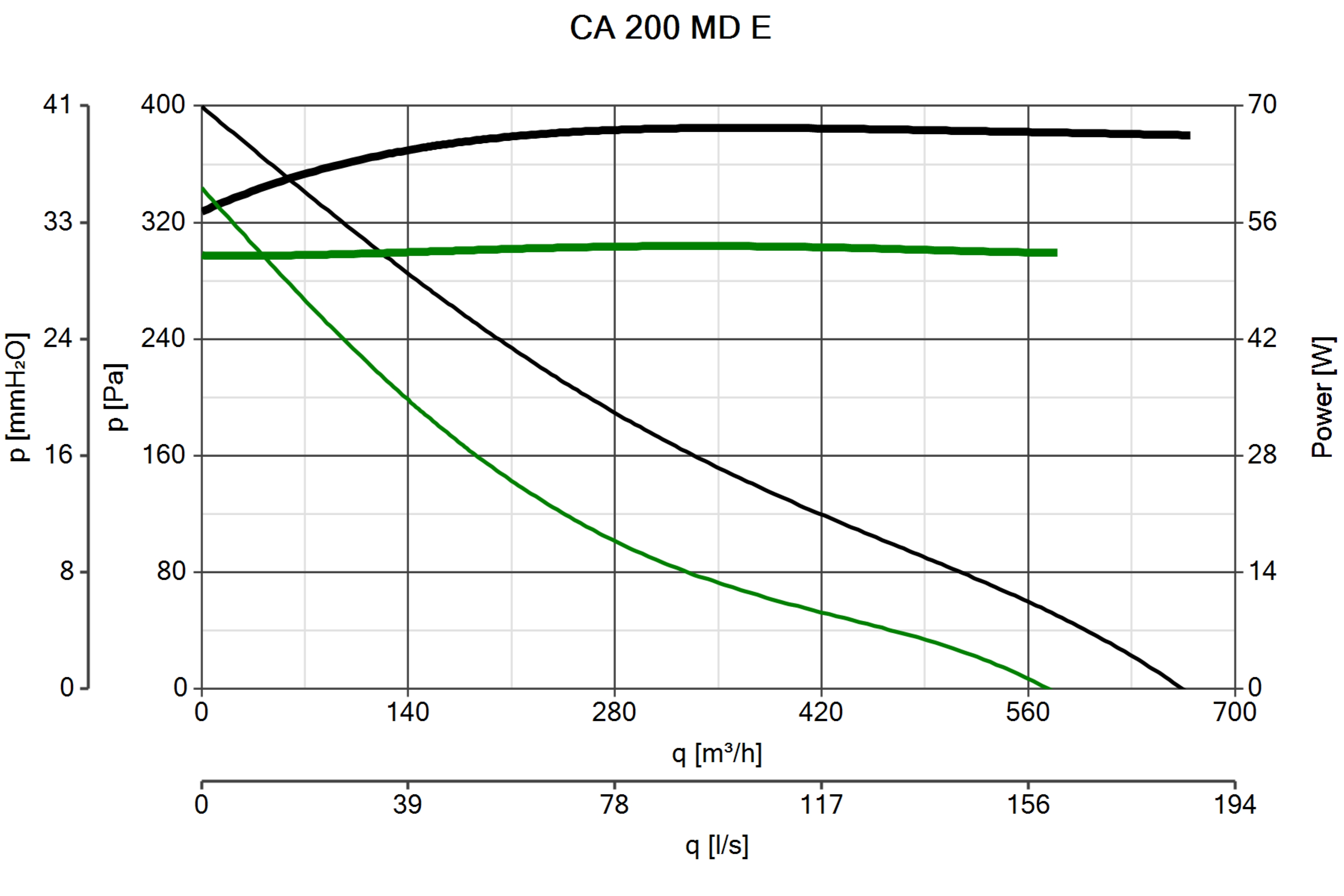

quota
