Code 16164

CA 160 MD E

In-line centrifugal fans in metal

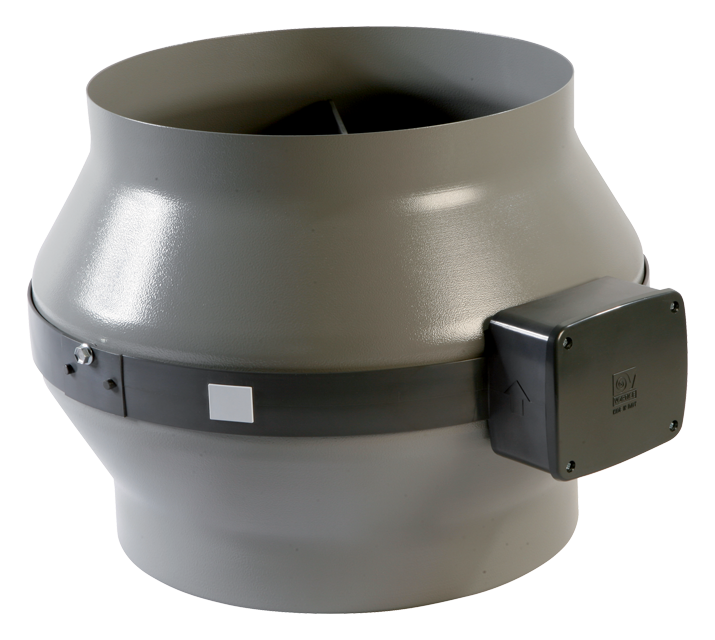

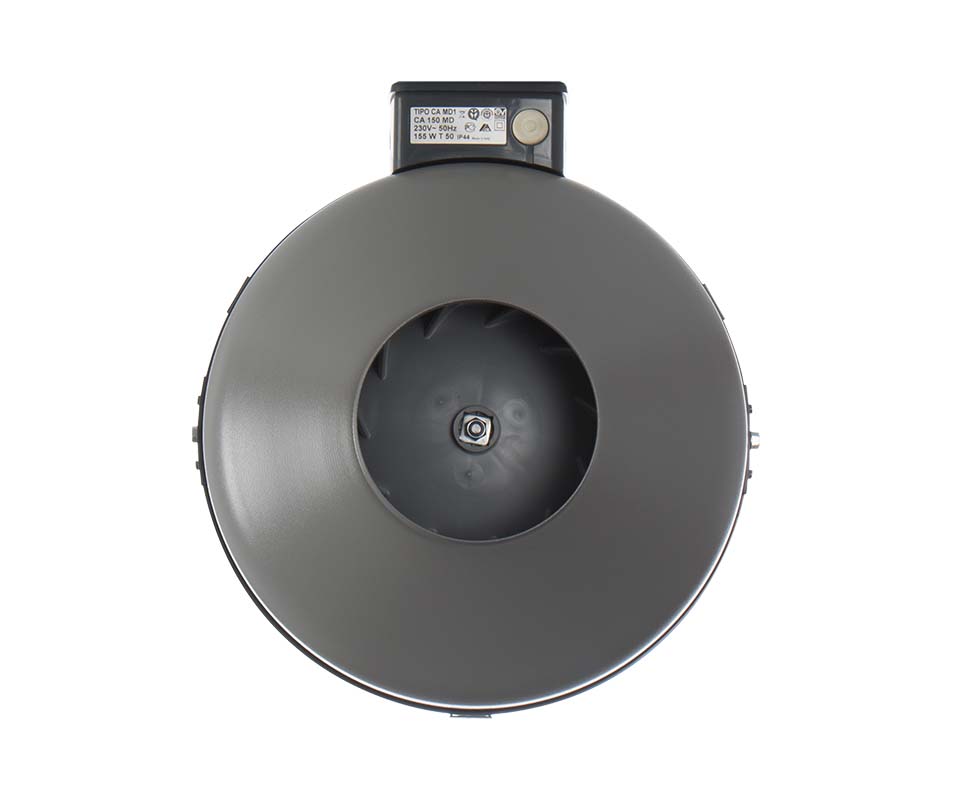

ca_md_e_01

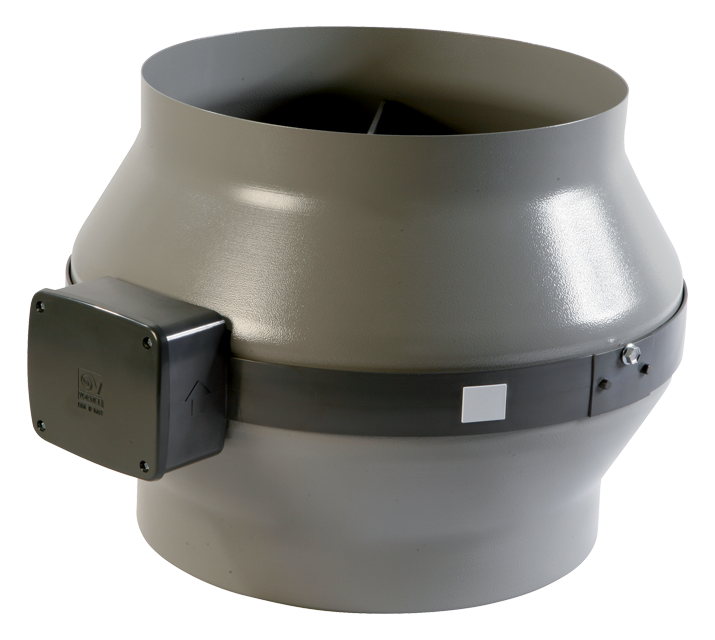

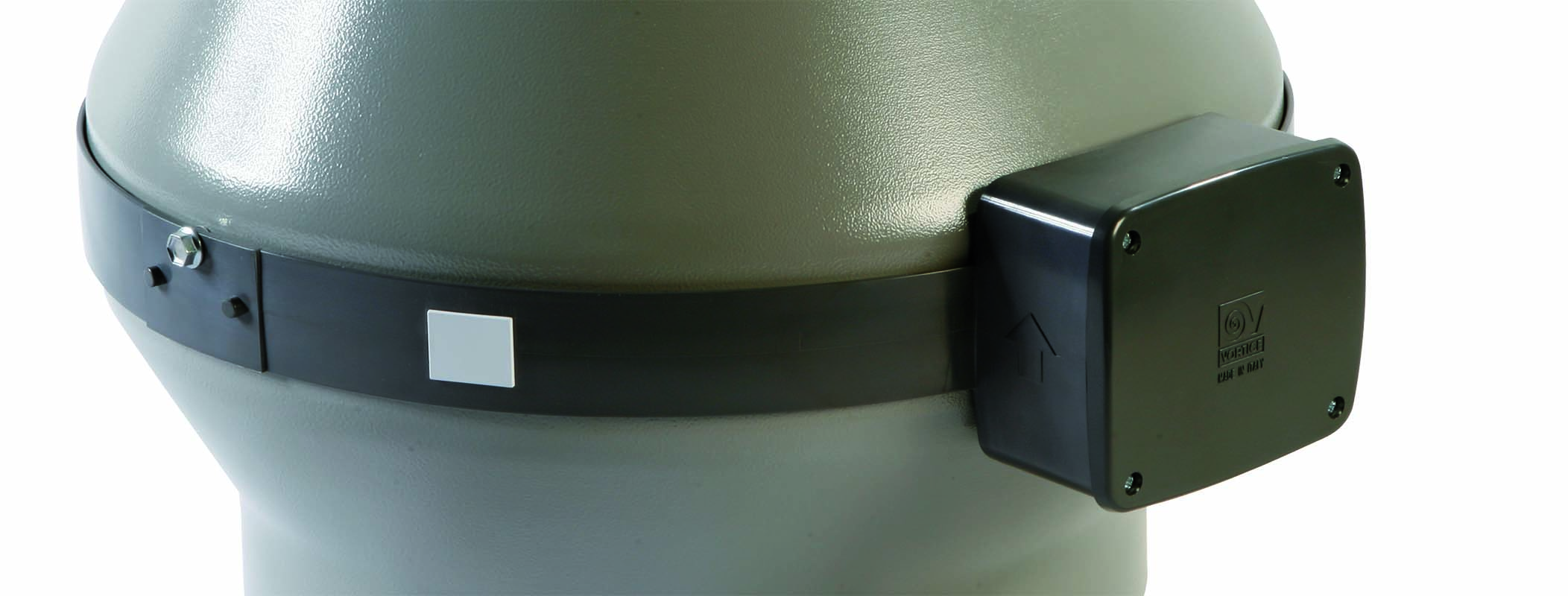

ca_md_e_02

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 160 mm.
• 3 speed fan consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

ca_md_e_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,38
  • Max absorbed current at Max speed (A)
    0,40
  • Max absorbed current at Max speed at 60 Hz (A)
    0,50
  • Max absorbed current at Mid speed (A)
    0,38
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,45
  • Max absorbed current at Min speed (A)
    0,33
  • Max absorbed power at Max speed (W)
    68
  • Max absorbed power at Max speed at 60 Hz (W)
    80
  • Max absorbed power at Mid speed (W)
    50
  • Max absorbed power at Mid speed at 60 Hz (W)
    62
  • Max absorbed power at Min speed at 60 Hz (W)
    0,38
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    160
  • Power absorbed at 1st speed (W)
    0,33
  • Voltage (V)
    220-240
  • Weight (Kg)
    6,3
  • Airflow at 1st speed (l/s)
    88
  • Airflow at 1st speed (m³/h)
    315
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    59,5
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    54,8
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    48,8
  • Breakout sound power LWA at Max speed [dB (A)]
    61,4
  • Breakout sound power LWA at Mid speed [dB (A)]
    56,2
  • Breakout sound power LWA at Min speed [dB (A)]
    47,8
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    39
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    40,8
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    34,3
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    35,7
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    28,3
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    27,3
  • Max airflow at Max speed (l/s)
    131
  • Max airflow at Max speed (m³/h)
    470
  • Max airflow at Max speed at 60 Hz (l/s)
    117
  • Max airflow at Max speed at 60 Hz (m³/h)
    420
  • Max airflow at Mid speed (m³/h)
    415
  • Max airflow at Mid speed at 60 Hz (l/s)
    108
  • Max airflow at Mid speed at 60 Hz (m³/h)
    390
  • Max airflow at Min speed (l/s)
    115
  • Max airflow at Min speed at 60 Hz (l/s)
    89
  • Max airflow at Min speed at 60 Hz (m³/h)
    320
  • Max pressure at 60 Hz (mmH2O)
    27,5
  • Max pressure at Max speed (mmH20)
    36,8
  • Max pressure at Max speed (Pa)
    361
  • Max pressure at Max speed at 60Hz (Pa)
    238
  • Max pressure at Mid speed (mmH2O)
    29,4
  • Max pressure at Mid speed (Pa)
    288
  • Max pressure at Mid speed at 60Hz (mmH2O)
    24,3
  • Max pressure at Mid speed at 60Hz (Pa)
    238
  • Max pressure at Min speed at 60Hz (mmH2O)
    20,5
  • Max pressure at Min speed at 60Hz (Pa)
    201
  • Max RPM
    2430
  • Max speed at 60 Hz (Rpm)
    2125
  • Mid speed at 60 Hz (Rpm)
    2000
  • Min RPM
    1600
  • Min speed at 60 Hz (Rpm)
    1610
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    74,1
  • Pressure at 1st speed (mmH20)
    22,4
  • Pressure at 1st speed (Pa)
    220
  • RPM at Mid speed
    2100
  • Sound power at extract side at Max speed LWA [dB (A)]
    88,8
  • Sound power at extract side at Mid speed LWA [dB (A)]
    83,7
  • Sound power at extract side at Min speed LWA [dB (A)]
    75,5
  • Sound power at supply side at Max speed LWA [dB (A)]
    87,2
  • Sound power at supply side at Mid speed LWA [dB (A)]
    82,3
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    87,3
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    83,1
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    76
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    86,1
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    81,2
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    74,9
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    69,8
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    71,2
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    63,7
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    66,2
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    58,5
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    58
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    69,7
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    64,8
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    56,6
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    68,5
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    65,6
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    57,4


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • AEC annual electric energy consuption (kWh of primary energy/y)
    454,95
  • SFPint (W/m3/s)
    499,50
  • Heat recovery nominal efficiency (%)
    NA
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,14353
  • ([m3/s)
    0,11403
  • Real absorbed electric power (KW)
    0,066
  • Effective electic power input [kW]
    0,069
  • Face velocity at nominal airflow (m/s)
    6,45265
  • Face velocity at nominal flowrate (m/s)
    18,27453
  • Nominal external pressure (Pa)
    10
  • Nominal external pressure (Pa)
    42
  • Inner pressure drop of ventilation components (Pa)
    263
  • Internal pressure drop of ventilation components (Pa)
    171
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    52,7
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    37,7
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    1,63
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    62,5
  • Casing sound power level (LWA) [dB(A)]
    61,4

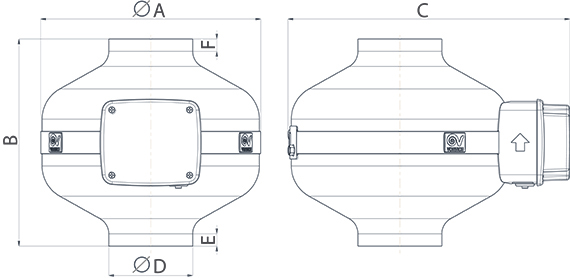

  • Size A (mm)
    347
  • Size B (mm)
    275
  • Size C (mm)
    424
  • Size D (mm)
    157
  • Size E (mm)
    18
  • Size F (mm)
    18
quota

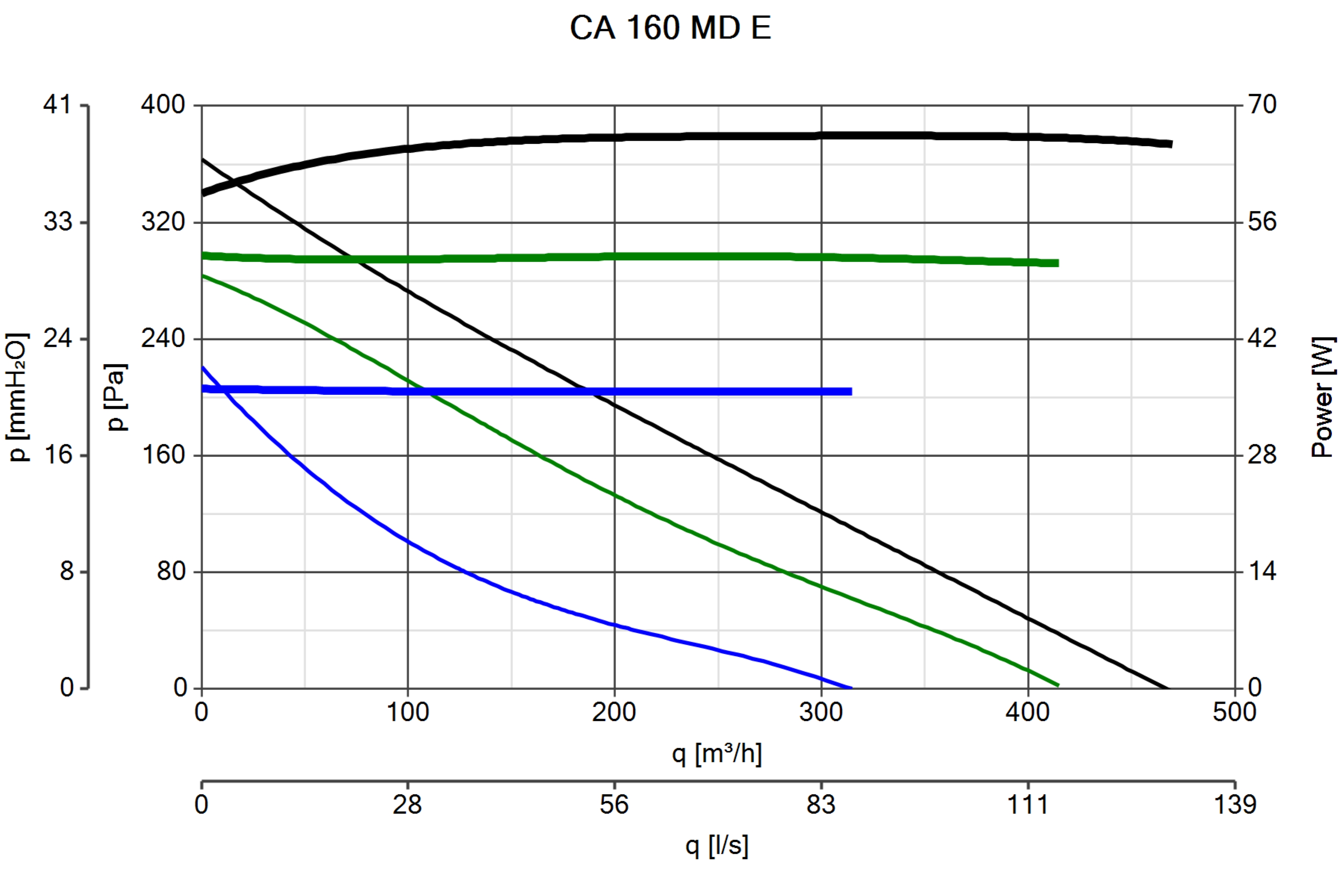

Curva_JPG_16164-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

CA-MU (STAFFE DI SOSTEGNO)
CA-MU (STAFFE DI SOSTEGNO)
• Galvanized sheet-metal brackets for wall or ceiling mounting. Complete in packs of 2.
Go to data sheet
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
Go to data sheet

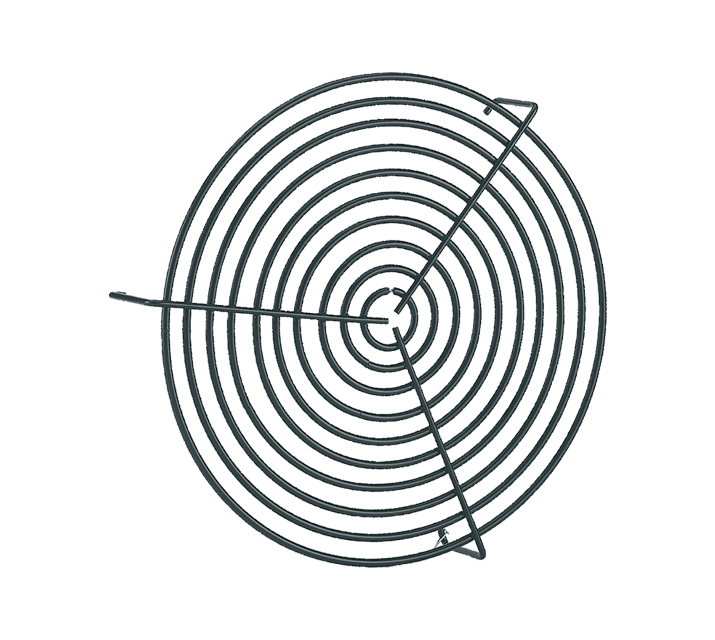

CA-G 160 (GRIGLIA DI PROTEZIONE)
CA-G 160 (GRIGLIA DI PROTEZIONE)
• Protection grille for use in the intake port when unit is mounted within reach.
Go to data sheet
C TEMP
C TEMP
Environmental sensor for temperature control.
Go to data sheet
C SMOKE
C SMOKE
Environmental sensor for air quality.
Go to data sheet
C HCS
C HCS
Environmental sensor for relative humidity control.
Go to data sheet
C PIR
C PIR
• Passive infrared sensor.
Go to data sheet
C TIMER
C TIMER
• Adjustable over-run timer.
Go to data sheet
TRIO D
TRIO D
3 speed dipswitch for installation in Standard DIN box.
Go to data sheet
TRIO-LINEO 503
TRIO-LINEO 503
Go to data sheet
