Code 16157

CA 315 MD

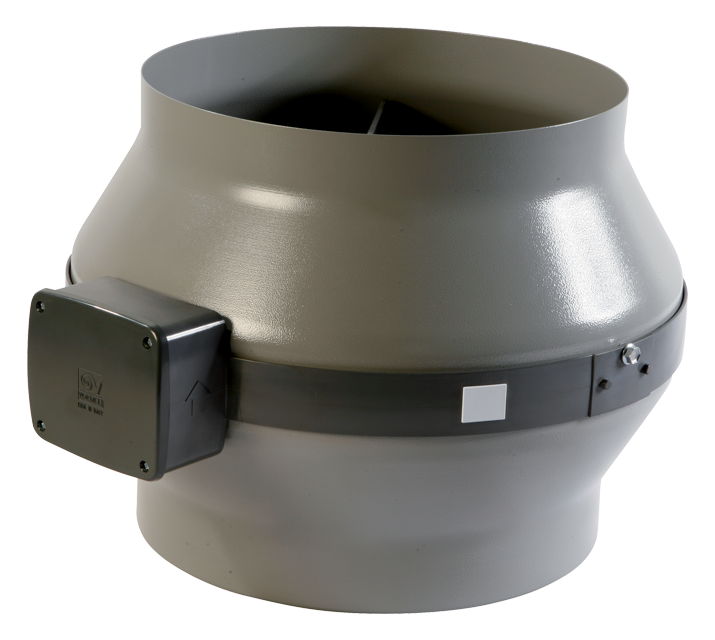

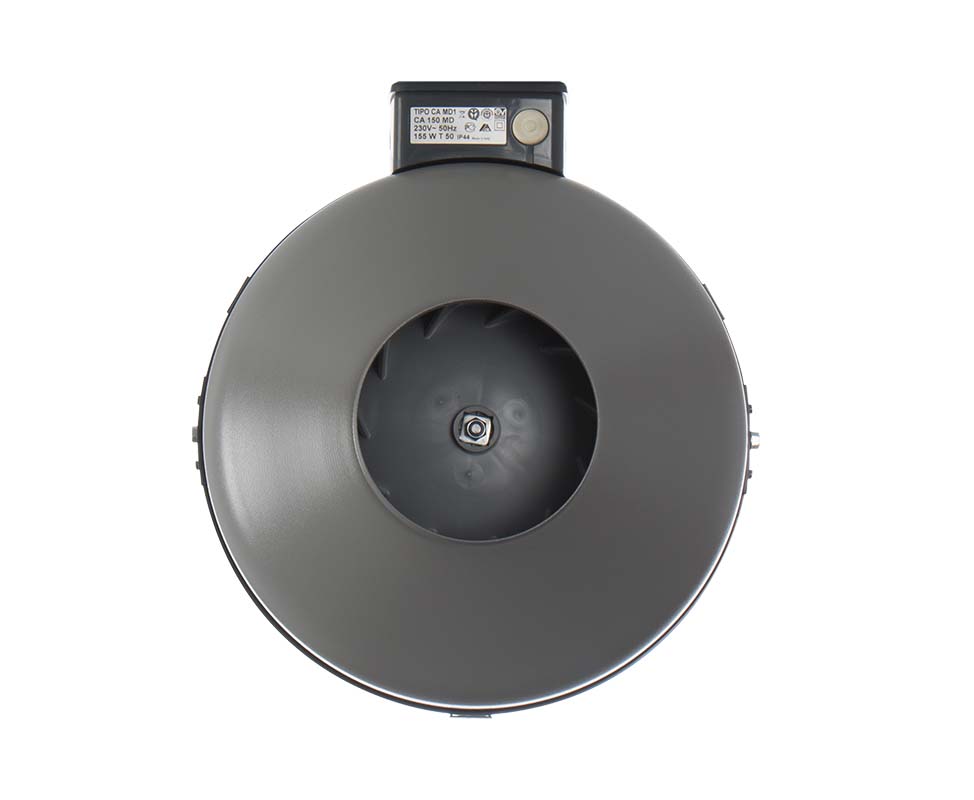

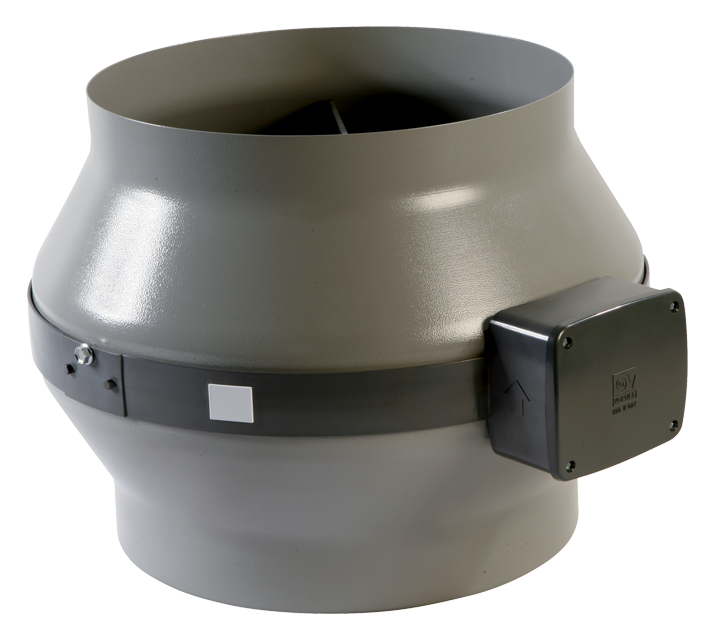

In-line centrifugal fans in metal

ca_md_01

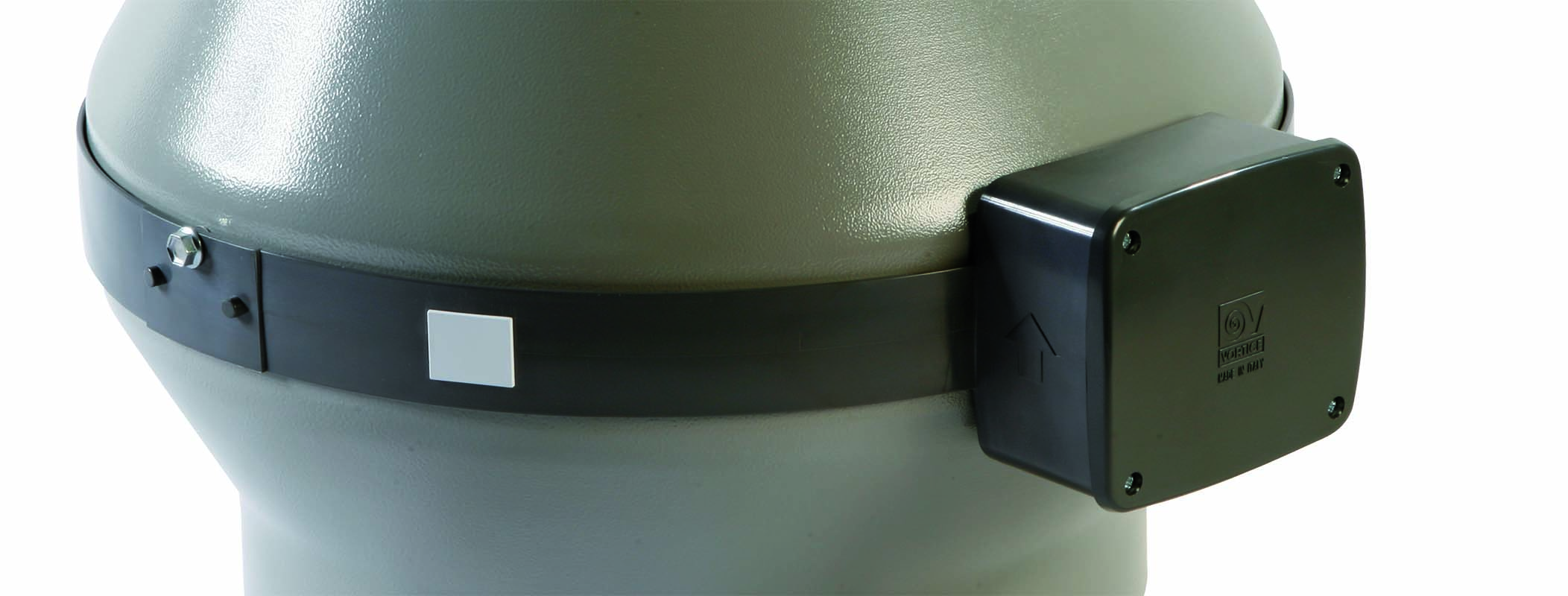

ca_md_02

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 315 mm.
• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
• Speed adjustable through Vortice speed control.
Read full descriptionClose description

Certifications

  • EAC EAC
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at Max speed (A)
    1,30
  • Max absorbed current at Min speed (A)
    0,90
  • Max absorbed power at Max speed (W)
    300
  • Max ambient temperature for continuous operation (°C)
    40
  • Nominal diameter (mm)
    315
  • Power absorbed at 1st speed (W)
    210
  • Voltage (V)
    220-240
  • Weight (Kg)
    11
  • Airflow at 1st speed (l/s)
    369,4
  • Airflow at 1st speed (m³/h)
    1330
  • Breakout sound power LWA at Max speed [dB (A)]
    65,2
  • Breakout sound power LWA at Min speed [dB (A)]
    57,5
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    44,6
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    36,9
  • Max airflow at Max speed (l/s)
    481,9
  • Max airflow at Max speed (m³/h)
    1735
  • Max pressure at Max speed (mmH20)
    68,5
  • Max pressure at Max speed (Pa)
    671,8
  • Max RPM
    2430
  • Min RPM
    1890
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    83,3
  • Pressure at 1st speed (mmH20)
    47,5
  • Pressure at 1st speed (Pa)
    465,8
  • Sound power at extract side at Max speed LWA [dB (A)]
    90,4
  • Sound power at extract side at Min speed LWA [dB (A)]
    83,3
  • Sound power at supply side at Max speed LWA [dB (A)]
    89,1
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    72,9
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    65,8
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    71,6
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    65,8
  • Size A (mm)
    406
  • Size B (mm)
    306
  • Size C (mm)
    458
  • Size D (mm)
    312
  • Size E (mm)
    21
  • Size F (mm)
    30
Curva_JPG_16157-Curve_per_Catalogo
