Code 16156

CA 250 MD

In-line centrifugal fans in metal

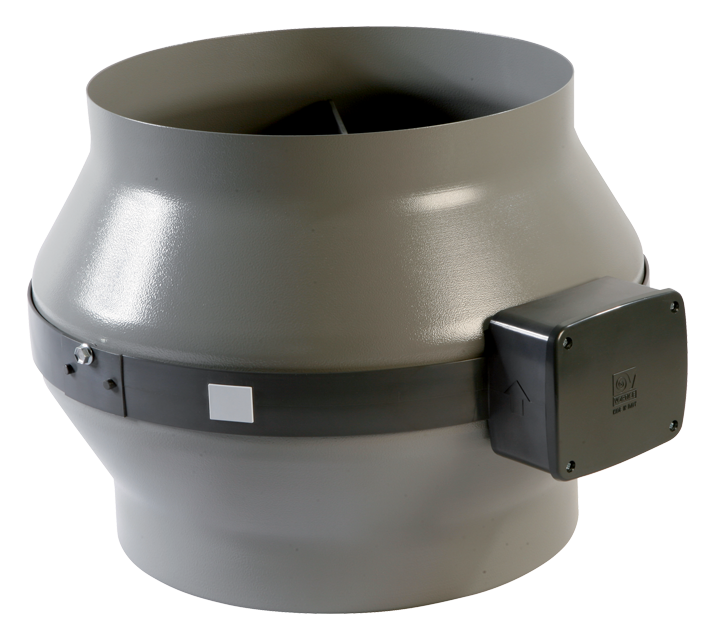

ca_md_01

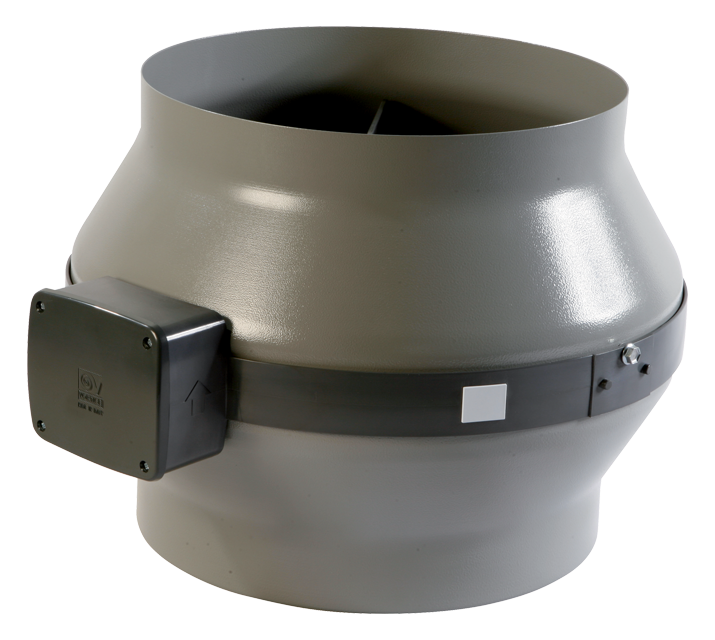

ca_md_02

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 250 mm.
• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
• Speed adjustable through Vortice speed control.
Read full descriptionClose description

Certifications

  • EAC EAC
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at Max speed (A)
    0,80
  • Max absorbed current at Min speed (A)
    0,60
  • Max absorbed power at Max speed (W)
    185
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    250
  • Power absorbed at 1st speed (W)
    140
  • Voltage (V)
    220-240
  • Weight (Kg)
    7,6
  • Airflow at 1st speed (l/s)
    254,2
  • Airflow at 1st speed (m³/h)
    915
  • Breakout sound power LWA at Max speed [dB (A)]
    63,8
  • Breakout sound power LWA at Min speed [dB (A)]
    56,5
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    43,3
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    36
  • Max airflow at Max speed (l/s)
    333,3
  • Max airflow at Max speed (m³/h)
    1200
  • Max pressure at Max speed (mmH20)
    59,5
  • Max pressure at Max speed (Pa)
    583,5
  • Max RPM
    2440
  • Min RPM
    1900
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    82,3
  • Pressure at 1st speed (mmH20)
    47
  • Pressure at 1st speed (Pa)
    460,9
  • Sound power at extract side at Max speed LWA [dB (A)]
    88,5
  • Sound power at extract side at Min speed LWA [dB (A)]
    81,2
  • Sound power at supply side at Max speed LWA [dB (A)]
    89,6
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    70,9
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    63,7
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    72,1
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    64,8
  • Size A (mm)
    347
  • Size B (mm)
    275
  • Size C (mm)
    394
  • Size D (mm)
    247
  • Size E (mm)
    38
  • Size F (mm)
    35
Curva_JPG_16156-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
Go to data sheet
C 2.5 (COMANDO EL. 2.5 A)
C 2.5 (COMANDO EL. 2.5 A)
• Electronic speed controller.
• Maximum load 2.5 A.
Go to data sheet
CA-MU (STAFFE DI SOSTEGNO)
CA-MU (STAFFE DI SOSTEGNO)
• Galvanized sheet-metal brackets for wall or ceiling mounting. Complete in packs of 2.
Go to data sheet
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
Go to data sheet
TRIO-CA
TRIO-CA
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
Go to data sheet
