Code 16155

CA 200 MD

In-line centrifugal fans in metal

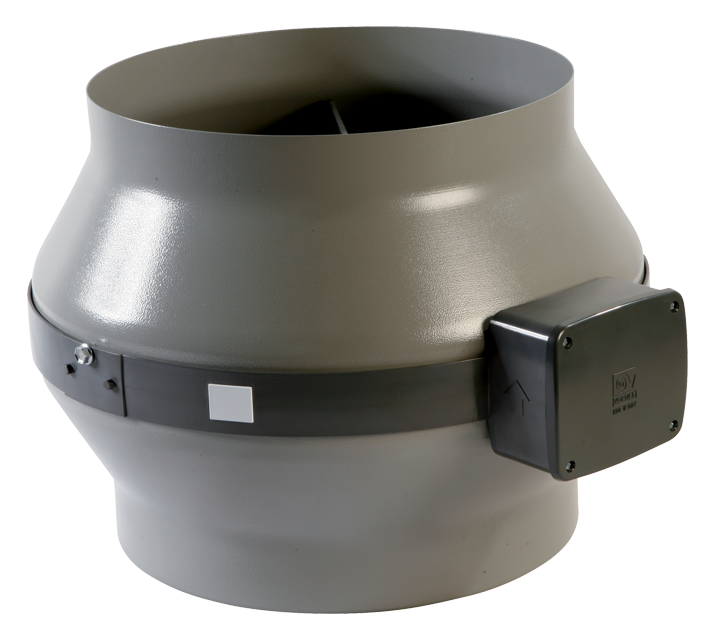

ca_md_01

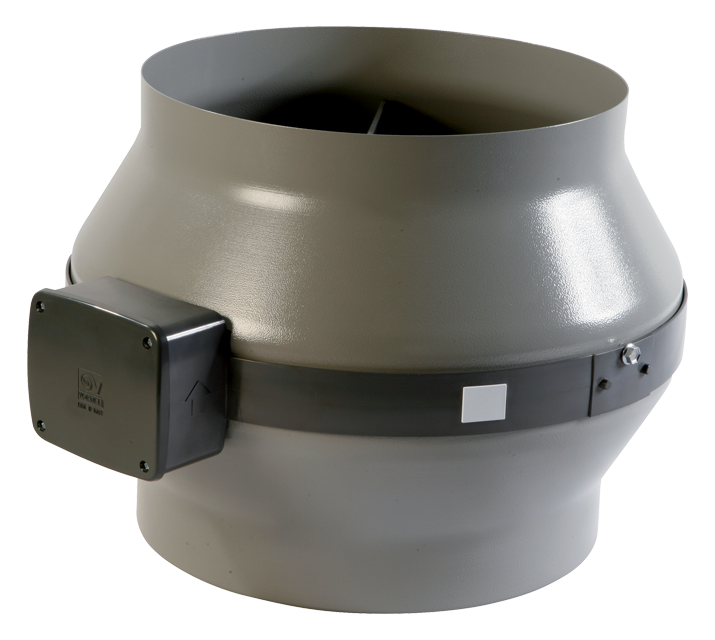

ca_md_02

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 200 mm.
• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• Speed adjustable through Vortice speed control.
Read full descriptionClose description

Certifications

  • EAC EAC
  • G-Mark G-Mark
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at Max speed (A)
    0,70
  • Max absorbed current at Min speed (A)
    0,60
  • Max absorbed power at Max speed (W)
    155
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    200
  • Power absorbed at 1st speed (W)
    115
  • Voltage (V)
    220-240
  • Weight (Kg)
    6
  • Airflow at 1st speed (l/s)
    228
  • Airflow at 1st speed (m³/h)
    820
  • Max airflow at Max speed (l/s)
    292
  • Max airflow at Max speed (m³/h)
    1050
  • Max pressure at Max speed (mmH20)
    48
  • Max pressure at Max speed (Pa)
    471
  • Max RPM
    2100
  • Min RPM
    1700
  • Pressure at 1st speed (mmH20)
    37
  • Pressure at 1st speed (Pa)
    363
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    43,8
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    49,6
  • Size A (mm)
    347
  • Size B (mm)
    275
  • Size C (mm)
    424
  • Size D (mm)
    197
  • Size E (mm)
    20
  • Size F (mm)
    17

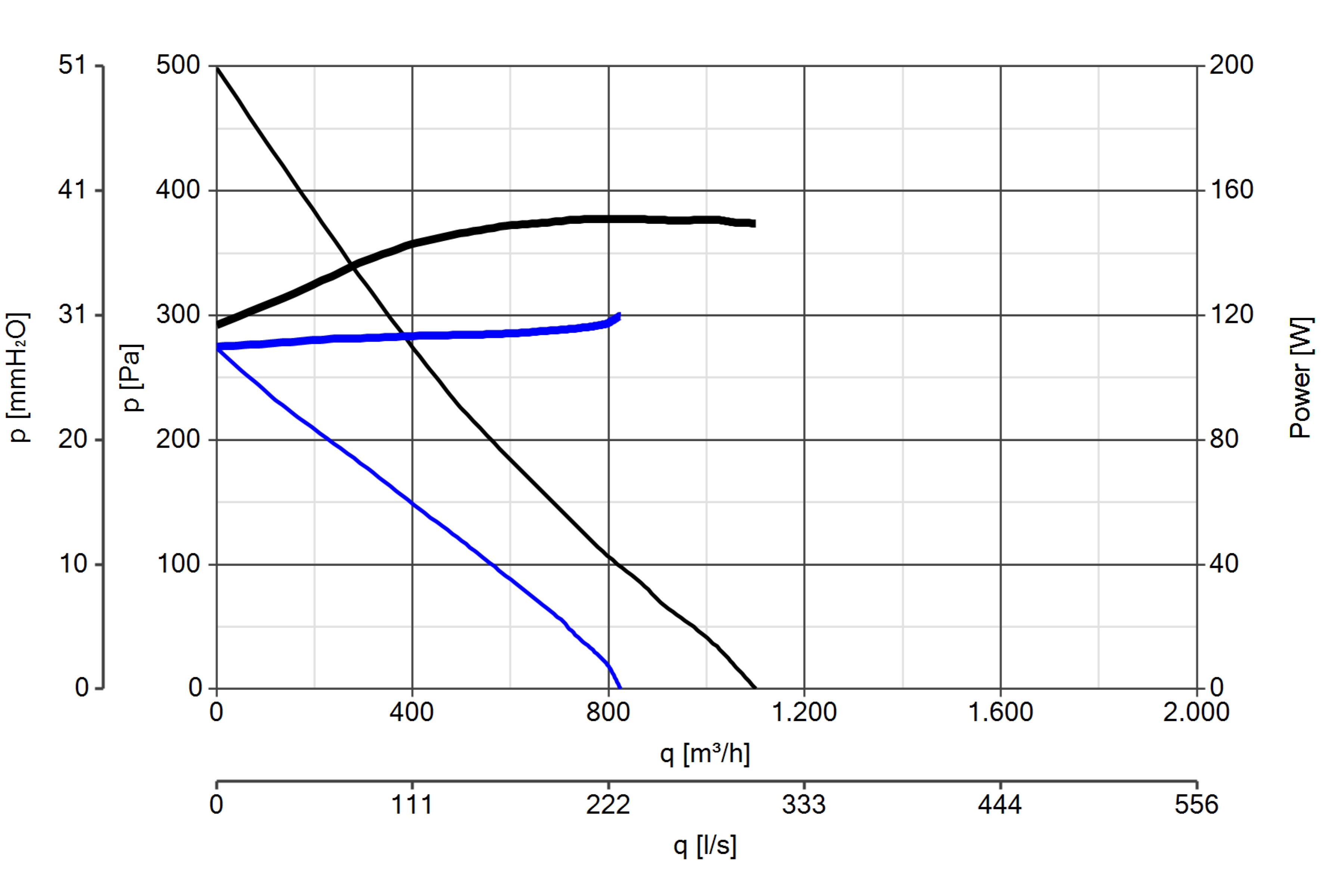

Curva_JPG_16155-Curve_per_Catalogo
