Code 16154

CA 160 MD

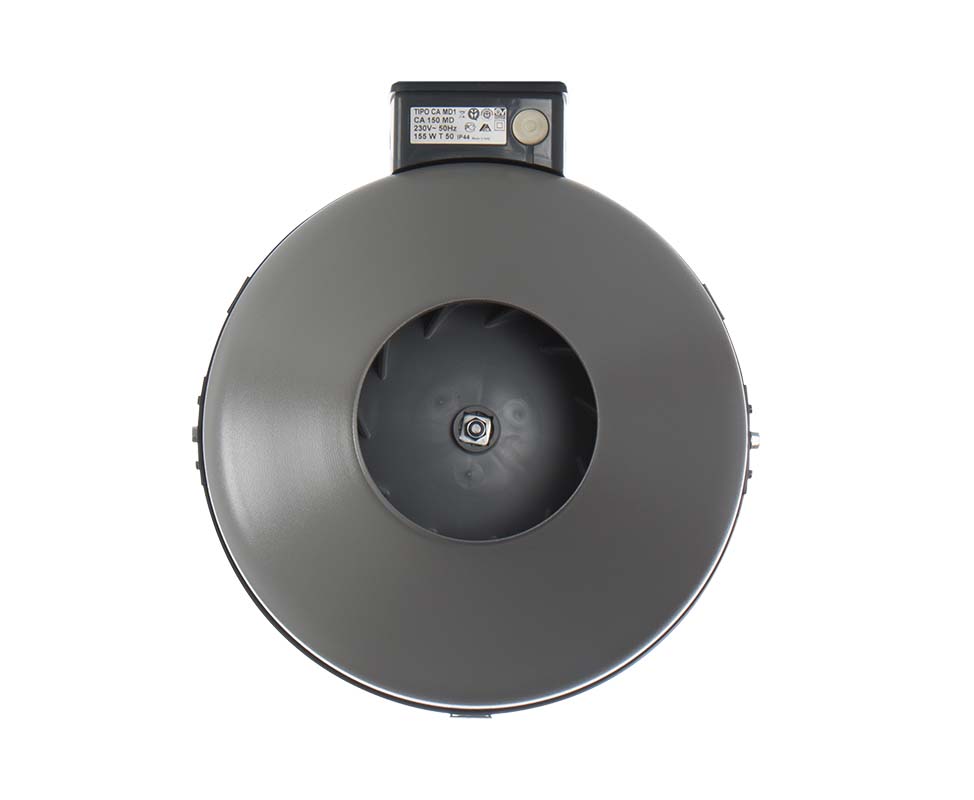

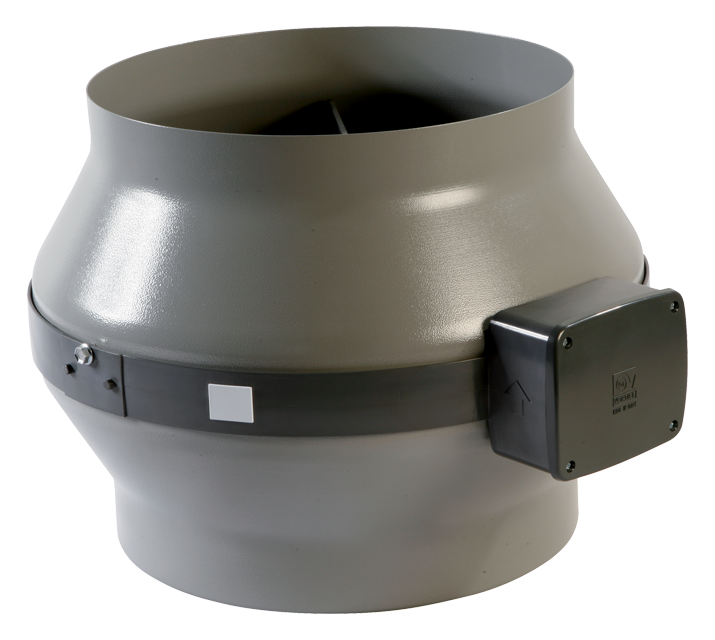

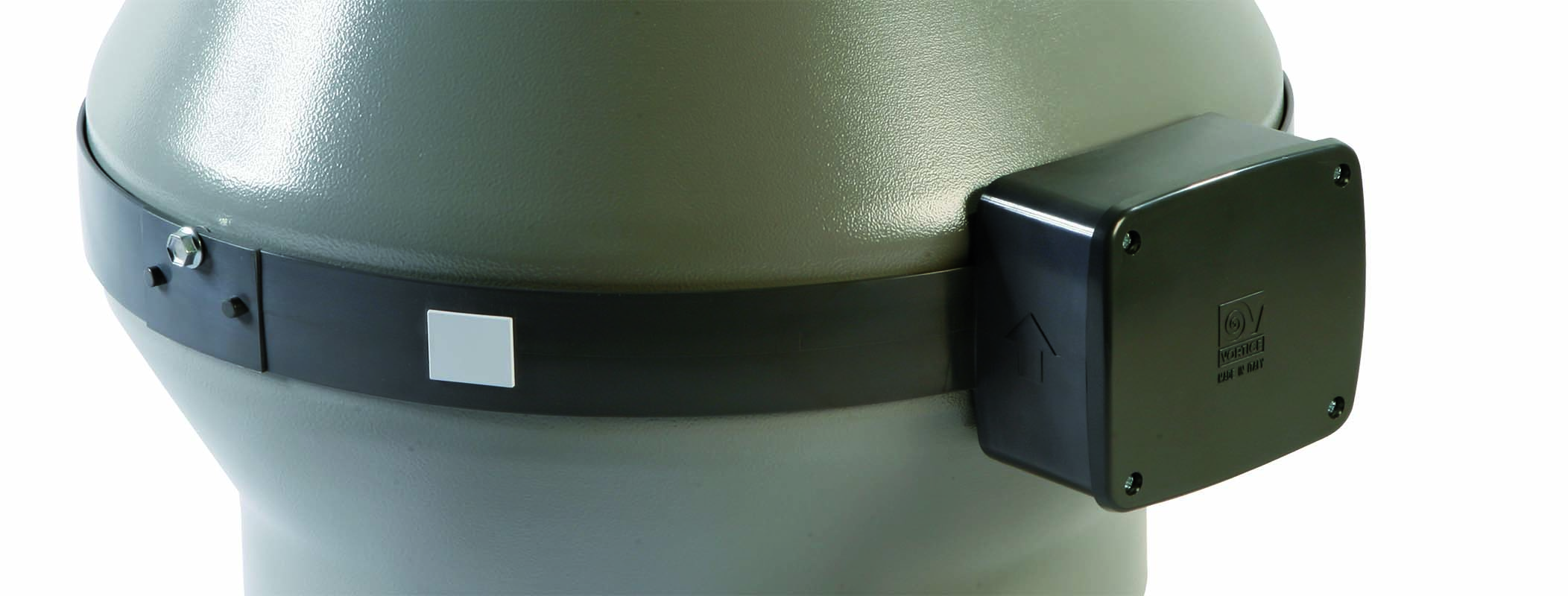

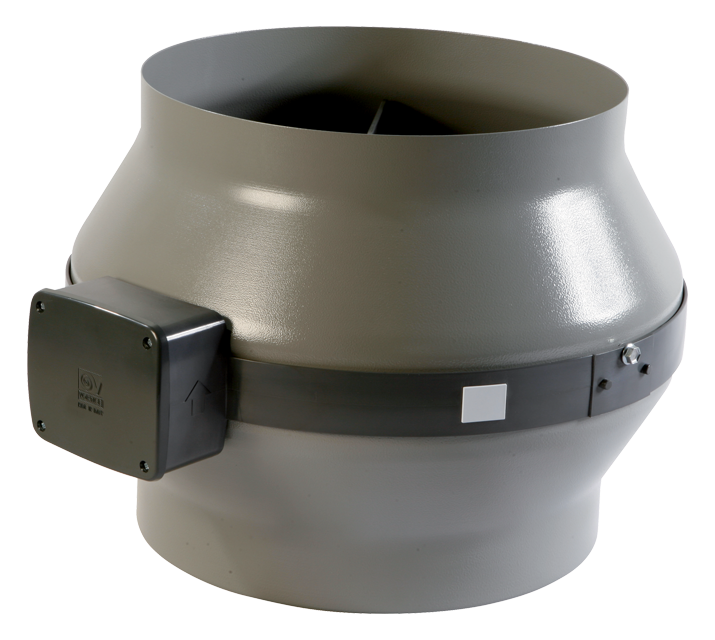

In-line centrifugal fans in metal

ca_md_01
ca_md_02

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 160 mm.
• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• Speed adjustable through Vortice speed control.
Read full descriptionClose description

Certifications

  • EAC EAC
  • G-Mark G-Mark
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at Max speed (A)
    0,70
  • Max absorbed current at Min speed (A)
    0,60
  • Max absorbed power at Max speed (W)
    155
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    160
  • Power absorbed at 1st speed (W)
    115
  • Voltage (V)
    220-240
  • Weight (Kg)
    6,3
  • Airflow at 1st speed (l/s)
    178
  • Airflow at 1st speed (m³/h)
    640
  • Max airflow at Max speed (l/s)
    228
  • Max airflow at Max speed (m³/h)
    840
  • Max pressure at Max speed (mmH20)
    50
  • Max pressure at Max speed (Pa)
    491
  • Max RPM
    2080
  • Min RPM
    1654
  • Pressure at 1st speed (mmH20)
    41
  • Pressure at 1st speed (Pa)
    402
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    40,7
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    47,4
  • Size A (mm)
    347
  • Size B (mm)
    275
  • Size C (mm)
    424
  • Size D (mm)
    157
  • Size E (mm)
    18
  • Size F (mm)
    18
Curva_JPG_16154-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
Go to data sheet
C 2.5 (COMANDO EL. 2.5 A)
C 2.5 (COMANDO EL. 2.5 A)
• Electronic speed controller.
• Maximum load 2.5 A.
Go to data sheet
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
Go to data sheet
CA-MU (STAFFE DI SOSTEGNO)
CA-MU (STAFFE DI SOSTEGNO)
• Galvanized sheet-metal brackets for wall or ceiling mounting. Complete in packs of 2.
Go to data sheet
TRIO-CA
TRIO-CA
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
Go to data sheet
