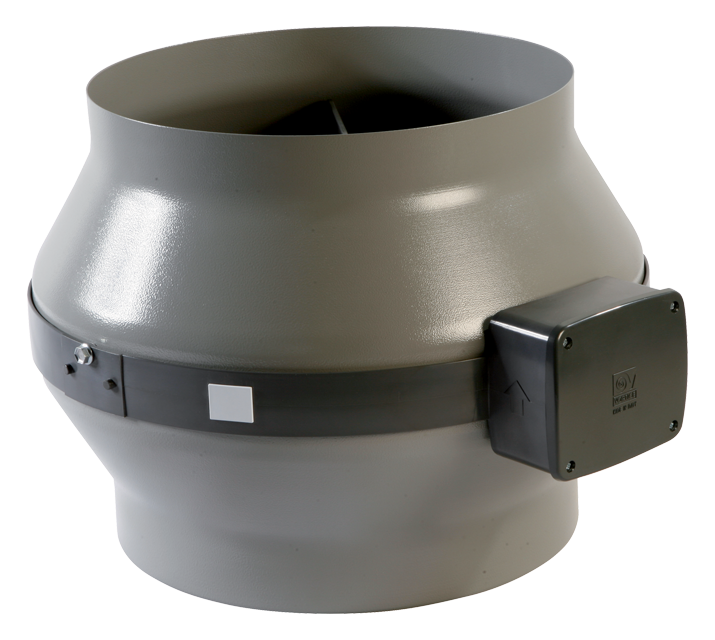

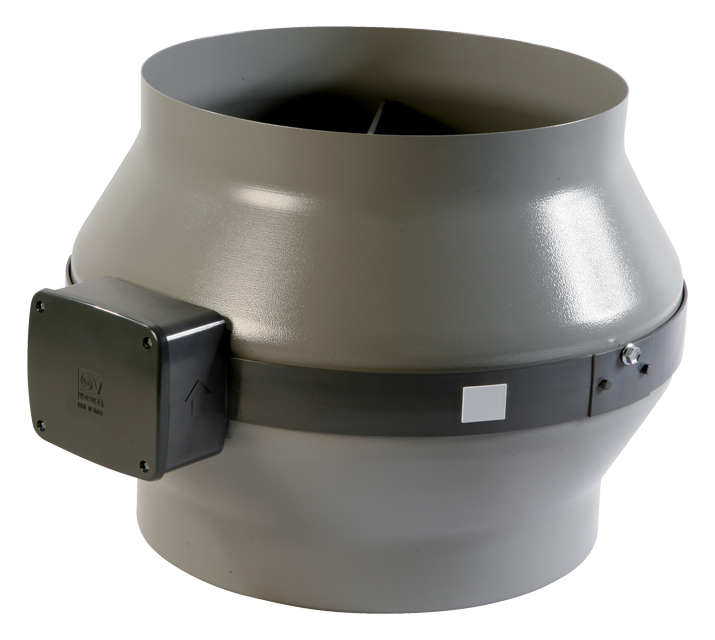

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 125 mm.

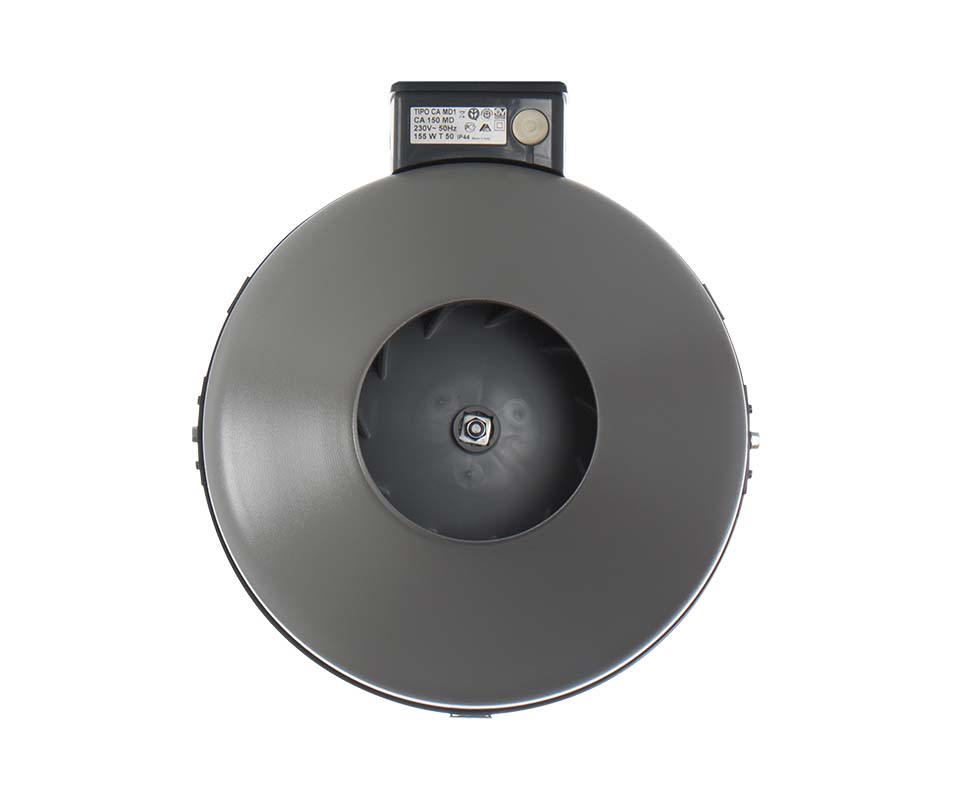

• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
• Speed adjustable through Vortice speed control.
Read full descriptionClose description

Certifications

  • EAC EAC
  • G-Mark G-Mark
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_e_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at Max speed (A)
    0,40
  • Max absorbed current at Min speed (A)
    0,30
  • Max absorbed Power at 60 Hz (W)
    100
  • Max absorbed power at Max speed (W)
    85
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    125
  • Power absorbed at 1st speed (W)
    60
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,00
  • Airflow at 1st speed (l/s)
    78
  • Airflow at 1st speed (m³/h)
    280
  • Max airflow at Max speed (l/s)
    125
  • Max airflow at Max speed (m³/h)
    450
  • Max pressure at Max speed (mmH20)
    37
  • Max pressure at Max speed (Pa)
    363
  • Max RPM
    2380
  • Min RPM
    1580
  • Pressure at 1st speed (mmH20)
    27
  • Pressure at 1st speed (Pa)
    265
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    30,8
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    45,9


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

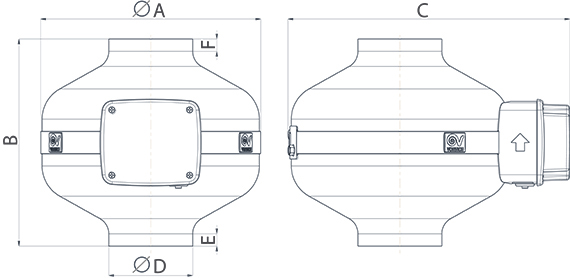

  • Size A (mm)
    255
  • Size B (mm)
    239
  • Size C (mm)
    300
  • Size D (mm)
    122
  • Size E (mm)
    23
  • Size F (mm)
    23
quota

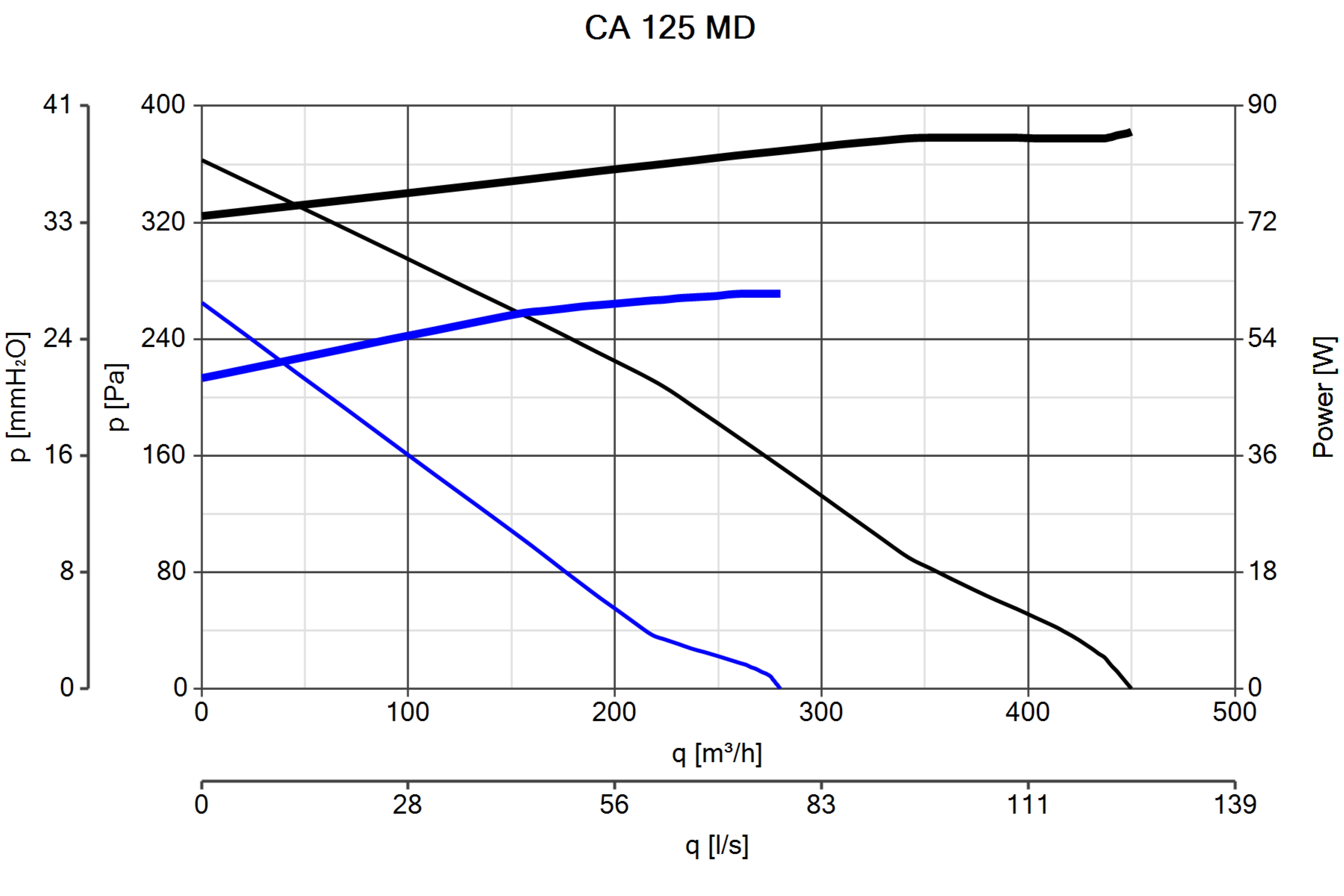

Curva_JPG_16108-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
CA-MU  (STAFFE DI SOSTEGNO)
CA-MU (STAFFE DI SOSTEGNO)
• Galvanized sheet-metal brackets for wall or ceiling mounting. Complete in packs of 2.
C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
C 2.5 (COMANDO EL. 2.5 A)
C 2.5 (COMANDO EL. 2.5 A)
• Electronic speed controller.
• Maximum load 2.5 A.
TRIO-CA
TRIO-CA
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
