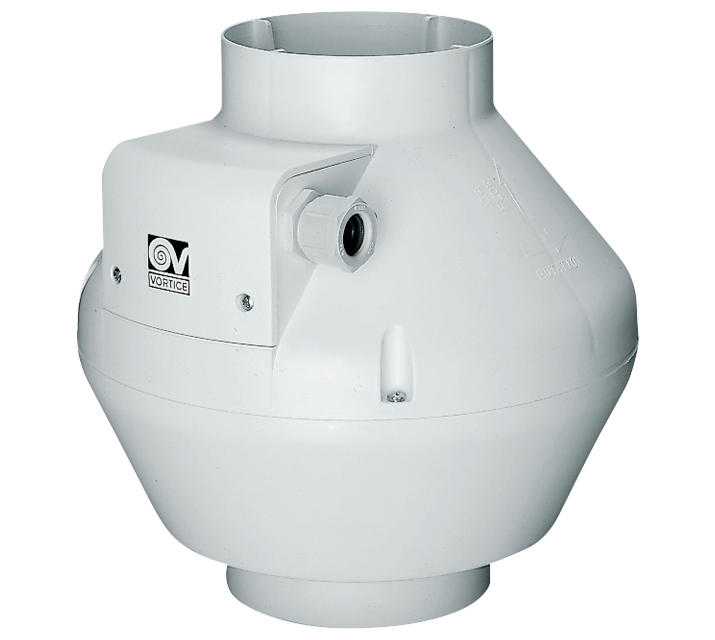

Description

• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 125 mm.

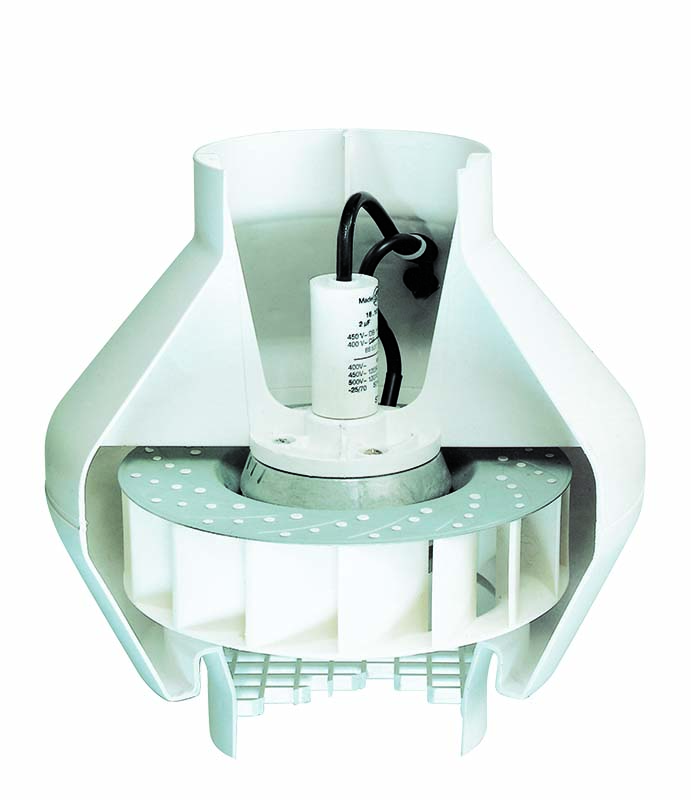

• 1 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.

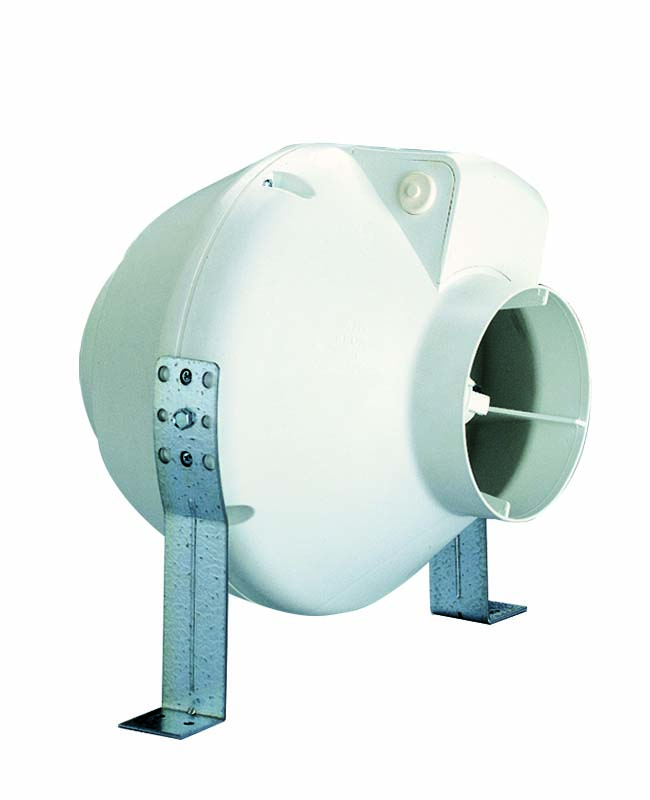

• Zinc-coated steel brackets for wall mounting.
• Speed adjustable through Vortice speed controllers.
Read full descriptionClose description

Certifications

  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_e_ambiente01
ca_V0_e_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,35
  • Max absorbed power (W)
    100
  • Max absorbed Power at 60 Hz (W)
    100
  • Max ambient temperature for continuous operation (°C)
    50
  • Max room temperature for continuous operation at 60 Hz (°C)
    50
  • Nominal diameter (mm)
    200
  • Ø Discharge hole (mm)
    197
  • Voltage (V)
    220-240
  • Weight (Kg)
    4,1
  • Max airflow (l/s)
    194,4
  • Max airflow (m³/h)
    700
  • Max pressure (mmH2O)
    37
  • Max pressure (Pa)
    363
  • RPM
    2290
  • Sound pressure Lp [dB (A)] at 3 m
    59


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

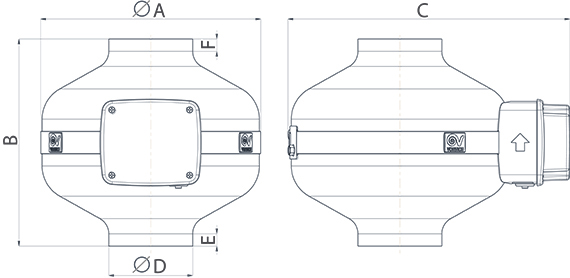

  • Size A (mm)
    340
  • Size B (mm)
    280
  • Size C (mm)
    340
  • Size D (mm)
    197
  • Size E (mm)
    40
  • Size F (mm)
    30
  • Size G (mm)
    390
quota

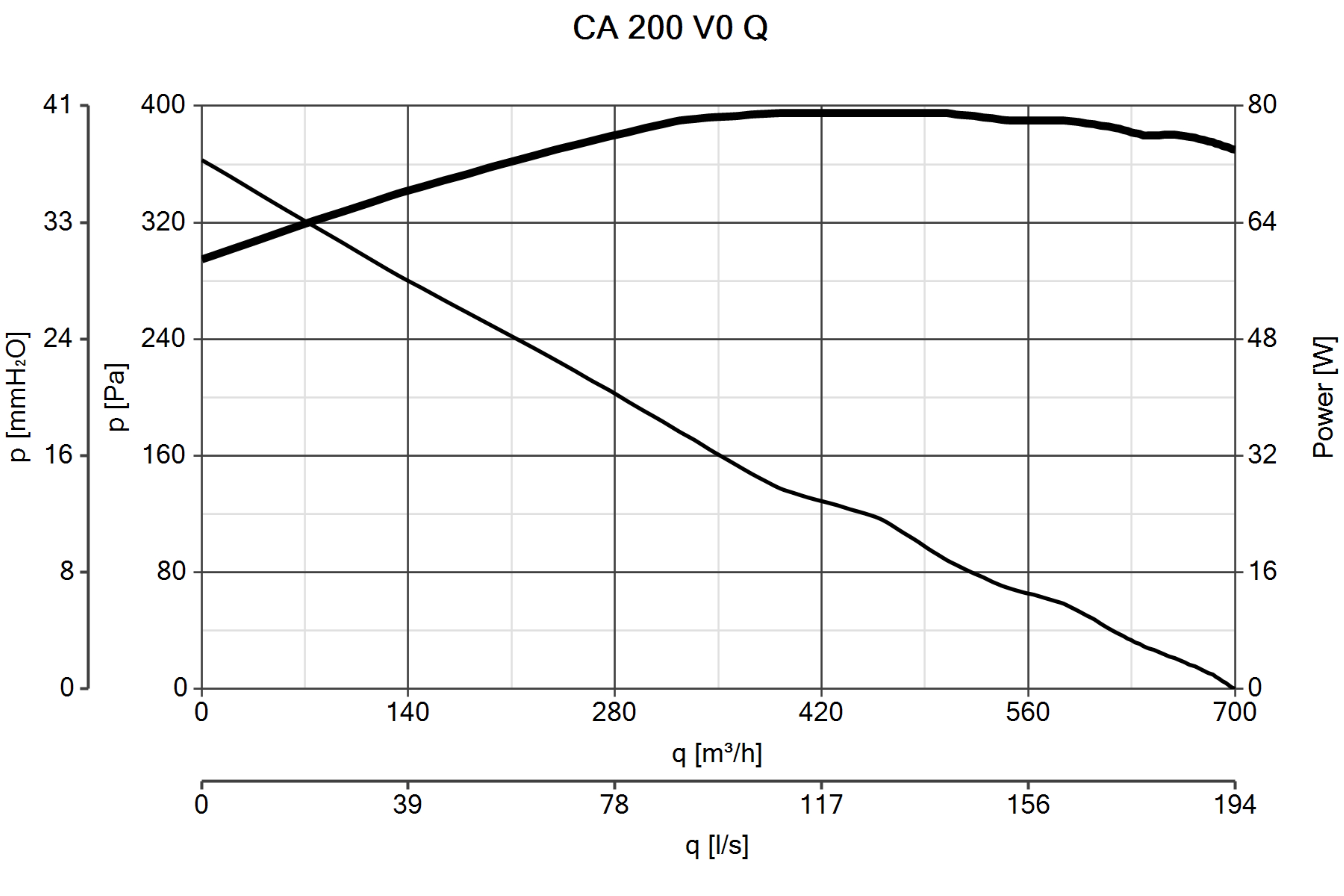

Curva_JPG_16064-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

TRIO-CA
TRIO-CA
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
C 2.5 (COMANDO EL. 2.5 A)
C 2.5 (COMANDO EL. 2.5 A)
• Electronic speed controller.
• Maximum load 2.5 A.
