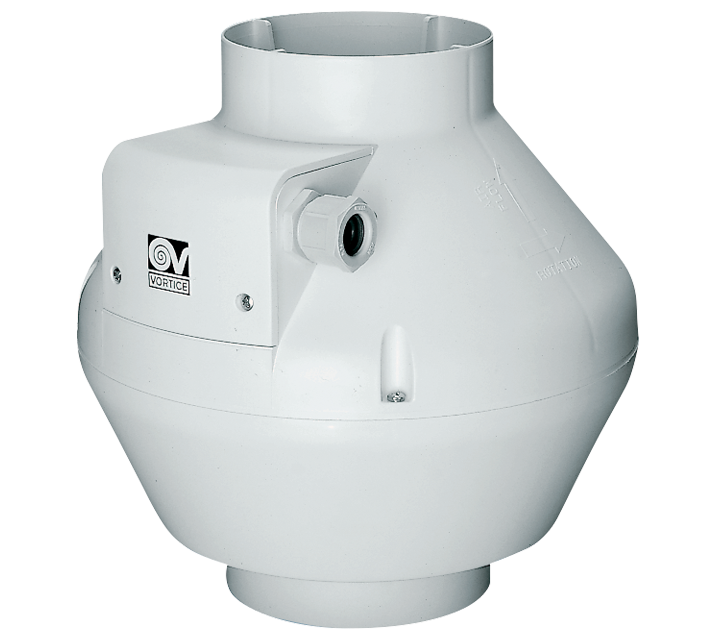

CA 150 V0 D

Description

• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 150 mm.

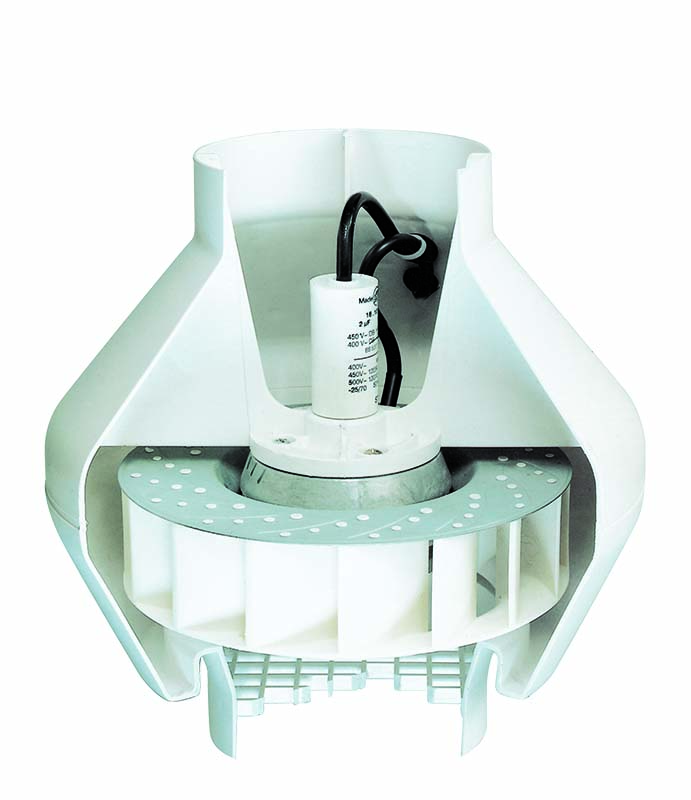

• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.

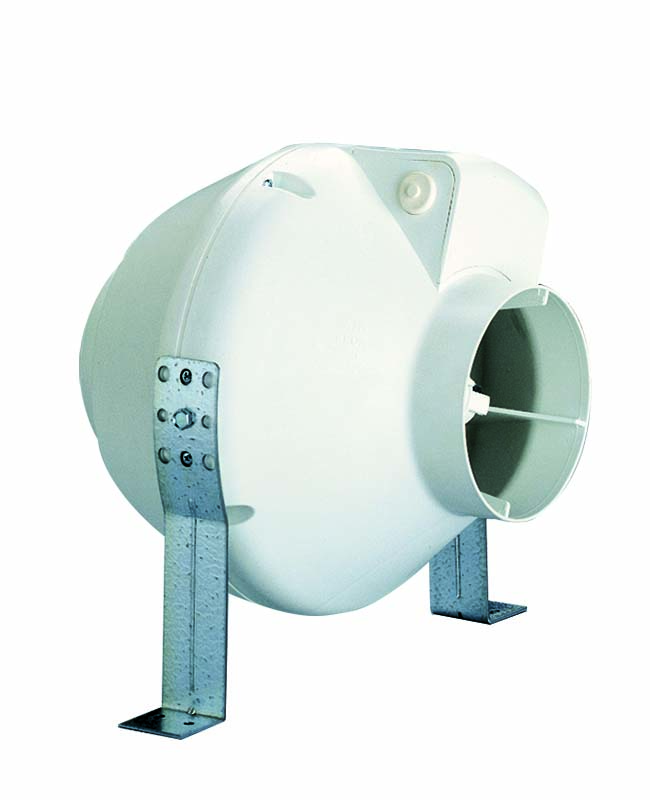

• Zinc-coated steel brackets for wall mounting.

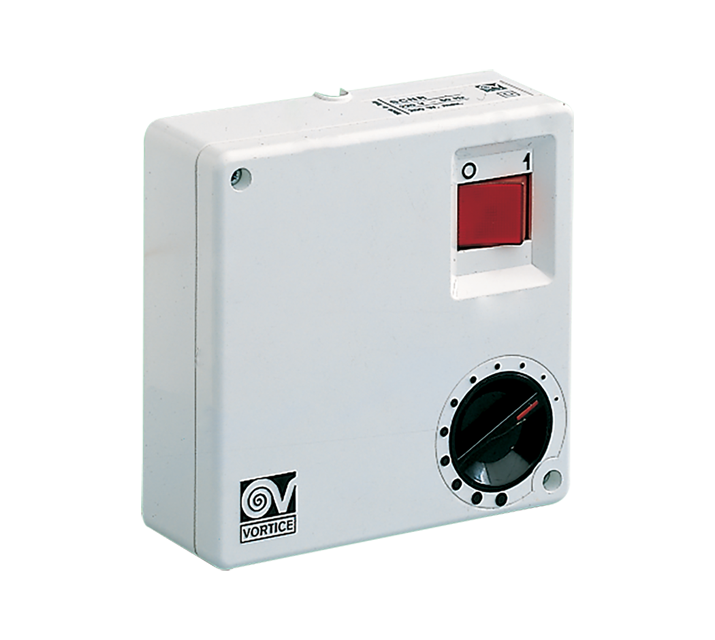

• Speed adjustable through Vortice speed controllers.

Read full descriptionClose description

Certifications

G-Mark
CB TEST CERTIFICATE

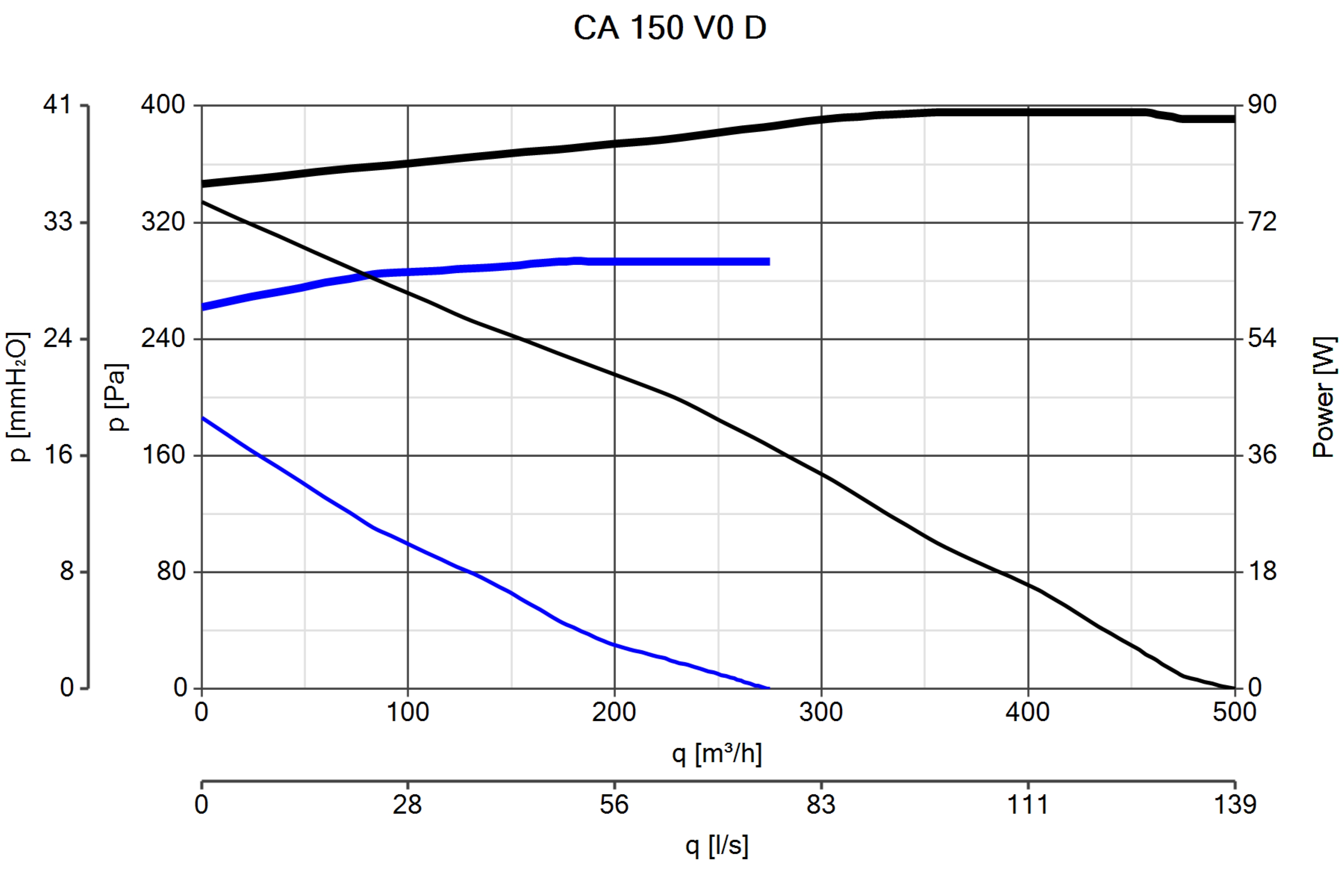

Technical Data Sheet

Frequency (Hz)

50-60
Insulation class

II°
IP

X4
Max absorbed current (A)

0,41
Max absorbed current at Max speed (A)

0,41
Max absorbed current at Min speed (A)

0,34
Max absorbed power (W)

85
Max absorbed Power at 60 Hz (W)

105
Max ambient temperature for continuous operation (°C)

50

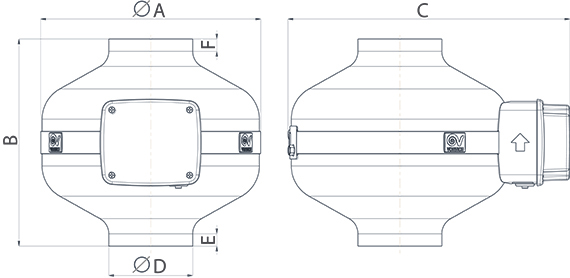

Nominal diameter (mm)

150
Ø Discharge hole (mm)

147
Power absorbed at 1st speed (W)

70
Voltage (V)

220-240

Weight (Kg)

2,6
Airflow at 1st speed (l/s)

77,8
Airflow at 1st speed (m³/h)

280
Max airflow at Max speed (l/s)

138,9
Max airflow at Max speed (m³/h)

500
Max pressure at Max speed (mmH20)

34
Max pressure at Max speed (Pa)

333
Max RPM

2390
Min RPM

1400
Pressure at 1st speed (mmH20)

20
Pressure at 1st speed (Pa)

196
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

44
Sound pressure at 3m at Max speed Lp [dB (A)]

56

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
