In-line centrifugal fans in self-extinguishing plastic

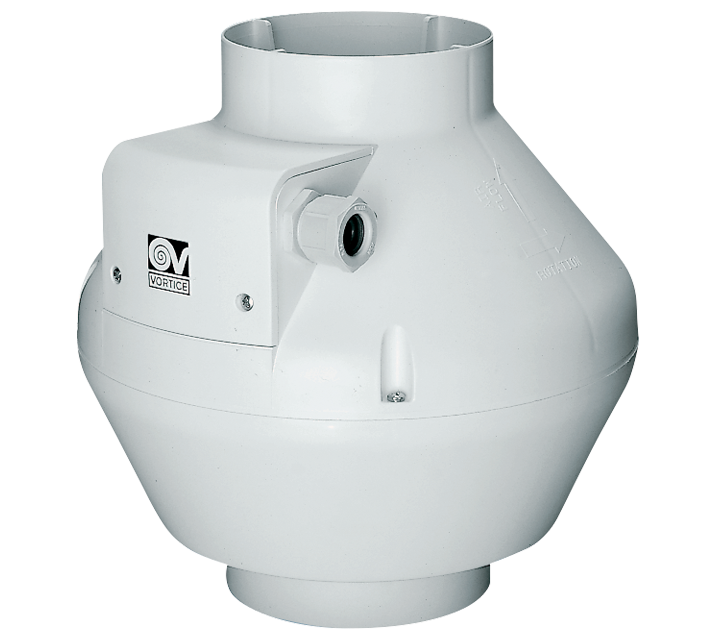

ca_V0_e_01

Description

• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 250 mm.
• 3 speed fan consisting of:

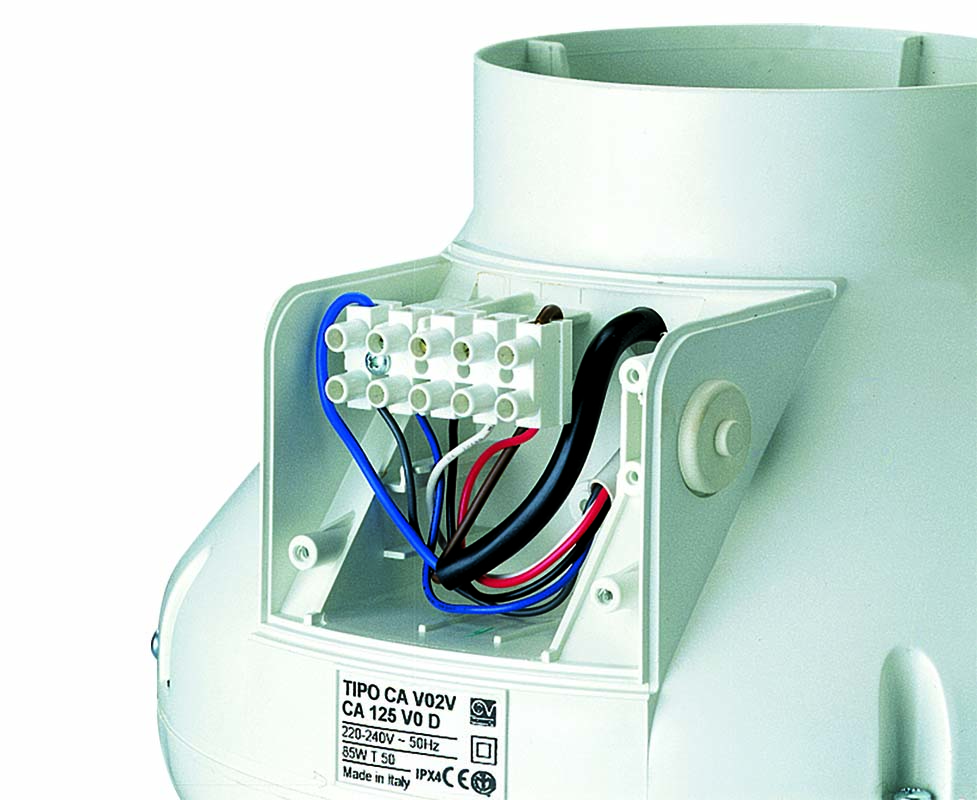

• AC motor with thermal overload cutout and shaft turning in ball bearings,

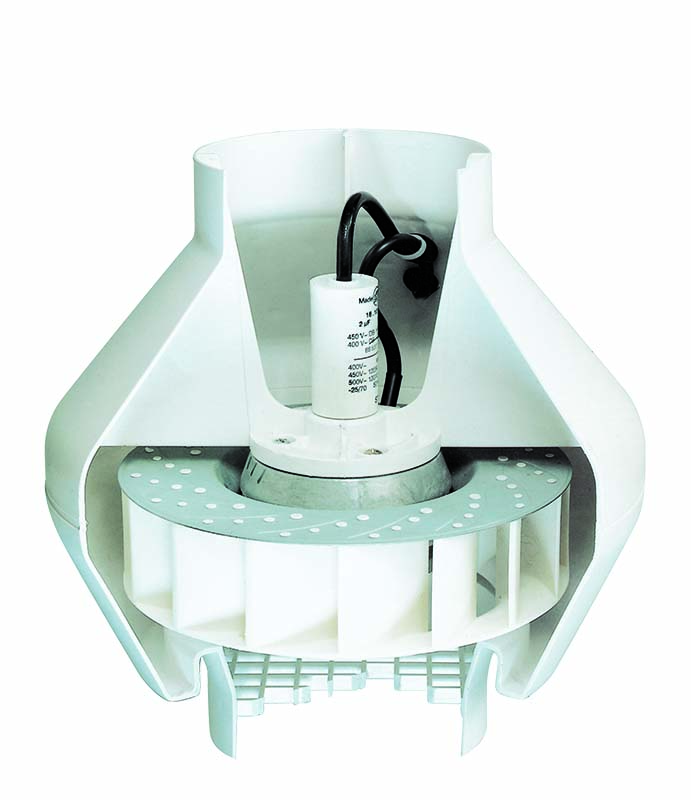

• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.

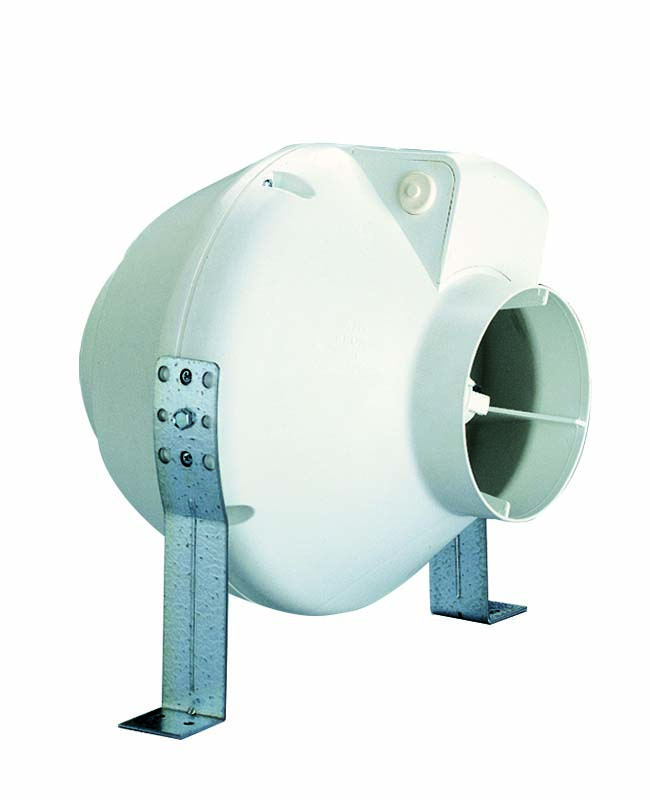

• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

ca_V0_e_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,43
  • Max absorbed current at Max speed (A)
    0,45
  • Max absorbed current at Max speed at 60 Hz (A)
    0,54
  • Max absorbed current at Mid speed (A)
    0,41
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,48
  • Max absorbed current at Min speed (A)
    0,38
  • Max absorbed power at Max speed (W)
    90
  • Max absorbed power at Max speed at 60 Hz (W)
    120
  • Max absorbed power at Mid speed (W)
    66
  • Max absorbed power at Mid speed at 60 Hz (W)
    77
  • Max absorbed power at Min speed at 60 Hz (W)
    60
  • Max ambient temperature for continuous operation (°C)
    45
  • Nominal diameter (mm)
    250
  • Ø Discharge hole (mm)
    245
  • Power absorbed at 1st speed (W)
    50
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,7
  • Airflow at 1st speed (l/s)
    129,2
  • Airflow at 1st speed (m³/h)
    465
  • Breakout sound power LWA at Max speed [dB (A)]
    60,5
  • Breakout sound power LWA at Mid speed [dB (A)]
    55,8
  • Breakout sound power LWA at Min speed [dB (A)]
    49,1
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    39,9
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    35,3
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    28,6
  • Max airflow at Max speed (l/s)
    223,6
  • Max airflow at Max speed (m³/h)
    805
  • Max airflow at Max speed at 60 Hz (l/s)
    243,1
  • Max airflow at Max speed at 60 Hz (m³/h)
    875
  • Max airflow at Mid speed (m³/h)
    655
  • Max airflow at Mid speed at 60 Hz (l/s)
    166,6
  • Max airflow at Mid speed at 60 Hz (m³/h)
    600
  • Max airflow at Min speed (l/s)
    181,9
  • Max airflow at Min speed at 60 Hz (l/s)
    131,9
  • Max airflow at Min speed at 60 Hz (m³/h)
    475
  • Max pressure at 60 Hz (mmH2O)
    46,7
  • Max pressure at Max speed (mmH20)
    37,1
  • Max pressure at Max speed (Pa)
    363,8
  • Max pressure at Max speed at 60Hz (Pa)
    458
  • Max pressure at Mid speed (mmH2O)
    32,9
  • Max pressure at Mid speed (Pa)
    322,6
  • Max pressure at Mid speed at 60Hz (mmH2O)
    26,3
  • Max pressure at Mid speed at 60Hz (Pa)
    257,9
  • Max pressure at Min speed at 60Hz (mmH2O)
    18,1
  • Max pressure at Min speed at 60Hz (Pa)
    177,5
  • Max RPM
    2550
  • Max speed at 60 Hz (Rpm)
    2790
  • Mid speed at 60 Hz (Rpm)
    1870
  • Min RPM
    1650
  • Min speed at 60 Hz (Rpm)
    1630
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    58,5
  • Pressure at 1st speed (mmH20)
    19,8
  • Pressure at 1st speed (Pa)
    194,2
  • RPM at Mid speed
    1970
  • Sound power at extract side at Max speed LWA [dB (A)]
    68,5
  • Sound power at extract side at Mid speed LWA [dB (A)]
    63,5
  • Sound power at extract side at Min speed LWA [dB (A)]
    56,4
  • Sound power at supply side at Max speed LWA [dB (A)]
    71,2
  • Sound power at supply side at Mid speed LWA [dB (A)]
    66,1
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    51
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    45,9
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    38,9
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    53,7
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    48,6
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    41


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Supplier's name or trade mark
    Vortice
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • AEC annual electric energy consuption (kWh of primary energy/y)
    522,72
  • SFPint (W/m3/s)
    228,98
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • Heat recovery nominal efficiency (%)
    NA
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,13056
  • ([m3/s)
    0,2227
  • Real absorbed electric power (KW)
    0,095
  • Effective electic power input [kW]
    0,106
  • Face velocity at nominal airflow (m/s)
    4,5383
  • Face velocity at nominal flowrate (m/s)
    2,6596
  • Nominal external pressure (Pa)
    83
  • Nominal external pressure (Pa)
    58
  • Inner pressure drop of ventilation components (Pa)
    67
  • Internal pressure drop of ventilation components (Pa)
    150
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    29,3
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    28,7
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    2,3
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    0,5
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    73
  • Casing sound power level (LWA) [dB(A)]
    61
  • Size A (mm)
    340
  • Size B (mm)
    305
  • Size C (mm)
    340
  • Size D (mm)
    247
  • Size E (mm)
    60
  • Size F (mm)
    30
  • Size G (mm)
    390

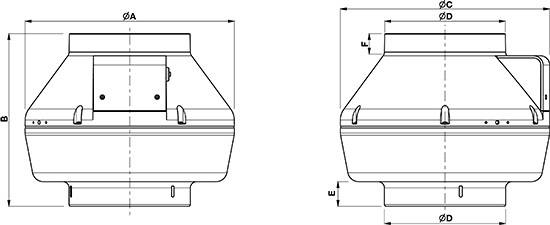

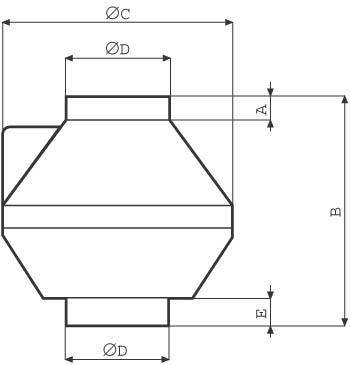

quota

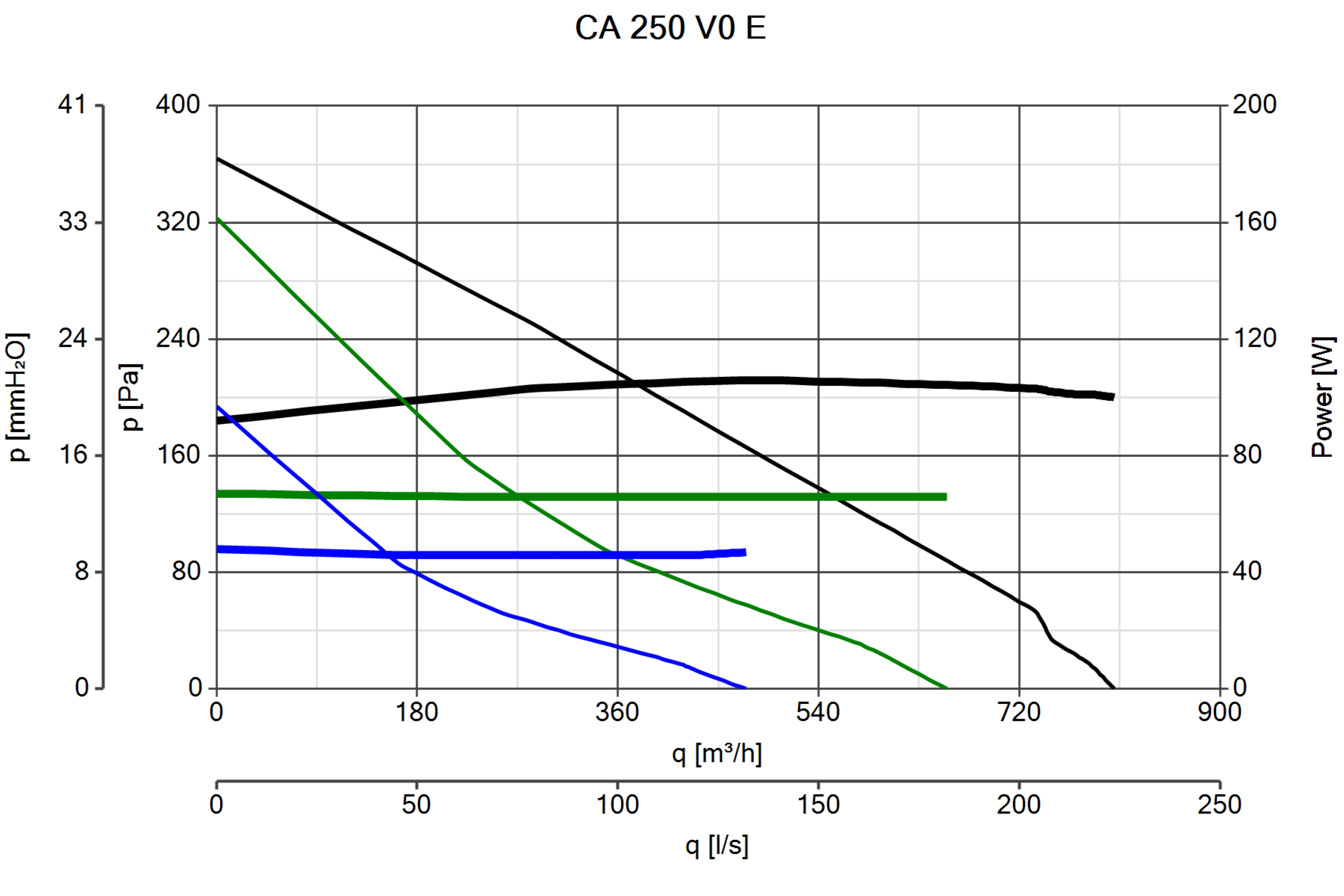

Curva_JPG_16039-Curve_per_Catalogo
