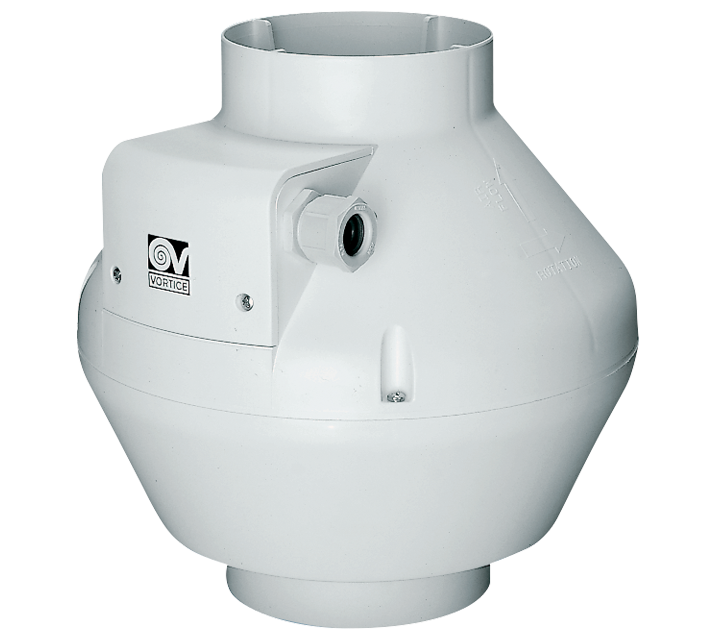

CA 150 V0 D

In-line centrifugal fans in self-extinguishing plastic

Description
Certifications
Technical Data Sheet
Accessories

other images

Description

• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 150 mm.
• 3 speed fan consisting of:

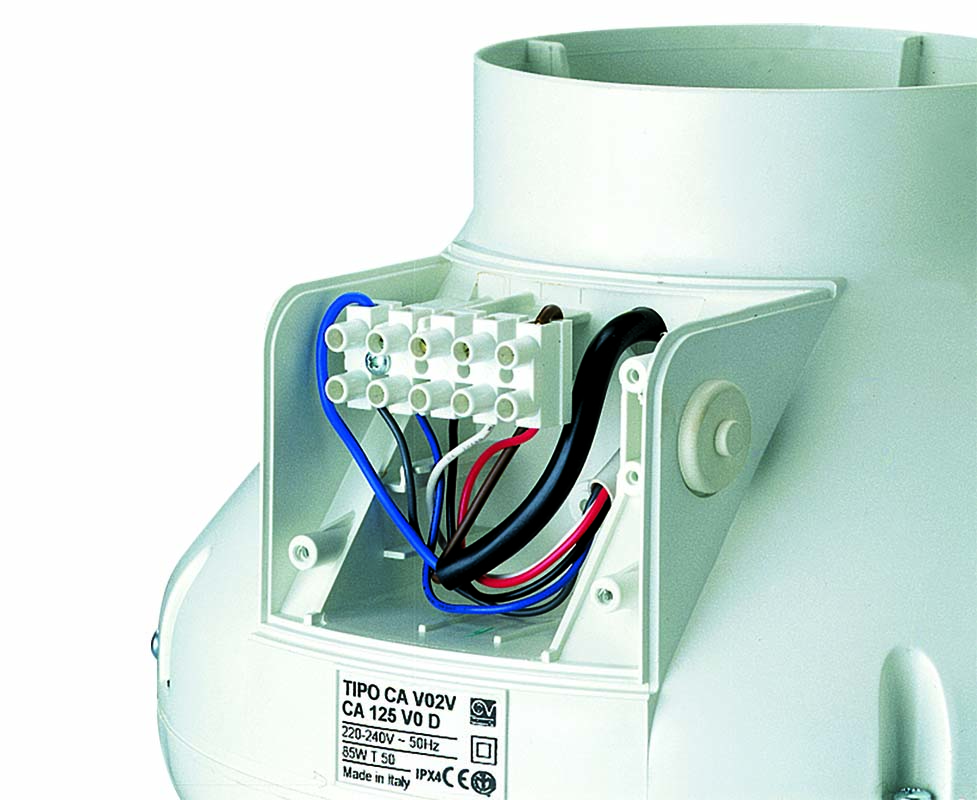

• AC motor with thermal overload cutout and shaft turning in ball bearings,

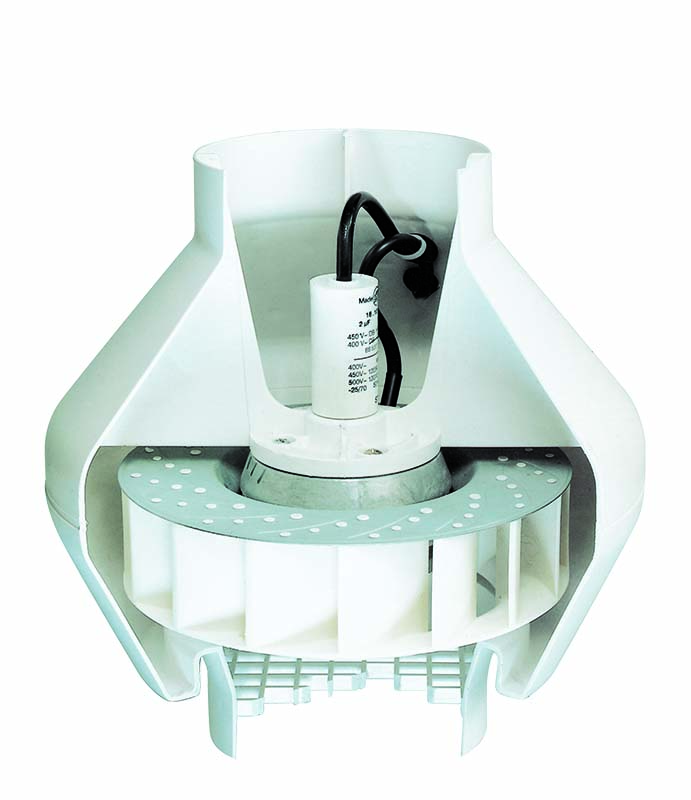

• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.

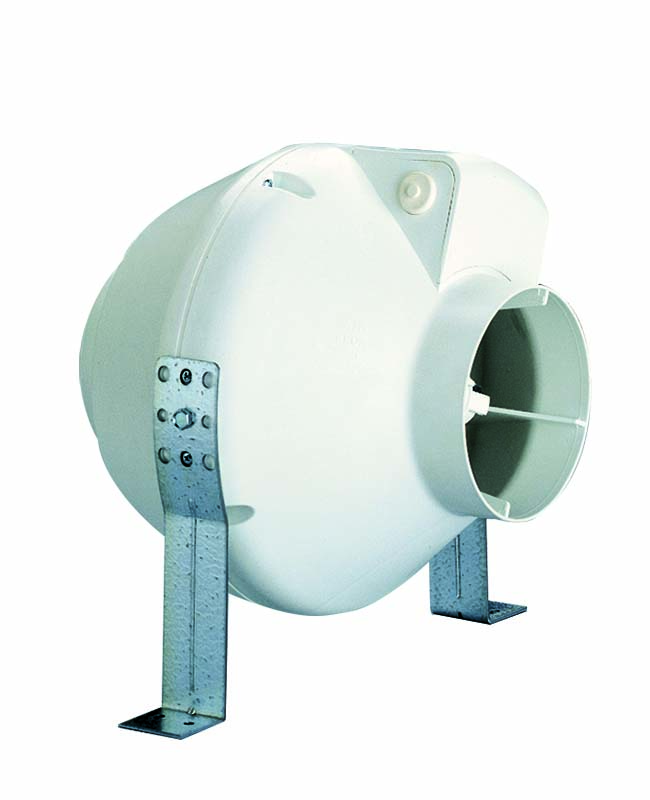

• Zinc-coated steel brackets for wall mounting.

Read full descriptionClose description

Certifications

CE
Download
C Tick Mark
EAC
UKCA
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50-60
Insulation class

II°
IP

X4
Max absorbed current at maMinx speed at 60 Hz (A)

0,17
Max absorbed current at Max speed (A)

0,22
Max absorbed current at Max speed at 60 Hz (A)

0,26
Max absorbed current at Mid speed (A)

0,21
Max absorbed current at Mid speed at 60 Hz (A)

0,24
Max absorbed current at Min speed (A)

0,14
Max absorbed power at Max speed (W)

43
Max absorbed power at Max speed at 60 Hz (W)

46
Max absorbed power at Mid speed (W)

30
Max absorbed power at Mid speed at 60 Hz (W)

35
Max absorbed power at Min speed at 60 Hz (W)

16
Max ambient temperature for continuous operation (°C)

50

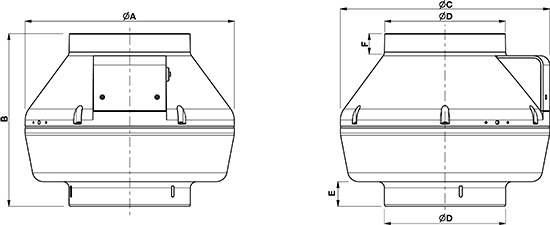

Nominal diameter (mm)

150
Ø Discharge hole (mm)

147
Power absorbed at 1st speed (W)

13
Voltage (V)

220-240
Weight (Kg)

2,6
Airflow at 1st speed (l/s)

44
Airflow at 1st speed (m³/h)

160
Breakout sound power at Max speed at 60 Hz LWA [dB (A)]

53,9
Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]

49,3
Breakout sound power at Min speed at 60 Hz LWA [dB (A)]

36,2
Breakout sound power LWA at Max speed [dB (A)]

56
Breakout sound power LWA at Mid speed [dB (A)]

50,8
Breakout sound power LWA at Min speed [dB (A)]

33,1
breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]

33,3
Breakout sound pressure at 3m at Max speed Lp [dB (A)]

35,4
breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]

28,8
Breakout sound pressure at 3m at Mid speed Lp [dB (A)]

30,3
breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]

15,7
Breakout sound pressure at 3m at Min speed Lp [dB (A)]

12,6

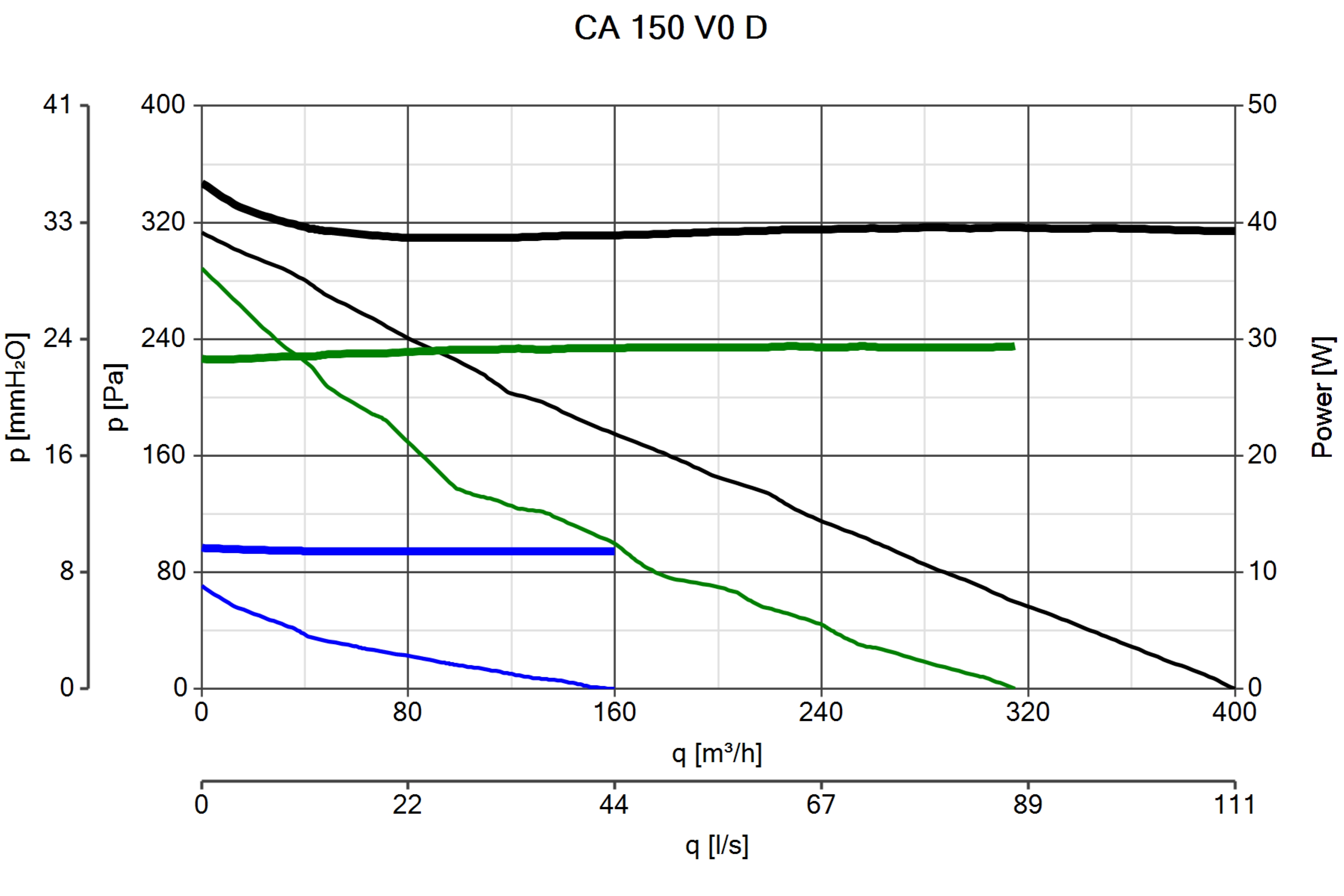

Max airflow at Max speed (l/s)

111
Max airflow at Max speed (m³/h)

400
Max airflow at Max speed at 60 Hz (l/s)

103
Max airflow at Max speed at 60 Hz (m³/h)

370
Max airflow at Mid speed (m³/h)

315
Max airflow at Mid speed at 60 Hz (l/s)

85
Max airflow at Mid speed at 60 Hz (m³/h)

305
Max airflow at Min speed (l/s)

88
Max airflow at Min speed at 60 Hz (l/s)

50

Max airflow at Min speed at 60 Hz (m³/h)

180
Max pressure at 60 Hz (mmH2O)

33,8
Max pressure at Max speed (mmH20)

31,9
Max pressure at Max speed (Pa)

313
Max pressure at Max speed at 60Hz (Pa)

332
Max pressure at Mid speed (mmH2O)

29,4
Max pressure at Mid speed (Pa)

288
Max pressure at Mid speed at 60Hz (mmH2O)

27,7
Max pressure at Mid speed at 60Hz (Pa)

272
Max pressure at Min speed at 60Hz (mmH2O)

8,7
Max pressure at Min speed at 60Hz (Pa)

85
Max RPM

2200
Max speed at 60 Hz (Rpm)

2070
Mid speed at 60 Hz (Rpm)

1695
Min RPM

890
Min speed at 60 Hz (Rpm)

1015
Potenza sonora at supply side at Min speed LWA [dB (A)]

56,1
Pressure at 1st speed (mmH20)

7,2
Pressure at 1st speed (Pa)

71
RPM at Mid speed

1800
Sound power at extract side at Max speed LWA [dB (A)]

82
Sound power at extract side at Mid speed LWA [dB (A)]

77,4
Sound power at extract side at Min speed LWA [dB (A)]

58,7
Sound power at supply side at Max speed LWA [dB (A)]

80
Sound power at supply side at Mid speed LWA [dB (A)]

75,2
Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]

80,8
Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]

75,9
Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]

62,0
Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]

78,1
Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]

73,8
Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]

59,3
Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]

63,3
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]

64,5
Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]

56,3
Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]

59,9
Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]

44,5
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]

41,2
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]

62,5
Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]

57,7
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]

38,6
Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]

60,6
Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]

58,4
Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]

41,8

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
