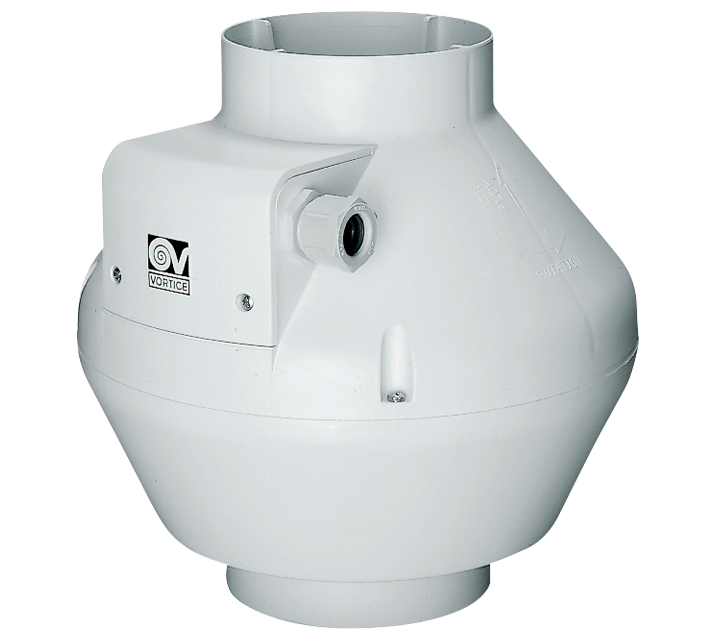

In-line centrifugal fans in self-extinguishing plastic

ca_V0_e_01

Description

• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 125 mm.

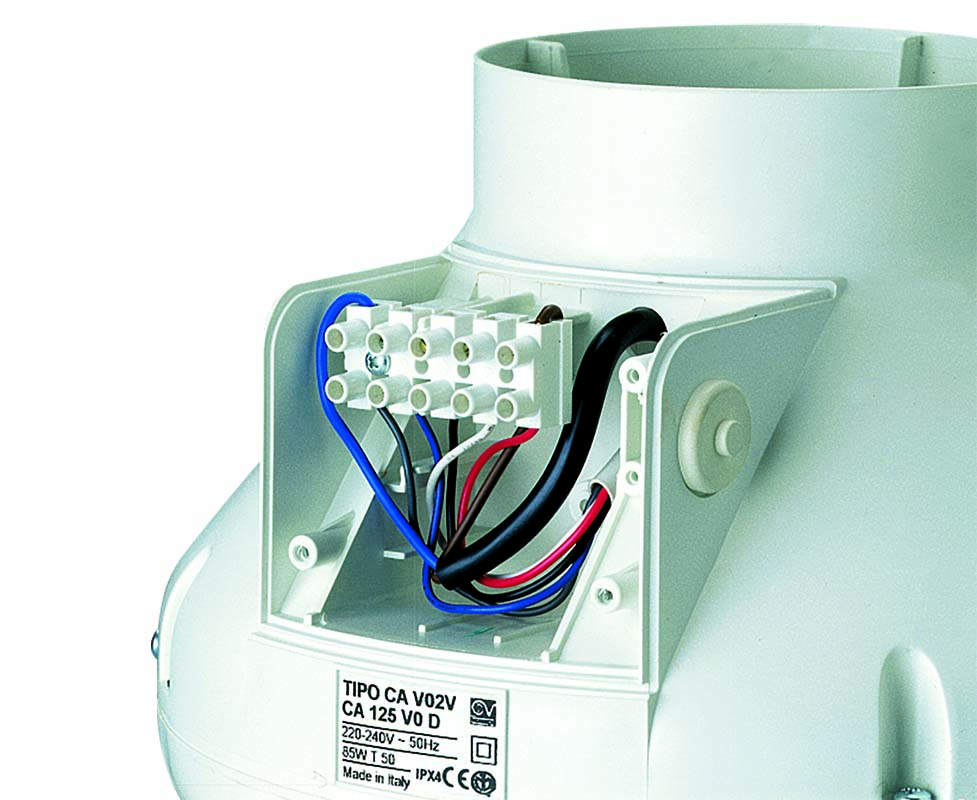

• 3 speed fan consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,

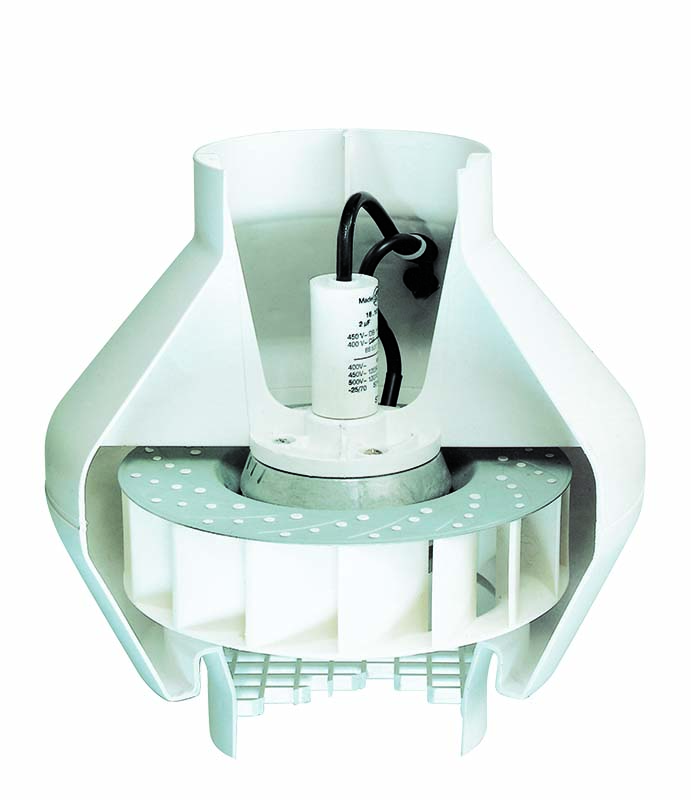

• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.

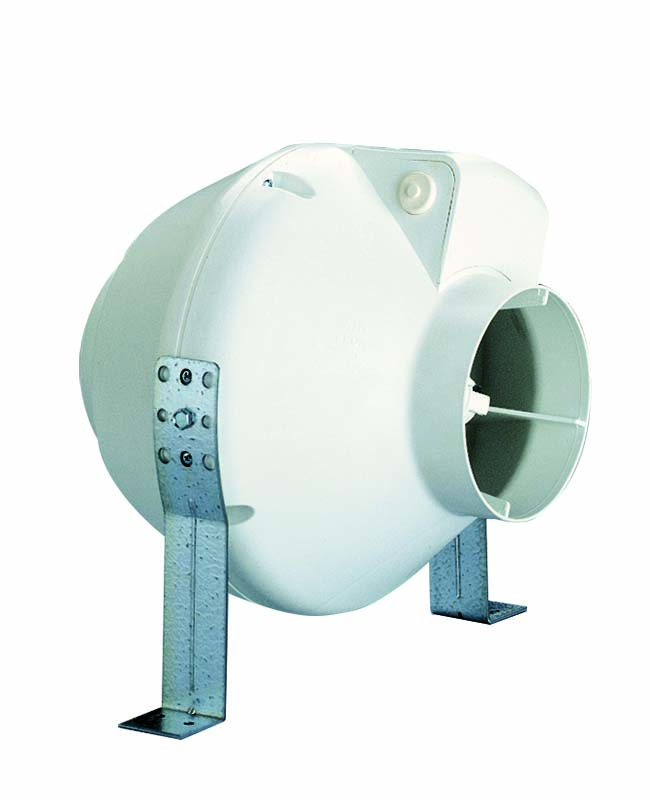

• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • C Tick Mark C Tick Mark
  • EAC EAC
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_V0_e_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,17
  • Max absorbed current at Max speed (A)
    0,22
  • Max absorbed current at Max speed at 60 Hz (A)
    0,26
  • Max absorbed current at Mid speed (A)
    0,21
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,24
  • Max absorbed current at Min speed (A)
    0,14
  • Max absorbed power at Max speed (W)
    43
  • Max absorbed power at Max speed at 60 Hz (W)
    46
  • Max absorbed power at Mid speed (W)
    30
  • Max absorbed power at Mid speed at 60 Hz (W)
    35
  • Max absorbed power at Min speed at 60 Hz (W)
    16
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    125
  • Ø Discharge hole (mm)
    122
  • Power absorbed at 1st speed (W)
    13
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,3
  • Airflow at 1st speed (l/s)
    31
  • Airflow at 1st speed (m³/h)
    110
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    54,3
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    48,2
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    34,2
  • Breakout sound power LWA at Max speed [dB (A)]
    56,2
  • Breakout sound power LWA at Mid speed [dB (A)]
    49,5
  • Breakout sound power LWA at Min speed [dB (A)]
    31,2
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    33,7
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    35,7
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    27,7
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    29,0
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    13,6
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    10,6
  • Max airflow at Max speed (l/s)
    75
  • Max airflow at Max speed (m³/h)
    270
  • Max airflow at Max speed at 60 Hz (l/s)
    71
  • Max airflow at Max speed at 60 Hz (m³/h)
    255
  • Max airflow at Mid speed (m³/h)
    215
  • Max airflow at Mid speed at 60 Hz (l/s)
    51
  • Max airflow at Mid speed at 60 Hz (m³/h)
    185
  • Max airflow at Min speed (l/s)
    60
  • Max airflow at Min speed at 60 Hz (l/s)
    33
  • Max airflow at Min speed at 60 Hz (m³/h)
    120
  • Max pressure at 60 Hz (mmH2O)
    41,5
  • Max pressure at Max speed (mmH20)
    34,8
  • Max pressure at Max speed (Pa)
    341
  • Max pressure at Max speed at 60Hz (Pa)
    407
  • Max pressure at Mid speed (mmH2O)
    33,3
  • Max pressure at Mid speed (Pa)
    327
  • Max pressure at Mid speed at 60Hz (mmH2O)
    31,7
  • Max pressure at Mid speed at 60Hz (Pa)
    311
  • Max pressure at Min speed at 60Hz (mmH2O)
    11,3
  • Max pressure at Min speed at 60Hz (Pa)
    111
  • Max RPM
    2220
  • Max speed at 60 Hz (Rpm)
    2100
  • Mid speed at 60 Hz (Rpm)
    1715
  • Min RPM
    890
  • Min speed at 60 Hz (Rpm)
    1025
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    54,8
  • Pressure at 1st speed (mmH20)
    10,3
  • Pressure at 1st speed (Pa)
    101
  • RPM at Mid speed
    1820
  • Sound power at extract side at Max speed LWA [dB (A)]
    82,2
  • Sound power at extract side at Mid speed LWA [dB (A)]
    77,7
  • Sound power at extract side at Min speed LWA [dB (A)]
    57,8
  • Sound power at supply side at Max speed LWA [dB (A)]
    80
  • Sound power at supply side at Mid speed LWA [dB (A)]
    74,7
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    80,4
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    76,1
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    61,2
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    78,1
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    73,3
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    58,4
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    62,9
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    64,7
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    55,8
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    60,1
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    43,7
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    40,2
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    62,5
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    57,2
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    37,3
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    60,5
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    58,6
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    40,9
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • AEC annual electric energy consuption (kWh of primary energy/y)
    513,42
  • SFPint (W/m3/s)
    497,23
  • Heat recovery nominal efficiency (%)
    NA
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,06917
  • ([m3/s)
    0,06219
  • Real absorbed electric power (KW)
    0,040
  • Effective electic power input [kW]
    0,048
  • Face velocity at nominal airflow (m/s)
    7,91884
  • Face velocity at nominal flowrate (m/s)
    8,80658
  • Nominal external pressure (Pa)
    54
  • Nominal external pressure (Pa)
    52
  • Inner pressure drop of ventilation components (Pa)
    175
  • Internal pressure drop of ventilation components (Pa)
    153
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    35,3
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    29,8
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    2,99
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    52
  • Casing sound power level (LWA) [dB(A)]
    56,2

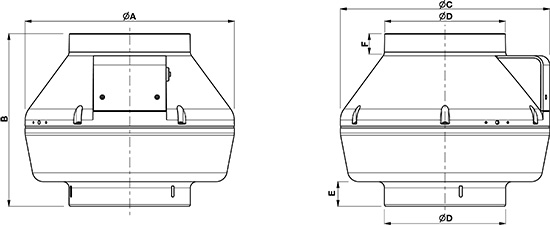

  • Size A (mm)
    250
  • Size B (mm)
    250
  • Size C (mm)
    250
  • Size D (mm)
    122
  • Size E (mm)
    30
  • Size F (mm)
    30
quota

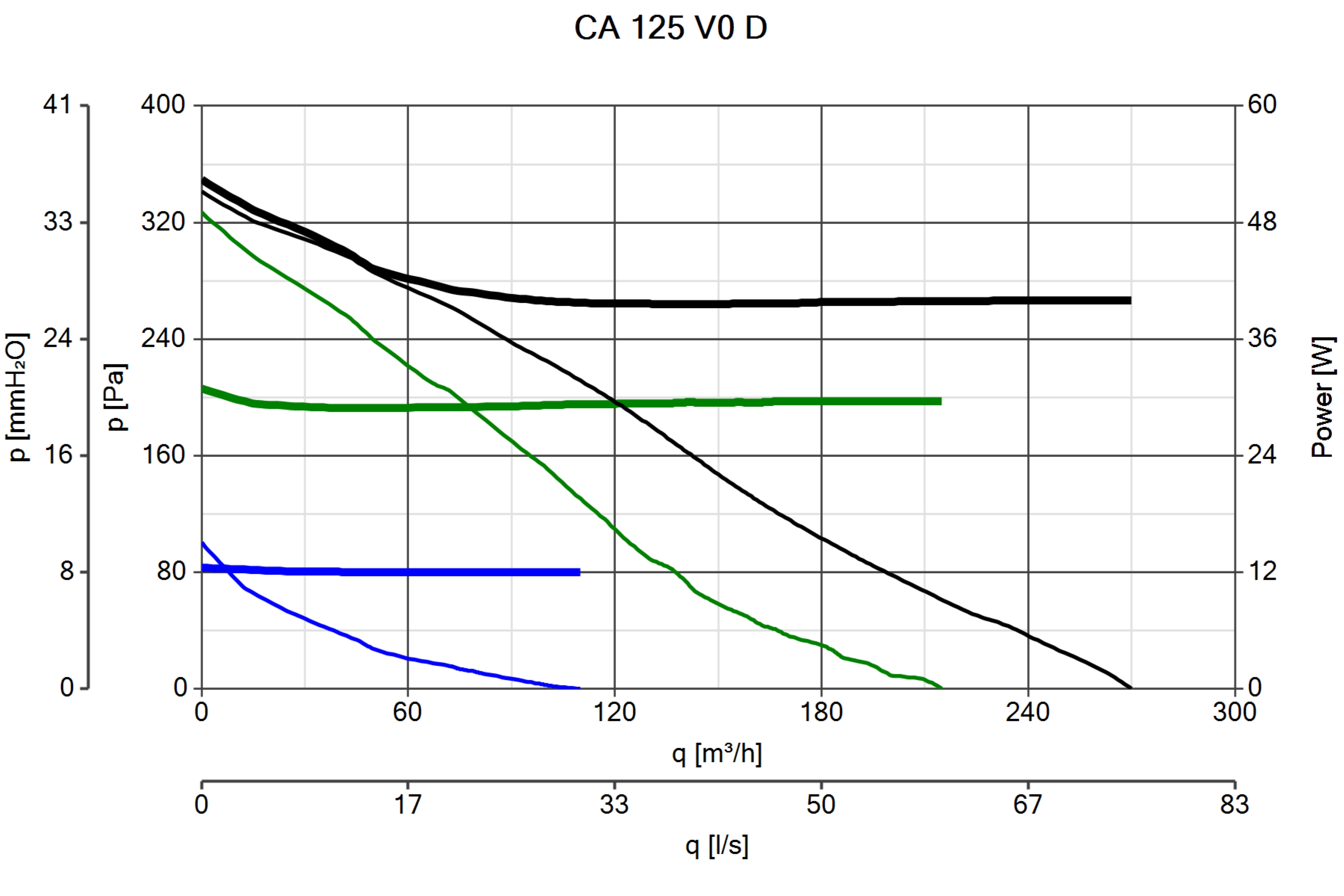

Curva_JPG_16018-Curve_per_Catalogo
