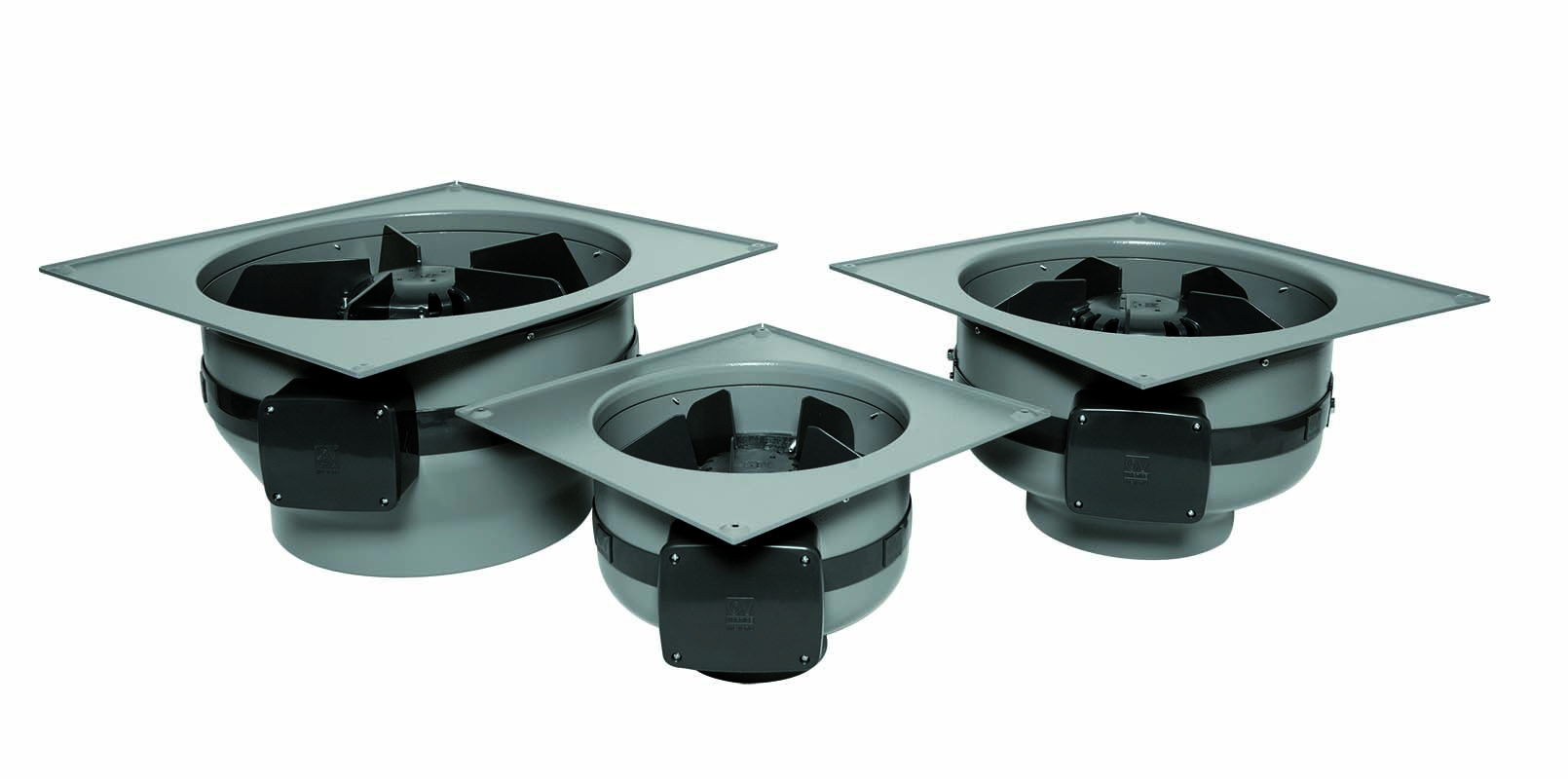

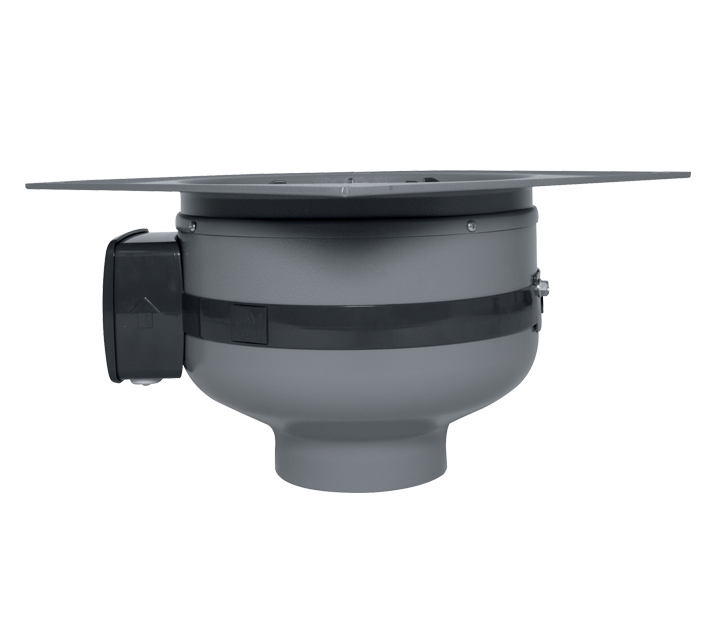

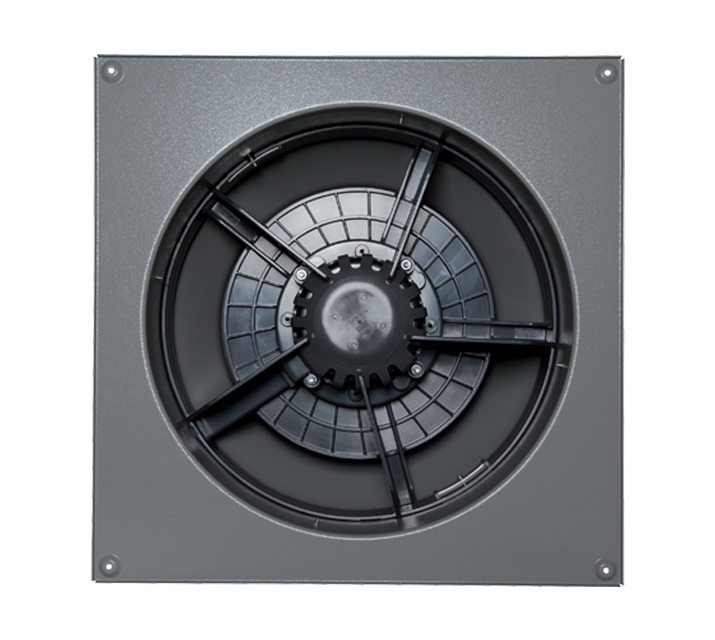

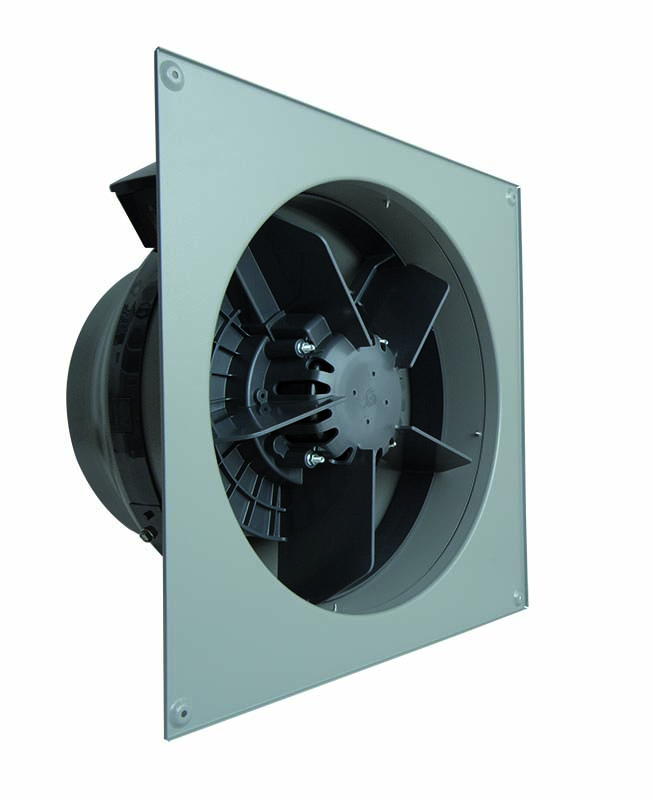

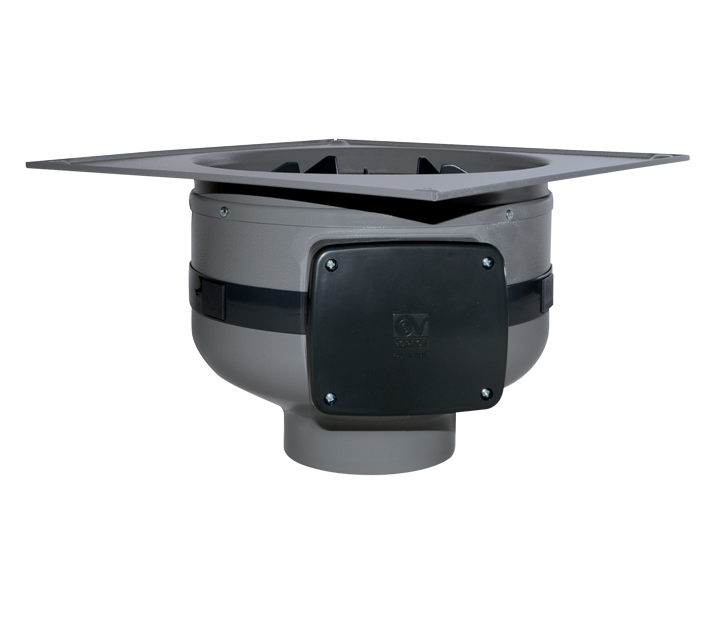

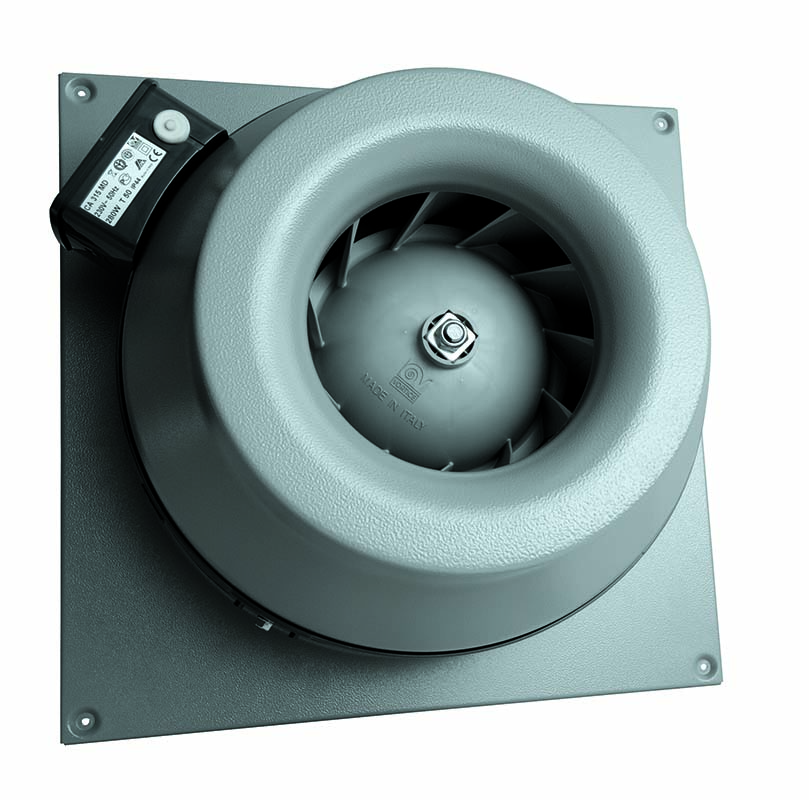

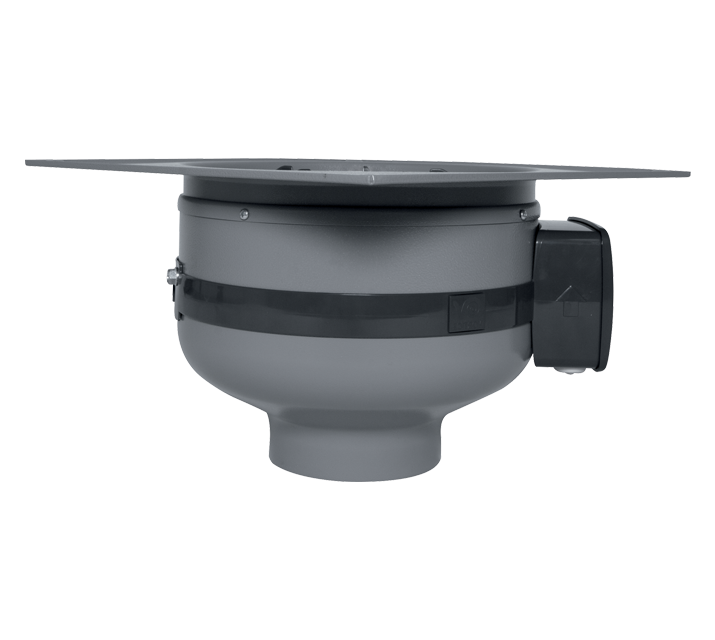

Description
• Pickled and phosphated steel housing/wall mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 250 mm.
• 3 speed fan consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• Nominal diameter 250 mm.
• 3 speed fan consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
Certifications
-
Download
CE
-
EAC
-
G-Mark
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,55
-
Max absorbed current at Min speed (A)0.48
-
Max absorbed Power at 60 Hz (W)175
-
Max absorbed power at Max speed (W)125
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)250
-
Power absorbed at 1st speed (W)48
-
Voltage (V)220-240
-
Weight (Kg)6,2
-

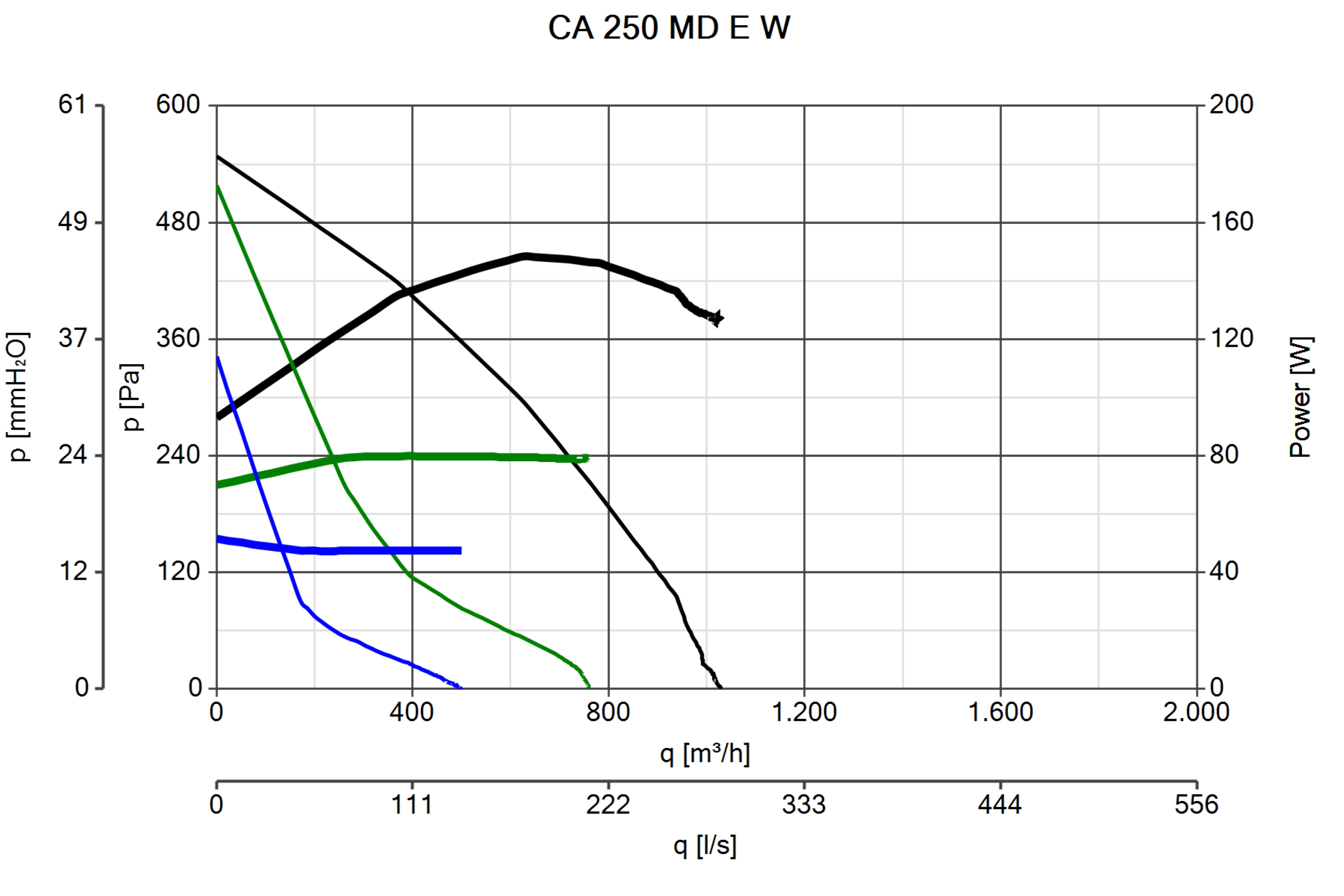

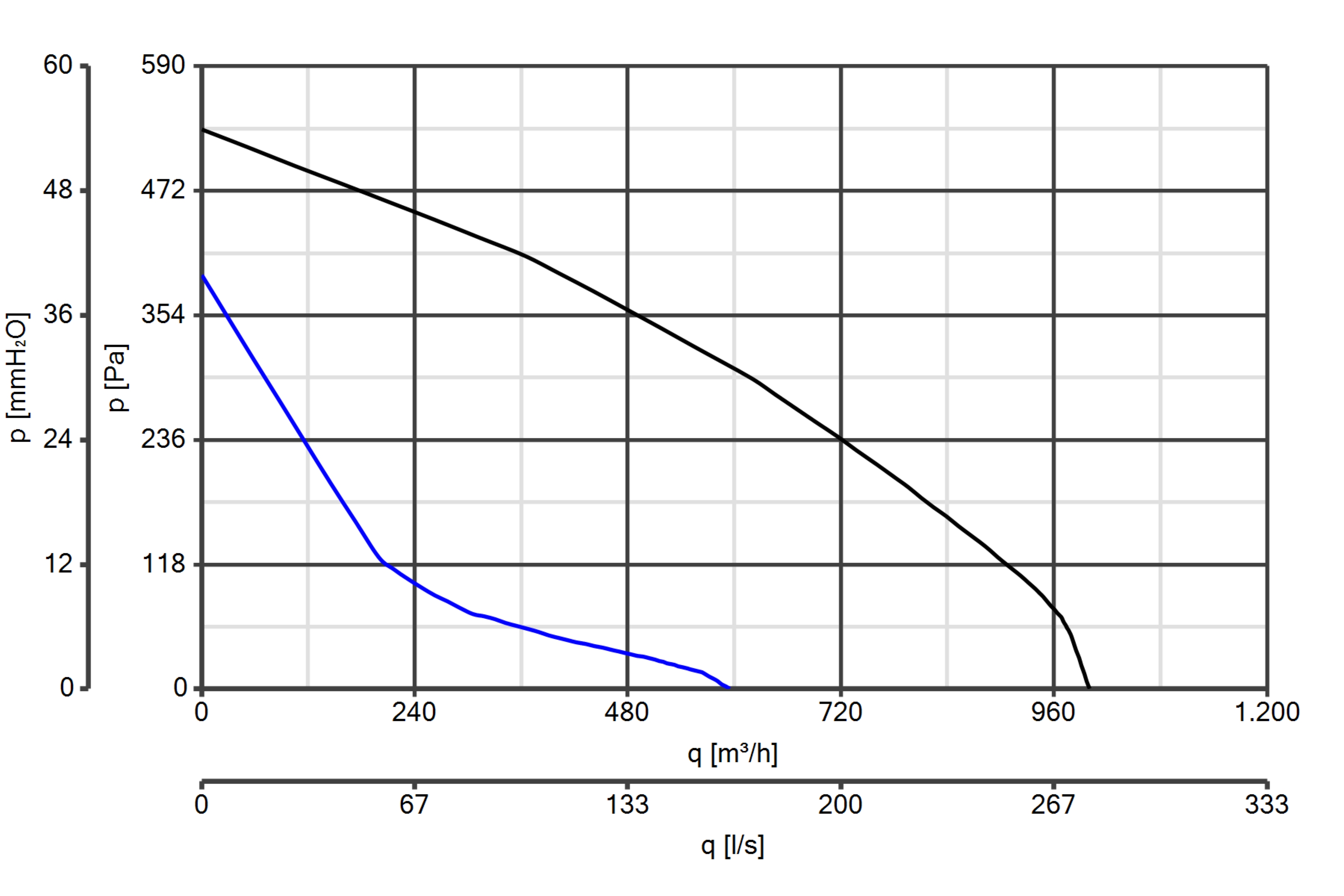

Airflow at 1st speed (l/s)138.8
-
Airflow at 1st speed (m³/h)500
-
Max airflow at Max speed (l/s)286.1
-
Max airflow at Max speed (m³/h)1030
-
Max pressure at Max speed (mmH20)55.9
-
Max pressure at Max speed (Pa)548.3
-
Max RPM2675
-
Min RPM1340
-
Pressure at 1st speed (mmH20)34.9
-
Pressure at 1st speed (Pa)342.3
-
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed31.6
-
Sound pressure at 3m at Max speed Lp [dB (A)]50.8
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Type of heat recovery system HRSnessuno
-
Drive typea velocità multiple: VM
-
Declared typeUVNR-U
-
Supplier's name or trade mark:Vortice
-
SFPint (W/m3/s)NA
-
([m3/s)0,28222
-
Real absorbed electric power (KW)0,127
-
Face velocity at nominal airflow (m/s)5,74939
-
Nominal external pressure (Pa)108
-
Inner pressure drop of ventilation components (Pa)25
-
Inner pressure drop of components not related to ventilation (Pa)0
-
Fan static efficiency according to 327/2011/UE regulation (%)29,6
-
Declared maximum internal leakage rate of the ventilation unit casing (%)N.A.
-
Declared maximum external leakage rate of the ventilation unit casing (%)N.A.
-
Filter energy performance or classificationN.A.
-
Description of visual filter warning:N.A.
-
Casing sound power level LWA [dB(A)]51
-

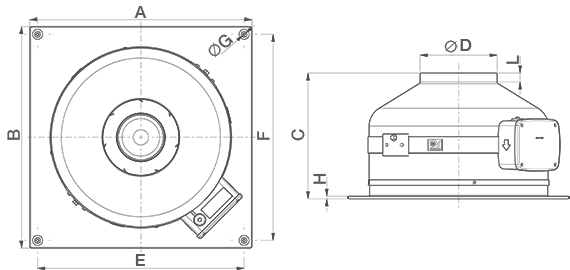

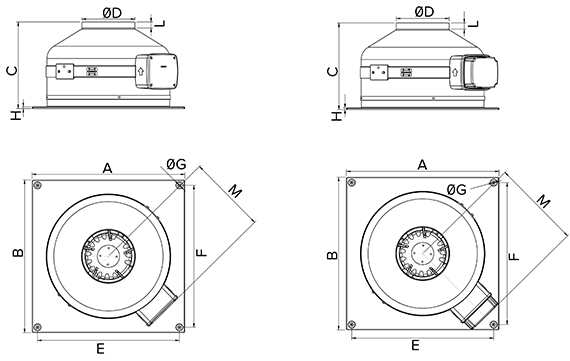

Size A (mm)424
-
Size B (mm)424
-
Size C (mm)237
-
Size D (mm)ø 247
-
Size E (mm)394
-
Size F (mm)394
-
Size G (mm)ø 5
-
Size H (mm)5
-
Size L (mm)38
-
Size M (mm)250
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
TRIO-CA
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
CA-G 250 (GRIGLIA DI PROTEZIONE)
• Protection grille for use in the intake port when unit is mounted within reach.
PGR 400 (PERSIANA GRAVITA')
• Gravity type shutter for preventing air backdraught or rain penetration when the unit is turned off.

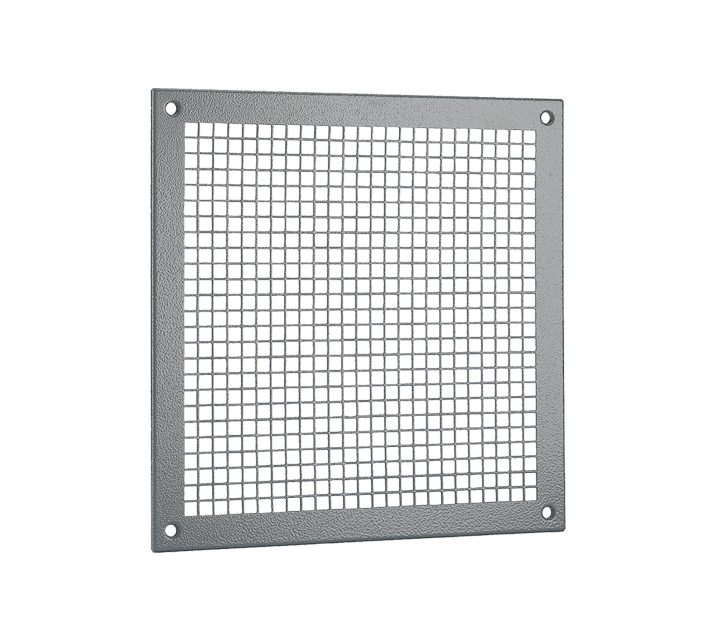

TRA 400 (TELAIO CON RETE ANTINF.)
