Code 16135

CA 200 MD E W

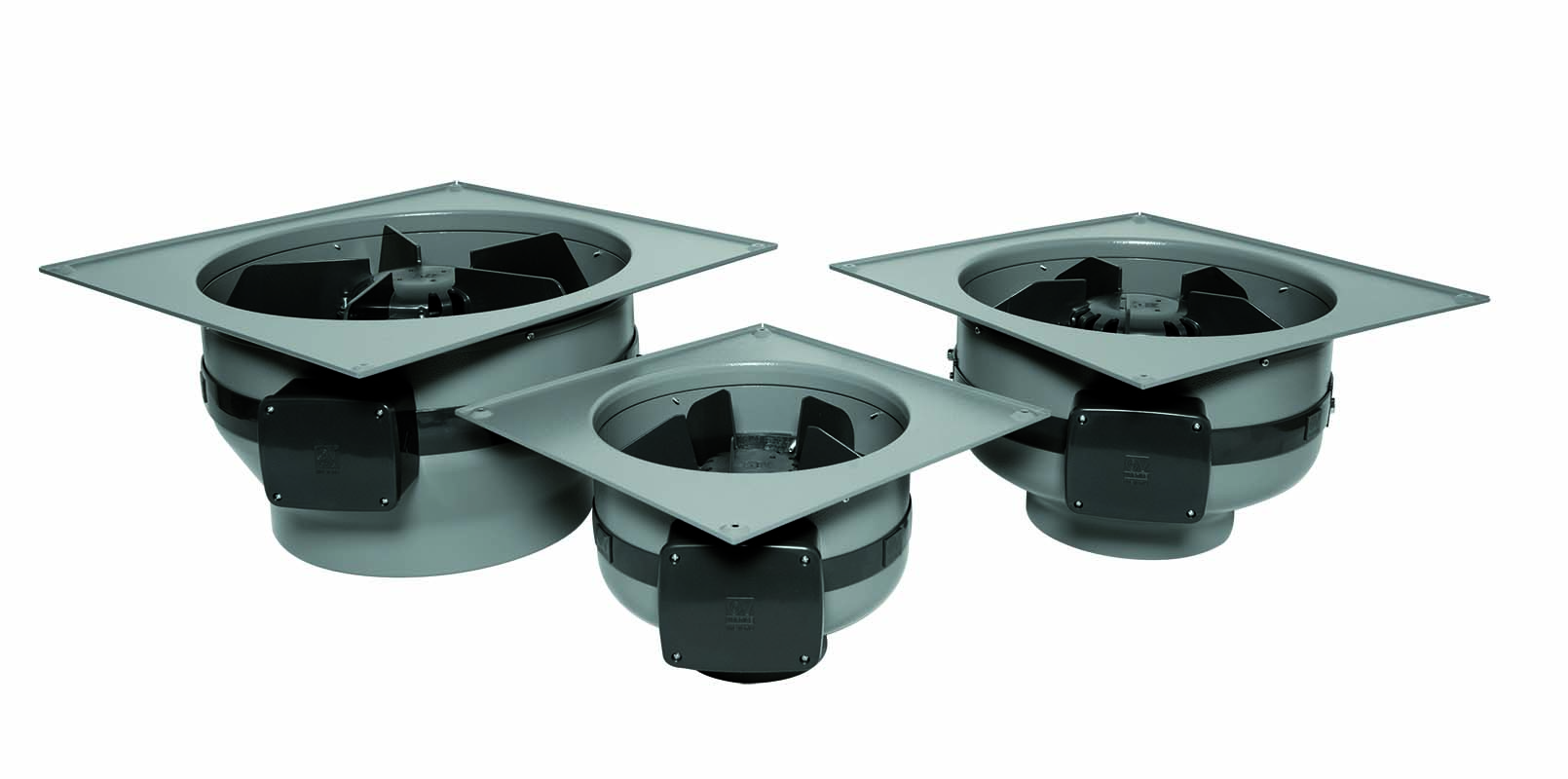

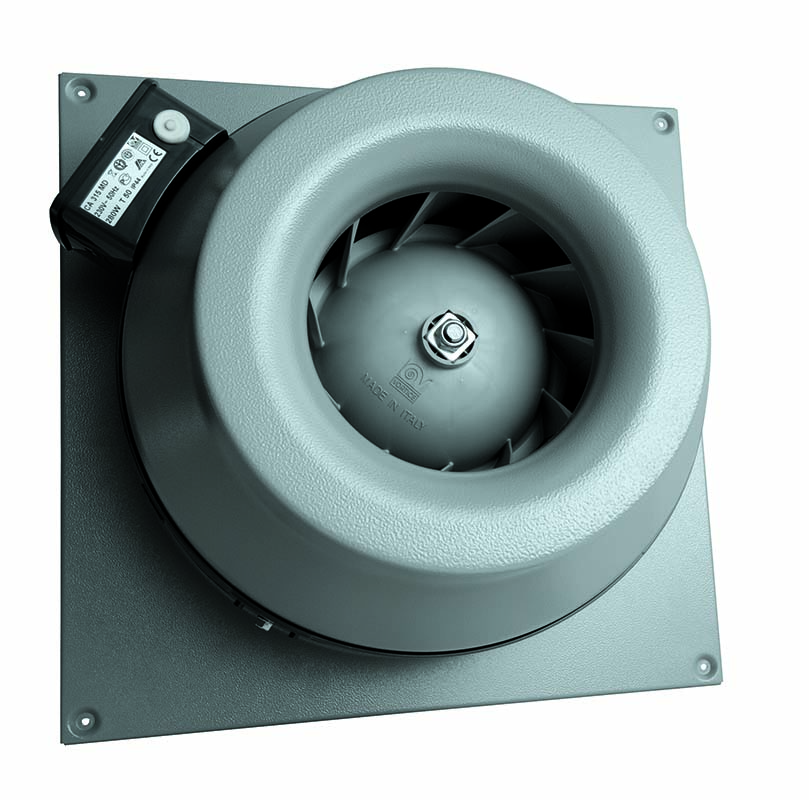

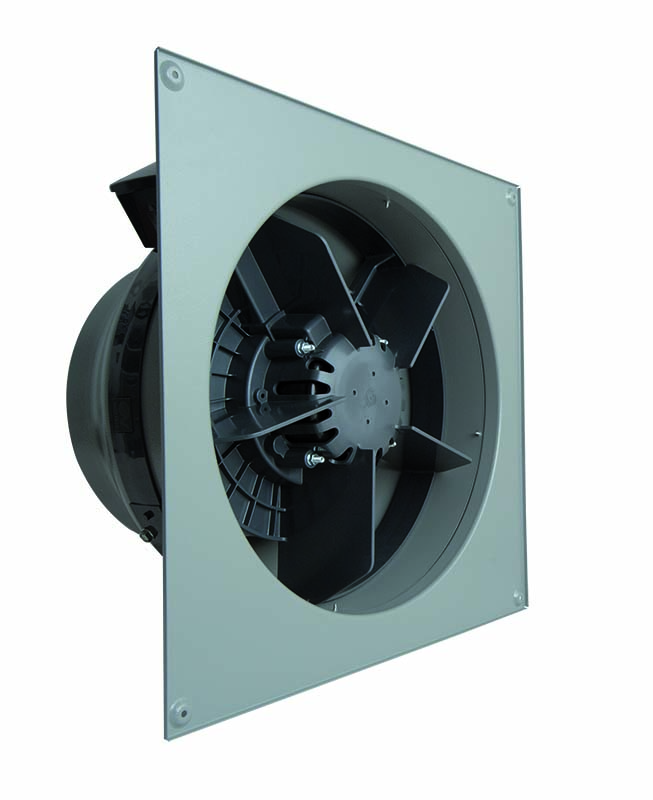

Centrifugal duct fans for wall mounting

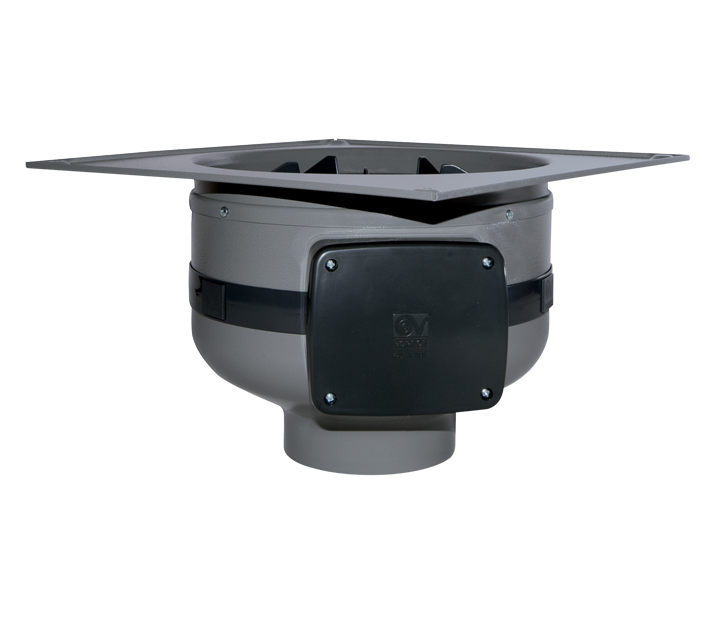

ca_md_e_w_01

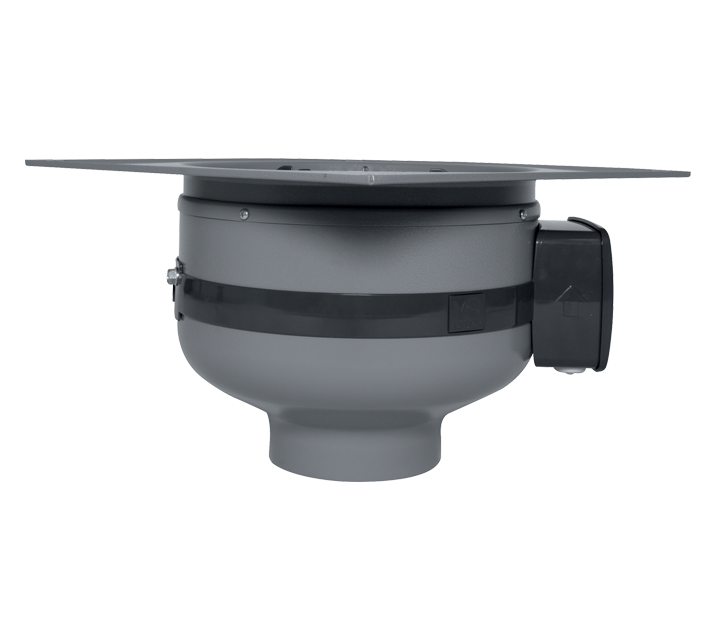

ca_md_e_w_02

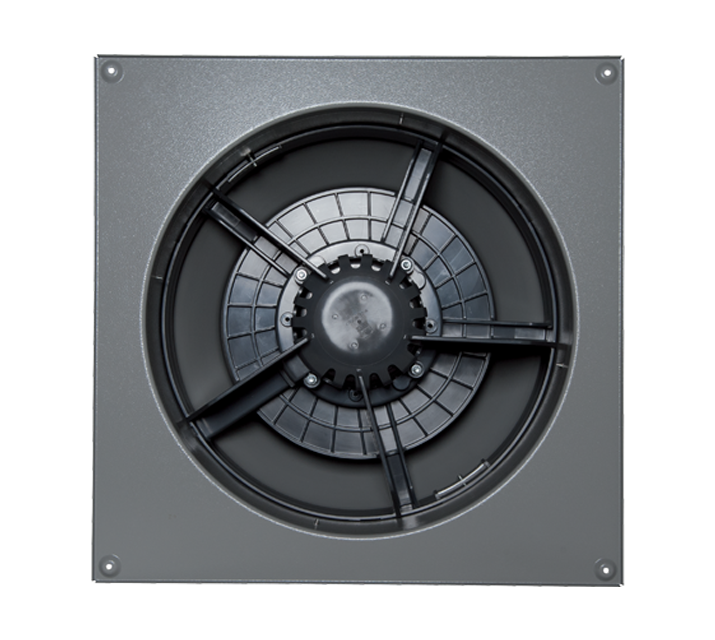

ca_md_e_w_03

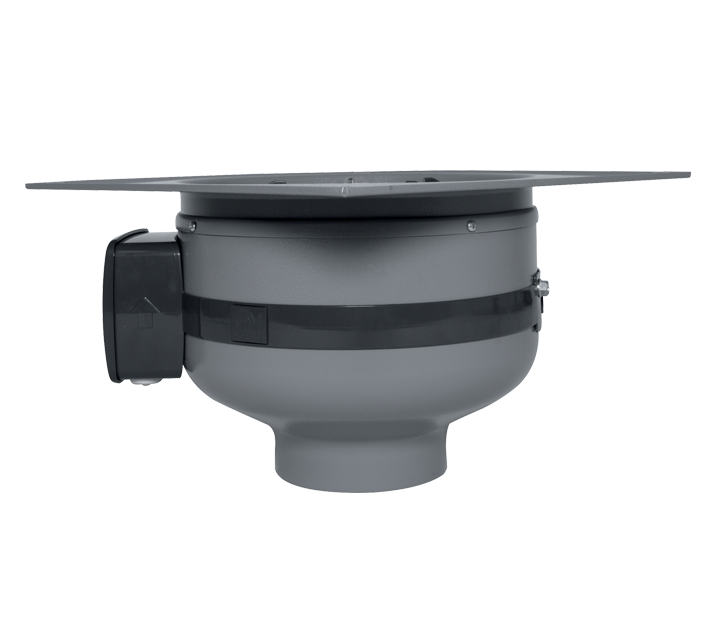

ca_md_e_w_04

Description

• Pickled and phosphated steel housing/wall mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 200 mm.
• 3 speed fan consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_e_w_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,38
  • Max absorbed current at Max speed (A)
    0,40
  • Max absorbed current at Max speed at 60 Hz (A)
    0,50
  • Max absorbed current at Mid speed (A)
    0,38
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,45
  • Max absorbed current at Min speed (A)
    0,33
  • Max absorbed power at Max speed (W)
    68
  • Max absorbed power at Max speed at 60 Hz (W)
    80
  • Max absorbed power at Mid speed (W)
    50
  • Max absorbed power at Mid speed at 60 Hz (W)
    62
  • Max absorbed power at Min speed at 60 Hz (W)
    44
  • Max ambient temperature for continuous operation (°C)
    55
  • Nominal diameter (mm)
    200
  • Power absorbed at 1st speed (W)
    34
  • Voltage (V)
    220-240
  • Weight (Kg)
    6
  • Airflow at 1st speed (l/s)
    108
  • Airflow at 1st speed (m³/h)
    390
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    55,8
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    52,6
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    47,4
  • Breakout sound power LWA at Max speed [dB (A)]
    57,5
  • Breakout sound power LWA at Mid speed [dB (A)]
    53,4
  • Breakout sound power LWA at Min speed [dB (A)]
    45,5
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    35,2
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    36,9
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    32
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    32,8
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    26,9
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    25
  • Max airflow at Max speed (l/s)
    178
  • Max airflow at Max speed (m³/h)
    640
  • Max airflow at Max speed at 60 Hz (l/s)
    161
  • Max airflow at Max speed at 60 Hz (m³/h)
    580
  • Max airflow at Mid speed (m³/h)
    540
  • Max airflow at Mid speed at 60 Hz (l/s)
    144
  • Max airflow at Mid speed at 60 Hz (m³/h)
    520
  • Max airflow at Min speed (l/s)
    150
  • Max airflow at Min speed at 60 Hz (l/s)
    113
  • Max airflow at Min speed at 60 Hz (m³/h)
    405
  • Max pressure at 60 Hz (mmH2O)
    29,1
  • Max pressure at Max speed (mmH20)
    38,1
  • Max pressure at Max speed (Pa)
    374
  • Max pressure at Max speed at 60Hz (Pa)
    285
  • Max pressure at Mid speed (mmH2O)
    32,8
  • Max pressure at Mid speed (Pa)
    322
  • Max pressure at Mid speed at 60Hz (mmH2O)
    25,5
  • Max pressure at Mid speed at 60Hz (Pa)
    250
  • Max pressure at Min speed at 60Hz (mmH2O)
    22,2
  • Max pressure at Min speed at 60Hz (Pa)
    218
  • Max RPM
    2295
  • Max speed at 60 Hz (Rpm)
    2070
  • Mid speed at 60 Hz (Rpm)
    1880
  • Min RPM
    1430
  • Min speed at 60 Hz (Rpm)
    1480
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    57,4
  • Pressure at 1st speed (mmH20)
    24,9
  • Pressure at 1st speed (Pa)
    244
  • RPM at Mid speed
    1980
  • Sound power at extract side at Max speed LWA [dB (A)]
    82,2
  • Sound power at extract side at Mid speed LWA [dB (A)]
    78,2
  • Sound power at extract side at Min speed LWA [dB (A)]
    69,5
  • Sound power at supply side at Max speed LWA [dB (A)]
    70,2
  • Sound power at supply side at Mid speed LWA [dB (A)]
    66,2
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    80,3
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    77,1
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    70,9
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    68,4
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    64,9
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    59
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    62,8
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    64,7
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    47,4
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    60,7
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    53,4
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    52
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    52,7
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    48,7
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    39,9
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    50,8
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    59,6
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    41,5


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • AEC annual electric energy consuption (kWh of primary energy/y)
    336,22
  • SFPint (W/m3/s)
    360,67
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,16497
  • ([m3/s)
    0,16057
  • Real absorbed electric power (KW)
    0,066
  • Effective electic power input [kW]
    0,070
  • Face velocity at nominal airflow (m/s)
    9,08637
  • Face velocity at nominal flowrate (m/s)
    21,00492
  • Nominal external pressure (Pa)
    30
  • Nominal external pressure (Pa)
    30
  • Inner pressure drop of ventilation components (Pa)
    215
  • Internal pressure drop of ventilation components (Pa)
    116
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    59,6
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    34,4
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    1,16
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    57,5
  • Casing sound power level (LWA) [dB(A)]
    56,8

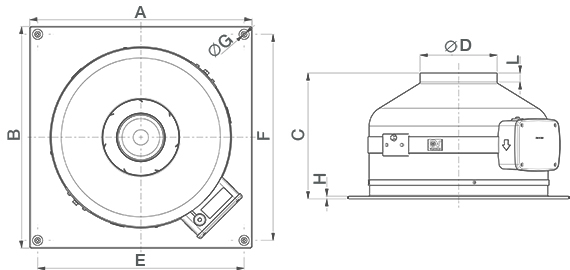

  • Size A (mm)
    424
  • Size B (mm)
    424
  • Size C (mm)
    245
  • Size D (mm)
    ø 197
  • Size E (mm)
    394
  • Size F (mm)
    394
  • Size G (mm)
    ø 5
  • Size H (mm)
    5
  • Size L (mm)
    20
  • Size M (mm)
    250

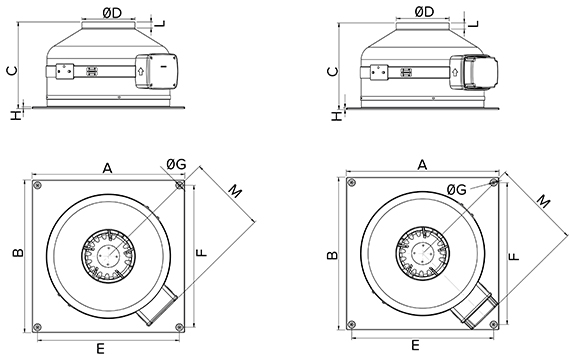

quota

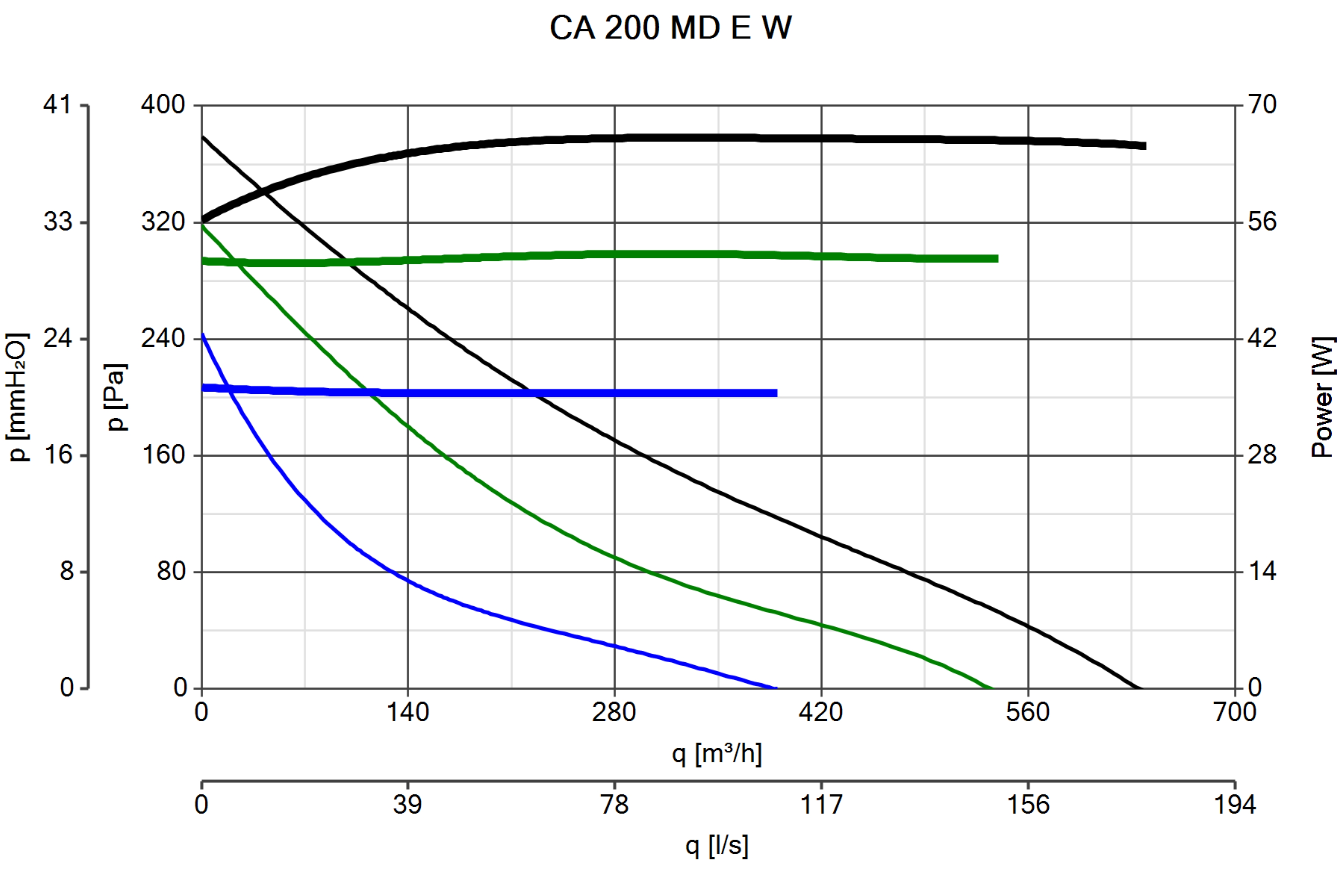

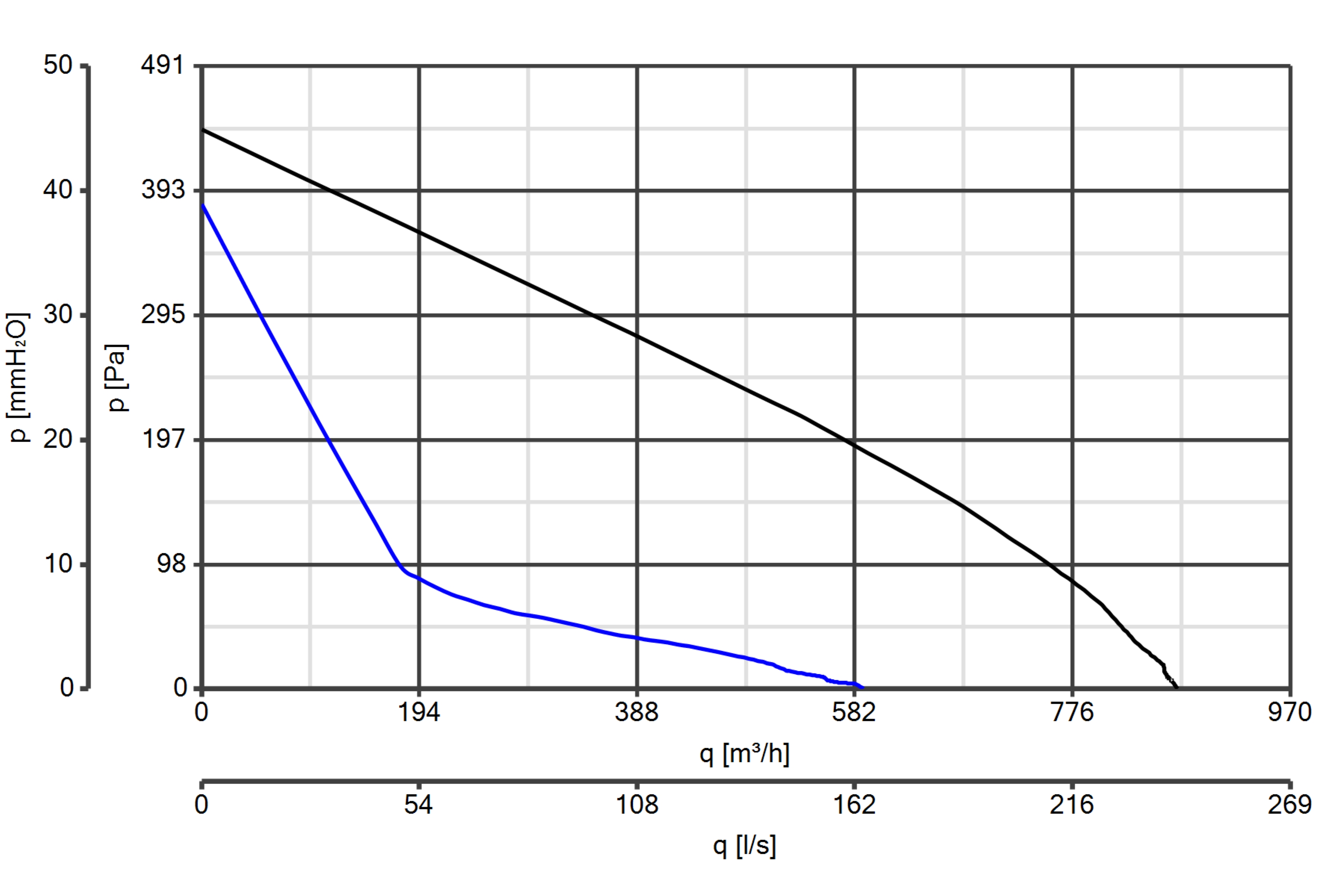

Curva_JPG_16135-Curve_per_Catalogo
