Code 16134

CA 160 MD E W

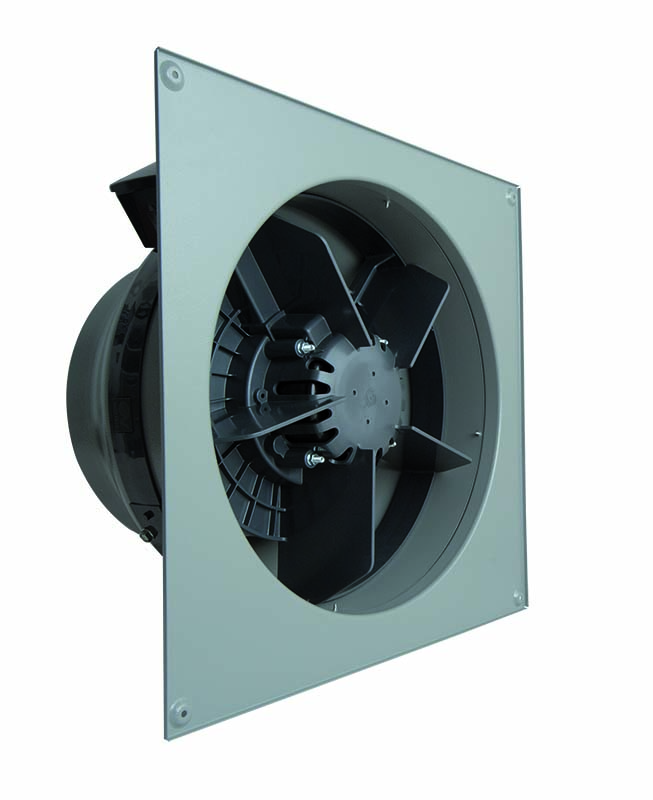

Centrifugal duct fans for wall mounting

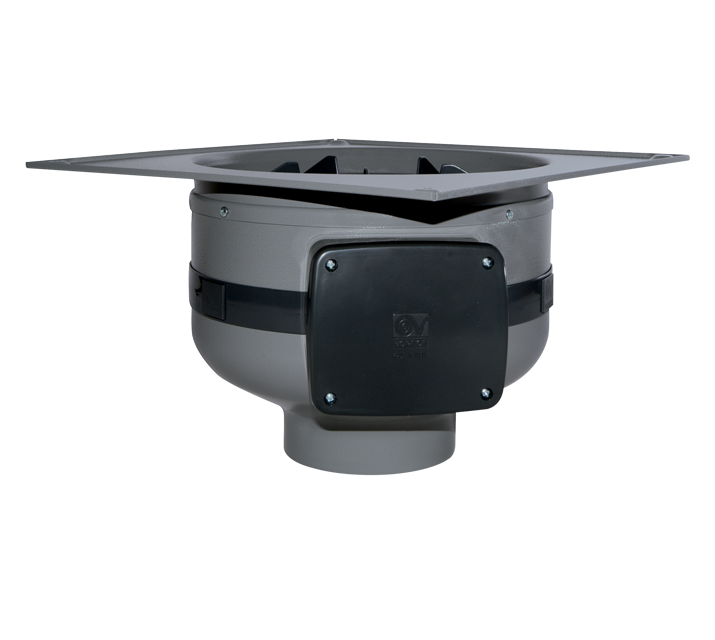

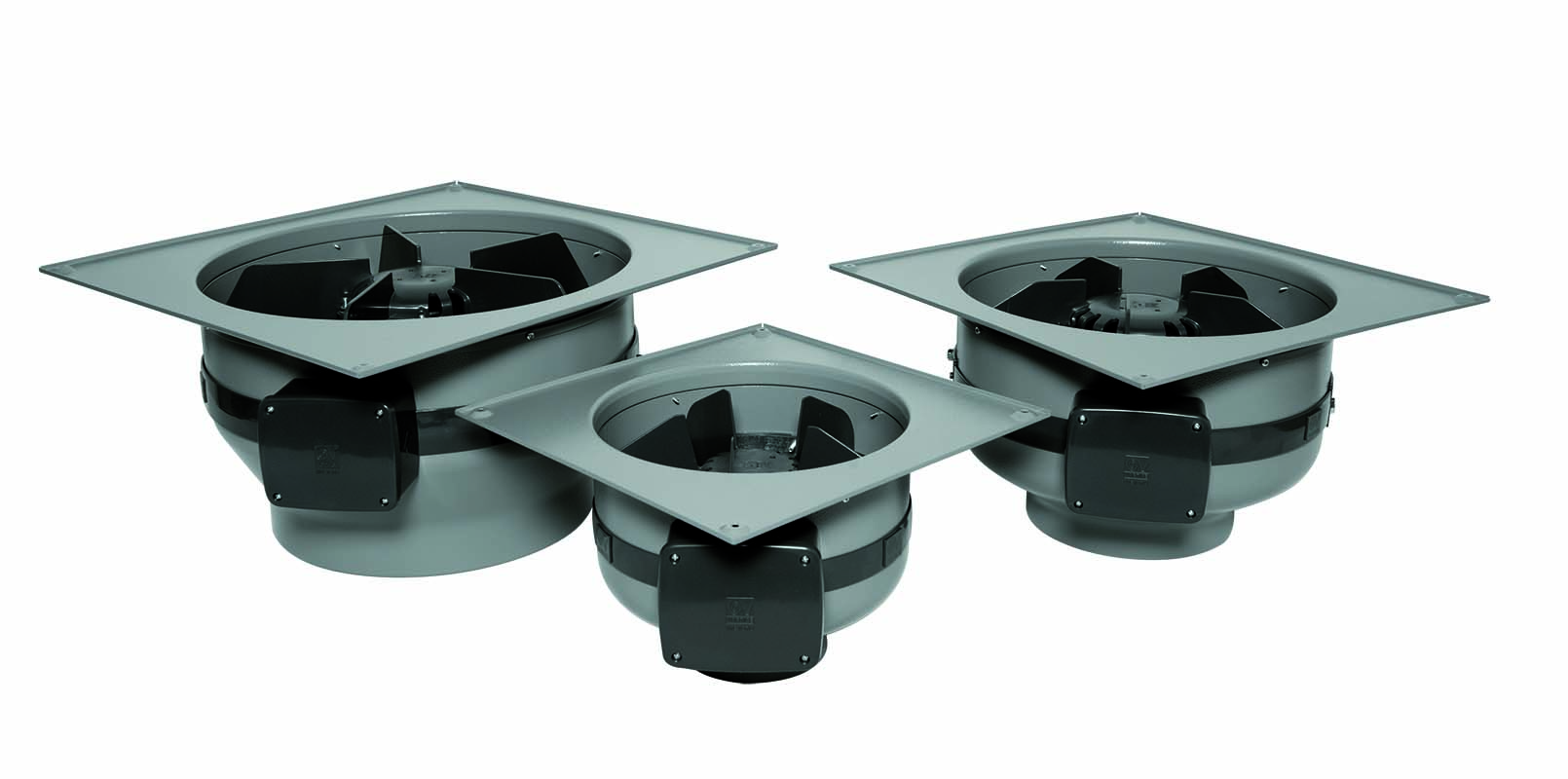

ca_md_e_w_01

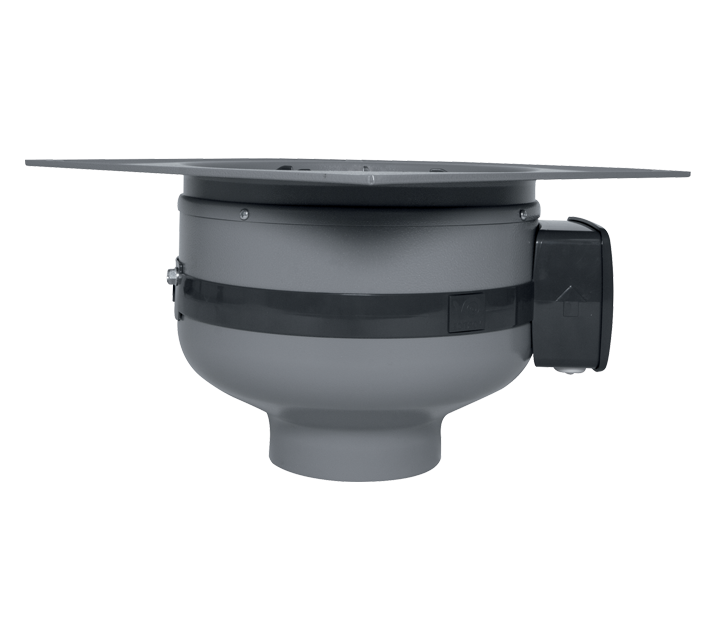

ca_md_e_w_02

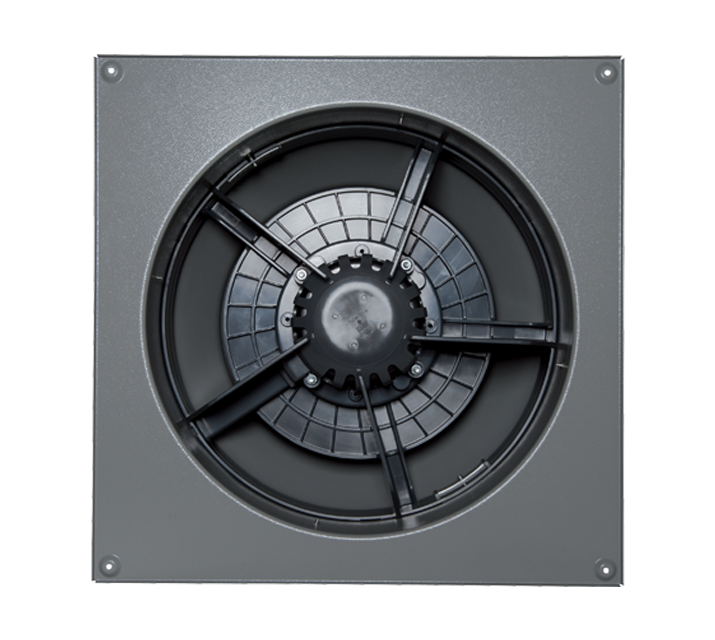

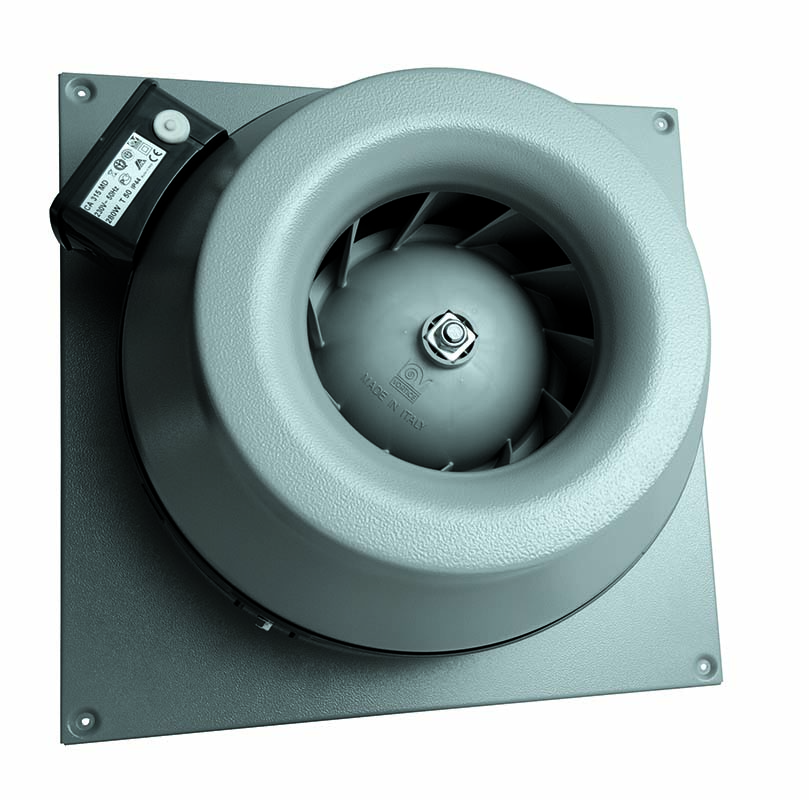

ca_md_e_w_03

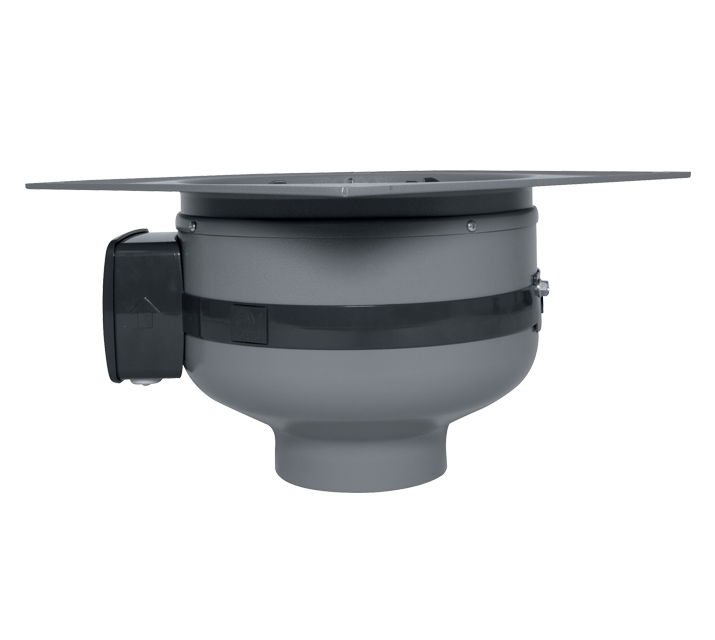

ca_md_e_w_04

Description

• Pickled and phosphated steel housing/wall mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 160 mm.
• 3 speed fan consisting of:
• External rotor AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

ca_md_e_w_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,38
  • Max absorbed current at Max speed (A)
    0,40
  • Max absorbed current at Max speed at 60 Hz (A)
    0,50
  • Max absorbed current at Mid speed (A)
    0,38
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,45
  • Max absorbed current at Min speed (A)
    0,33
  • Max absorbed power at Max speed (W)
    68
  • Max absorbed power at Max speed at 60 Hz (W)
    80
  • Max absorbed power at Mid speed (W)
    50
  • Max absorbed power at Mid speed at 60 Hz (W)
    62
  • Max absorbed power at Min speed at 60 Hz (W)
    44
  • Max ambient temperature for continuous operation (°C)
    55
  • Nominal diameter (mm)
    160
  • Power absorbed at 1st speed (W)
    34
  • Voltage (V)
    220-240
  • Weight (Kg)
    6,2
  • Airflow at 1st speed (l/s)
    92
  • Airflow at 1st speed (m³/h)
    330
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    61,9
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    60,4
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    53,2
  • Breakout sound power LWA at Max speed [dB (A)]
    65,7
  • Breakout sound power LWA at Mid speed [dB (A)]
    61,6
  • Breakout sound power LWA at Min speed [dB (A)]
    51,9
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    41,4
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    45,2
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    39,9
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    41,1
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    32,6
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    31,4
  • Max airflow at Max speed (l/s)
    142
  • Max airflow at Max speed (m³/h)
    510
  • Max airflow at Max speed at 60 Hz (l/s)
    125
  • Max airflow at Max speed at 60 Hz (m³/h)
    450
  • Max airflow at Mid speed (m³/h)
    445
  • Max airflow at Mid speed at 60 Hz (l/s)
    117
  • Max airflow at Mid speed at 60 Hz (m³/h)
    420
  • Max airflow at Min speed (l/s)
    124
  • Max airflow at Min speed at 60 Hz (l/s)
    92
  • Max airflow at Min speed at 60 Hz (m³/h)
    330
  • Max pressure at 60 Hz (mmH2O)
    27
  • Max pressure at Max speed (mmH20)
    36,5
  • Max pressure at Max speed (Pa)
    358
  • Max pressure at Max speed at 60Hz (Pa)
    265
  • Max pressure at Mid speed (mmH2O)
    29,7
  • Max pressure at Mid speed (Pa)
    291
  • Max pressure at Mid speed at 60Hz (mmH2O)
    23,5
  • Max pressure at Mid speed at 60Hz (Pa)
    231
  • Max pressure at Min speed at 60Hz (mmH2O)
    20,8
  • Max pressure at Min speed at 60Hz (Pa)
    204
  • Max RPM
    2435
  • Max speed at 60 Hz (Rpm)
    2135
  • Mid speed at 60 Hz (Rpm)
    1990
  • Min RPM
    1500
  • Min speed at 60 Hz (Rpm)
    1535
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    63,6
  • Pressure at 1st speed (mmH20)
    23
  • Pressure at 1st speed (Pa)
    226
  • RPM at Mid speed
    2135
  • Sound power at extract side at Max speed LWA [dB (A)]
    88,5
  • Sound power at extract side at Mid speed LWA [dB (A)]
    85,3
  • Sound power at extract side at Min speed LWA [dB (A)]
    75,8
  • Sound power at supply side at Max speed LWA [dB (A)]
    78,2
  • Sound power at supply side at Mid speed LWA [dB (A)]
    73,5
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    86
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    84,2
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    76,5
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    73,7
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    71,9
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    64,2
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    68,4
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    70,9
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    54,4
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    67,8
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    59
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    58,3
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    60,7
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    56
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    46,1
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    56,2
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    66,7
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    46,7


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • AEC annual electric energy consuption (kWh of primary energy/y)
    420,77
  • SFPint (W/m3/s)
    483,62
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,13931
  • ([m3/s)
    0,11822
  • Real absorbed electric power (KW)
    0,066
  • Effective electic power input [kW]
    0,070
  • Face velocity at nominal airflow (m/s)
    6,68985
  • Face velocity at nominal flowrate (m/s)
    17,73694
  • Nominal external pressure (Pa)
    30
  • Nominal external pressure (Pa)
    40
  • Inner pressure drop of ventilation components (Pa)
    260
  • Internal pressure drop of ventilation components (Pa)
    157
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    53,7
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    37,2
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    1,57
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    65,7
  • Casing sound power level (LWA) [dB(A)]
    65,1

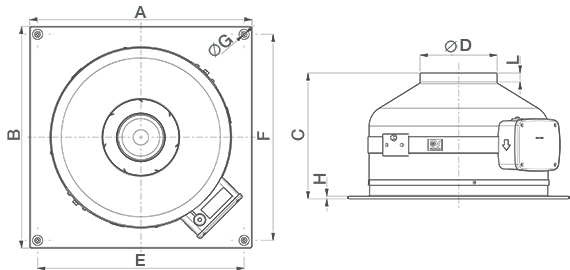

  • Size A (mm)
    424
  • Size B (mm)
    424
  • Size C (mm)
    245
  • Size D (mm)
    ø 157
  • Size E (mm)
    394
  • Size F (mm)
    394
  • Size G (mm)
    ø 5
  • Size H (mm)
    5
  • Size L (mm)
    18
  • Size M (mm)
    250
quota

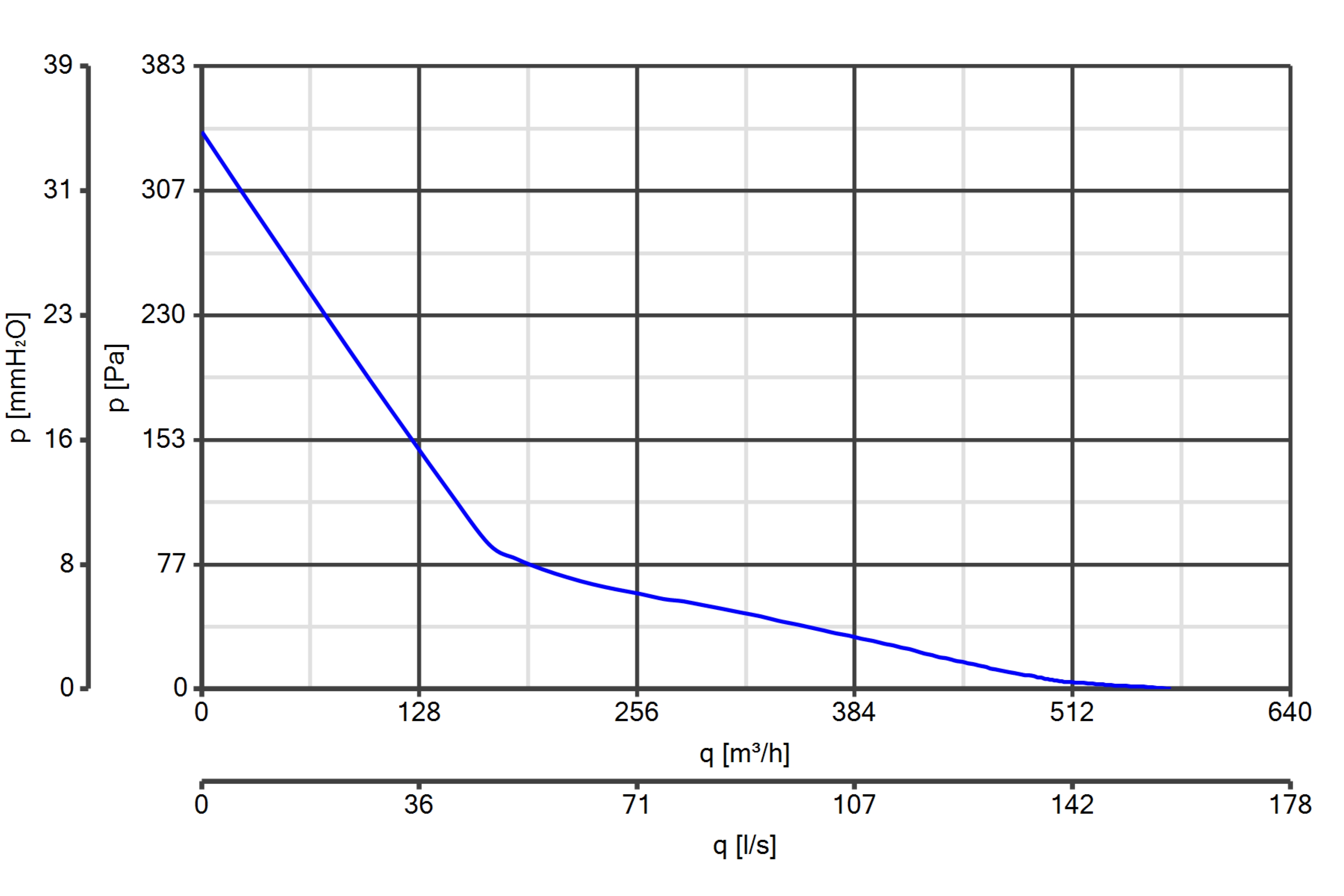

Curva_JPG_16134-Curve_per_Catalogo

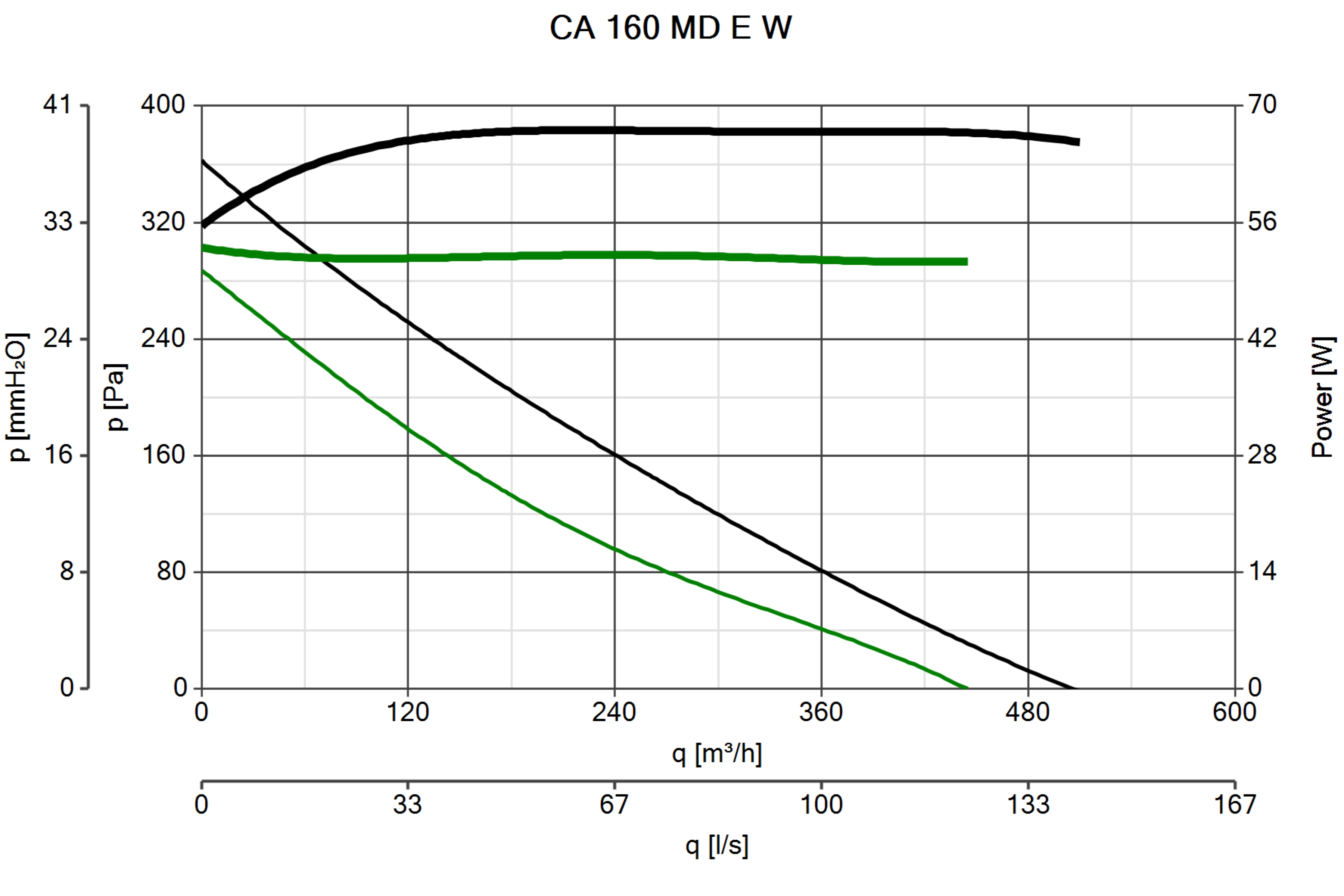

Curva_JPG_16134-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
Go to data sheet
CA-G 160 (GRIGLIA DI PROTEZIONE)
CA-G 160 (GRIGLIA DI PROTEZIONE)
• Protection grille for use in the intake port when unit is mounted within reach.
Go to data sheet
PGR 400 (PERSIANA GRAVITA')
PGR 400 (PERSIANA GRAVITA')
• Gravity type shutter for preventing air backdraught or rain penetration when the unit is turned off.
Go to data sheet
TRA 400 (TELAIO CON RETE ANTINF.)
TRA 400 (TELAIO CON RETE ANTINF.)
• Outlet port protection grille for use when the unit is mounted within reach.
Go to data sheet
C TEMP
C TEMP
Environmental sensor for temperature control.
Go to data sheet
C SMOKE
C SMOKE
Environmental sensor for air quality.
Go to data sheet
C HCS
C HCS
Environmental sensor for relative humidity control.
Go to data sheet
C PIR
C PIR
• Passive infrared sensor.
Go to data sheet
C TIMER
C TIMER
• Adjustable over-run timer.
Go to data sheet
TRIO D
TRIO D
3 speed dipswitch for installation in Standard DIN box.
Go to data sheet
TRIO-LINEO 503
TRIO-LINEO 503
Go to data sheet
