Code 16120

CA 100 MD E W

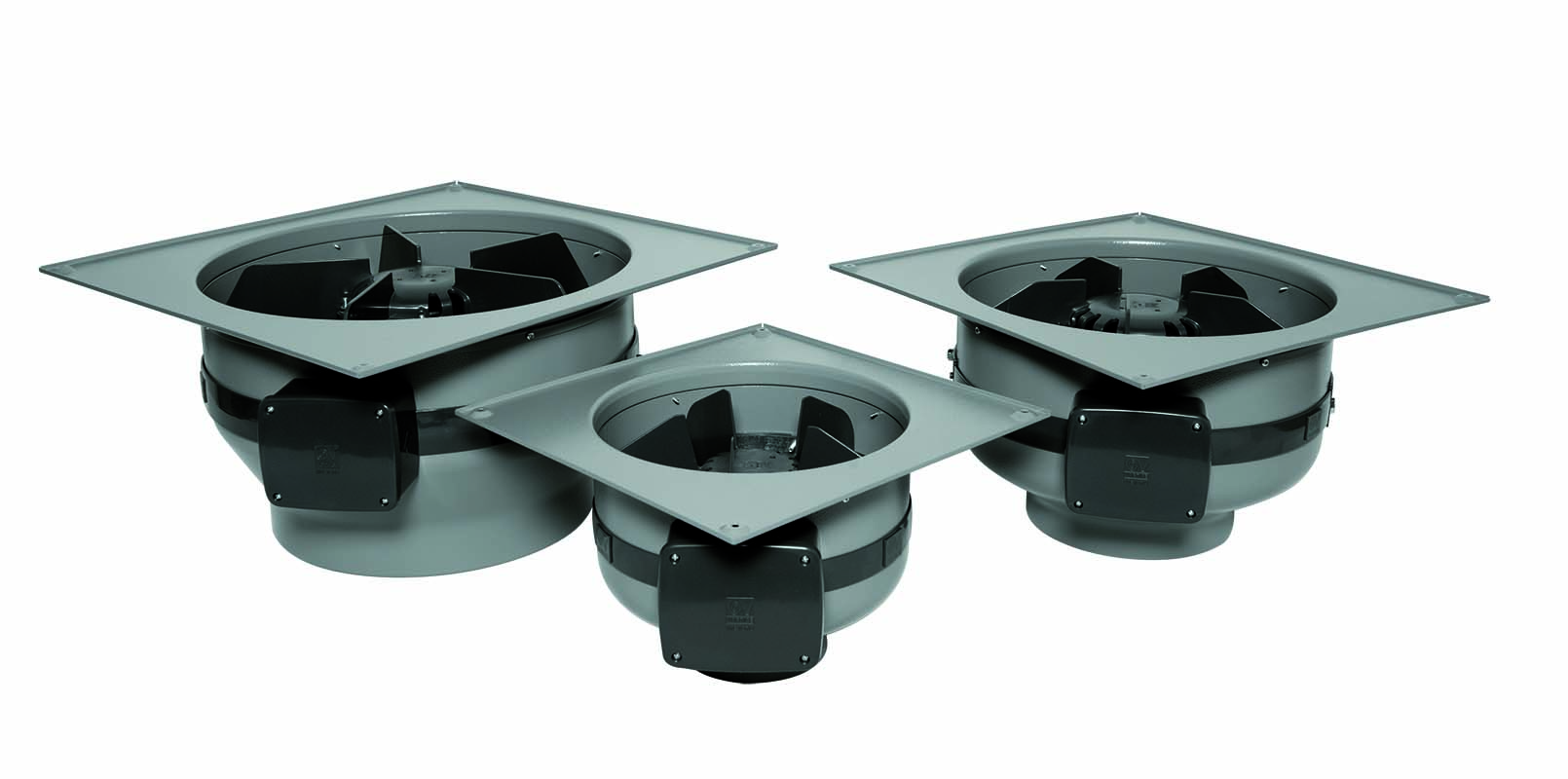

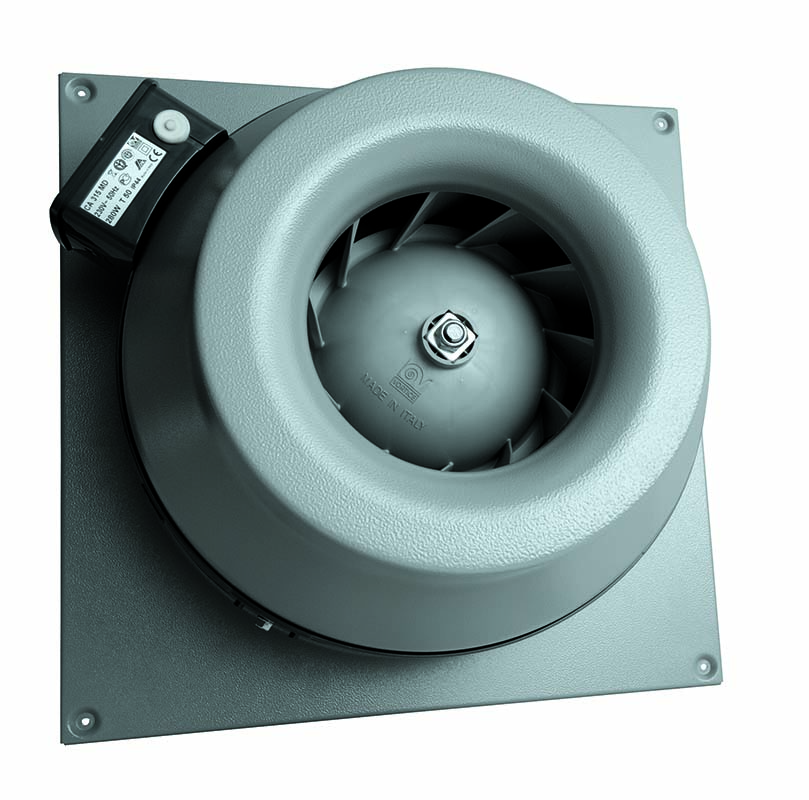

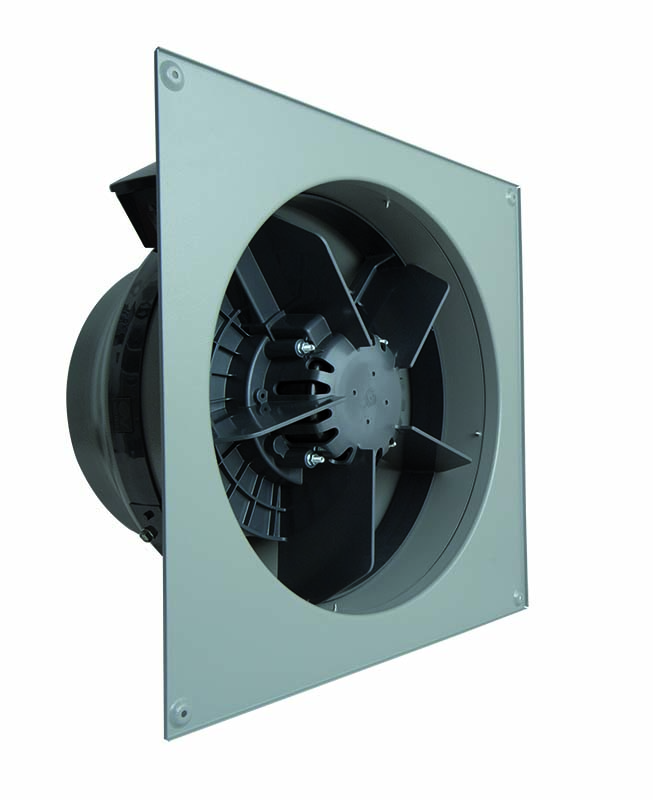

Centrifugal duct fans for wall mounting

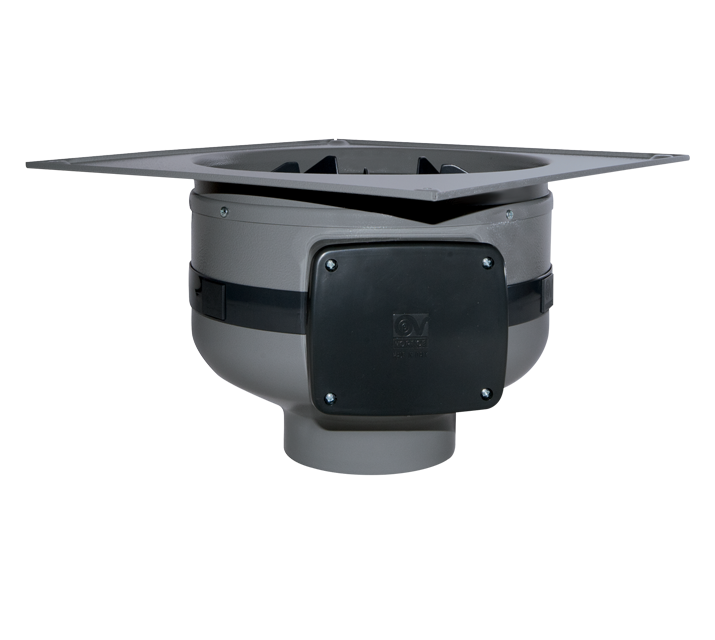

ca_md_e_w_01

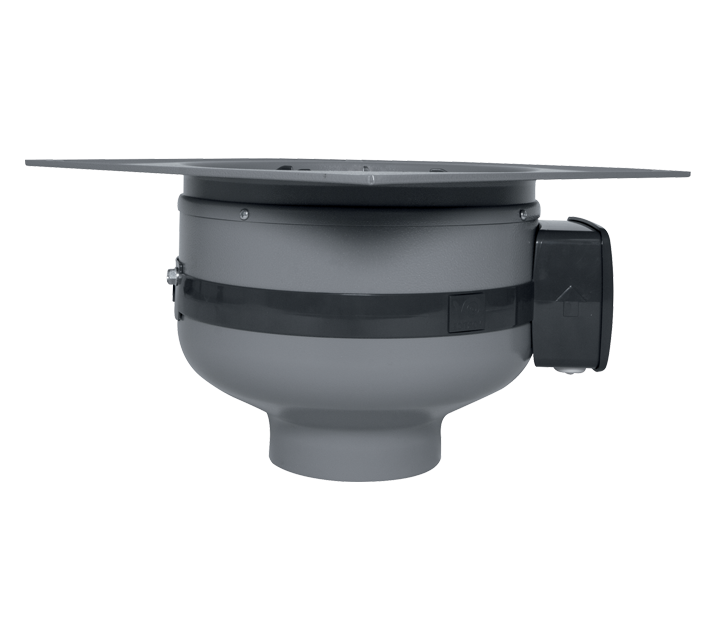

ca_md_e_w_02

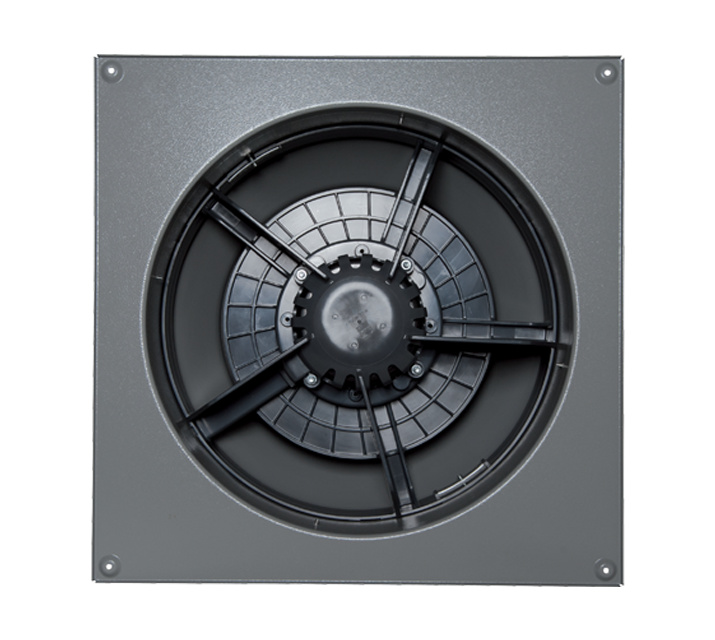

ca_md_e_w_03

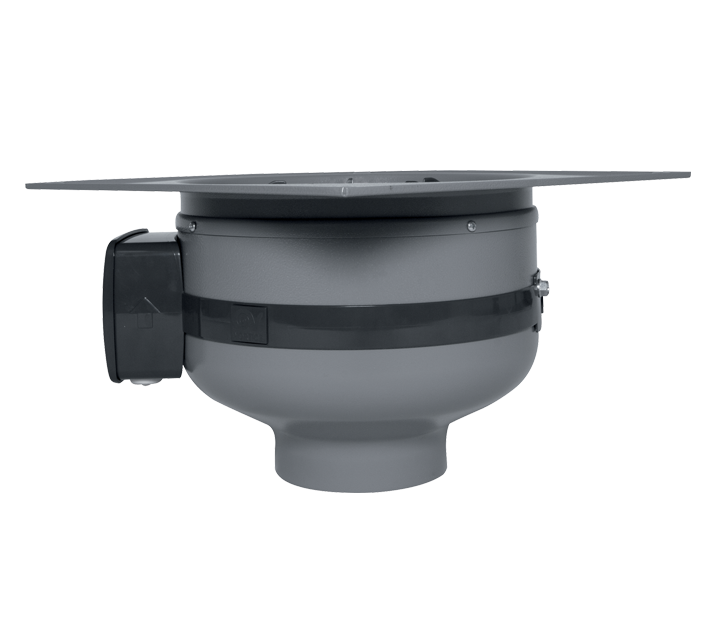

ca_md_e_w_04

Description

• Pickled and phosphated steel housing/wall mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 100 mm.
• 3 speed fan consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_e_w_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,16
  • Max absorbed current at Max speed (A)
    0,22
  • Max absorbed current at Max speed at 60 Hz (A)
    0,26
  • Max absorbed current at Mid speed (A)
    0,20
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,24
  • Max absorbed current at Min speed (A)
    0,15
  • Max absorbed power at Max speed (W)
    42
  • Max absorbed power at Max speed at 60 Hz (W)
    45
  • Max absorbed power at Mid speed (W)
    30
  • Max absorbed power at Mid speed at 60 Hz (W)
    35
  • Max absorbed power at Min speed at 60 Hz (W)
    16
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    100
  • Power absorbed at 1st speed (W)
    13
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,3
  • Airflow at 1st speed (l/s)
    33
  • Airflow at 1st speed (m³/h)
    120
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    54,5
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    48,3
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    34,7
  • Breakout sound power LWA at Max speed [dB (A)]
    56,8
  • Breakout sound power LWA at Mid speed [dB (A)]
    49,4
  • Breakout sound power LWA at Min speed [dB (A)]
    32,7
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    37
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    39,3
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    30,7
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    31,9
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    17,2
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    15,2
  • Max airflow at Max speed (l/s)
    79
  • Max airflow at Max speed (m³/h)
    285
  • Max airflow at Max speed at 60 Hz (l/s)
    75
  • Max airflow at Max speed at 60 Hz (m³/h)
    270
  • Max airflow at Mid speed (m³/h)
    235
  • Max airflow at Mid speed at 60 Hz (l/s)
    63
  • Max airflow at Mid speed at 60 Hz (m³/h)
    225
  • Max airflow at Min speed (l/s)
    65
  • Max airflow at Min speed at 60 Hz (l/s)
    38
  • Max airflow at Min speed at 60 Hz (m³/h)
    135
  • Max pressure at 60 Hz (mmH2O)
    33,7
  • Max pressure at Max speed (mmH20)
    32,5
  • Max pressure at Max speed (Pa)
    319
  • Max pressure at Max speed at 60Hz (Pa)
    331
  • Max pressure at Mid speed (mmH2O)
    29,1
  • Max pressure at Mid speed (Pa)
    285
  • Max pressure at Mid speed at 60Hz (mmH2O)
    26,8
  • Max pressure at Mid speed at 60Hz (Pa)
    263
  • Max pressure at Min speed at 60Hz (mmH2O)
    12,9
  • Max pressure at Min speed at 60Hz (Pa)
    127
  • Max RPM
    2120
  • Max speed at 60 Hz (Rpm)
    1995
  • Mid speed at 60 Hz (Rpm)
    1670
  • Min RPM
    925
  • Min speed at 60 Hz (Rpm)
    1035
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    46,5
  • Pressure at 1st speed (mmH20)
    11,6
  • Pressure at 1st speed (Pa)
    114
  • RPM at Mid speed
    1760
  • Sound power at extract side at Max speed LWA [dB (A)]
    82,7
  • Sound power at extract side at Mid speed LWA [dB (A)]
    76,3
  • Sound power at extract side at Min speed LWA [dB (A)]
    56
  • Sound power at supply side at Max speed LWA [dB (A)]
    74,1
  • Sound power at supply side at Mid speed LWA [dB (A)]
    66,8
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    80,7
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    74,9
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    59,8
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    71,7
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    65,6
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    49,7
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    63,2
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    65,2
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    48,1
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    58,8
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    42,3
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    38,5
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    56,6
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    49,3
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    29
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    54,2
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    57,4
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    32,1


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • AEC annual electric energy consuption (kWh of primary energy/y)
    486,09
  • SFPint (W/m3/s)
    474,61
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,07547
  • ([m3/s)
    0,07594
  • Real absorbed electric power (KW)
    0,038
  • Effective electic power input [kW]
    0,047
  • Face velocity at nominal airflow (m/s)
    9,66955
  • Face velocity at nominal flowrate (m/s)
    9,60942
  • Nominal external pressure (Pa)
    42
  • Nominal external pressure (Pa)
    10
  • Inner pressure drop of ventilation components (Pa)
    192
  • Internal pressure drop of ventilation components (Pa)
    148
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    40,4
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    30,4
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    2,45
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    NA
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level LWA [dB(A)]
    52
  • Casing sound power level (LWA) [dB(A)]
    57

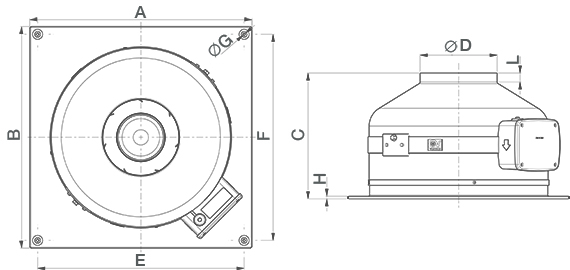

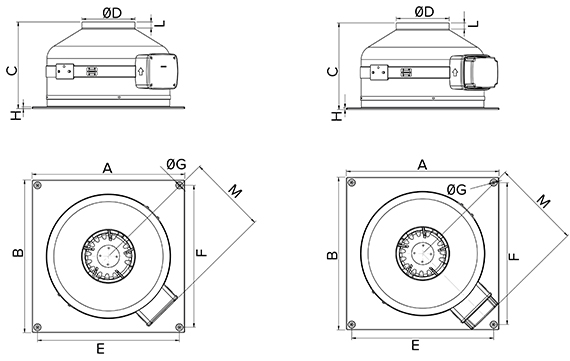

  • Size A (mm)
    334
  • Size B (mm)
    334
  • Size C (mm)
    210
  • Size D (mm)
    ø 97
  • Size E (mm)
    304
  • Size F (mm)
    304
  • Size G (mm)
    ø 5
  • Size H (mm)
    5
  • Size L (mm)
    15
  • Size M (mm)
    198
quota

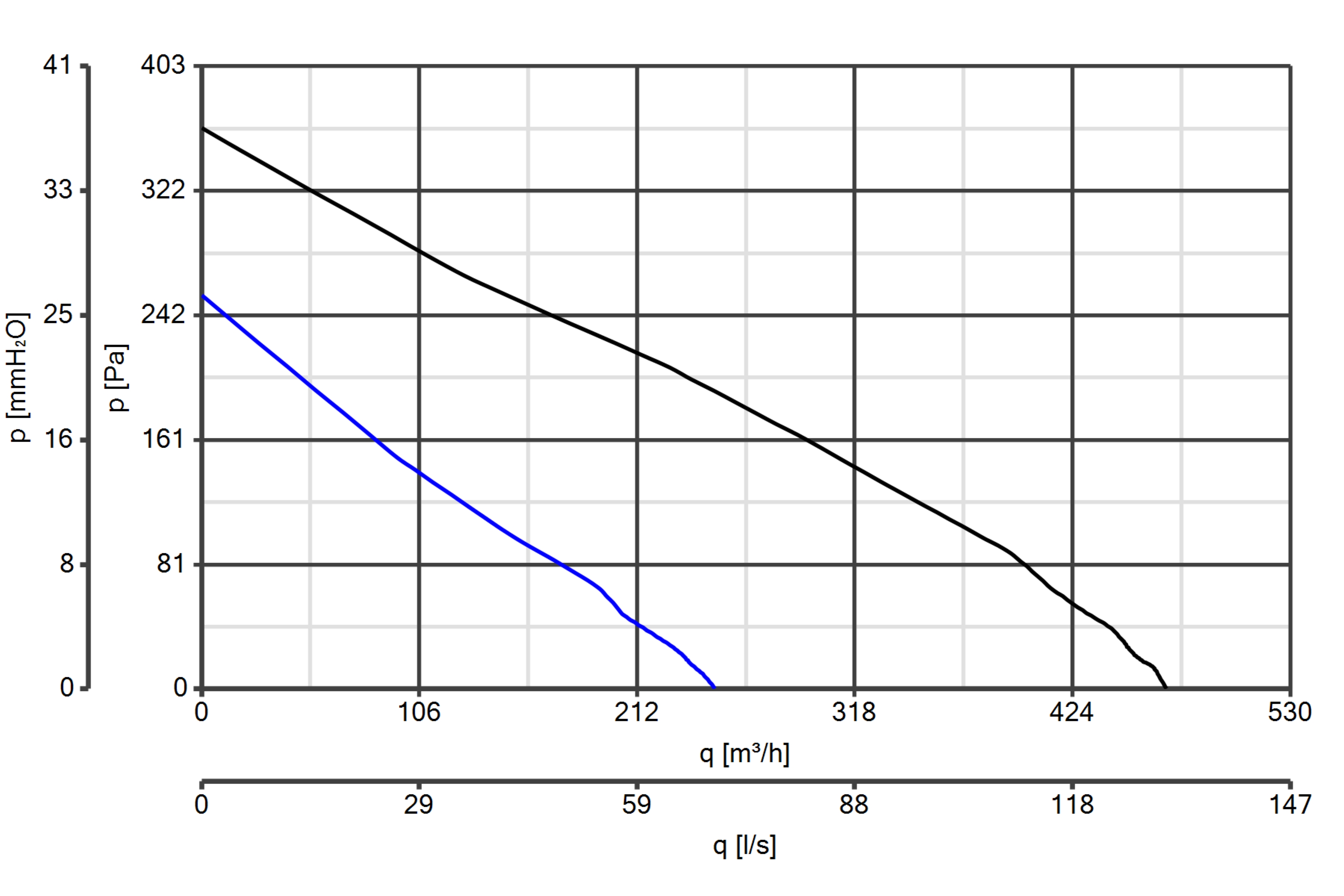

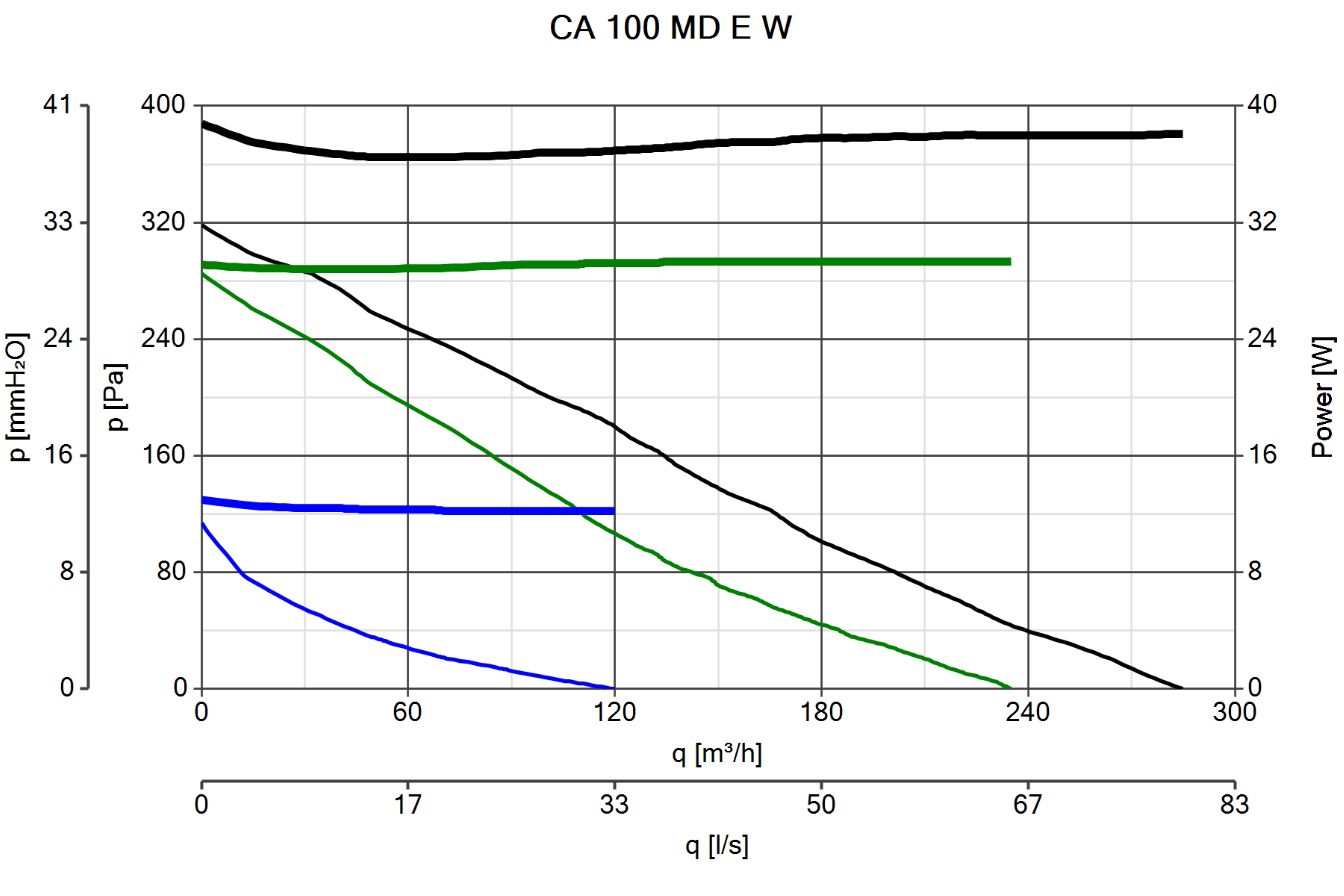

Curva_JPG_16120-Curve_per_Catalogo
