Code 16093

CA 150 Q WE D

Centrifugal duct fans for external wall

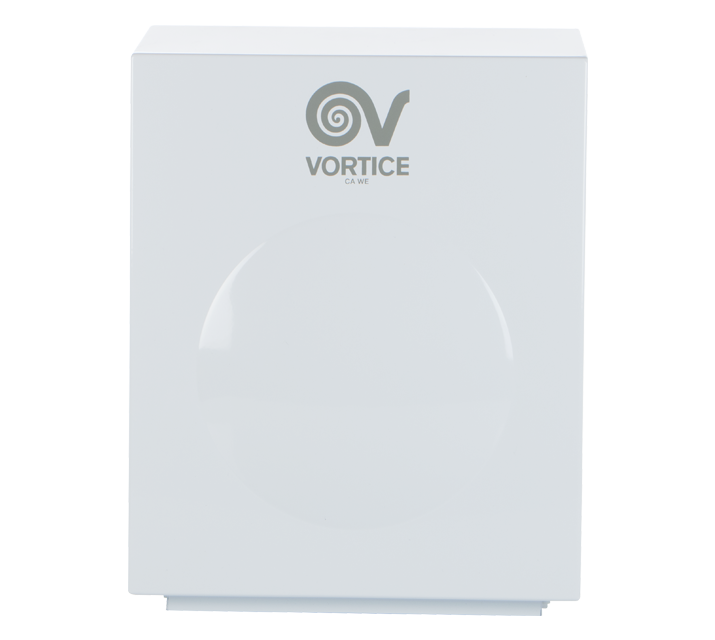

ca_we_d_e_01

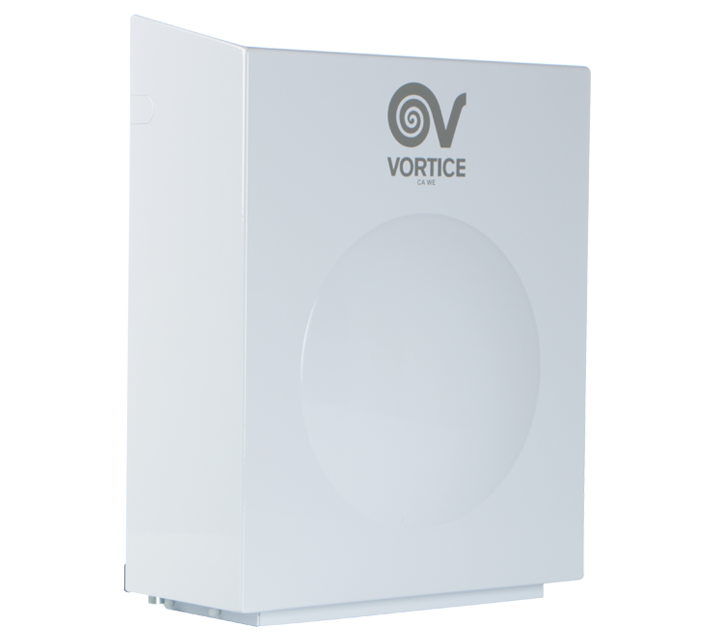

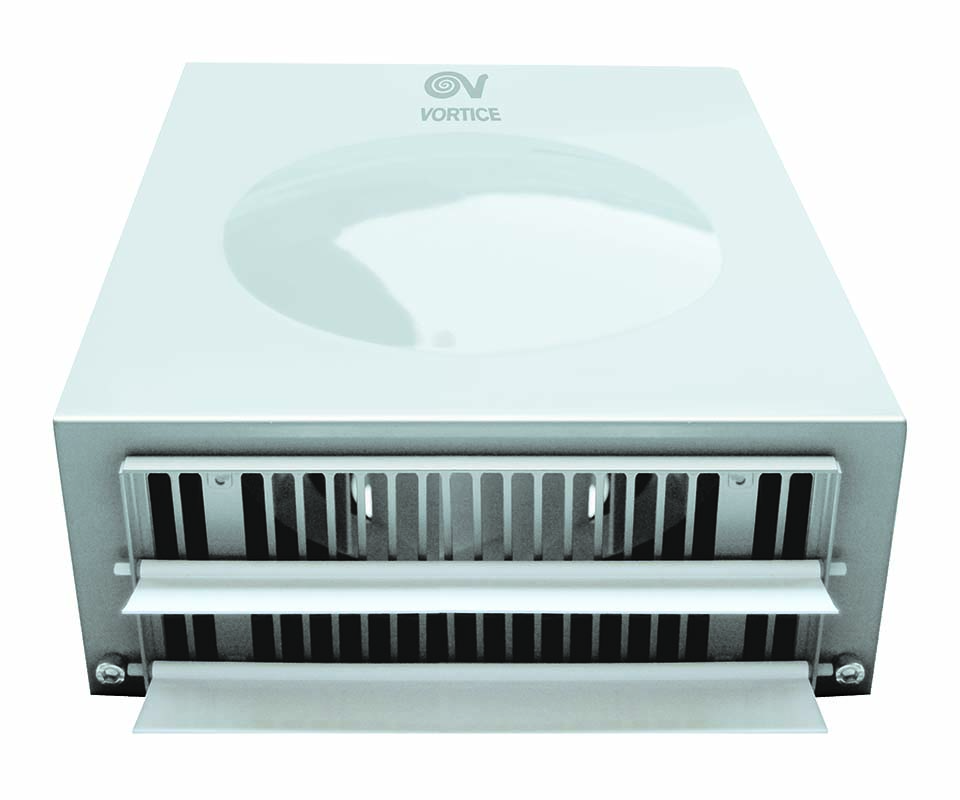

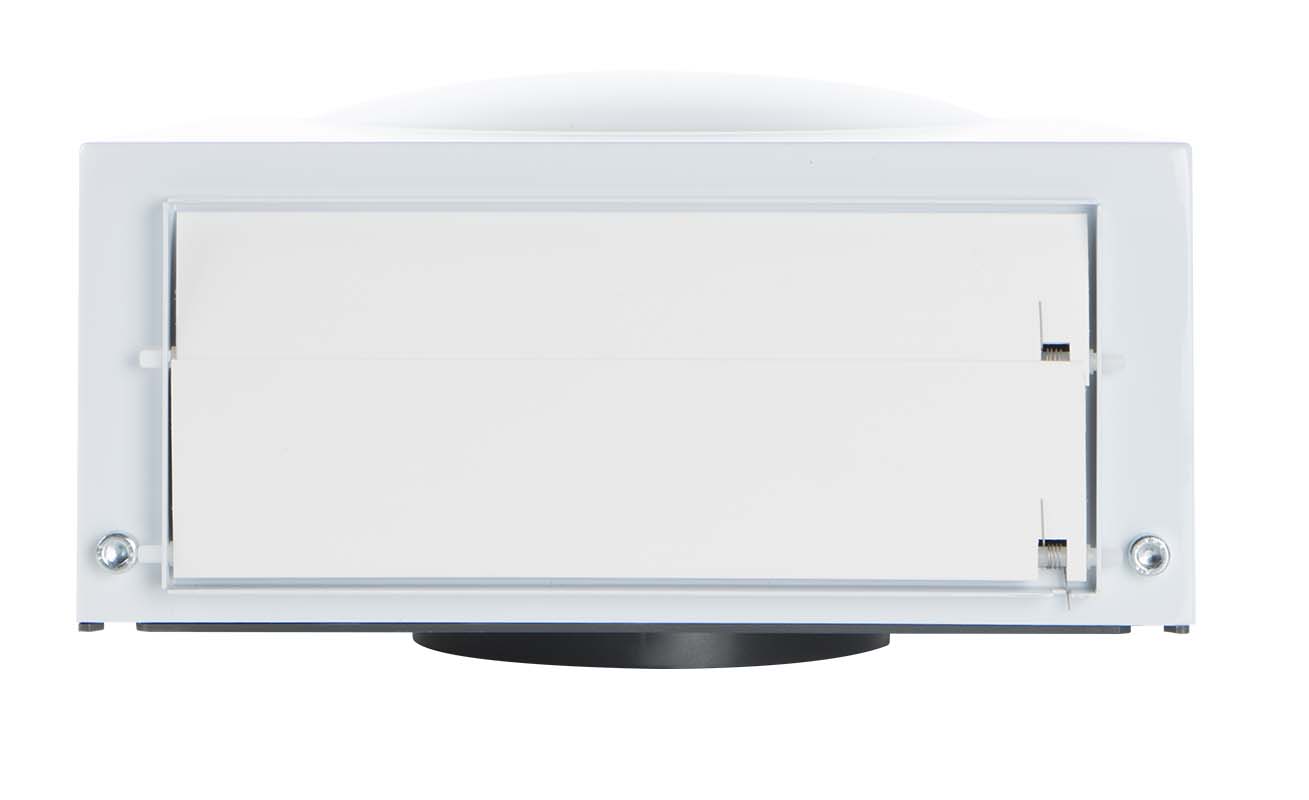

ca_we_d_e_02

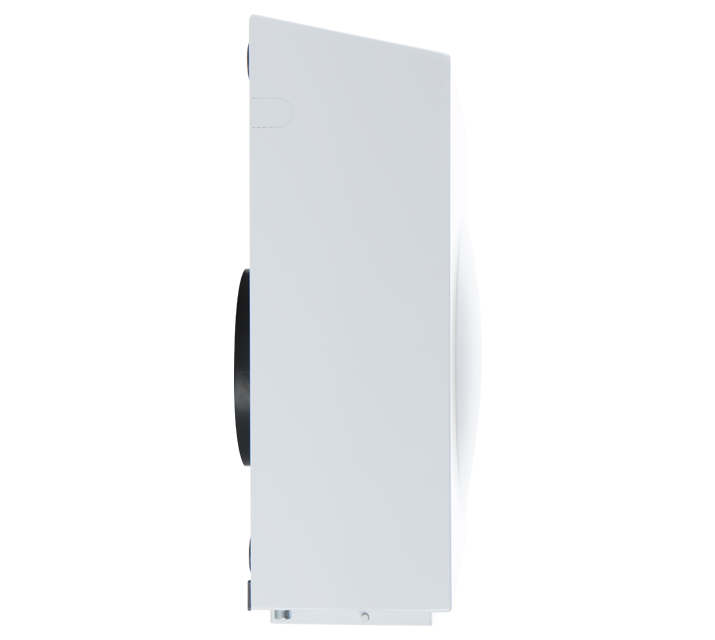

ca_we_d_e_03

Description

• P04 pressed steel outer enclosure with polyester paint finish, resistant to atmospheric agents.
• Nominal diameter 150 mm.
• 3 speed fan through TRIO-CA optional control (cod. 12869), consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
Read full descriptionClose description

Certifications

ca_we_d_e_ambiente01
ca_we_d_e_ambiente02
ca_we_d_e_ambiente03

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    I°
  • IP
    X5
  • Max absorbed current at Max speed (A)
    0,24
  • Max absorbed current at Mid speed (A)
    0,21
  • Max absorbed current at Min speed (A)
    0.15
  • Max absorbed power at Max speed (W)
    38
  • Max absorbed power at Mid speed (W)
    24
  • Max ambient temperature for continuous operation (°C)
    60
  • Power absorbed at 1st speed (W)
    11
  • Voltage (V)
    220-240
  • Weight (Kg)
    4,5
  • Airflow at 1st speed (l/s)
    21,6
  • Airflow at 1st speed (m³/h)
    78
  • Breakout sound power LWA at Max speed [dB (A)]
    63,8
  • Breakout sound power LWA at Mid speed [dB (A)]
    55,5
  • Breakout sound power LWA at Min speed [dB (A)]
    44,5
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    46,3
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    38
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    26,9
  • Max airflow at Max speed (l/s)
    74,4
  • Max airflow at Max speed (m³/h)
    268
  • Max airflow at Mid speed (m³/h)
    179
  • Max airflow at Min speed (l/s)
    49,7
  • Max pressure at Max speed (mmH20)
    35.6
  • Max pressure at Max speed (Pa)
    349
  • Max pressure at Mid speed (mmH2O)
    32,7
  • Max pressure at Mid speed (Pa)
    320,7
  • Max RPM
    2345
  • Min RPM
    870
  • Pressure at 1st speed (mmH20)
    9,8
  • Pressure at 1st speed (Pa)
    95.7
  • RPM at Mid speed
    1500
  • Sound power at extract side at Max speed LWA [dB (A)]
    62,4
  • Sound power at extract side at Mid speed LWA [dB (A)]
    54,1
  • Sound power at extract side at Min speed LWA [dB (A)]
    43,1
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    44,9
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    36,5
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    25,6
  • Supplier's name or trade mark
    Vortice
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • AEC annual electric energy consuption (kWh of primary energy/y)
    501.58
  • SFPint (W/m3/s)
    NA
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0.0653
  • ([m3/s)
    0,09533
  • Real absorbed electric power (KW)
    0,053
  • Effective electic power input [kW]
    0.033
  • Face velocity at nominal flowrate (m/s)
    3.69397
  • Face velocity at nominal airflow (m/s)
    5,39476
  • Nominal external pressure (Pa)
    1,8
  • Nominal external pressure (Pa)
    3
  • Internal pressure drop of ventilation components (Pa)
    373
  • Inner pressure drop of ventilation components (Pa)
    164
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    74.4
  • Fan static efficiency according to 327/2011/UE regulation (%)
    29,5
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    0.5
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    50
  • Casing sound power level (LWA) [dB(A)]
    61

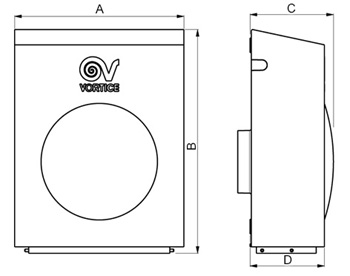

  • Size A (mm)
    262
  • Size B (mm)
    345
  • Size C (mm)
    127
  • Size D (mm)
    113
  • Size E (mm)
    147
  • Size F (mm)
    20
  • Size G (mm)
    142
  • Size H (mm)
    68
quota

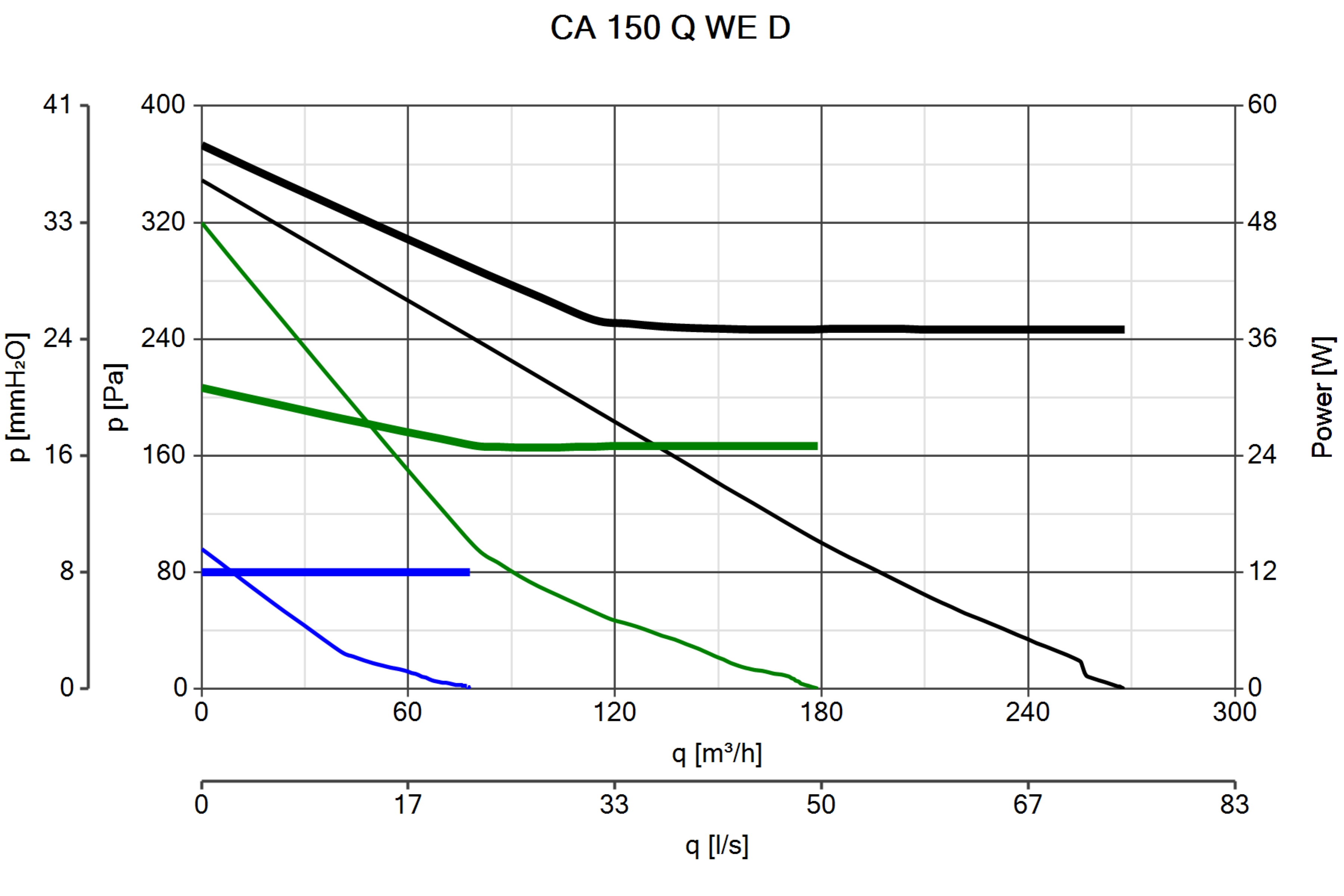

Curva_JPG_16093-Curve_per_Catalogo

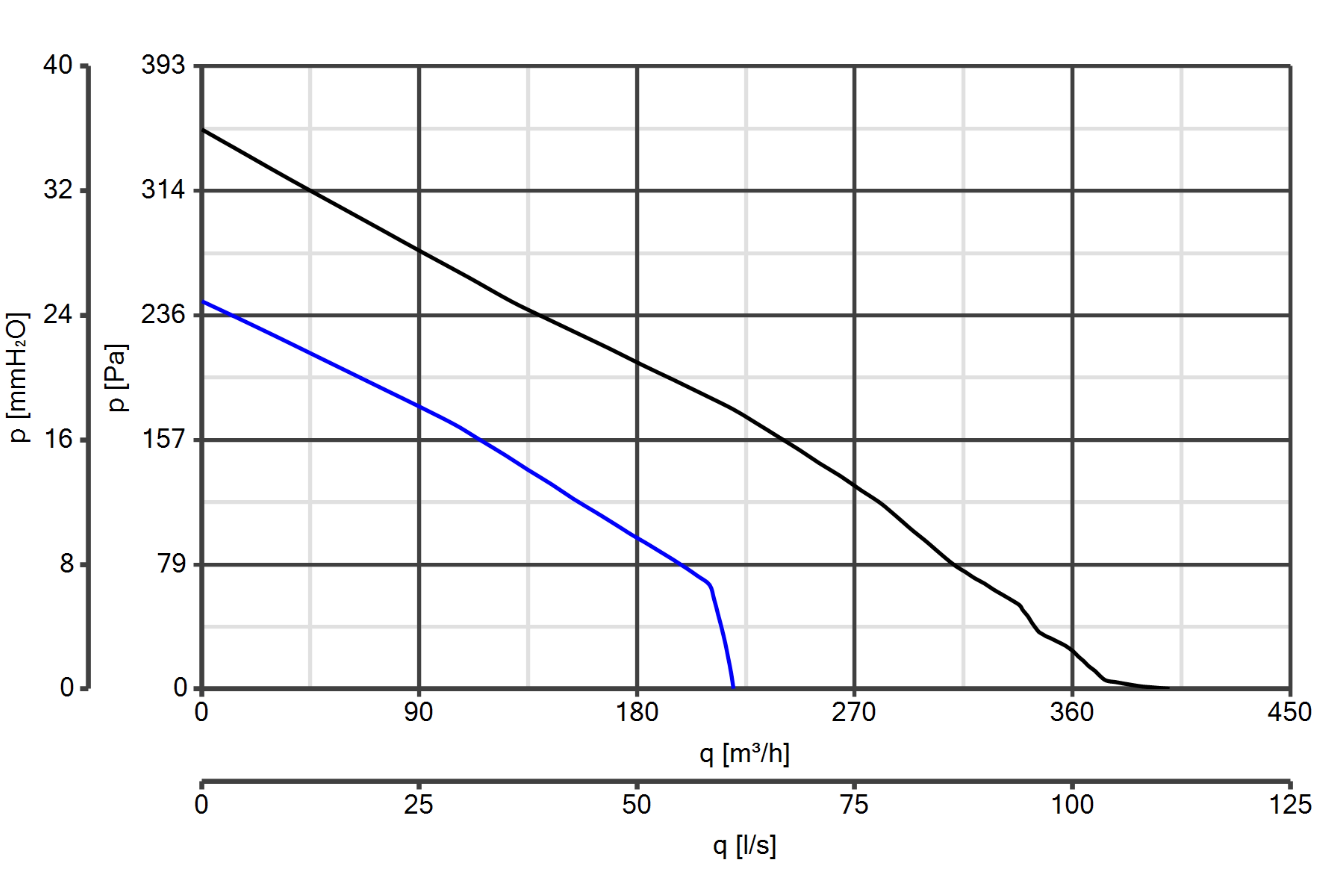

Curva_JPG_16093-Curve_per_Catalogo
