Code 16184

CA 160 MD E RF

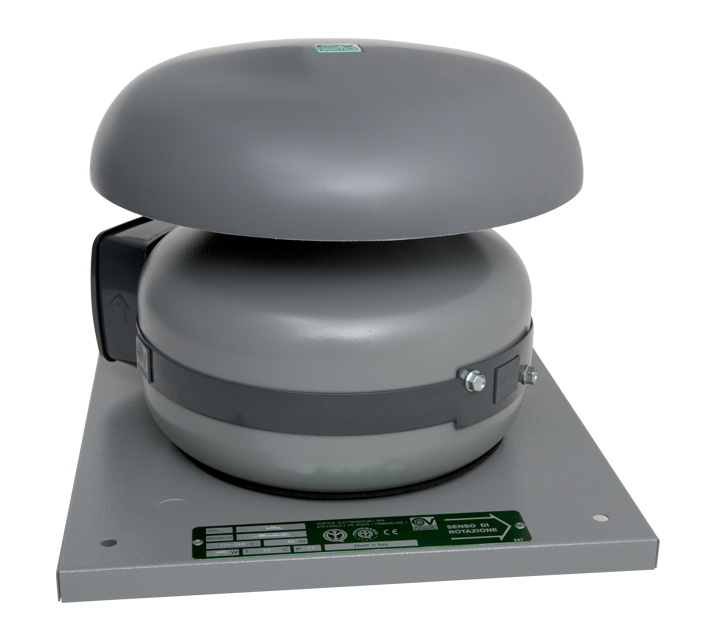

Centrifugal duct fans for roof mounting

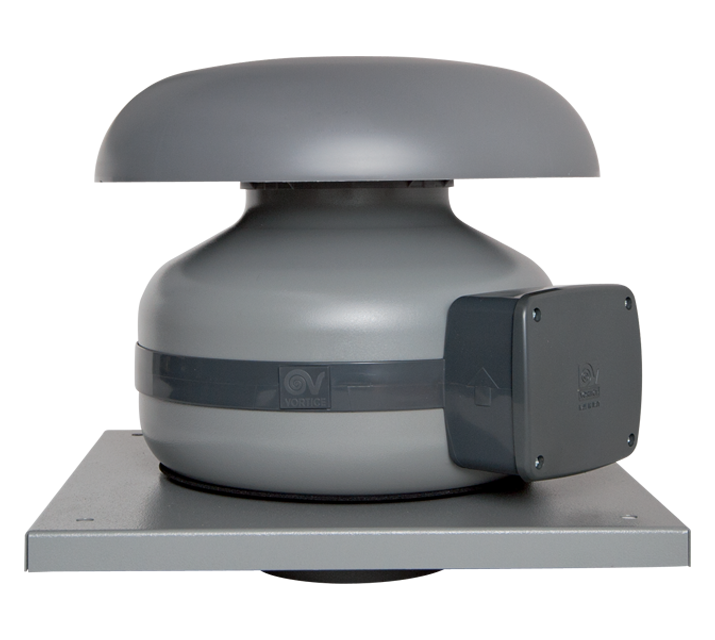

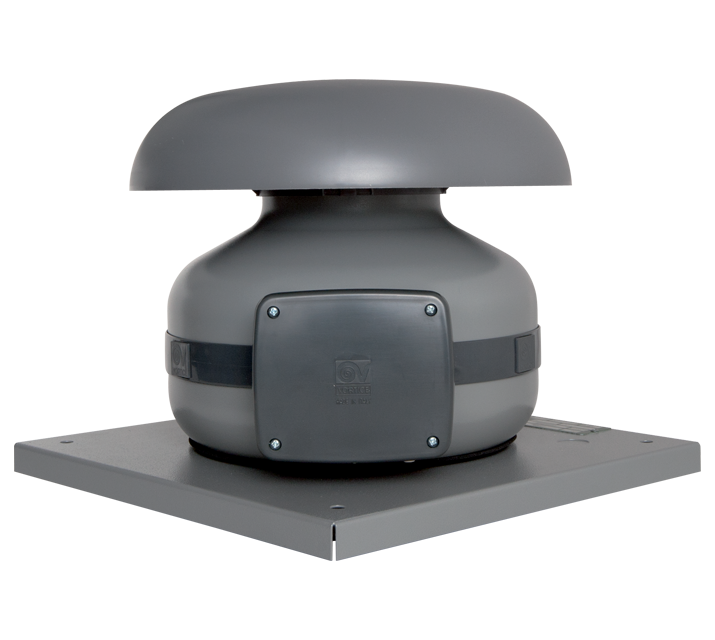

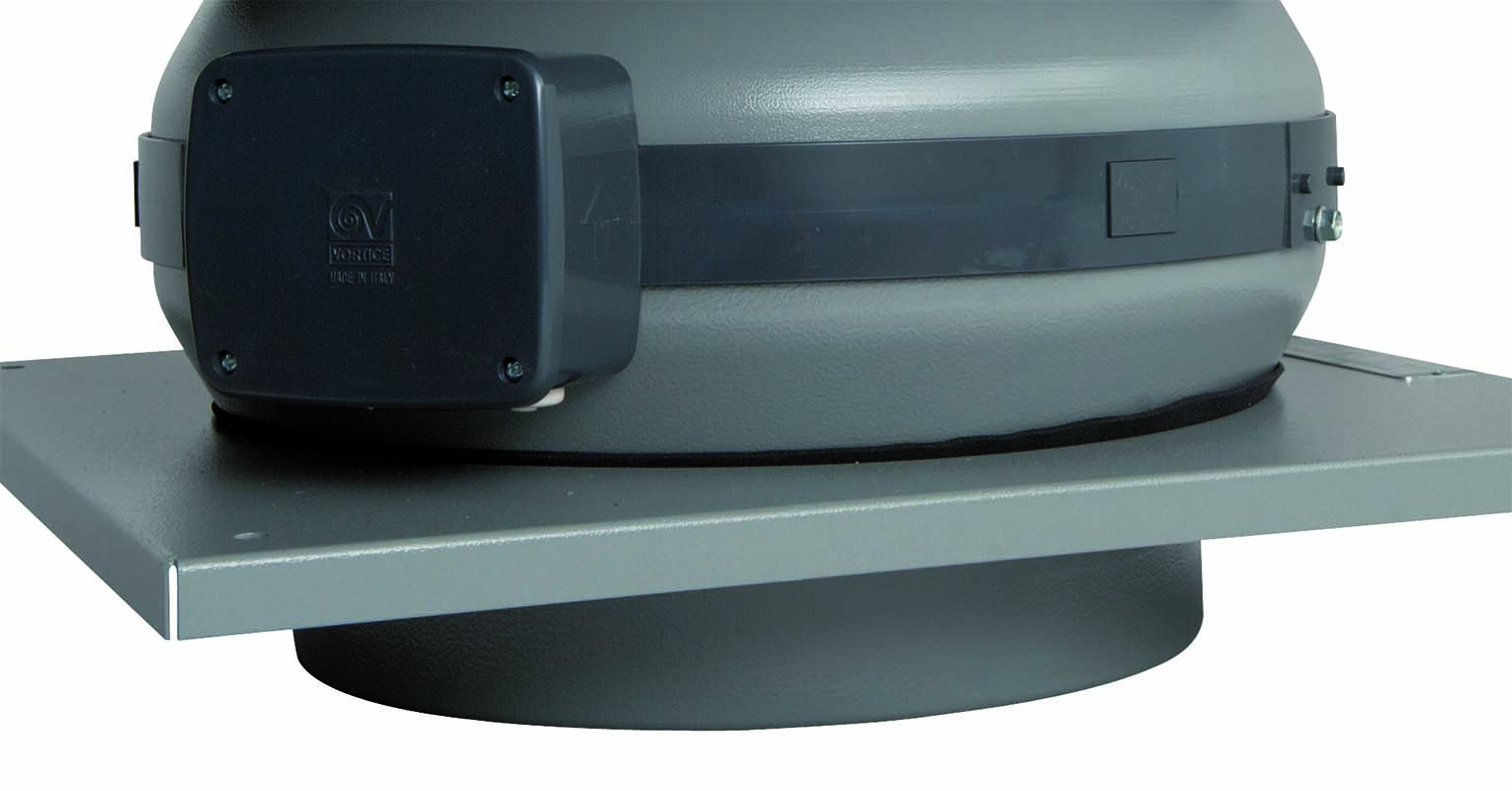

ca_md_e_rf_01

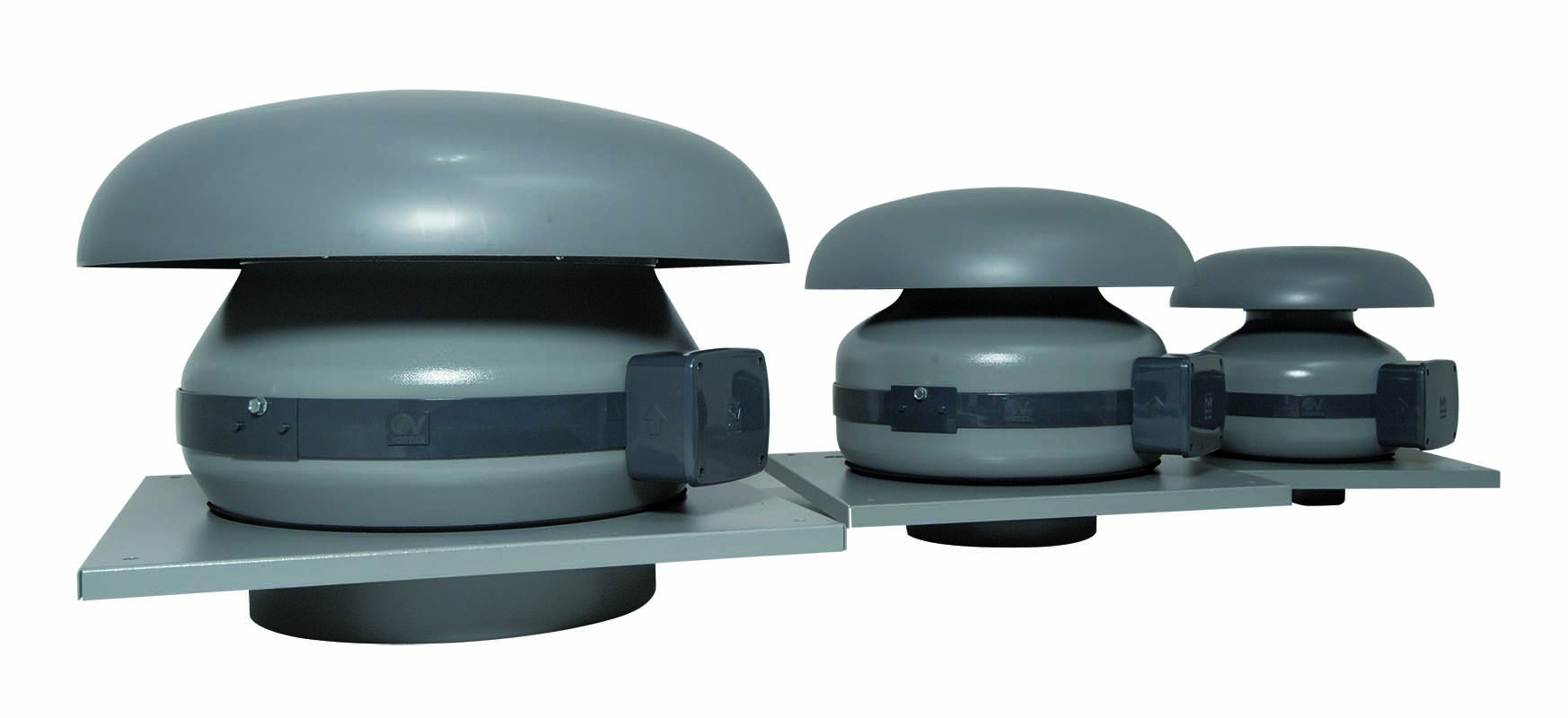

ca_md_e_rf_02
ca_md_e_rf_03

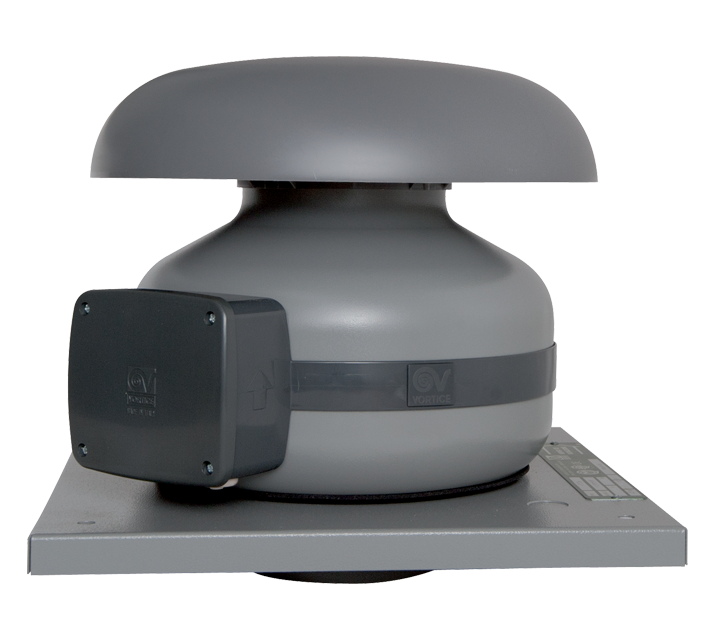

ca_md_e_rf_04

Description

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 160 mm.
• 3 speed fan through TRIO-CA optional control (cod. 12869), consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel fixing brackets.
Read full descriptionClose description

Certifications

ca_md_e_rf_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,39
  • Max absorbed current at Max speed (A)
    0,42
  • Max absorbed current at Max speed at 60 Hz (A)
    0,51
  • Max absorbed current at Mid speed (A)
    0,40
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,45
  • Max absorbed current at Min speed (A)
    0,34
  • Max absorbed power at Max speed (W)
    69
  • Max absorbed power at Max speed at 60 Hz (W)
    82
  • Max absorbed power at Mid speed (W)
    53
  • Max absorbed power at Mid speed at 60 Hz (W)
    64
  • Max absorbed power at Min speed at 60 Hz (W)
    45
  • Max ambient temperature for continuous operation (°C)
    55
  • Nominal diameter (mm)
    160
  • Power absorbed at 1st speed (W)
    35
  • Voltage (V)
    220-240
  • Weight (Kg)
    9
  • Airflow at 1st speed (l/s)
    79
  • Airflow at 1st speed (m³/h)
    285
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    67,8
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    65,1
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    58,2
  • Breakout sound power LWA at Max speed [dB (A)]
    70,8
  • Breakout sound power LWA at Mid speed [dB (A)]
    66,7
  • Breakout sound power LWA at Min speed [dB (A)]
    57,1
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    47,3
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    50,2
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    44,6
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    46,2
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    37,7
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    36,5
  • Max airflow at Max speed (l/s)
    124
  • Max airflow at Max speed (m³/h)
    445
  • Max airflow at Max speed at 60 Hz (l/s)
    111
  • Max airflow at Max speed at 60 Hz (m³/h)
    400
  • Max airflow at Mid speed (m³/h)
    385
  • Max airflow at Mid speed at 60 Hz (l/s)
    103
  • Max airflow at Mid speed at 60 Hz (m³/h)
    370
  • Max airflow at Min speed (l/s)
    107
  • Max airflow at Min speed at 60 Hz (l/s)
    81
  • Max airflow at Min speed at 60 Hz (m³/h)
    290
  • Max pressure at 60 Hz (mmH2O)
    30,2
  • Max pressure at Max speed (mmH20)
    38,4
  • Max pressure at Max speed (Pa)
    377
  • Max pressure at Max speed at 60Hz (Pa)
    296
  • Max pressure at Mid speed (mmH2O)
    33,7
  • Max pressure at Mid speed (Pa)
    331
  • Max pressure at Mid speed at 60Hz (mmH2O)
    26,7
  • Max pressure at Mid speed at 60Hz (Pa)
    262
  • Max pressure at Min speed at 60Hz (mmH2O)
    26,3
  • Max pressure at Min speed at 60Hz (Pa)
    258
  • Max RPM
    2380
  • Max speed at 60 Hz (Rpm)
    2135
  • Mid speed at 60 Hz (Rpm)
    1945
  • Min RPM
    1510
  • Min speed at 60 Hz (Rpm)
    1535
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    57,1
  • Pressure at 1st speed (mmH20)
    26,3
  • Pressure at 1st speed (Pa)
    258
  • RPM at Mid speed
    2090
  • Sound power at extract side at Max speed LWA [dB (A)]
    89,1
  • Sound power at extract side at Mid speed LWA [dB (A)]
    85,3
  • Sound power at extract side at Min speed LWA [dB (A)]
    76,3
  • Sound power at supply side at Max speed LWA [dB (A)]
    70,8
  • Sound power at supply side at Mid speed LWA [dB (A)]
    66,7
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    85,8
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    83,8
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    77,2
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    67,8
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    65,1
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    58,2
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    68,2
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    71,6
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    44,6
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    67,8
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    59,7
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    58,8
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    50,2
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    46,2
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    36,5
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    47,3
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    66,3
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    37,7


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • AEC annual electric energy consuption (kWh of primary energy/y)
    471,78
  • SFPint (W/m3/s)
    489,72
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,11269
  • ([m3/s)
    0,09892
  • Real absorbed electric power (KW)
    0,065
  • Effective electic power input [kW]
    0,069
  • Face velocity at nominal airflow (m/s)
    5,59754
  • Face velocity at nominal flowrate (m/s)
    14,34871
  • Nominal external pressure (Pa)
    53
  • Nominal external pressure (Pa)
    82
  • Inner pressure drop of ventilation components (Pa)
    238
  • Internal pressure drop of ventilation components (Pa)
    177
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    48,7
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    37,6
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    1,88
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    70,8
  • Casing sound power level (LWA) [dB(A)]
    70,9

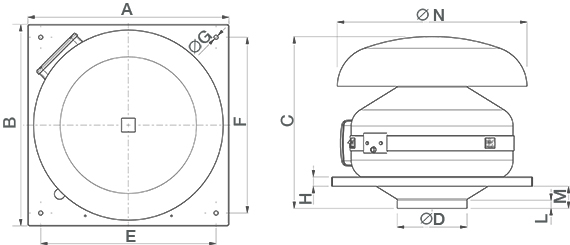

  • Size A (mm)
    424
  • Size B (mm)
    424
  • Size C (mm)
    365
  • Size D (mm)
    ø 157
  • Size E (mm)
    370
  • Size F (mm)
    370
  • Size G (mm)
    ø 9
  • Size H (mm)
    20
  • Size L (mm)
    18
  • Size M (mm)
    47
  • Size N (mm)
    ø 400
  • Size O (mm)
    280
quota

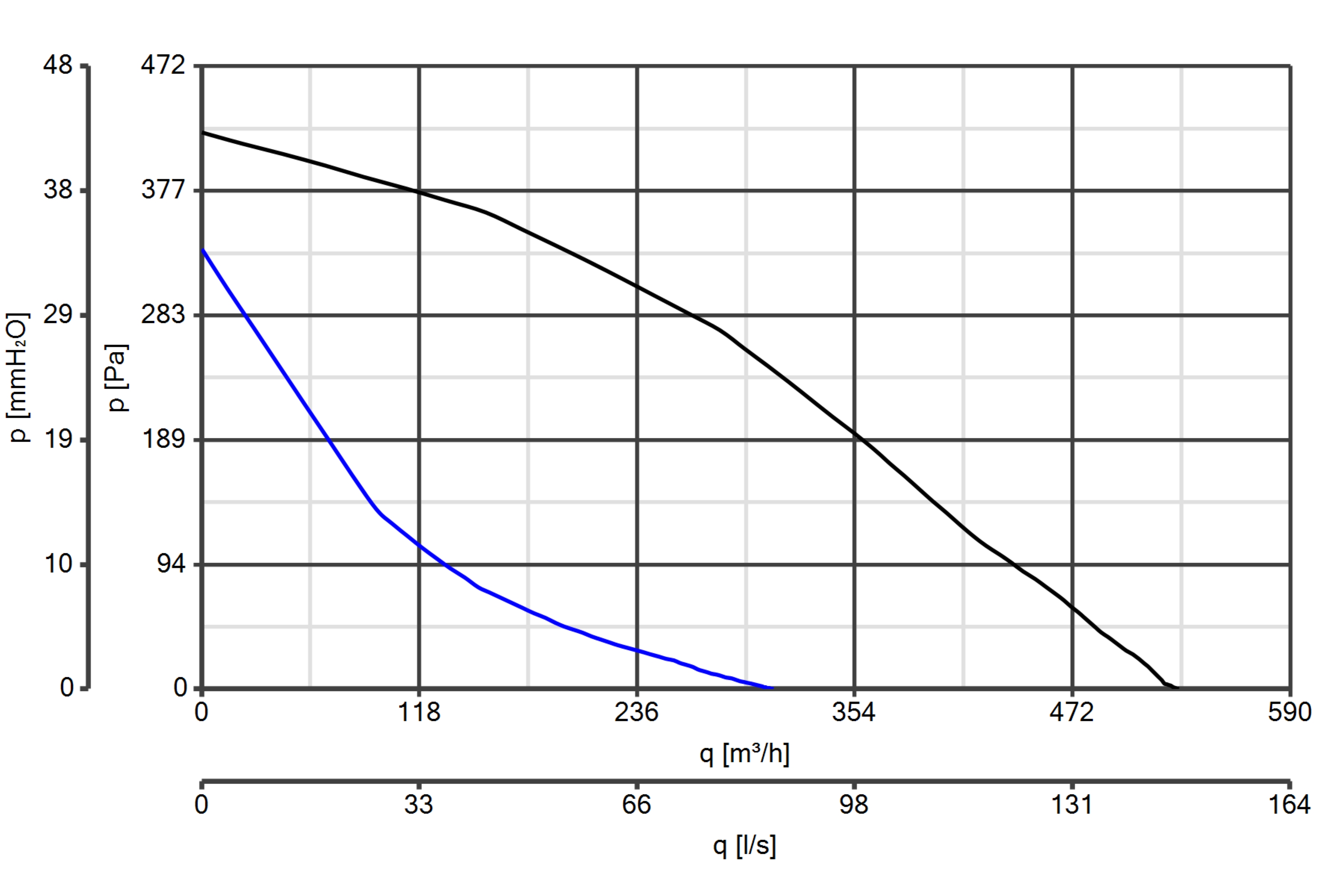

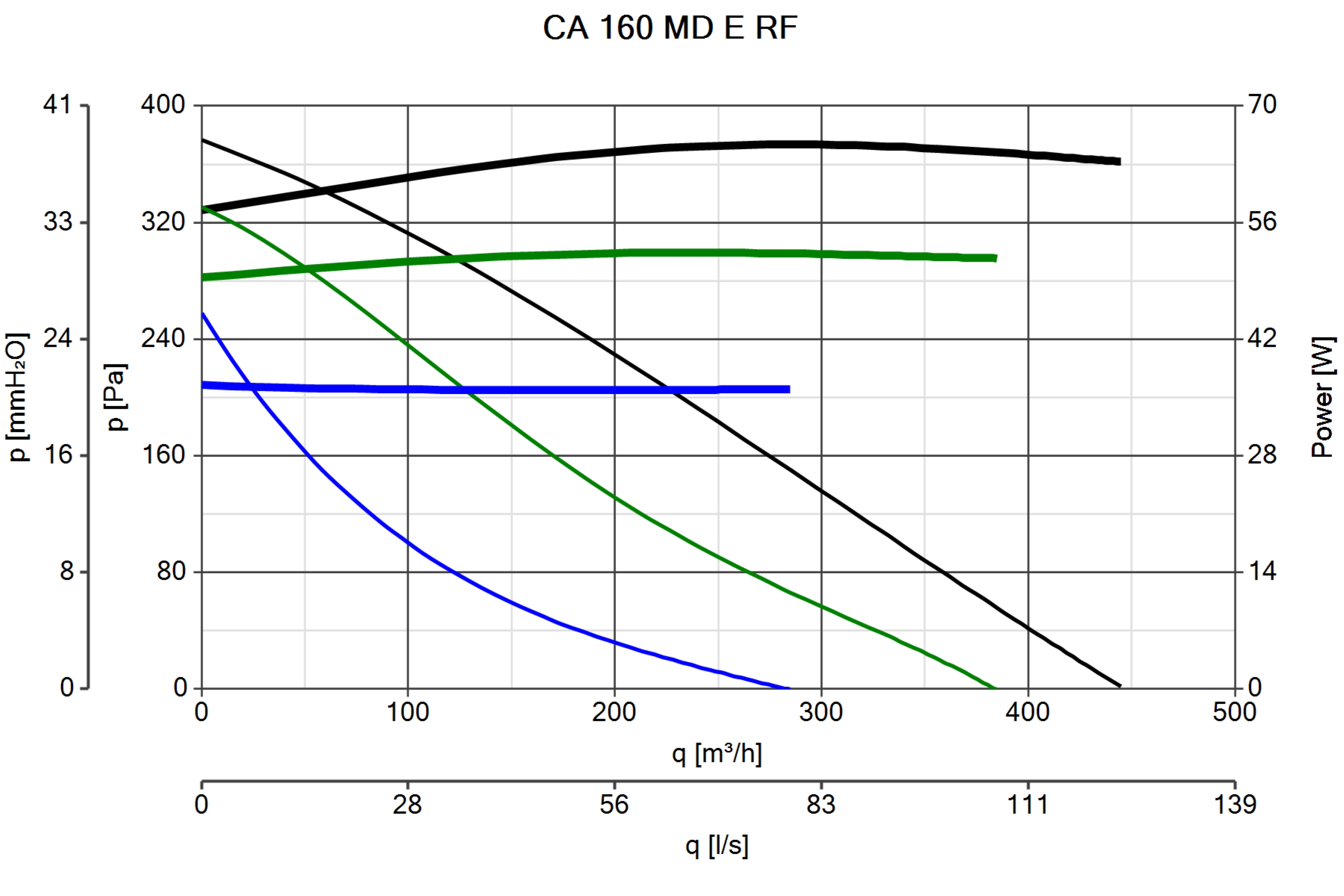

Curva_JPG_16184-Curve_per_Catalogo
Curva_JPG_16184-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
Go to data sheet
CA-G 160 (GRIGLIA DI PROTEZIONE)
CA-G 160 (GRIGLIA DI PROTEZIONE)
• Protection grille for use in the intake port when unit is mounted within reach.
Go to data sheet
CARF-C 150/160/200(CONTROTELAIO DI BASE)
CARF-C 150/160/200(CONTROTELAIO DI BASE)
Sub-frame
Go to data sheet
C TEMP
C TEMP
Environmental sensor for temperature control.
Go to data sheet
C SMOKE
C SMOKE
Environmental sensor for air quality.
Go to data sheet
C HCS
C HCS
Environmental sensor for relative humidity control.
Go to data sheet
C PIR
C PIR
• Passive infrared sensor.
Go to data sheet
C TIMER
C TIMER
• Adjustable over-run timer.
Go to data sheet
TRIO D
TRIO D
3 speed dipswitch for installation in Standard DIN box.
Go to data sheet
TRIO-LINEO 503
TRIO-LINEO 503
Go to data sheet
