Code 16183

CA 150 MD E RF

Centrifugal duct fans for roof mounting

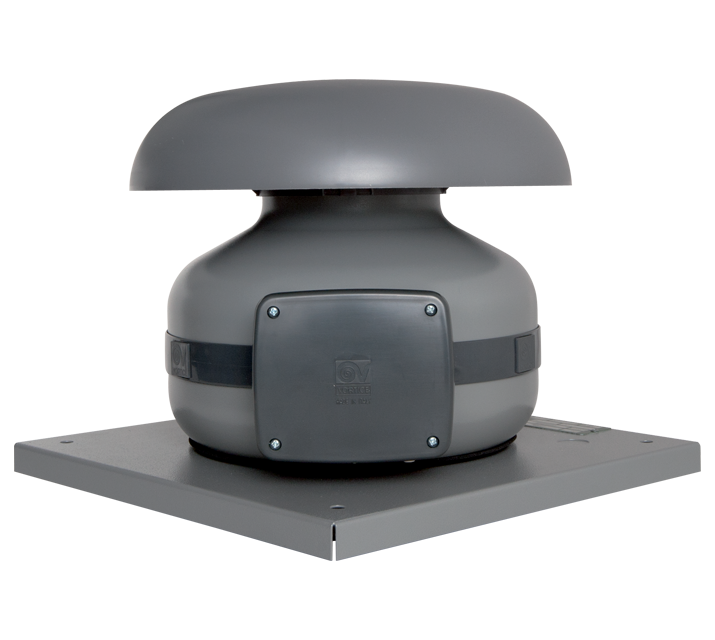

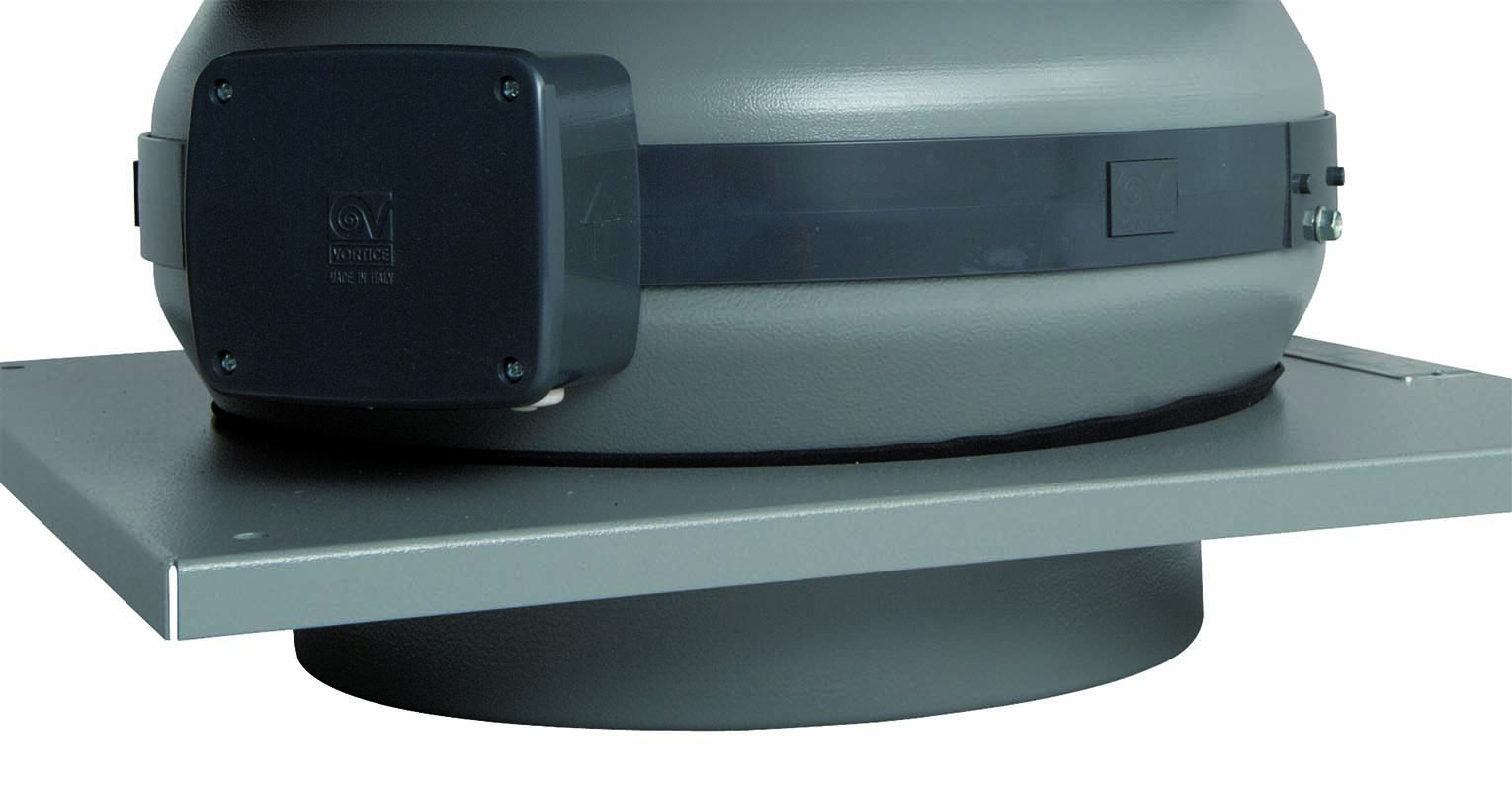

ca_md_e_rf_01

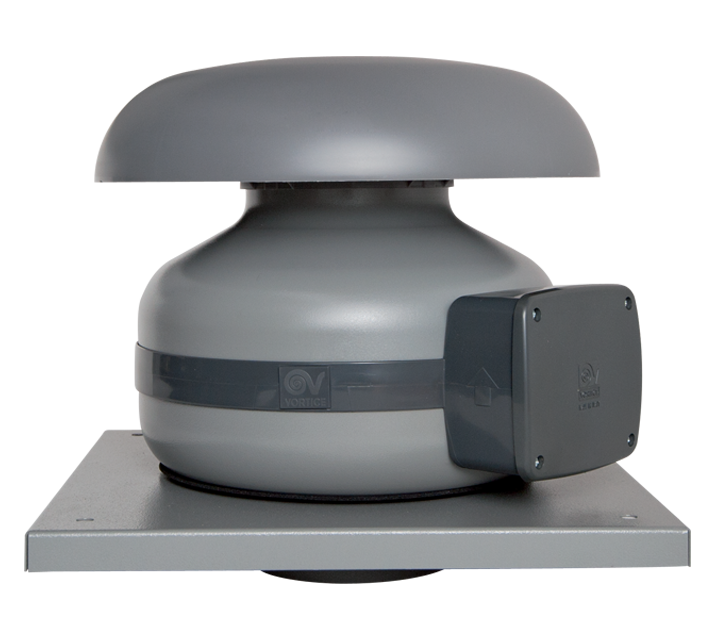

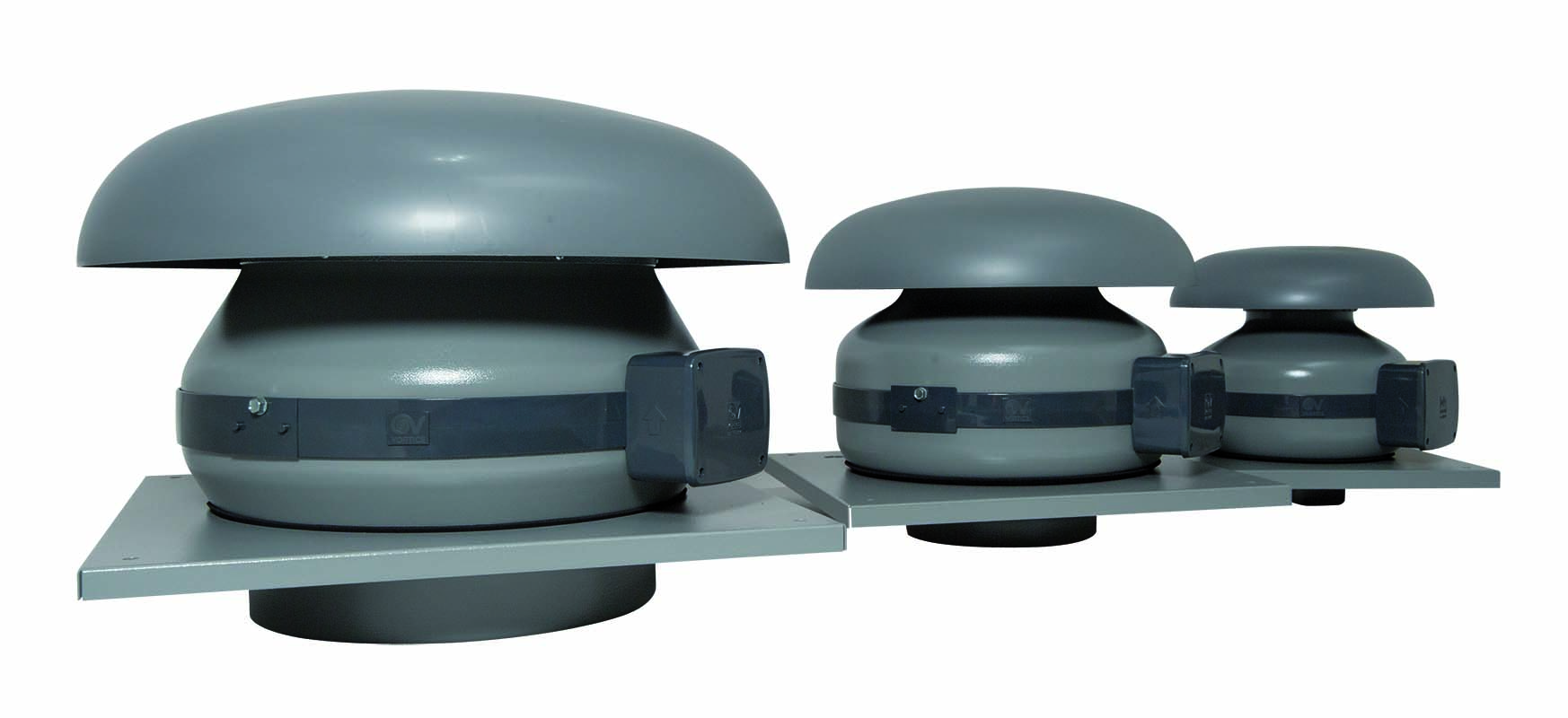

ca_md_e_rf_02

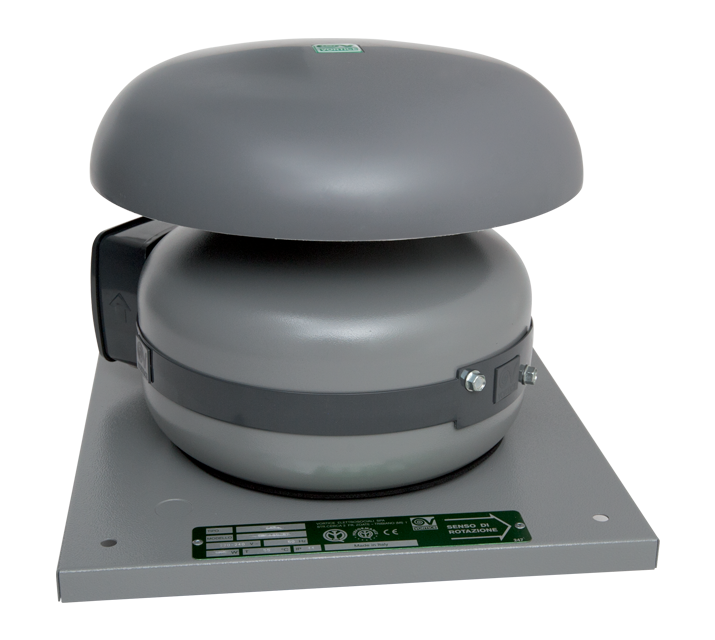

ca_md_e_rf_03

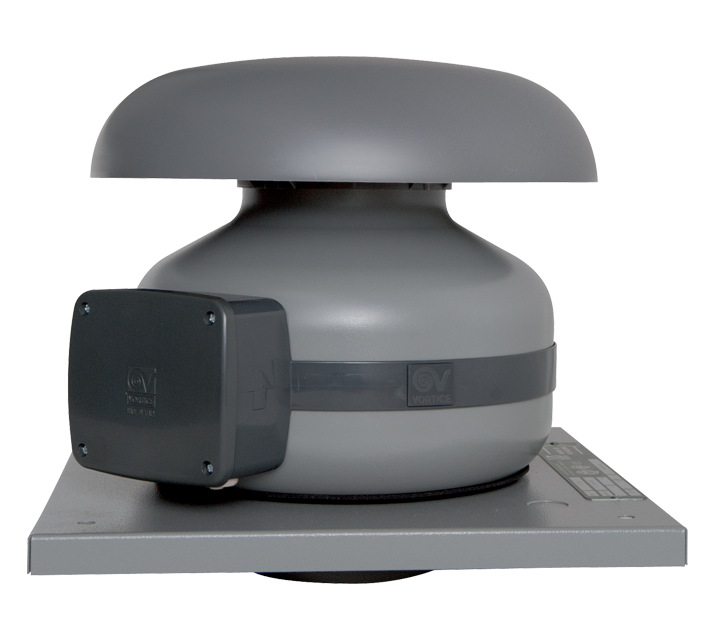

ca_md_e_rf_04

Description

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 150 mm.
• 3 speed fan through TRIO-CA optional control (cod. 12869), consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel fixing brackets.
Read full descriptionClose description

Certifications

ca_md_e_rf_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    44
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,39
  • Max absorbed current at Max speed (A)
    0,42
  • Max absorbed current at Max speed at 60 Hz (A)
    0,51
  • Max absorbed current at Mid speed (A)
    0,40
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,45
  • Max absorbed current at Min speed (A)
    0,34
  • Max absorbed power at Max speed (W)
    69
  • Max absorbed power at Max speed at 60 Hz (W)
    82
  • Max absorbed power at Mid speed (W)
    53
  • Max absorbed power at Mid speed at 60 Hz (W)
    64
  • Max absorbed power at Min speed at 60 Hz (W)
    45
  • Max ambient temperature for continuous operation (°C)
    55
  • Nominal diameter (mm)
    150
  • Power absorbed at 1st speed (W)
    35
  • Voltage (V)
    220-240
  • Weight (Kg)
    7,5
  • Airflow at 1st speed (l/s)
    69
  • Airflow at 1st speed (m³/h)
    250
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    66,2
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    64
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    57,1
  • Breakout sound power LWA at Max speed [dB (A)]
    69,4
  • Breakout sound power LWA at Mid speed [dB (A)]
    65,3
  • Breakout sound power LWA at Min speed [dB (A)]
    55,4
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    45,6
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    48,9
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    43,5
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    44,8
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    36,6
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    34,9
  • Max airflow at Max speed (l/s)
    114
  • Max airflow at Max speed (m³/h)
    410
  • Max airflow at Max speed at 60 Hz (l/s)
    104
  • Max airflow at Max speed at 60 Hz (m³/h)
    375
  • Max airflow at Mid speed (m³/h)
    360
  • Max airflow at Mid speed at 60 Hz (l/s)
    94
  • Max airflow at Mid speed at 60 Hz (m³/h)
    340
  • Max airflow at Min speed (l/s)
    100
  • Max airflow at Min speed at 60 Hz (l/s)
    75
  • Max airflow at Min speed at 60 Hz (m³/h)
    270
  • Max pressure at 60 Hz (mmH2O)
    30,5
  • Max pressure at Max speed (mmH20)
    41,3
  • Max pressure at Max speed (Pa)
    405
  • Max pressure at Max speed at 60Hz (Pa)
    299
  • Max pressure at Mid speed (mmH2O)
    36,2
  • Max pressure at Mid speed (Pa)
    355
  • Max pressure at Mid speed at 60Hz (mmH2O)
    26,8
  • Max pressure at Mid speed at 60Hz (Pa)
    263
  • Max pressure at Min speed at 60Hz (mmH2O)
    24
  • Max pressure at Min speed at 60Hz (Pa)
    235
  • Max RPM
    2300
  • Max speed at 60 Hz (Rpm)
    2060
  • Mid speed at 60 Hz (Rpm)
    1850
  • Min RPM
    1360
  • Min speed at 60 Hz (Rpm)
    1440
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    55,4
  • Pressure at 1st speed (mmH20)
    26,3
  • Pressure at 1st speed (Pa)
    258
  • RPM at Mid speed
    1950
  • Sound power at extract side at Max speed LWA [dB (A)]
    88
  • Sound power at extract side at Mid speed LWA [dB (A)]
    84,5
  • Sound power at extract side at Min speed LWA [dB (A)]
    75,7
  • Sound power at supply side at Max speed LWA [dB (A)]
    69,4
  • Sound power at supply side at Mid speed LWA [dB (A)]
    65,3
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    85,5
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    83,1
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    76,6
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    66,2
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    64
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    57,1
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    68
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    70,4
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    43,5
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    67
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    59,1
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    58,2
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    48,9
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    44,8
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    34,9
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    45,6
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    65,6
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    36,6


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • AEC annual electric energy consuption (kWh of primary energy/y)
    523,98
  • SFPint (W/m3/s)
    573,13
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,10822
  • ([m3/s)
    0,09317
  • Real absorbed electric power (KW)
    0,067
  • Effective electic power input [kW]
    0,069
  • Face velocity at nominal airflow (m/s)
    5,27216
  • Face velocity at nominal flowrate (m/s)
    13,77928
  • Nominal external pressure (Pa)
    42
  • Nominal external pressure (Pa)
    67
  • Inner pressure drop of ventilation components (Pa)
    263
  • Internal pressure drop of ventilation components (Pa)
    192
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    45,9
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    36,7
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    2
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    69,4
  • Casing sound power level (LWA) [dB(A)]
    69,8

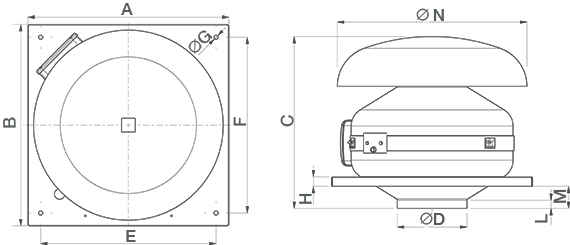

  • Size A (mm)
    424
  • Size B (mm)
    424
  • Size C (mm)
    365
  • Size D (mm)
    ø 147
  • Size E (mm)
    370
  • Size F (mm)
    370
  • Size G (mm)
    ø 9
  • Size H (mm)
    20
  • Size L (mm)
    17
  • Size M (mm)
    47
  • Size N (mm)
    ø 400
  • Size O (mm)
    250
quota

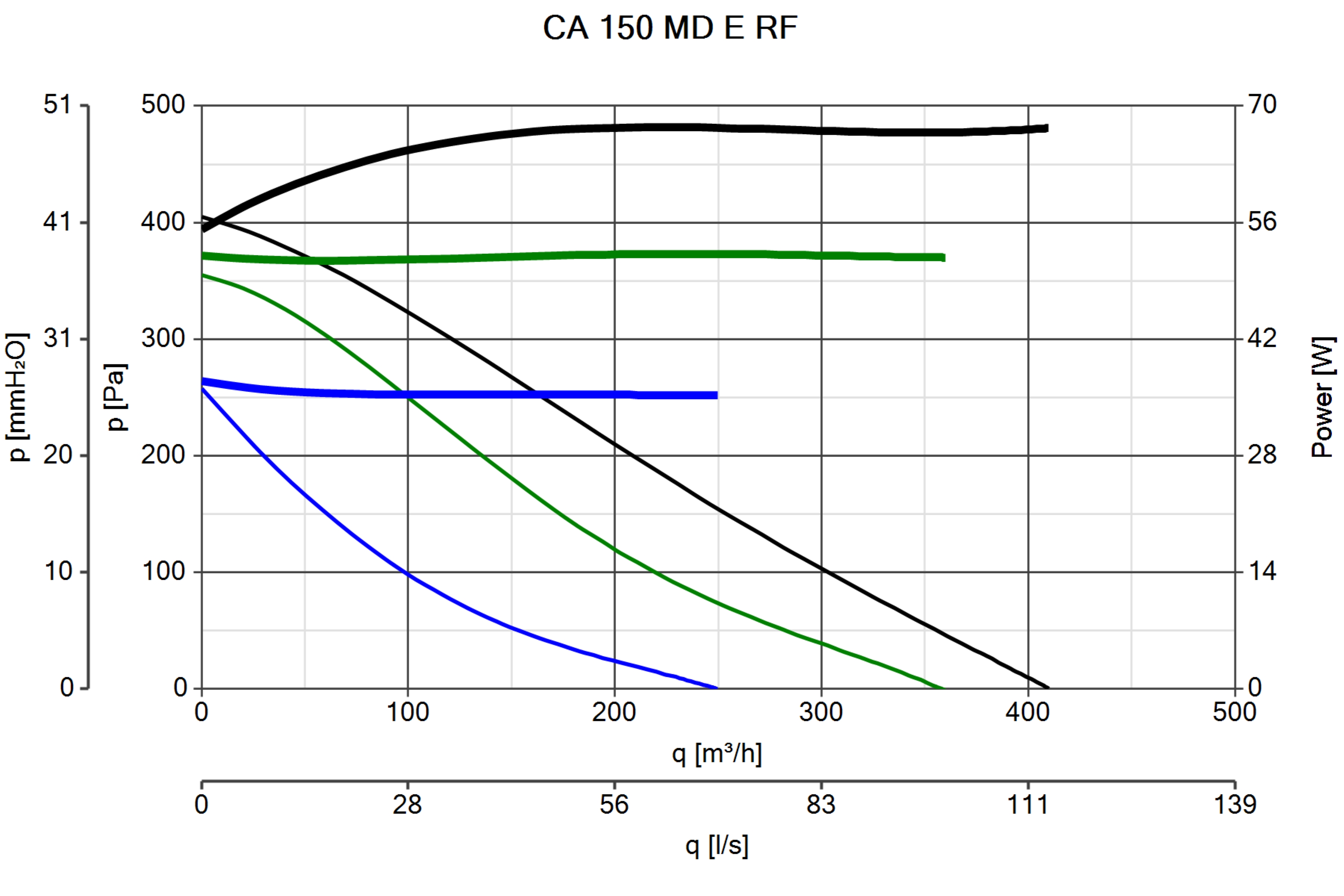

Curva_JPG_16183-Curve_per_Catalogo
Curva_JPG_16183-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
Go to data sheet
CA-G 150 (GRIGLIA DI PROTEZIONE)
CA-G 150 (GRIGLIA DI PROTEZIONE)
• Protection grille for use in the intake port when unit is mounted within reach.
Go to data sheet
CARF-C 150/160/200(CONTROTELAIO DI BASE)
CARF-C 150/160/200(CONTROTELAIO DI BASE)
Sub-frame
Go to data sheet
C TEMP
C TEMP
Environmental sensor for temperature control.
Go to data sheet
C SMOKE
C SMOKE
Environmental sensor for air quality.
Go to data sheet
C HCS
C HCS
Environmental sensor for relative humidity control.
Go to data sheet
C PIR
C PIR
• Passive infrared sensor.
Go to data sheet
C TIMER
C TIMER
• Adjustable over-run timer.
Go to data sheet
TRIO D
TRIO D
3 speed dipswitch for installation in Standard DIN box.
Go to data sheet
TRIO-LINEO 503
TRIO-LINEO 503
Go to data sheet
