Code 16141

CA 125 MD E RF

Centrifugal duct fans for roof mounting

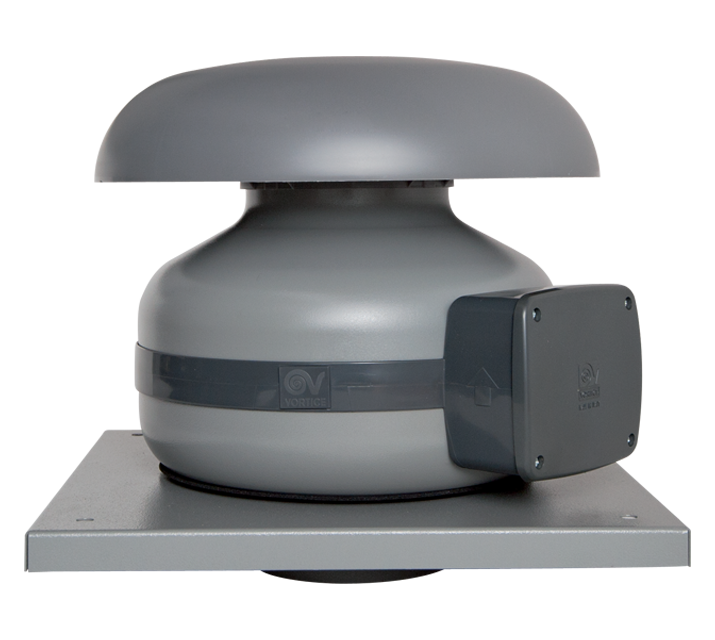

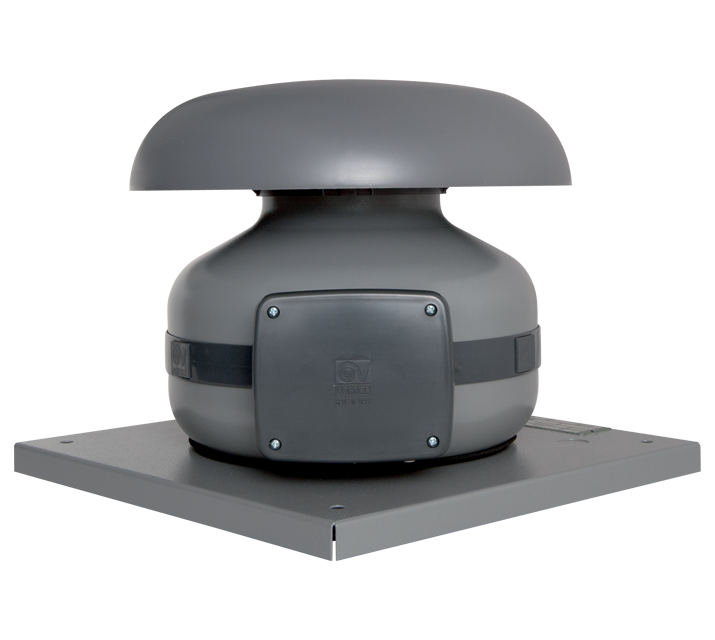

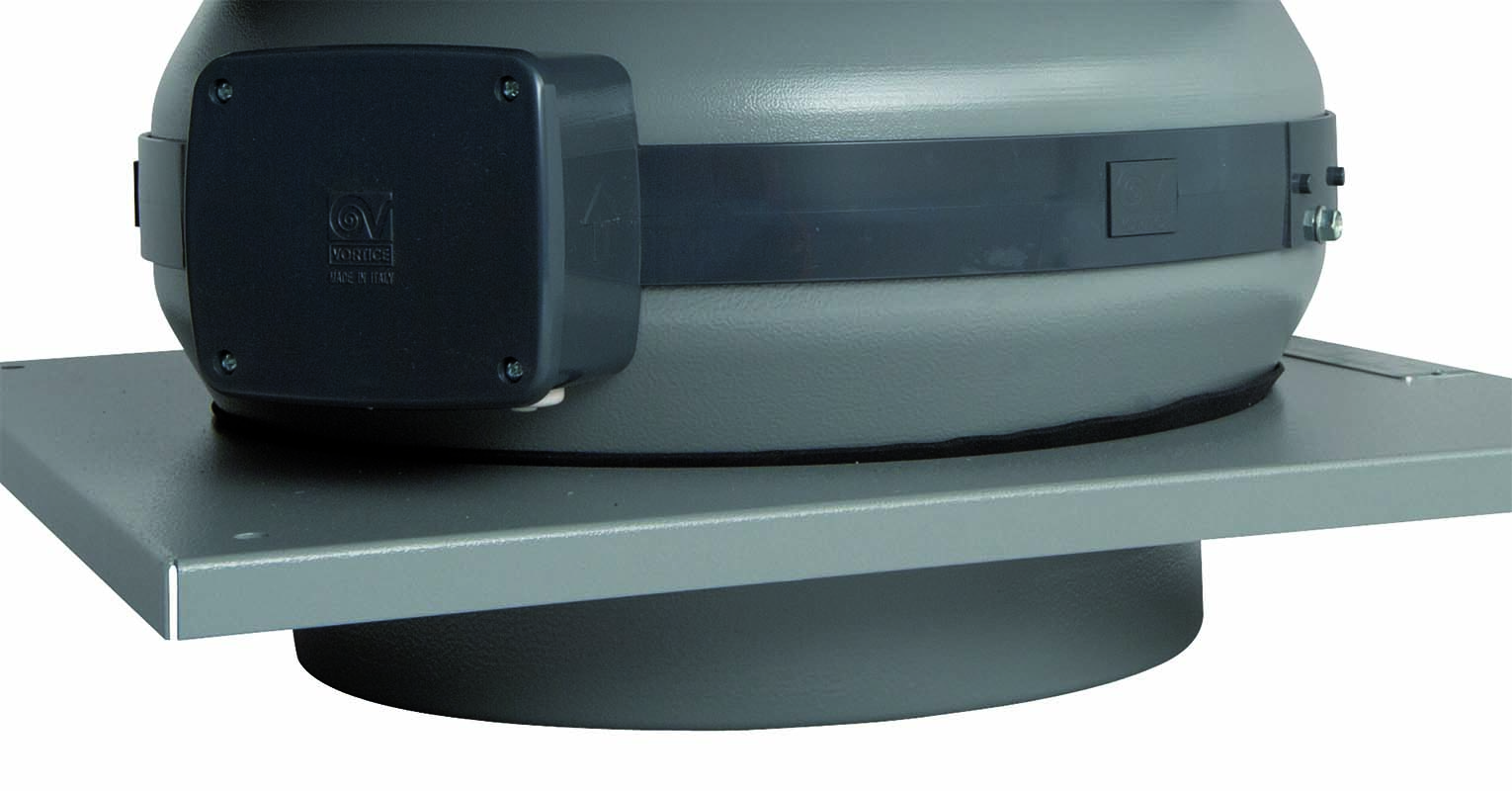

ca_md_e_rf_01

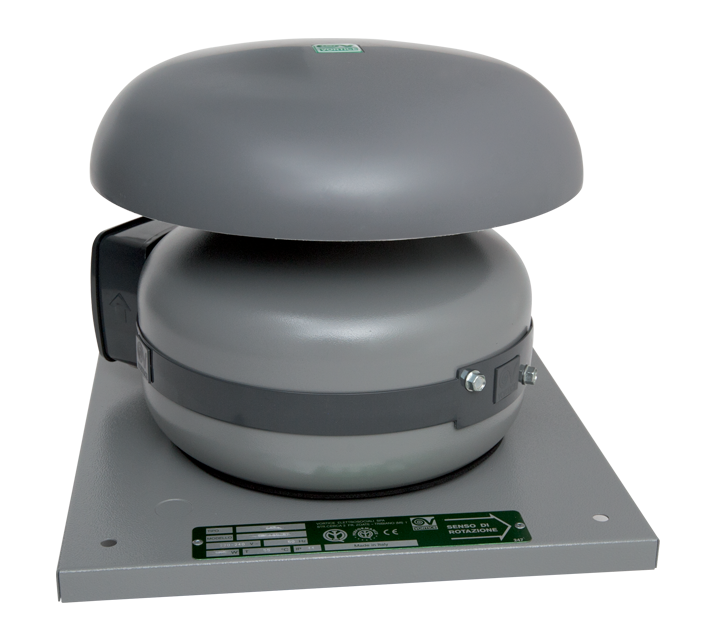

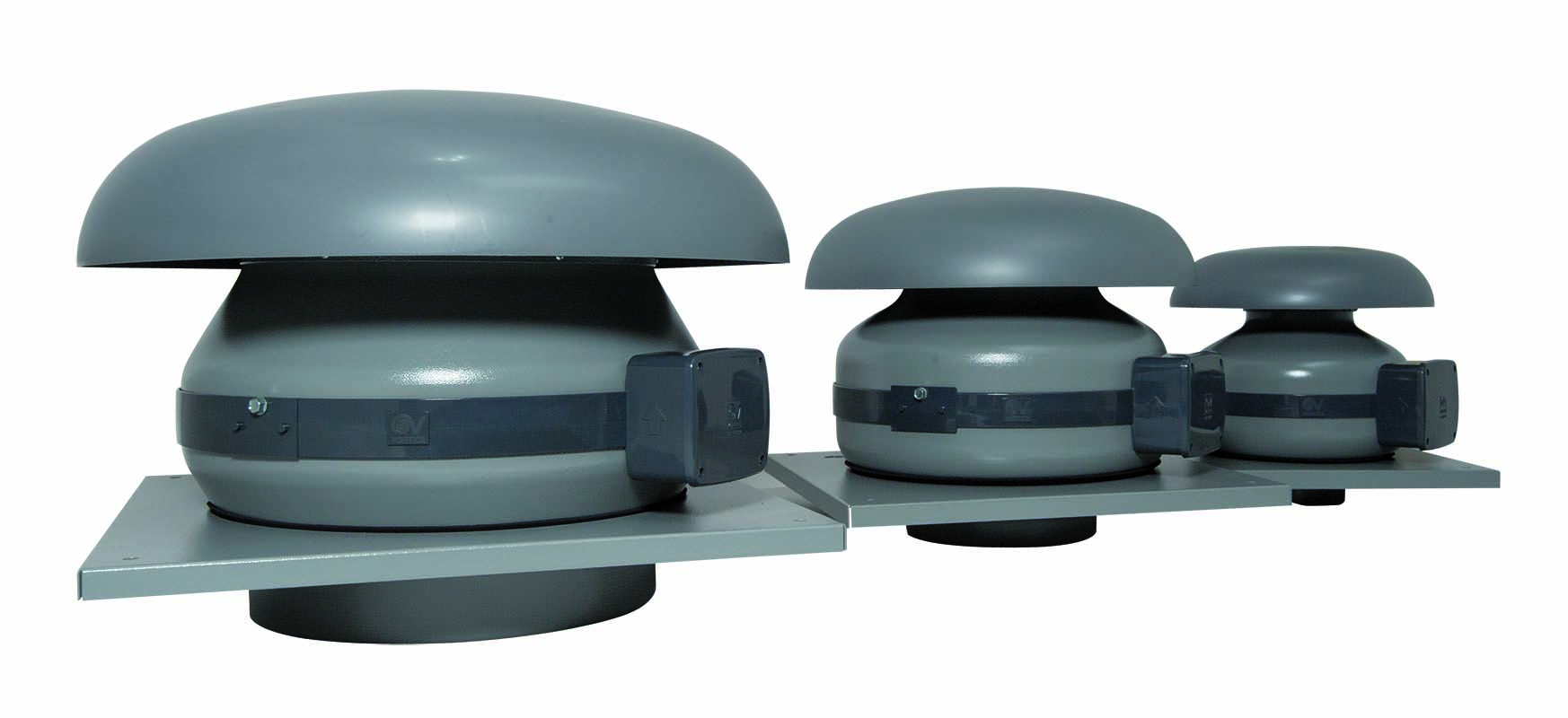

ca_md_e_rf_02

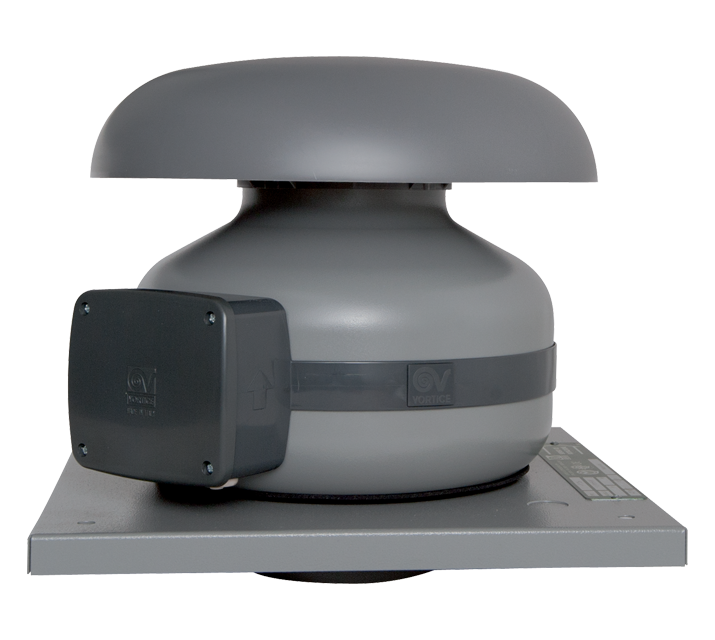

ca_md_e_rf_03
ca_md_e_rf_04

Description

• Pickled and phosphated steel housing/roof mounting plate with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 125 mm.
• 3 speed fan through TRIO-CA optional control (cod. 12869), consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,
• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel fixing brackets.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • EAC EAC
  • G-Mark G-Mark
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
ca_md_e_rf_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at maMinx speed at 60 Hz (A)
    0,17
  • Max absorbed current at Max speed (A)
    0,22
  • Max absorbed current at Max speed at 60 Hz (A)
    0,26
  • Max absorbed current at Mid speed (A)
    0,20
  • Max absorbed current at Mid speed at 60 Hz (A)
    0,23
  • Max absorbed current at Min speed (A)
    0,15
  • Max absorbed power at Max speed (W)
    41
  • Max absorbed power at Max speed at 60 Hz (W)
    45
  • Max absorbed power at Mid speed (W)
    30
  • Max absorbed power at Mid speed at 60 Hz (W)
    35
  • Max absorbed power at Min speed at 60 Hz (W)
    16
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    125
  • Power absorbed at 1st speed (W)
    13
  • Voltage (V)
    220-240
  • Weight (Kg)
    4,6
  • Airflow at 1st speed (l/s)
    32
  • Airflow at 1st speed (m³/h)
    115
  • Breakout sound power at Max speed at 60 Hz LWA [dB (A)]
    62,9
  • Breakout sound power at Mid speed at 60 Hz LWA [dB (A)]
    57,3
  • Breakout sound power at Min speed at 60 Hz LWA [dB (A)]
    42,7
  • Breakout sound power LWA at Max speed [dB (A)]
    65,1
  • Breakout sound power LWA at Mid speed [dB (A)]
    58,1
  • Breakout sound power LWA at Min speed [dB (A)]
    40
  • breakout sound pressure at 3m at Max speed at 60 Hz Lp [dB (A)]
    42,3
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    44,6
  • breakout sound pressure at 3m at Mid speed at 60 Hz Lp [dB (A)]
    36,8
  • Breakout sound pressure at 3m at Mid speed Lp [dB (A)]
    37,6
  • breakout sound pressure at 3m at Min speed at 60 Hz Lp [dB (A)]
    22,2
  • Breakout sound pressure at 3m at Min speed Lp [dB (A)]
    19,5
  • Max airflow at Max speed (l/s)
    76
  • Max airflow at Max speed (m³/h)
    275
  • Max airflow at Max speed at 60 Hz (l/s)
    71
  • Max airflow at Max speed at 60 Hz (m³/h)
    255
  • Max airflow at Mid speed (m³/h)
    225
  • Max airflow at Mid speed at 60 Hz (l/s)
    60
  • Max airflow at Mid speed at 60 Hz (m³/h)
    215
  • Max airflow at Min speed (l/s)
    63
  • Max airflow at Min speed at 60 Hz (l/s)
    35
  • Max airflow at Min speed at 60 Hz (m³/h)
    125
  • Max pressure at 60 Hz (mmH2O)
    38,8
  • Max pressure at Max speed (mmH20)
    36
  • Max pressure at Max speed (Pa)
    353
  • Max pressure at Max speed at 60Hz (Pa)
    381
  • Max pressure at Mid speed (mmH2O)
    34,1
  • Max pressure at Mid speed (Pa)
    335
  • Max pressure at Mid speed at 60Hz (mmH2O)
    32,7
  • Max pressure at Mid speed at 60Hz (Pa)
    321
  • Max pressure at Min speed at 60Hz (mmH2O)
    11,3
  • Max pressure at Min speed at 60Hz (Pa)
    111
  • Max RPM
    2140
  • Max speed at 60 Hz (Rpm)
    2000
  • Mid speed at 60 Hz (Rpm)
    1655
  • Min RPM
    1020
  • Min speed at 60 Hz (Rpm)
    895
  • Potenza sonora at supply side at Min speed LWA [dB (A)]
    40
  • Pressure at 1st speed (mmH20)
    10,2
  • Pressure at 1st speed (Pa)
    100
  • RPM at Mid speed
    1765
  • Sound power at extract side at Max speed LWA [dB (A)]
    85,4
  • Sound power at extract side at Mid speed LWA [dB (A)]
    78,5
  • Sound power at extract side at Min speed LWA [dB (A)]
    59,9
  • Sound power at supply side at Max speed LWA [dB (A)]
    65,1
  • Sound power at supply side at Mid speed LWA [dB (A)]
    58,1
  • Sound powerat at extraction side at Max speed at 60 Hz LWA [dB (A)]
    83
  • Sound powerat at extraction side at Mid speed at 60 Hz LWA [dB (A)]
    77,1
  • Sound powerat at extraction side at Min speed at 60 Hz LWA [dB (A)]
    63,3
  • Sound powerat at supply side at Max speed at 60 Hz LWA [dB (A)]
    62,9
  • Sound powerat at supply side at Mid speed at 60 Hz LWA [dB (A)]
    57,3
  • Sound powerat at supply side at Min speed at 60 Hz LWA [dB (A)]
    42,7
  • Sound pressure at extract side at 3m at Max speed at 60 HzLp [dB (A)]
    65,5
  • Sound pressure at extract side at 3m at Max speed Lp [dB (A)]
    67,9
  • Sound pressure at extract side at 3m at Mid speed at 60 HzLp [dB (A)]
    36,8
  • Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]
    61
  • Sound pressure at extract side at 3m at Min speed at 60 HzLp [dB (A)]
    45,8
  • Sound pressure at extract side at 3m at Min speed Lp [dB (A)]
    42,4
  • Sound pressure at suply side at 3m at Max speed Lp [dB (A)]
    44,6
  • Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]
    37,6
  • Sound pressure at suply side at 3m at Min speed Lp [dB (A)]
    19,5
  • Sound pressure at supply side at 3m at Max speed at 60 HzLp [dB (A)]
    42,3
  • Sound pressure at supply side at 3m at Mid speed at 60 HzLp [dB (A)]
    59,6
  • Sound pressure at supply side at 3m at Min speed at 60 HzLp [dB (A)]
    22,2


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Type of heat recovery system HRS
    nessuno
  • Drive type
    a velocità multiple: VM
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Supplier's name or trade mark
    Vortice
  • AEC annual electric energy consuption (kWh of primary energy/y)
    565,48
  • SFPint (W/m3/s)
    486,93
  • Declared type
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • Thermal efficiency of heat recovery (%)
    NA
  • Nominal NRVU airflow (m3/s)
    0,07331
  • ([m3/s)
    0,07522
  • Real absorbed electric power (KW)
    0,037
  • Effective electic power input [kW]
    0,046
  • Face velocity at nominal airflow (m/s)
    9,57759
  • Face velocity at nominal flowrate (m/s)
    9,33356
  • Nominal external pressure (Pa)
    26
  • Nominal external pressure (Pa)
    2
  • Inner pressure drop of ventilation components (Pa)
    203
  • Internal pressure drop of ventilation components (Pa)
    233
  • Internal pressure drop of non-ventilation components (Pa)
    0
  • Inner pressure drop of components not related to ventilation (Pa)
    0
  • Fan static efficiency according to 327/2011/UE regulation (%)
    41,7
  • Fan static efficiency according to Regulation (EU) No 327/2011 (%)
    41,3
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    NA
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    2,47
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    NA
  • Filter energy performance or classification
    NA
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning
    NA
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    61
  • Casing sound power level (LWA) [dB(A)]
    65
  • Size A (mm)
    334
  • Size B (mm)
    334
  • Size C (mm)
    305
  • Size D (mm)
    ø 122
  • Size E (mm)
    280
  • Size F (mm)
    280
  • Size G (mm)
    ø 9
  • Size H (mm)
    20
  • Size L (mm)
    23
  • Size M (mm)
    35
  • Size N (mm)
    ø 300
  • Size O (mm)
    198

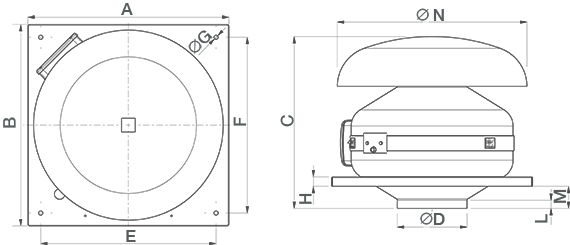

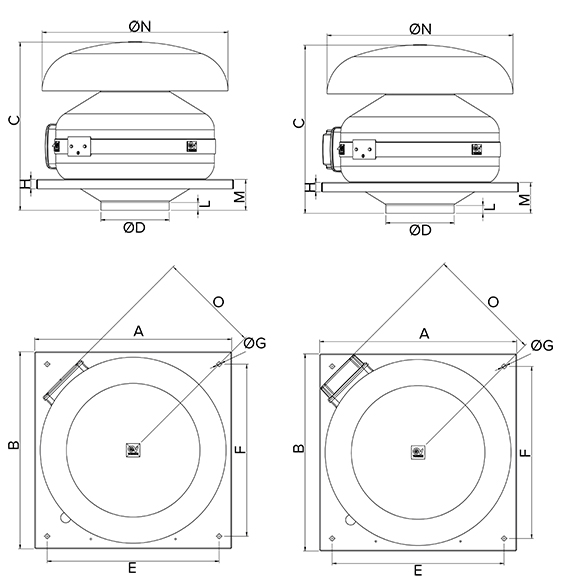

quota

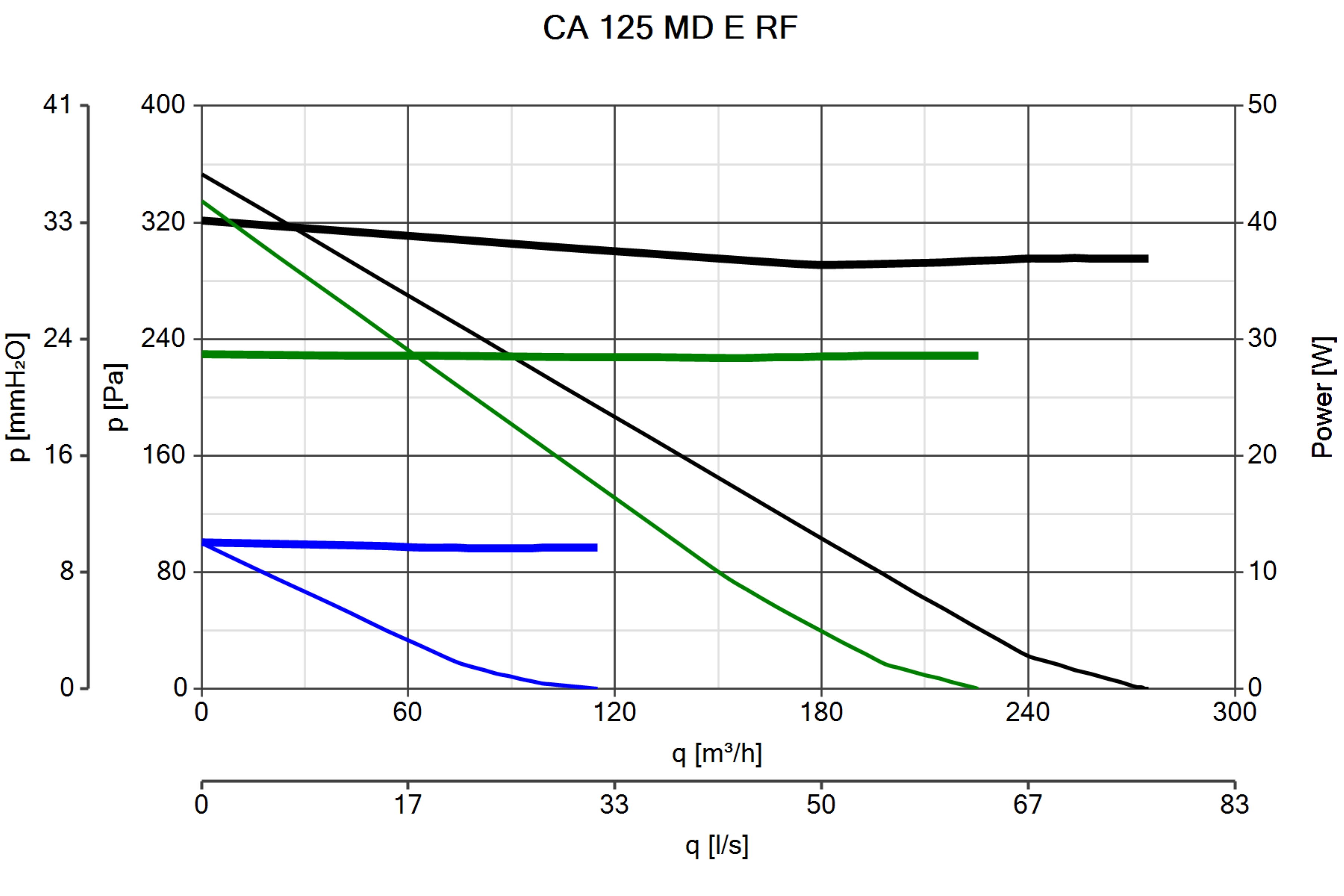

Curva_JPG_16141-Curve_per_Catalogo
