Code 45793

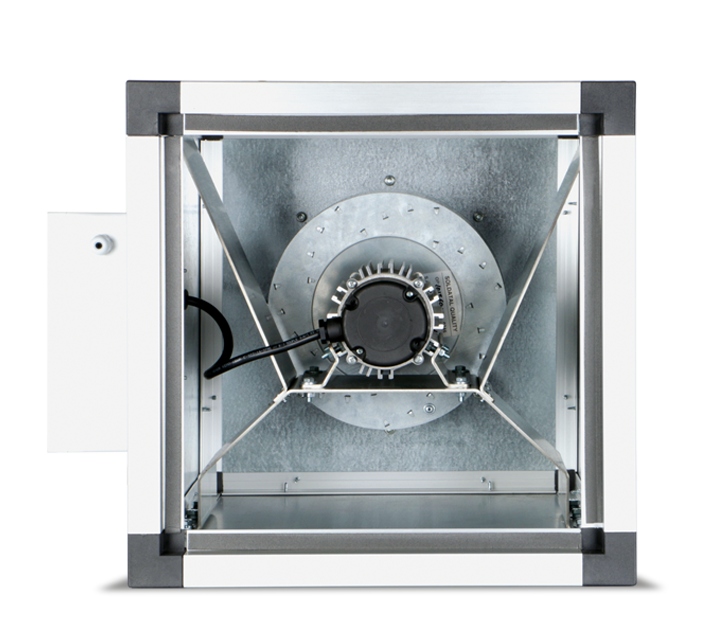

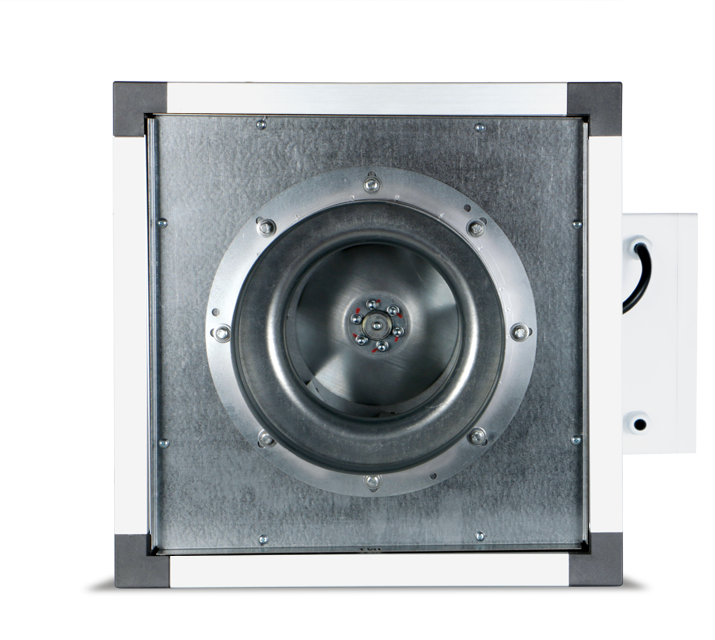

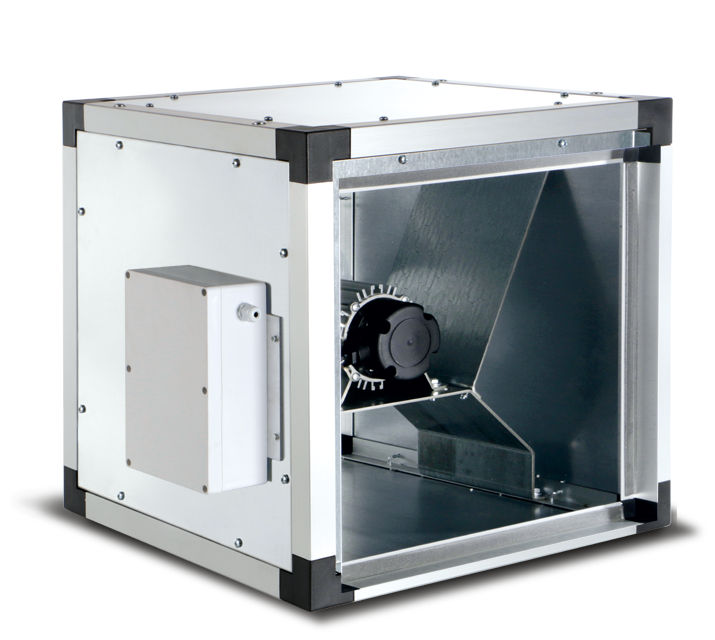

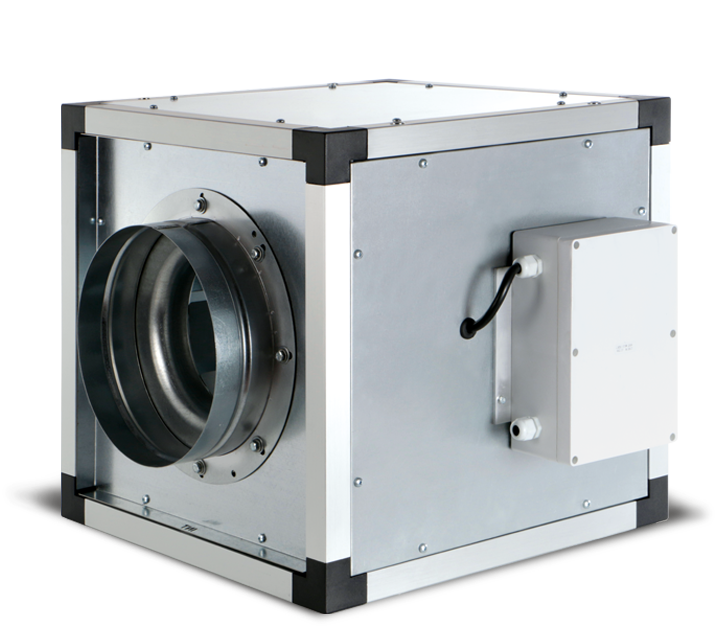

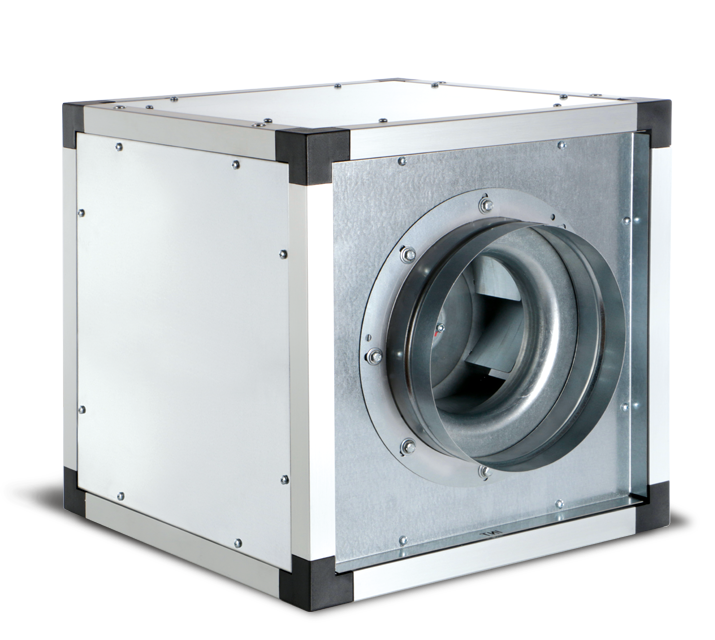

VORT QBK HE COMFORT 630 4T
High efficiency soundproof self-supporting cabinet fans
Description
Certifications
Technical Data Sheet
Accessories
Documentation
70_EN_45793_Libretti_Istruzioni_5471084950__17-4-2018_140371
70_EN_45793_Libretti_Istruzioni_5571084129__26-10-2018_146224
70_EN_45793_Libretti_Istruzioni_5571084220__27-03-2019_150524
70_EN_45793_Libretti_Istruzioni_5571084220__12-04-2019_151287
70_EN_45793_Libretti_Istruzioni_5571084281__05-06-2019_152561
70_EN_45793_Libretti_Istruzioni_5571084415__29-11-2019_157724
70_EN_45793_Libretti_Istruzioni_5571084504__28-02-2020_164855
70_EN_45793_Libretti_Istruzioni_5571084690__09-10-2020_165745
70_EN_45793_Libretti_Istruzioni_5671084114__20-06-2022_177092
70_EN_45793_Libretti_Istruzioni_5671084491___22-04-2024_184705
70_EN_45793_Schemi_collegamento_E960510A_140403
70_EN_45793_Schemi_collegamento_E960510B__150484
70_EN_45793_Schemi_collegamento_E960510C__150616
70_EN_45793_Schemi_collegamento_E960510D__152488
70_EN_45793_Schemi_collegamento_E960510E_157814
Technical Data Sheet
Energy data
PRODUCTS
COMMERCIAL VENTILATION
BOX FANS
DUCTED
Description
Read full description
Close description
Certifications
CE
Download
EAC
Technical Data Sheet
Technical and performance data
Energy data
Dimensions

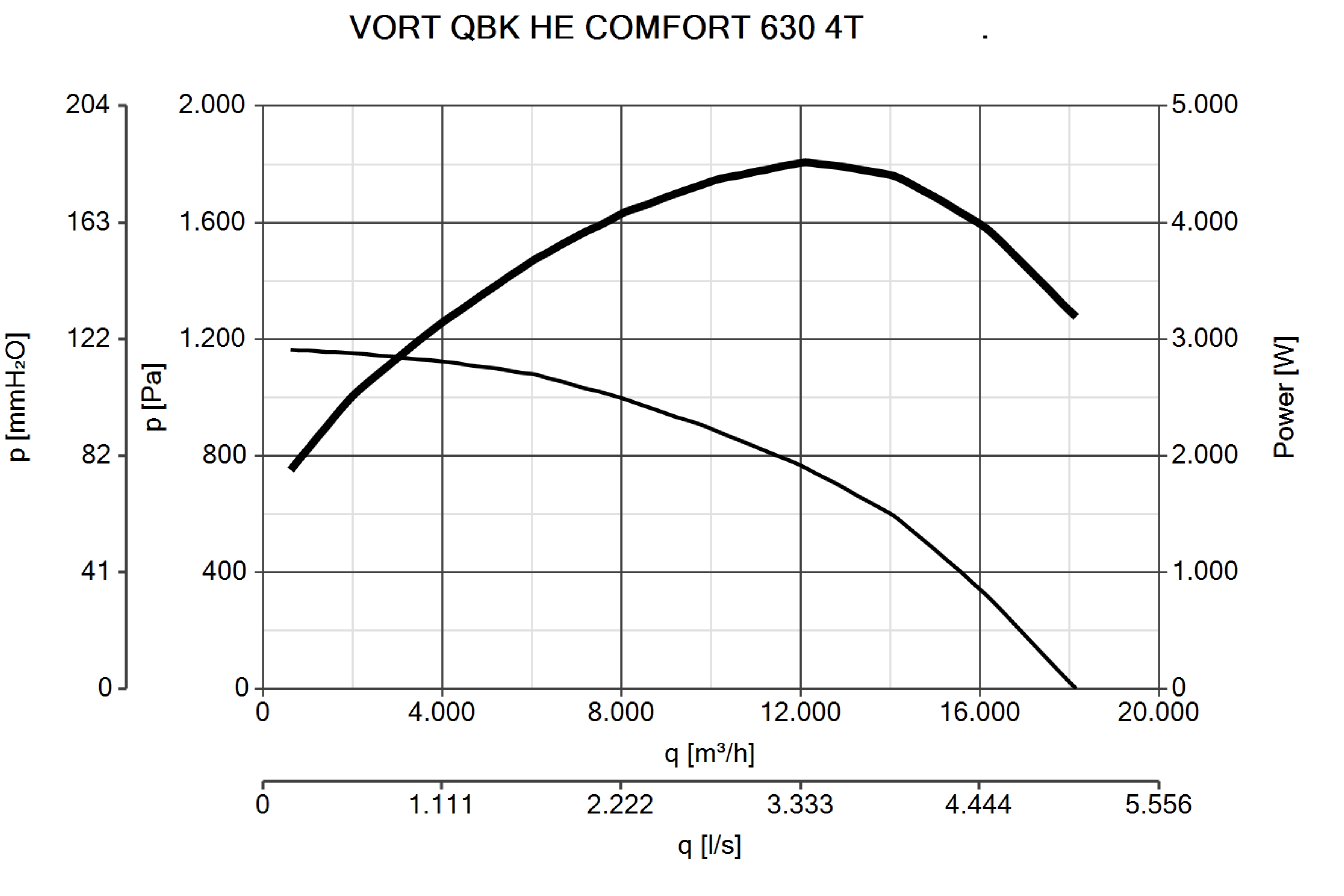

Curves
Frequency (Hz)
50
Max absorbed current (A)
8,32
Max absorbed power (W)
4510
Max ambient temperature for continuous operation (°C)
60
Motor class
F
Motor protection IP
55
Voltage (V)
230/400
Weight (Kg)
179,90
Max airflow (l/s)
5042
Max airflow (m³/h)
18152
Max pressure (mmH2O)
118,60
Max pressure (Pa)
1163,1
RPM
1450
Sound power Lw [dB(A)]
86,00
Sound pressure Lp [dB (A)] at 3 m
65,5
Type of heat recovery system HRS
nessuno
Drive type
con variatore di velocità: VSD
Declared type
UVNR-U
Supplier's name or trade mark:
Vortice
SFPint (W/m3/s)
1.448,21
Heat recovery nominal efficiency (%)
N.A.
([m3/s)
3,09
Real absorbed electric power (KW)
4,48
Face velocity at nominal airflow (m/s)
9,91
Nominal external pressure (Pa)
0
Inner pressure drop of ventilation components (Pa)
811,51
Inner pressure drop of components not related to ventilation (Pa)
N.A.
Fan static efficiency according to 327/2011/UE regulation (%)
60,10%
Declared maximum internal leakage rate of the ventilation unit casing (%)
N.A.
Declared maximum external leakage rate of the ventilation unit casing (%)
N.A.
Filter energy performance or classification
N.A.
Description of visual filter warning:
N.A.
Casing sound power level LWA [dB(A)]
86,00

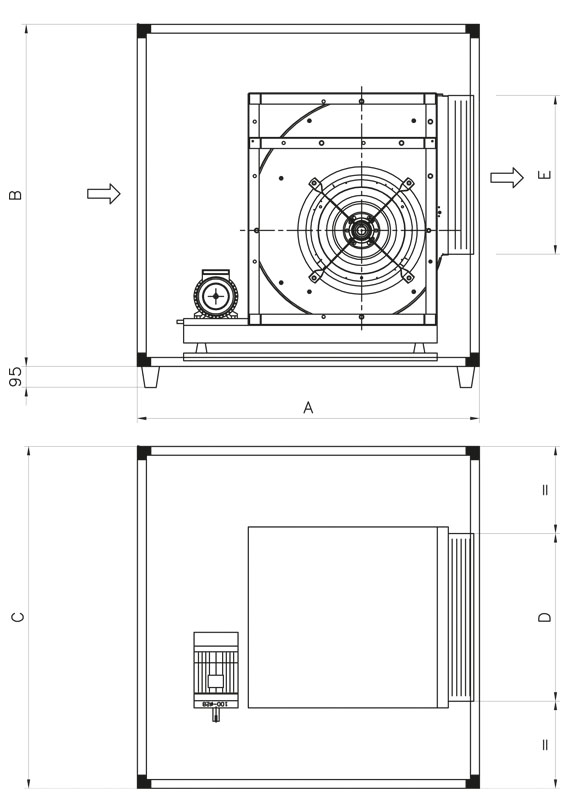

Size A (mm)
985
Size B (mm)
985
Size C (mm)
985
Size D (mm)
885
Size E (mm)
885
Size F (mm)
628
Size G (mm)
25
Size H (mm)
492,5
Size I (mm)
50
Size J (mm)
1012
Size K (mm)
1012
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Contact us
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Documentation
70_EN_45793_Libretti_Istruzioni_5471084950__17-4-2018_140371
70_EN_45793_Libretti_Istruzioni_5571084129__26-10-2018_146224
70_EN_45793_Libretti_Istruzioni_5571084220__27-03-2019_150524
70_EN_45793_Libretti_Istruzioni_5571084220__12-04-2019_151287
70_EN_45793_Libretti_Istruzioni_5571084281__05-06-2019_152561
70_EN_45793_Libretti_Istruzioni_5571084415__29-11-2019_157724
70_EN_45793_Libretti_Istruzioni_5571084504__28-02-2020_164855
70_EN_45793_Libretti_Istruzioni_5571084690__09-10-2020_165745
70_EN_45793_Libretti_Istruzioni_5671084114__20-06-2022_177092
70_EN_45793_Libretti_Istruzioni_5671084491___22-04-2024_184705
70_EN_45793_Schemi_collegamento_E960510A_140403
70_EN_45793_Schemi_collegamento_E960510B__150484
70_EN_45793_Schemi_collegamento_E960510C__150616
70_EN_45793_Schemi_collegamento_E960510D__152488
70_EN_45793_Schemi_collegamento_E960510E_157814
Technical Data Sheet
Energy data
Accessories
Discover accessories related to the product
SWT 16
Safety switch; max load: 16 A.
Go to data sheet

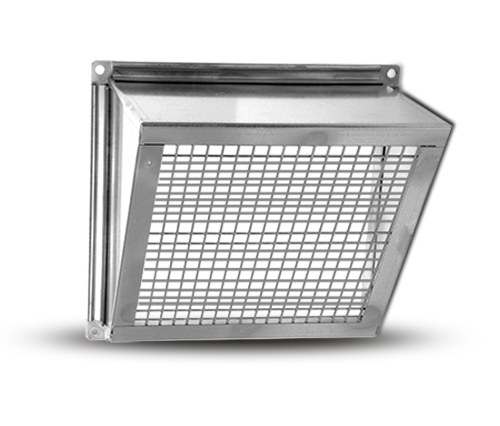

QBK-HE GP 630
Protection grid to be applied on outlet port of VORT QBK HE SAL 630 and VORT QBK HE COMFORT 630 fans.
Go to data sheet
QBK F

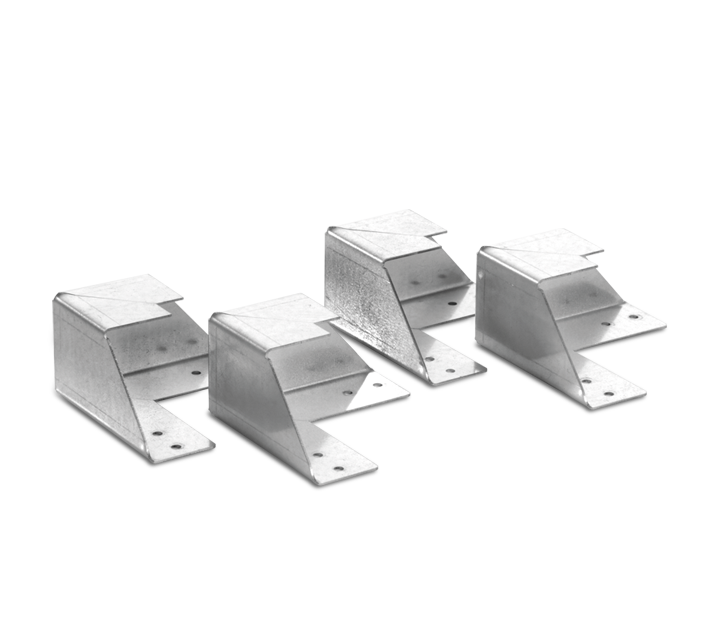

Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
QBK-HE RF 630
Round flexible joint for VORT QBK HE SAL 630 and VORT QBK HE COMFORT 630 fans.
Go to data sheet

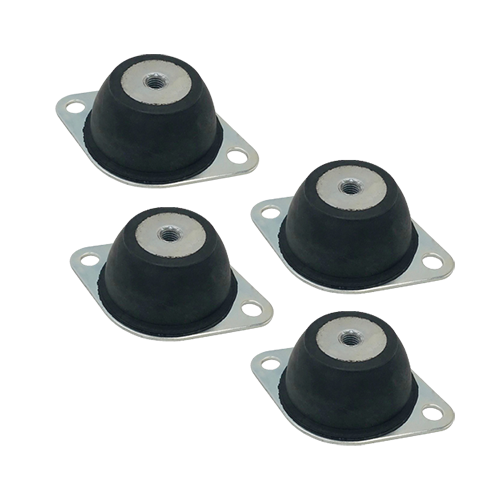

QBK SAVIB 235
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
POT
Potentiometer for installation in Standard DIN box.
Go to data sheet
QBK-HE COMFORT RRC 630
Go to data sheet
QBK-HE MFL 630
Go to data sheet

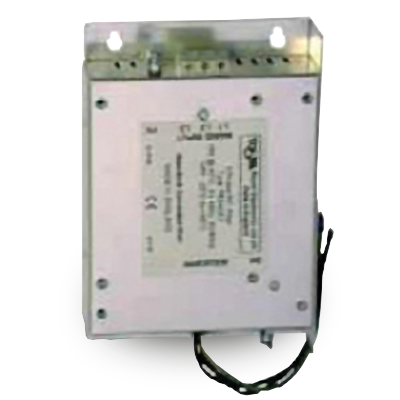

EMC-T FTR 12-16A
Go to data sheet
IRET INVERTER 400 12A
Speed frequency inverter; three-phase power supply and output, maximum load 12 A. Equipped with display and PID card. Certifications: CE / UL / CSA / EN / GOST / CCC. Protection de...
Go to data sheet
