Code 45788
VORT QBK HE COMFORT 355 4T
High efficiency soundproof self-supporting cabinet fans
Description
Certifications
Technical Data Sheet
Accessories
Documentation
70_EN_45788_Libretti_Istruzioni_5471084950__17-4-2018_140366
70_EN_45788_Libretti_Istruzioni_5571084129__26-10-2018_146219
70_EN_45788_Libretti_Istruzioni_5571084220__27-03-2019_150519
70_EN_45788_Libretti_Istruzioni_5571084281__05-06-2019_152556
70_EN_45788_Libretti_Istruzioni_5571084415__29-11-2019_157719
70_EN_45788_Libretti_Istruzioni_5571084504__28-02-2020_164850
70_EN_45788_Libretti_Istruzioni_5571084690__09-10-2020_165740
70_EN_45788_Libretti_Istruzioni_5671084114__20-06-2022_177069
70_EN_45788_Libretti_Istruzioni_5671084491___22-04-2024_184700
70_EN_45788_Schemi_collegamento_E960510A_140398
70_EN_45788_Schemi_collegamento_E960510B__150479
70_EN_45788_Schemi_collegamento_E960510C__150611
70_EN_45788_Schemi_collegamento_E960510D__152483
70_EN_45788_Schemi_collegamento_E960510E_157809
Technical Data Sheet
Energy data
PRODUCTS
COMMERCIAL VENTILATION
BOX FANS
DUCTED
Description
Read full description
Close description
Certifications
CE
Download
EAC
Technical Data Sheet
Technical and performance data
Energy data
Dimensions

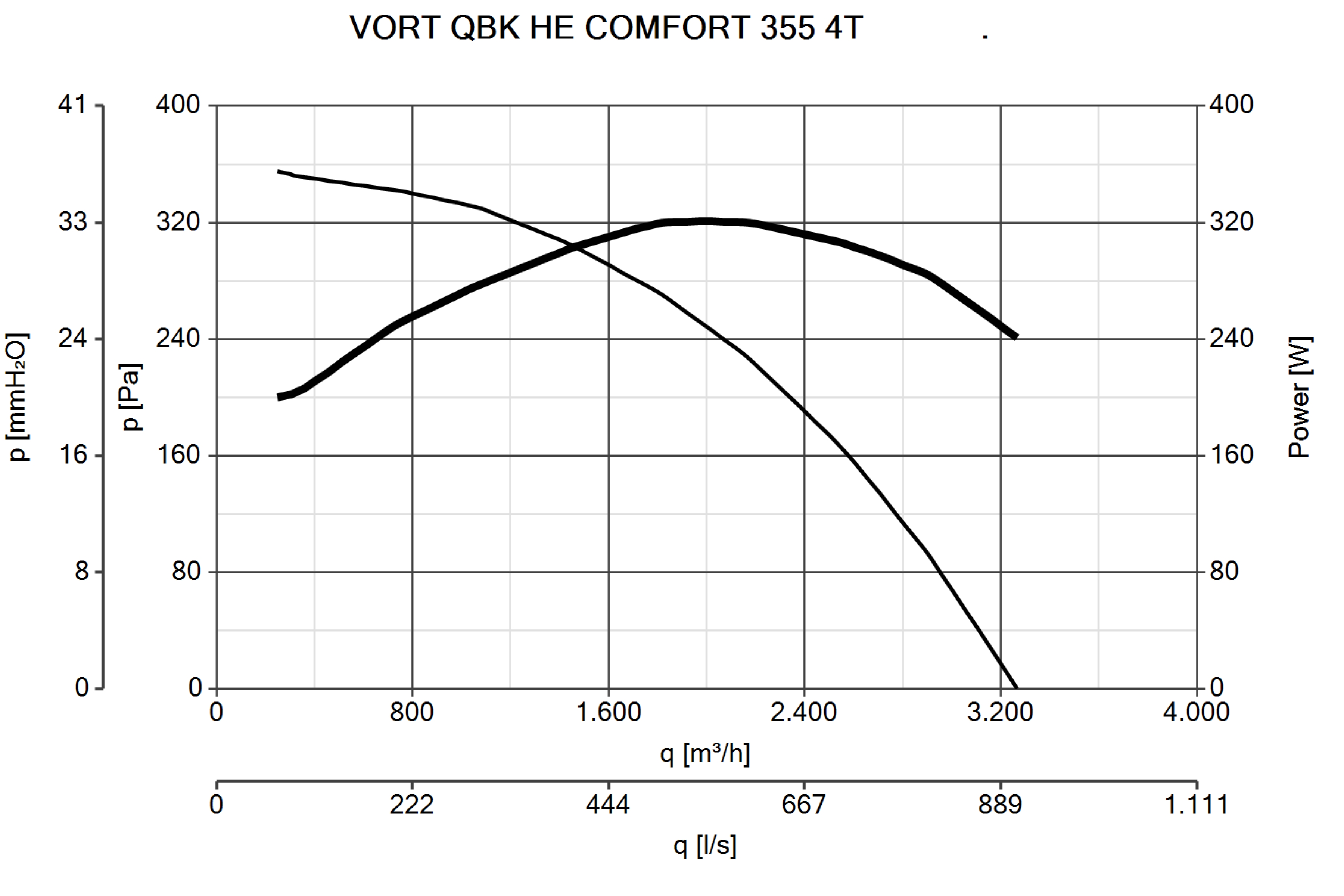

Curves
Frequency (Hz)
50
Max absorbed current (A)
0,79
Max absorbed power (W)
320
Max ambient temperature for continuous operation (°C)
60
Motor class
F
Motor protection IP
55
Voltage (V)
230/400
Weight (Kg)
41,00
Max airflow (l/s)
908
Max airflow (m³/h)
3268
Max pressure (mmH2O)
36,20
Max pressure (Pa)
355,0
RPM
1390
Sound power Lw [dB(A)]
68,00
Sound pressure Lp [dB (A)] at 3 m
47,5
Type of heat recovery system HRS
nessuno
Drive type
con variatore di velocità: VSD
Declared type
UVNR-U
Supplier's name or trade mark:
Vortice
SFPint (W/m3/s)
643,77
Heat recovery nominal efficiency (%)
N.A.
([m3/s)
0,56
Real absorbed electric power (KW)
0,36
Face velocity at nominal airflow (m/s)
5,69
Nominal external pressure (Pa)
0
Inner pressure drop of ventilation components (Pa)
245,37
Inner pressure drop of components not related to ventilation (Pa)
N.A.
Fan static efficiency according to 327/2011/UE regulation (%)
41,05%
Declared maximum internal leakage rate of the ventilation unit casing (%)
N.A.
Declared maximum external leakage rate of the ventilation unit casing (%)
N.A.
Filter energy performance or classification
N.A.
Description of visual filter warning:
N.A.
Casing sound power level LWA [dB(A)]
68,00
Size A (mm)
625
Size B (mm)
625
Size C (mm)
625
Size D (mm)
525
Size E (mm)
525
Size F (mm)
353
Size G (mm)
25
Size H (mm)
312,5
Size I (mm)
50
Size J (mm)
652
Size K (mm)
652
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Contact us
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Documentation
70_EN_45788_Libretti_Istruzioni_5471084950__17-4-2018_140366
70_EN_45788_Libretti_Istruzioni_5571084129__26-10-2018_146219
70_EN_45788_Libretti_Istruzioni_5571084220__27-03-2019_150519
70_EN_45788_Libretti_Istruzioni_5571084281__05-06-2019_152556
70_EN_45788_Libretti_Istruzioni_5571084415__29-11-2019_157719
70_EN_45788_Libretti_Istruzioni_5571084504__28-02-2020_164850
70_EN_45788_Libretti_Istruzioni_5571084690__09-10-2020_165740
70_EN_45788_Libretti_Istruzioni_5671084114__20-06-2022_177069
70_EN_45788_Libretti_Istruzioni_5671084491___22-04-2024_184700
70_EN_45788_Schemi_collegamento_E960510A_140398
70_EN_45788_Schemi_collegamento_E960510B__150479
70_EN_45788_Schemi_collegamento_E960510C__150611
70_EN_45788_Schemi_collegamento_E960510D__152483
70_EN_45788_Schemi_collegamento_E960510E_157809
Technical Data Sheet
Energy data
Accessories
Discover accessories related to the product
SWT 16
Safety switch; max load: 16 A.
Go to data sheet
QBK-HE GP 355
Protection grid to be applied on outlet port of VORT QBK HE SAL 355 and VORT QBK HE COMFORT 355 fans.
Go to data sheet
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
QBK SAVIB 75
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
IRET INVERTER 2,5 M
Three-phase speed controller
Go to data sheet
POT
Potentiometer for installation in Standard DIN box.
Go to data sheet
QBK-HE RF 355
Round flexible joint for VORT QBK HE SAL 355 and VORT QBK HE COMFORT 355 fans.
Go to data sheet
QBK-HE COMFORT RRC 355
Go to data sheet
QBK-HE MFL 355
Go to data sheet
EMC-T FTR 1.2-2.2A
Go to data sheet
IRET INVERTER 400 1.2A
Speed frequency inverter; three-phase power supply and output, maximum load 1.2 A. Equipped with display and PID card. Certifications: CE / UL / CSA / EN / GOST / CCC. Protection d...
