Technical Data Sheet
-
Frequency (Hz)50
-
Max absorbed current (A)9,83
-
Max absorbed power (W)1480
-
Max ambient temperature for continuous operation (°C)50
-
Motor classF
-
Motor protection IP55
-
Voltage (V)230
-
Weight (Kg)108,00
-

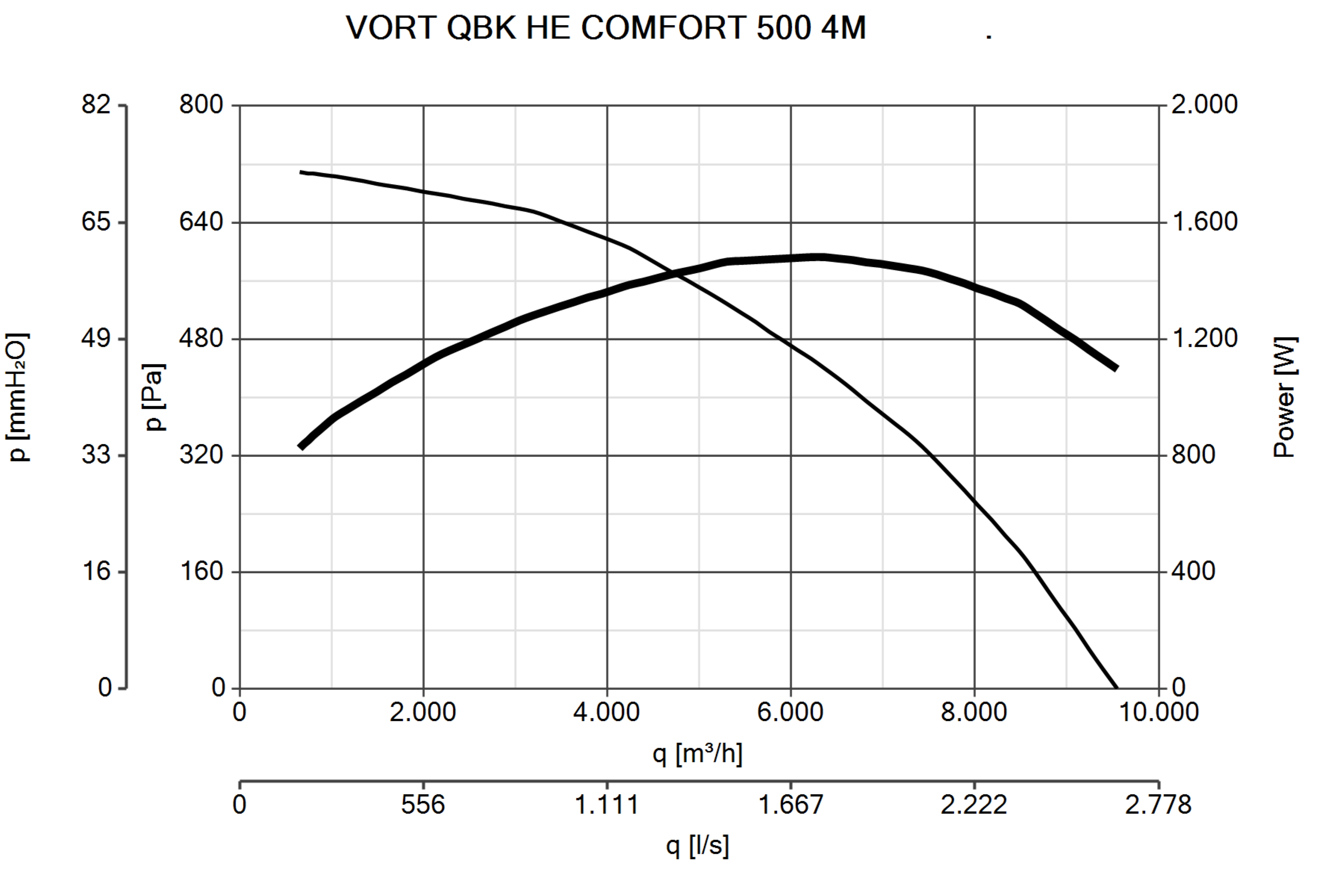

Max airflow (l/s)2652
-
Max airflow (m³/h)9548
-
Max pressure (mmH2O)72,30
-
Max pressure (Pa)709,0
-
RPM1435
-
Sound power Lw [dB(A)]80,00
-
Sound pressure Lp [dB (A)] at 3 m59,5
-
Type of heat recovery system HRSnessuno
-
Drive typecon variatore di velocità: VSD
-
Declared typeUVNR-U
-
Supplier's name or trade mark:Vortice
-
SFPint (W/m3/s)1.190,87
-
Heat recovery nominal efficiency (%)N.A.
-
([m3/s)1,65
-
Real absorbed electric power (KW)1,97
-
Face velocity at nominal airflow (m/s)8,41
-
Nominal external pressure (Pa)0
-
Inner pressure drop of ventilation components (Pa)526,44
-
Inner pressure drop of components not related to ventilation (Pa)N.A.
-
Fan static efficiency according to 327/2011/UE regulation (%)47,30%
-
Declared maximum internal leakage rate of the ventilation unit casing (%)N.A.
-
Declared maximum external leakage rate of the ventilation unit casing (%)N.A.
-
Filter energy performance or classificationN.A.
-
Description of visual filter warning:N.A.
-
Casing sound power level LWA [dB(A)]80,00
-
Size A (mm)840
-
Size B (mm)840
-
Size C (mm)840
-
Size D (mm)740
-
Size E (mm)740
-
Size F (mm)498
-
Size G (mm)25
-
Size H (mm)420
-
Size I (mm)50
-
Size J (mm)867
-
Size K (mm)867
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
QBK-HE GP 500
Protection grid to be applied on outlet port of VORT QBK HE SAL 500 and VORT QBK HE COMFORT 500 fans.
QBK SAVIB 235
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
QBK-HE RF 500
Round flexible joint for VORT QBK HE SAL 500 and VORT QBK HE COMFORT 500 fans.
QBK SAVIB 110
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
