Code 45784

VORT QBK HE COMFORT 450 4M

High efficiency soundproof self-supporting cabinet fans

qbk_he_comfort_01
qbk_he_comfort_02
qbk_he_comfort_03
qbk_he_comfort_04
qbk_he_comfort_05

Description

Read full descriptionClose description

Certifications

Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current (A)
    7,45
  • Max absorbed power (W)
    920
  • Max ambient temperature for continuous operation (°C)
    50
  • Motor class
    F
  • Motor protection IP
    55
  • Voltage (V)
    230
  • Weight (Kg)
    62,20
  • Max airflow (l/s)
    1968
  • Max airflow (m³/h)
    7084
  • Max pressure (mmH2O)
    58,80
  • Max pressure (Pa)
    576,7
  • RPM
    1450
  • Sound power Lw [dB(A)]
    77,00
  • Sound pressure Lp [dB (A)] at 3 m
    56,5
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    con variatore di velocità: VSD
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint (W/m3/s)
    989,45
  • Heat recovery nominal efficiency (%)
    N.A.
  • ([m3/s)
    1,25
  • Real absorbed electric power (KW)
    1,23
  • Face velocity at nominal airflow (m/s)
    7,84
  • Nominal external pressure (Pa)
    0
  • Inner pressure drop of ventilation components (Pa)
    423,82
  • Inner pressure drop of components not related to ventilation (Pa)
    N.A.
  • Fan static efficiency according to 327/2011/UE regulation (%)
    45,57%
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    N.A.
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    77,00
  • Size A (mm)
    765
  • Size B (mm)
    765
  • Size C (mm)
    765
  • Size D (mm)
    665
  • Size E (mm)
    665
  • Size F (mm)
    448
  • Size G (mm)
    25
  • Size H (mm)
    382,5
  • Size I (mm)
    50
  • Size J (mm)
    792
  • Size K (mm)
    792
quota

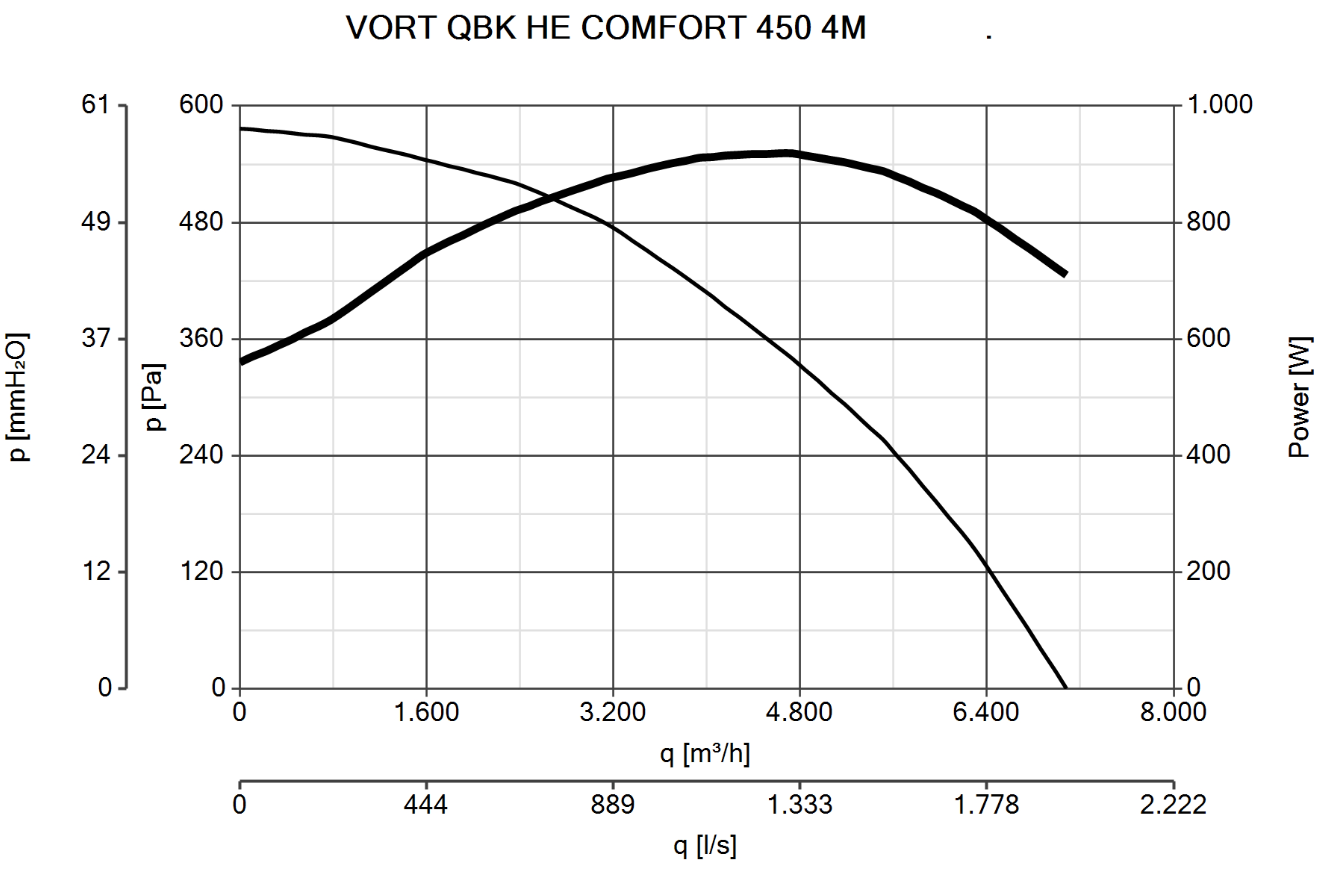

Curva_JPG_45784-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

SWT 16
SWT 16
Safety switch; max load: 16 A.
Go to data sheet
QBK-HE GP 450
QBK-HE GP 450
Protection grid to be applied on outlet port of VORT QBK HE SAL 450 and VORT QBK HE COMFORT 450 fans.
Go to data sheet
QBK F
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
QBK-HE RF 450
QBK-HE RF 450
Round flexible joint for VORT QBK HE SAL 450 and VORT QBK HE COMFORT 450 fans.
Go to data sheet
QBK SAVIB 75
QBK SAVIB 75
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
IREM INVERTER 6 M
IREM INVERTER 6 M
Single-phase speed controller
Go to data sheet
POT
POT
Potentiometer for installation in Standard DIN box.
Go to data sheet
QBK-HE COMFORT RRC 450
QBK-HE COMFORT RRC 450
Go to data sheet
QBK-HE MFL 450
QBK-HE MFL 450
Go to data sheet
EMC-M FTR 10A
EMC-M FTR 10A
Go to data sheet
