Code 45782
VORT QBK HE COMFORT 355 4M
High efficiency soundproof self-supporting cabinet fans
Description
Certifications
Technical Data Sheet
Accessories
Documentation
70_EN_45782_Libretti_Istruzioni_5471084950__17-4-2018_140360
70_EN_45782_Libretti_Istruzioni_5571084129__26-10-2018_146213
70_EN_45782_Libretti_Istruzioni_5571084220__27-03-2019_150513
70_EN_45782_Libretti_Istruzioni_5571084281__05-06-2019_152550
70_EN_45782_Libretti_Istruzioni_5571084415__29-11-2019_157713
70_EN_45782_Libretti_Istruzioni_5571084504__28-02-2020_164844
70_EN_45782_Libretti_Istruzioni_5571084690__09-10-2020_165734
70_EN_45782_Libretti_Istruzioni_5671084114__20-06-2022_177063
70_EN_45782_Libretti_Istruzioni_5671084491___22-04-2024_184694
70_EN_45782_Schemi_collegamento_E960510A_140392
70_EN_45782_Schemi_collegamento_E960510B__150473
70_EN_45782_Schemi_collegamento_E960510C__150605
70_EN_45782_Schemi_collegamento_E960510D__152477
70_EN_45782_Schemi_collegamento_E960510E_157803
Technical Data Sheet
Energy data
PRODUCTS
COMMERCIAL VENTILATION
BOX FANS
DUCTED
Description
Read full description
Close description
Certifications
CE
Download
EAC
Technical Data Sheet
Technical and performance data
Energy data
Dimensions

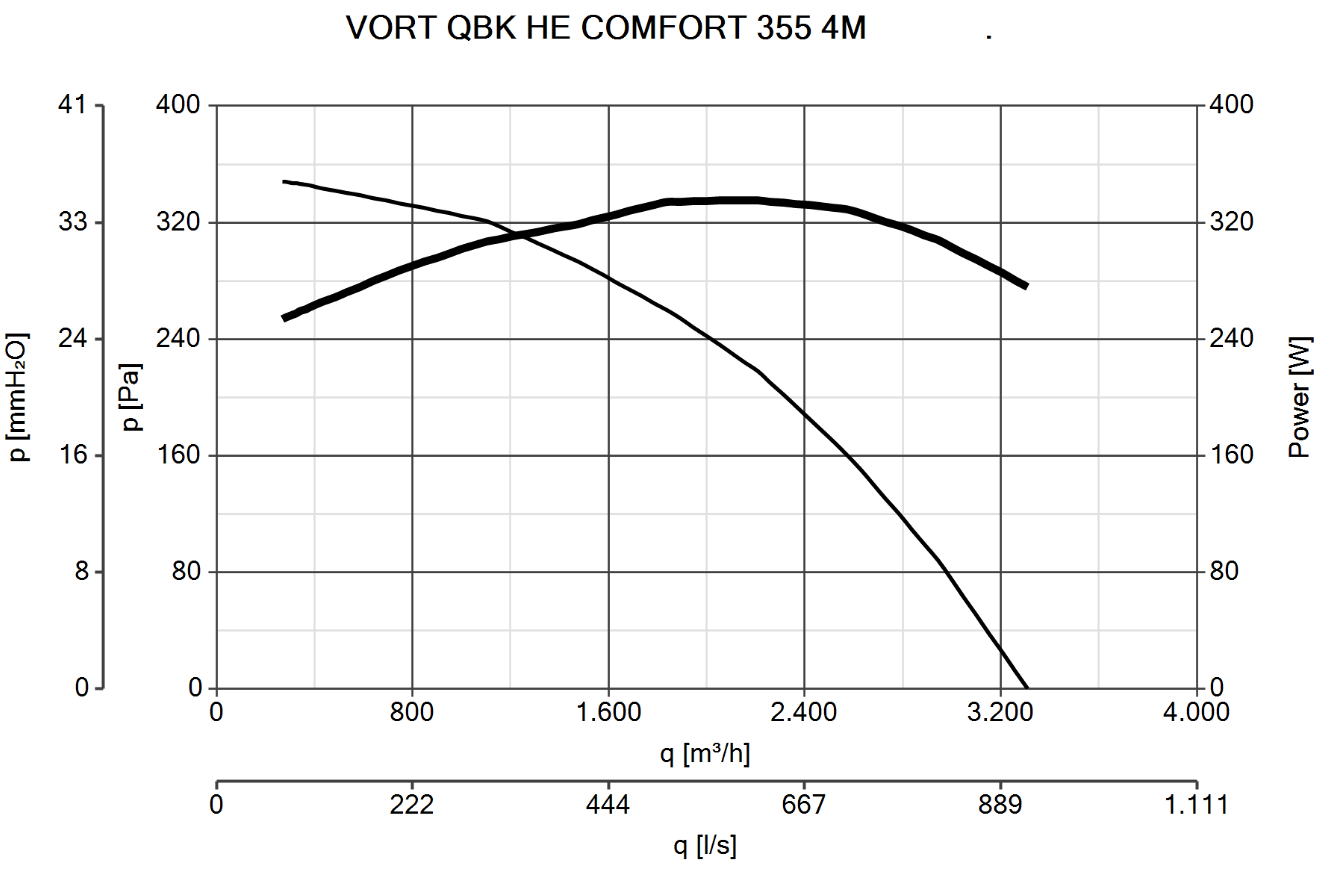

Curves
Frequency (Hz)
50
Max absorbed current (A)
1,93
Max absorbed power (W)
340
Max ambient temperature for continuous operation (°C)
50
Motor class
F
Motor protection IP
55
Voltage (V)
230
Weight (Kg)
41,10
Max airflow (l/s)
919
Max airflow (m³/h)
3310
Max pressure (mmH2O)
35,50
Max pressure (Pa)
348,1
RPM
1390
Sound power Lw [dB(A)]
68,00
Sound pressure Lp [dB (A)] at 3 m
47,5
Type of heat recovery system HRS
nessuno
Drive type
con variatore di velocità: VSD
Declared type
UVNR-U
Supplier's name or trade mark:
Vortice
SFPint (W/m3/s)
723,76
Heat recovery nominal efficiency (%)
N.A.
([m3/s)
0,57
Real absorbed electric power (KW)
0,42
Face velocity at nominal airflow (m/s)
5,81
Nominal external pressure (Pa)
0
Inner pressure drop of ventilation components (Pa)
240,96
Inner pressure drop of components not related to ventilation (Pa)
N.A.
Fan static efficiency according to 327/2011/UE regulation (%)
35,29%
Declared maximum internal leakage rate of the ventilation unit casing (%)
N.A.
Declared maximum external leakage rate of the ventilation unit casing (%)
N.A.
Filter energy performance or classification
N.A.
Description of visual filter warning:
N.A.
Casing sound power level LWA [dB(A)]
68,00
Size A (mm)
625
Size B (mm)
625
Size C (mm)
625
Size D (mm)
525
Size E (mm)
525
Size F (mm)
353
Size G (mm)
25
Size H (mm)
312,5
Size I (mm)
50
Size J (mm)
652
Size K (mm)
652
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Contact us
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Documentation
70_EN_45782_Libretti_Istruzioni_5471084950__17-4-2018_140360
70_EN_45782_Libretti_Istruzioni_5571084129__26-10-2018_146213
70_EN_45782_Libretti_Istruzioni_5571084220__27-03-2019_150513
70_EN_45782_Libretti_Istruzioni_5571084281__05-06-2019_152550
70_EN_45782_Libretti_Istruzioni_5571084415__29-11-2019_157713
70_EN_45782_Libretti_Istruzioni_5571084504__28-02-2020_164844
70_EN_45782_Libretti_Istruzioni_5571084690__09-10-2020_165734
70_EN_45782_Libretti_Istruzioni_5671084114__20-06-2022_177063
70_EN_45782_Libretti_Istruzioni_5671084491___22-04-2024_184694
70_EN_45782_Schemi_collegamento_E960510A_140392
70_EN_45782_Schemi_collegamento_E960510B__150473
70_EN_45782_Schemi_collegamento_E960510C__150605
70_EN_45782_Schemi_collegamento_E960510D__152477
70_EN_45782_Schemi_collegamento_E960510E_157803
Technical Data Sheet
Energy data
Accessories
Discover accessories related to the product
SWT 16
Safety switch; max load: 16 A.
Go to data sheet

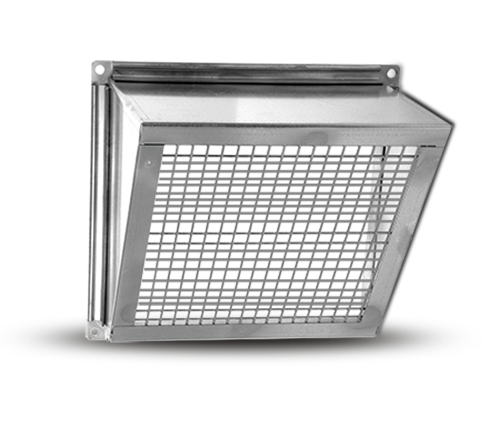

QBK-HE GP 355
Protection grid to be applied on outlet port of VORT QBK HE SAL 355 and VORT QBK HE COMFORT 355 fans.
Go to data sheet
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
QBK SAVIB 75
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
IREM INVERTER 4 M
Single-phase speed controller
Go to data sheet
POT
Potentiometer for installation in Standard DIN box.
Go to data sheet
QBK-HE RF 355
Round flexible joint for VORT QBK HE SAL 355 and VORT QBK HE COMFORT 355 fans.
Go to data sheet

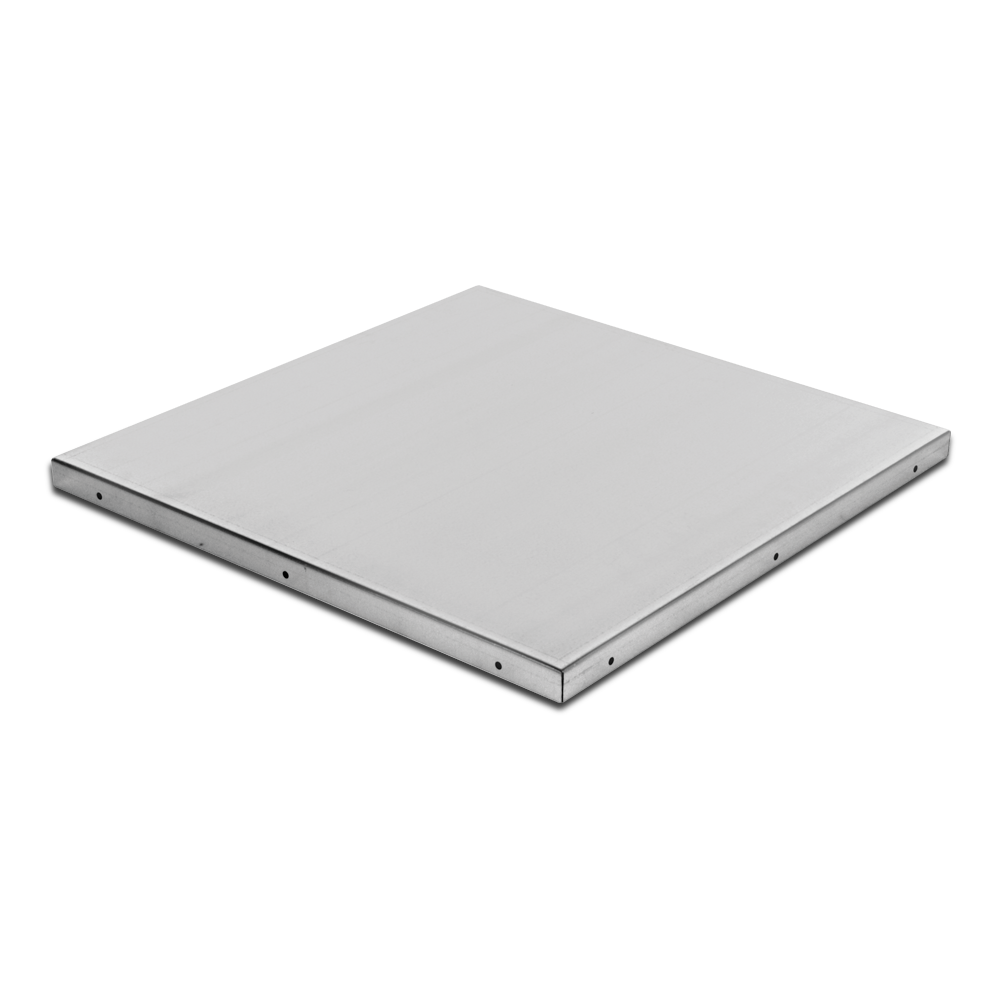

QBK-HE COMFORT RRC 355
Go to data sheet
QBK-HE MFL 355
Go to data sheet
EMC-M FTR 2.5-4.2A
Go to data sheet
