Description

Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current (A)
    5,94
  • Max absorbed power (W)
    2230
  • Max ambient temperature for continuous operation (°C)
    60
  • Motor class
    F
  • Motor protection IP
    55
  • Voltage (V)
    230/400
  • Weight (Kg)
    231,50
  • Max airflow (l/s)
    4646
  • Max airflow (m³/h)
    16725
  • Max pressure (mmH2O)
    65,70
  • Max pressure (Pa)
    644,3
  • RPM
    960
  • Sound power Lw [dB(A)]
    83,00
  • Sound pressure Lp [dB (A)] at 3 m
    62,5
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    con variatore di velocità: VSD
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint (W/m3/s)
    817,97
  • Heat recovery nominal efficiency (%)
    N.A.
  • ([m3/s)
    2,93
  • Real absorbed electric power (KW)
    2,4
  • Face velocity at nominal airflow (m/s)
    7,4
  • Nominal external pressure (Pa)
    0
  • Inner pressure drop of ventilation components (Pa)
    451,69
  • Inner pressure drop of components not related to ventilation (Pa)
    N.A.
  • Fan static efficiency according to 327/2011/UE regulation (%)
    58,06%
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    N.A.
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    83,00

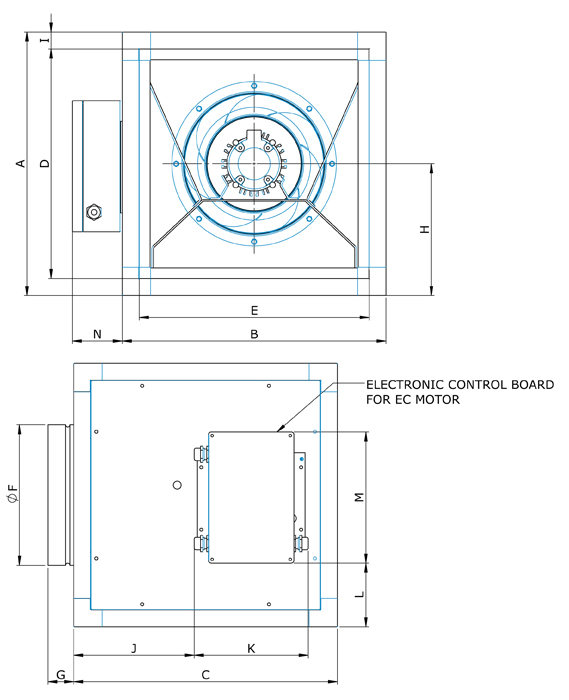

  • Size A (mm)
    1020
  • Size B (mm)
    1020
  • Size C (mm)
    1020
  • Size D (mm)
    960
  • Size E (mm)
    960
  • Size F (mm)
    708
  • Size G (mm)
    46
  • Size H (mm)
    510
  • Size I (mm)
    30
quota

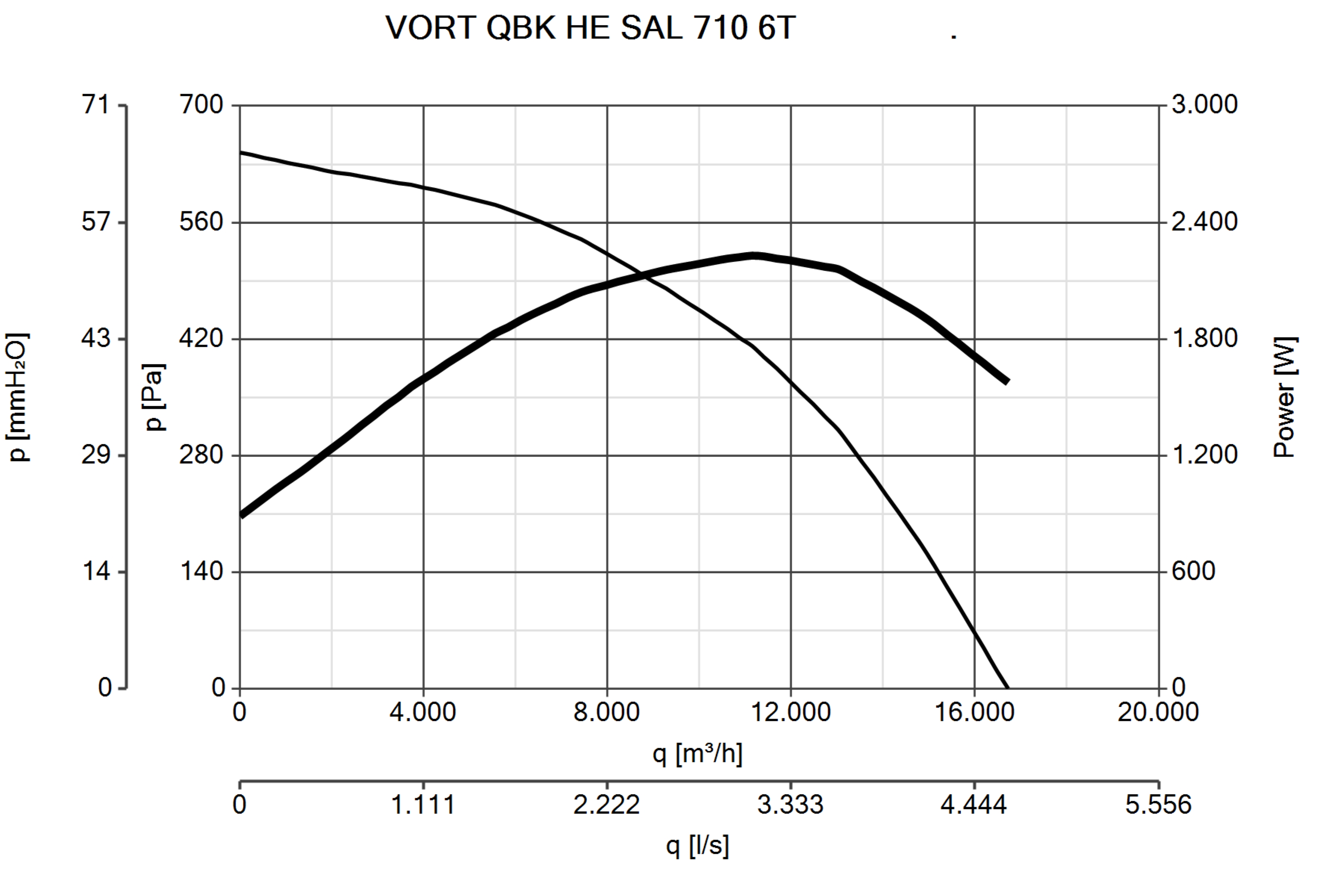

Curva_JPG_45779-Curve_per_Catalogo

Accessories

Discover accessories related to the product

SWT 16
SWT 16
Safety switch; max load: 16 A.

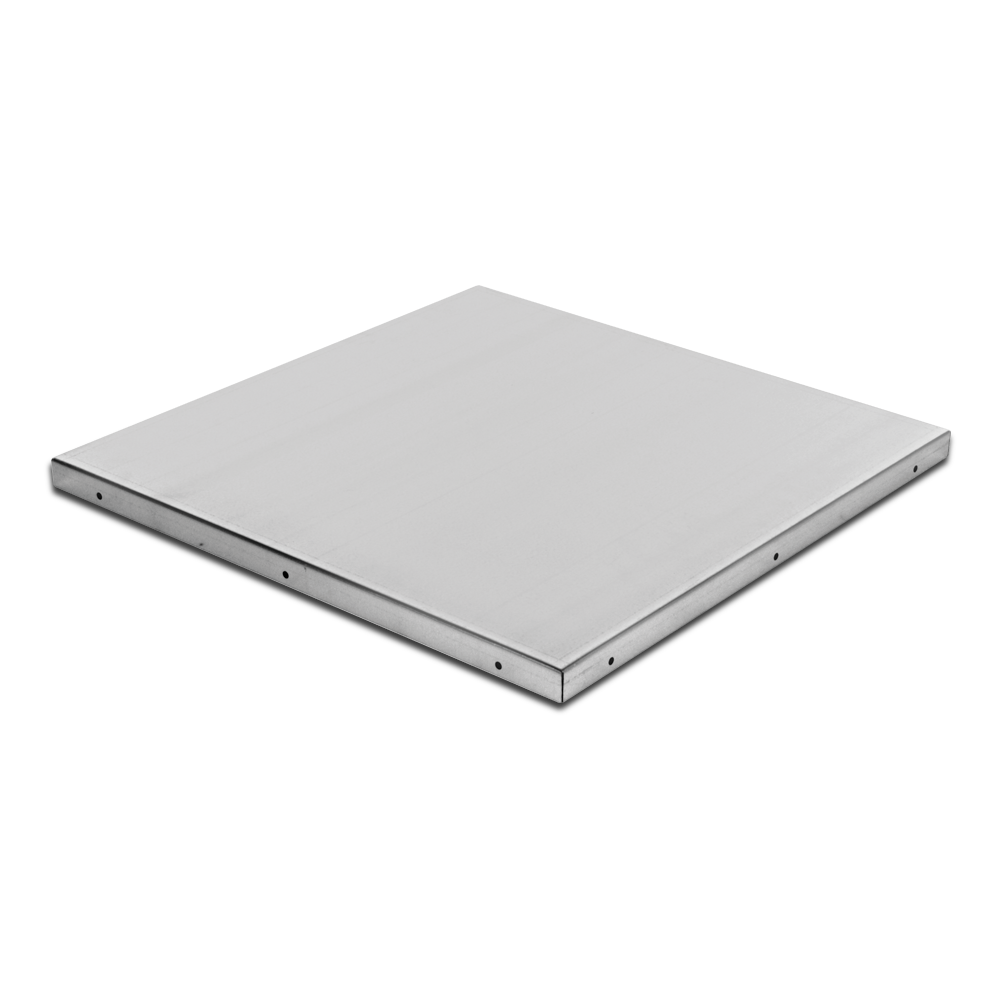

QBK-HE SAL RRC 710
QBK-HE SAL RRC 710
Rain cover for VORT QBK HE SAL 710 fan.

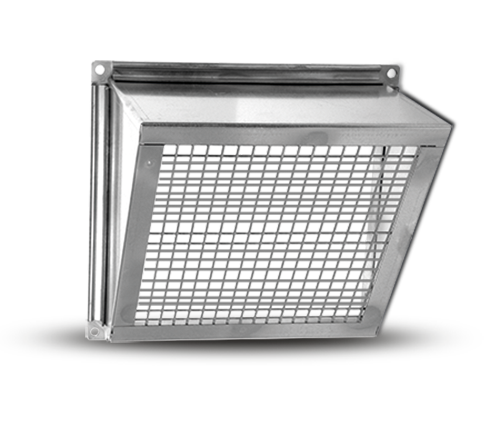

QBK-HE GP 710
QBK-HE GP 710
Protection grid to be applied on outlet port of VORT QBK HE SAL 710 and VORT QBK HE COMFORT 710 fans.
QBK F
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
QBK-HE RF 710
QBK-HE RF 710
Round flexible joint for VORT QBK HE SAL 710 and VORT QBK HE COMFORT 710 fans.
QBK SAVIB 235
QBK SAVIB 235
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.

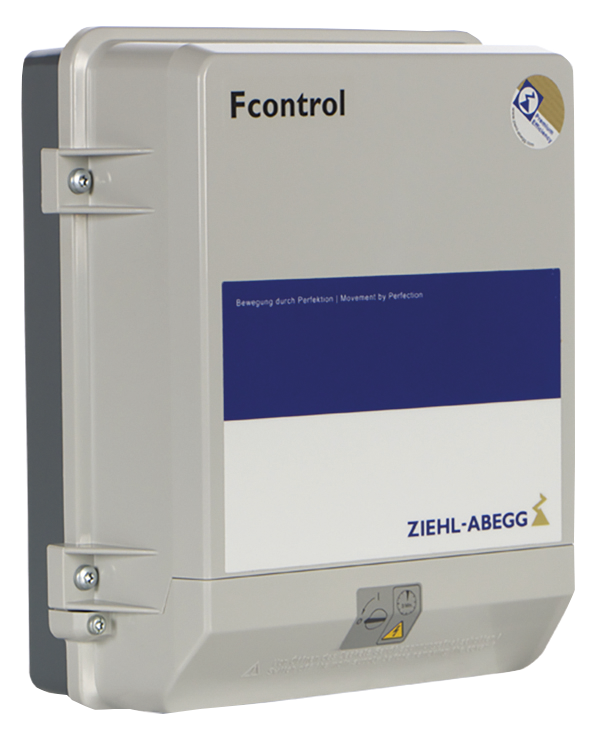

IRET INVERTER 10 M
IRET INVERTER 10 M
POT
POT
Potentiometer for installation in Standard DIN box.
QBK-HE MFL 710
QBK-HE MFL 710
IRET INVERTER 400 8A
IRET INVERTER 400 8A
Speed frequency inverter; three-phase power supply and output, maximum load 8 A. Equipped with display and PID card. Certifications: CE / UL / CSA / EN / GOST / CCC. Protection deg...

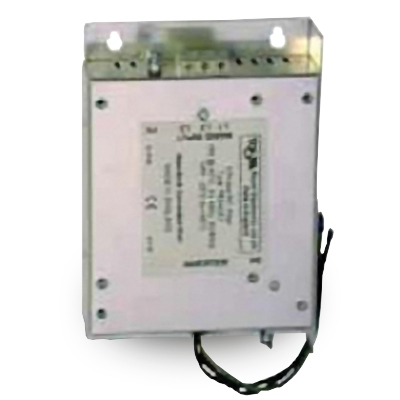

EMC-T FTR 5-8A
EMC-T FTR 5-8A
