Description

Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current (A)
    8,32
  • Max absorbed power (W)
    4510
  • Max ambient temperature for continuous operation (°C)
    60
  • Motor class
    F
  • Motor protection IP
    55
  • Voltage (V)
    230/400
  • Weight (Kg)
    174,40
  • Max airflow (l/s)
    5042
  • Max airflow (m³/h)
    18152
  • Max pressure (mmH2O)
    118,60
  • Max pressure (Pa)
    1163,1
  • RPM
    1450
  • Sound power Lw [dB(A)]
    89,00
  • Sound pressure Lp [dB (A)] at 3 m
    68,5
  • Type of heat recovery system HRS
    nessuno
  • Drive type
    con variatore di velocità: VSD
  • Declared type
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint (W/m3/s)
    1.416,59
  • Heat recovery nominal efficiency (%)
    N.A.
  • ([m3/s)
    3,09
  • Real absorbed electric power (KW)
    4,38
  • Face velocity at nominal airflow (m/s)
    9,91
  • Nominal external pressure (Pa)
    0
  • Inner pressure drop of ventilation components (Pa)
    811,64
  • Inner pressure drop of components not related to ventilation (Pa)
    N.A.
  • Fan static efficiency according to 327/2011/UE regulation (%)
    60,30%
  • Declared maximum internal leakage rate of the ventilation unit casing (%)
    N.A.
  • Declared maximum external leakage rate of the ventilation unit casing (%)
    N.A.
  • Filter energy performance or classification
    N.A.
  • Description of visual filter warning:
    N.A.
  • Casing sound power level LWA [dB(A)]
    89,00
  • Size A (mm)
    945
  • Size B (mm)
    945
  • Size C (mm)
    945
  • Size D (mm)
    885
  • Size E (mm)
    885
  • Size F (mm)
    628
  • Size G (mm)
    46
  • Size H (mm)
    472,5
  • Size I (mm)
    30
quota

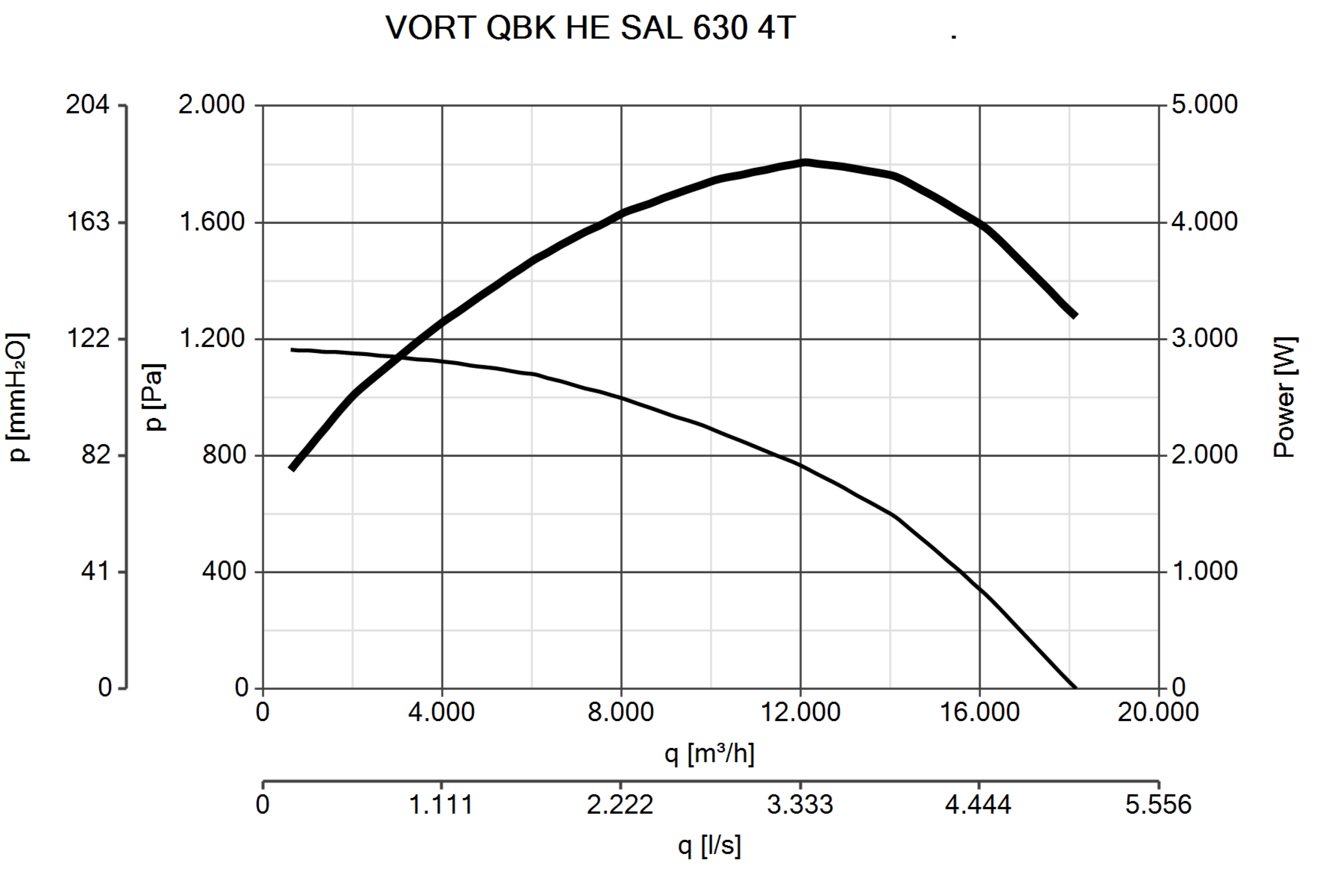

Curva_JPG_45778-Curve_per_Catalogo

Accessories

Discover accessories related to the product

SWT 16
SWT 16
Safety switch; max load: 16 A.

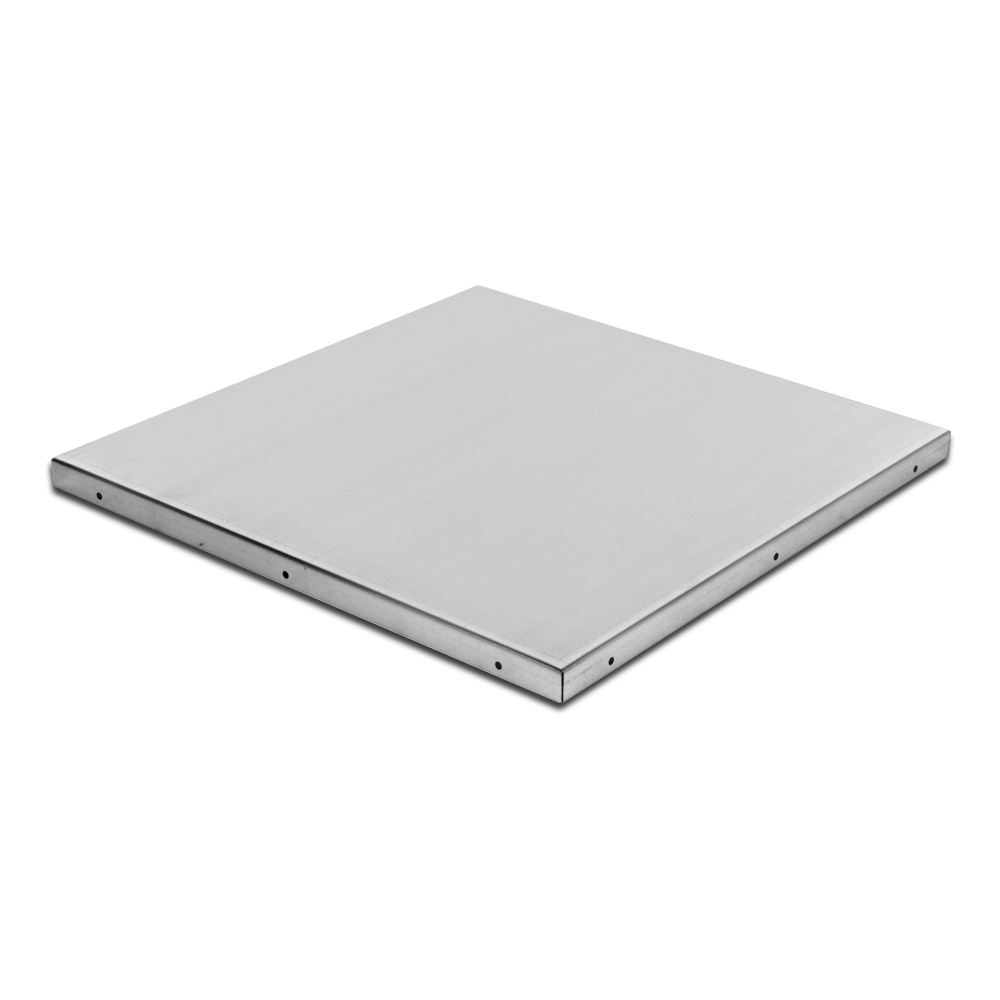

QBK-HE SAL RRC 630
QBK-HE SAL RRC 630
Rain cover for VORT QBK HE SAL 630 fan.
QBK-HE GP 630
QBK-HE GP 630
Protection grid to be applied on outlet port of VORT QBK HE SAL 630 and VORT QBK HE COMFORT 630 fans.
QBK F
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
QBK-HE RF 630
QBK-HE RF 630
Round flexible joint for VORT QBK HE SAL 630 and VORT QBK HE COMFORT 630 fans.
QBK SAVIB 235
QBK SAVIB 235
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
POT
POT
Potentiometer for installation in Standard DIN box.
QBK-HE MFL 630
QBK-HE MFL 630
IRET INVERTER 400 12A
IRET INVERTER 400 12A
Speed frequency inverter; three-phase power supply and output, maximum load 12 A. Equipped with display and PID card. Certifications: CE / UL / CSA / EN / GOST / CCC. Protection de...
EMC-T FTR 12-16A
EMC-T FTR 12-16A
