VORT QBK HE SAL 560 4T

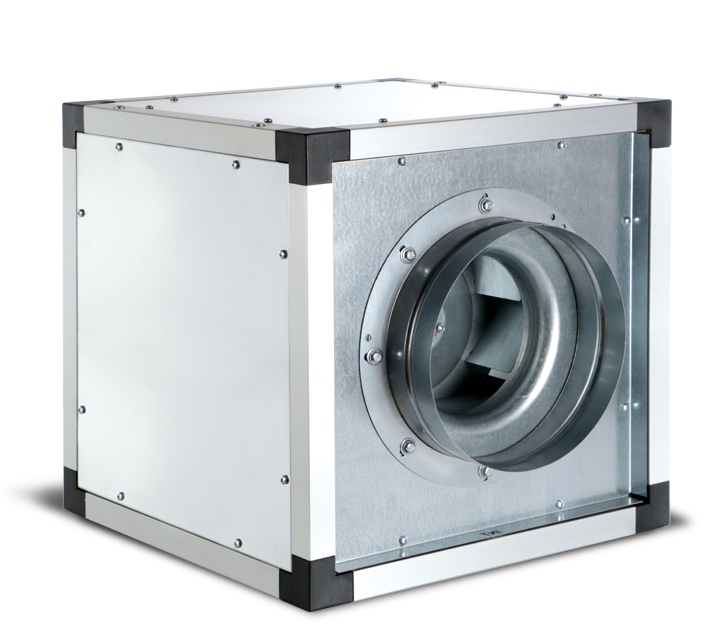

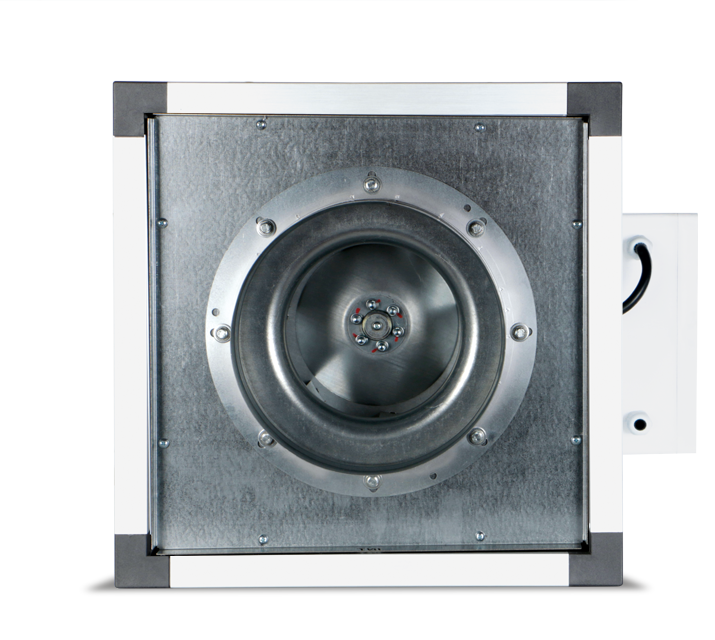

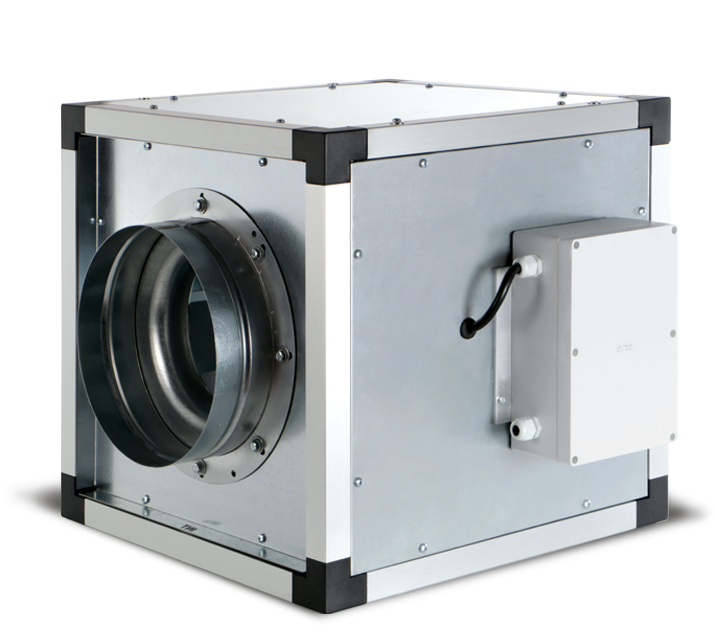

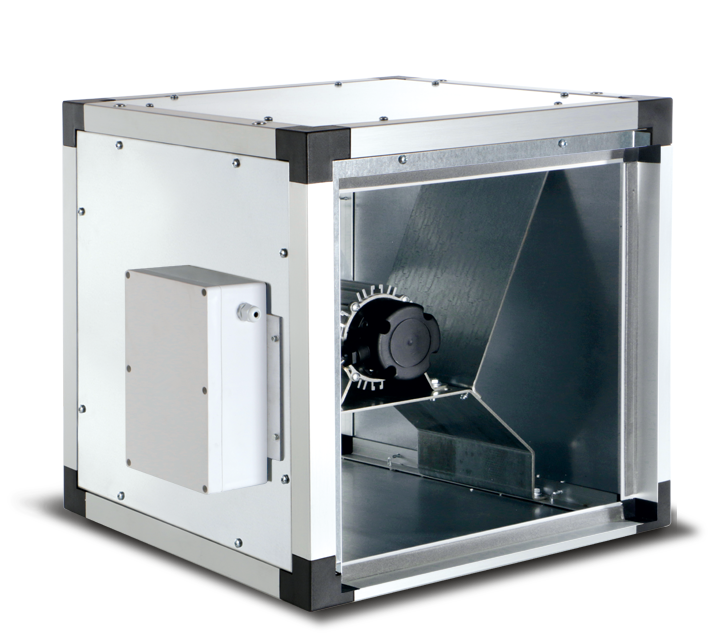

High efficiency self-supporting cabinet fans
Description
Certifications
Technical Data Sheet
Accessories
Documentation
70_EN_45777_Libretti_Istruzioni_5471084950__17-4-2018_140355
70_EN_45777_Libretti_Istruzioni_5571084129__26-10-2018_146208
70_EN_45777_Libretti_Istruzioni_5571084220__27-03-2019_150508
70_EN_45777_Libretti_Istruzioni_5571084281__05-06-2019_152545
70_EN_45777_Libretti_Istruzioni_5571084415__29-11-2019_157708
70_EN_45777_Libretti_Istruzioni_5571084504__28-02-2020_164839
70_EN_45777_Libretti_Istruzioni_5571084690__09-10-2020_165728
70_EN_45777_Libretti_Istruzioni_5671084114__20-06-2022_177086
70_EN_45777_Libretti_Istruzioni_5671084491___22-04-2024_184689
70_EN_45777_Schemi_collegamento_E960510A_140387
70_EN_45777_Schemi_collegamento_E960510B__150468
70_EN_45777_Schemi_collegamento_E960510C__150600
70_EN_45777_Schemi_collegamento_E960510D__152472
70_EN_45777_Schemi_collegamento_E960510E_157798
Technical Data Sheet
Energy data
PRODUCTS
COMMERCIAL VENTILATION
BOX FANS
DUCTED
Description
Read full description
Close description
Certifications
CE
Download
EAC
Technical Data Sheet
Technical and performance data
Energy data

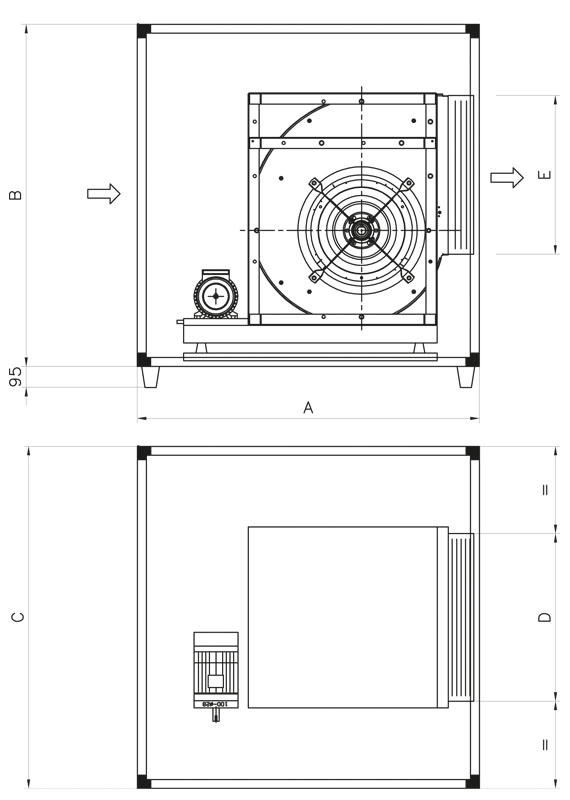

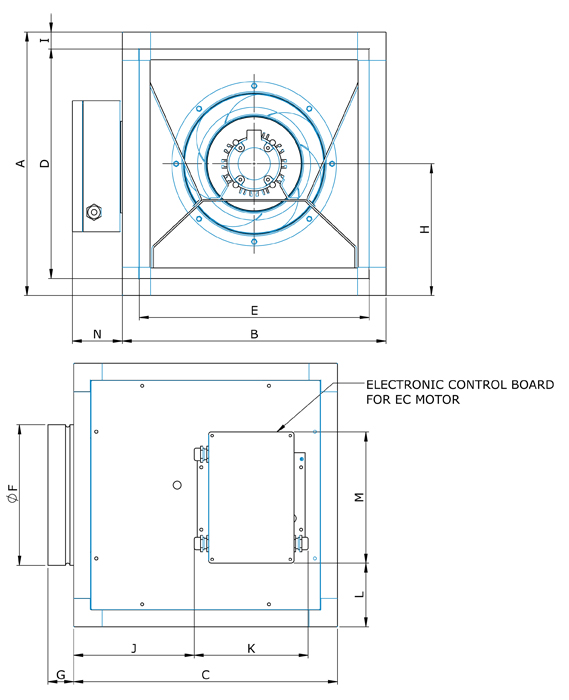

Dimensions

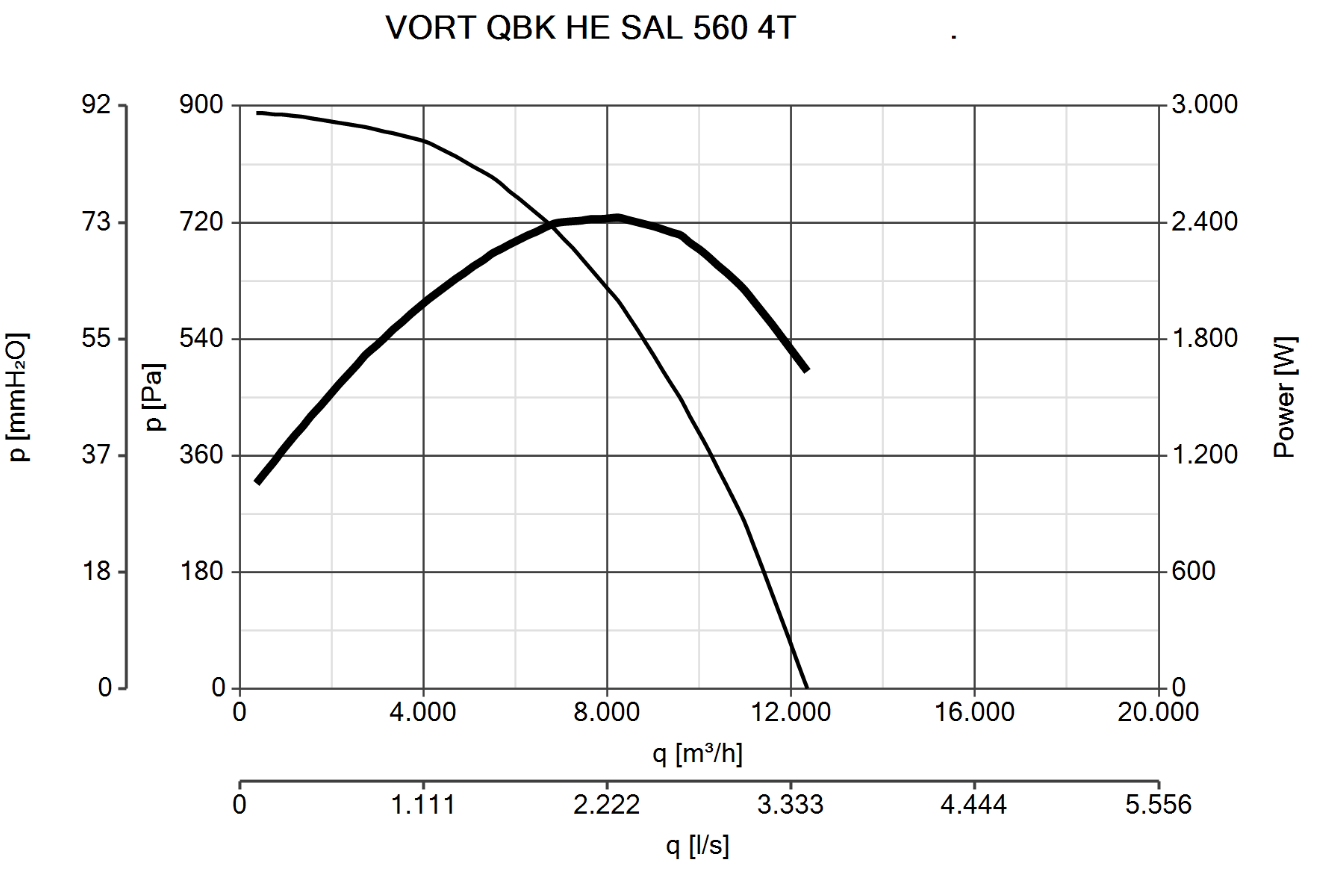

Curves
Frequency (Hz)
50
Max absorbed current (A)
4,64
Max absorbed power (W)
2430
Max ambient temperature for continuous operation (°C)
60
Motor class
F
Motor protection IP
55
Voltage (V)
230/400
Weight (Kg)
140,90
Max airflow (l/s)
3433
Max airflow (m³/h)
12358
Max pressure (mmH2O)
90,70
Max pressure (Pa)
889,5
RPM
1440
Sound power Lw [dB(A)]
85,00
Sound pressure Lp [dB (A)] at 3 m
64,5
Type of heat recovery system HRS
nessuno
Drive type
con variatore di velocità: VSD
Declared type
UVNR-U
Supplier's name or trade mark:
Vortice
SFPint (W/m3/s)
1.111,27
Heat recovery nominal efficiency (%)
N.A.
([m3/s)
2,15
Real absorbed electric power (KW)
2,38
Face velocity at nominal airflow (m/s)
8,71
Nominal external pressure (Pa)
0
Inner pressure drop of ventilation components (Pa)
628,84
Inner pressure drop of components not related to ventilation (Pa)
N.A.
Fan static efficiency according to 327/2011/UE regulation (%)
59,52%
Declared maximum internal leakage rate of the ventilation unit casing (%)
N.A.
Declared maximum external leakage rate of the ventilation unit casing (%)
N.A.
Filter energy performance or classification
N.A.
Description of visual filter warning:
N.A.
Casing sound power level LWA [dB(A)]
85,00
Size A (mm)
870
Size B (mm)
870
Size C (mm)
870
Size D (mm)
810
Size E (mm)
810
Size F (mm)
558
Size G (mm)
46
Size H (mm)
435
Size I (mm)
30
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Contact us
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Documentation
70_EN_45777_Libretti_Istruzioni_5471084950__17-4-2018_140355
70_EN_45777_Libretti_Istruzioni_5571084129__26-10-2018_146208
70_EN_45777_Libretti_Istruzioni_5571084220__27-03-2019_150508
70_EN_45777_Libretti_Istruzioni_5571084281__05-06-2019_152545
70_EN_45777_Libretti_Istruzioni_5571084415__29-11-2019_157708
70_EN_45777_Libretti_Istruzioni_5571084504__28-02-2020_164839
70_EN_45777_Libretti_Istruzioni_5571084690__09-10-2020_165728
70_EN_45777_Libretti_Istruzioni_5671084114__20-06-2022_177086
70_EN_45777_Libretti_Istruzioni_5671084491___22-04-2024_184689
70_EN_45777_Schemi_collegamento_E960510A_140387
70_EN_45777_Schemi_collegamento_E960510B__150468
70_EN_45777_Schemi_collegamento_E960510C__150600
70_EN_45777_Schemi_collegamento_E960510D__152472
70_EN_45777_Schemi_collegamento_E960510E_157798
Technical Data Sheet
Energy data
Accessories
Discover accessories related to the product
SWT 16
Safety switch; max load: 16 A.
Go to data sheet
QBK-HE SAL RRC 560

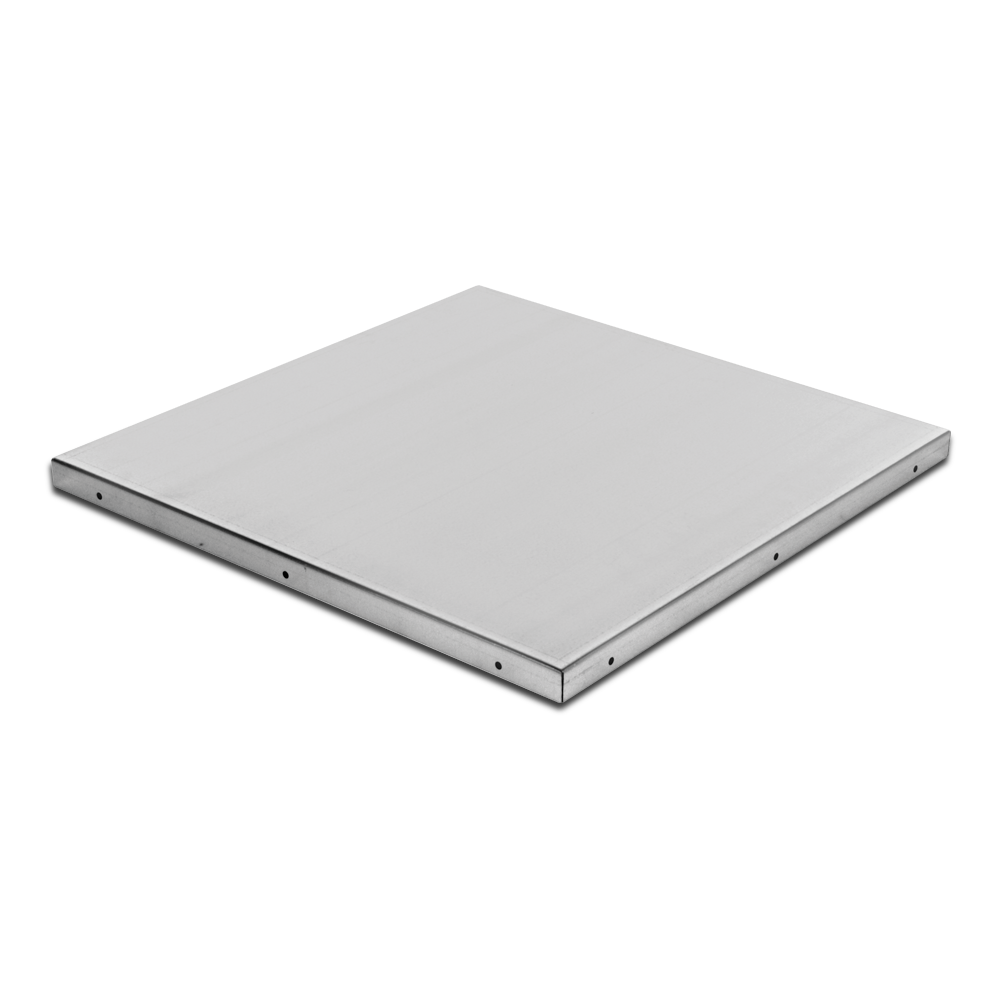

Rain cover for VORT QBK HE SAL 560 fan.
Go to data sheet
QBK-HE GP 560
Protection grid to be applied on outlet port of VORT QBK HE SAL 560 and VORT QBK HE COMFORT 560 fans.
Go to data sheet
QBK F
Kit made of 4 support feet for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
QBK SAVIB 235
Antivibration rubber mounts for VORT QBK HE SAL and VORT QBK HE COMFORT fans.
Go to data sheet
IRET INVERTER 10 M
Go to data sheet
POT
Potentiometer for installation in Standard DIN box.
Go to data sheet
QBK-HE RF 560
Round flexible joint for VORT QBK HE SAL 560 and VORT QBK HE COMFORT 560 fans.
Go to data sheet
QBK-HE MFL 560
Go to data sheet
EMC-T FTR 5-8A
Go to data sheet
IRET INVERTER 400 5A
Speed frequency inverter; three-phase power supply and output, maximum load 5 A. Equipped with display and PID card. Certifications: CE / UL / CSA / EN / GOST / CCC. Protection deg...
Go to data sheet
