Technical Data Sheet
-
Frequency (Hz)50/60
-
Max absorbed power (W)350
-
Max ambient temperature for continuous operation (°C)50
-
Motor classF
-
Motor protection IP55
-
Voltage (V)230
-
Weight (Kg)31,60
-

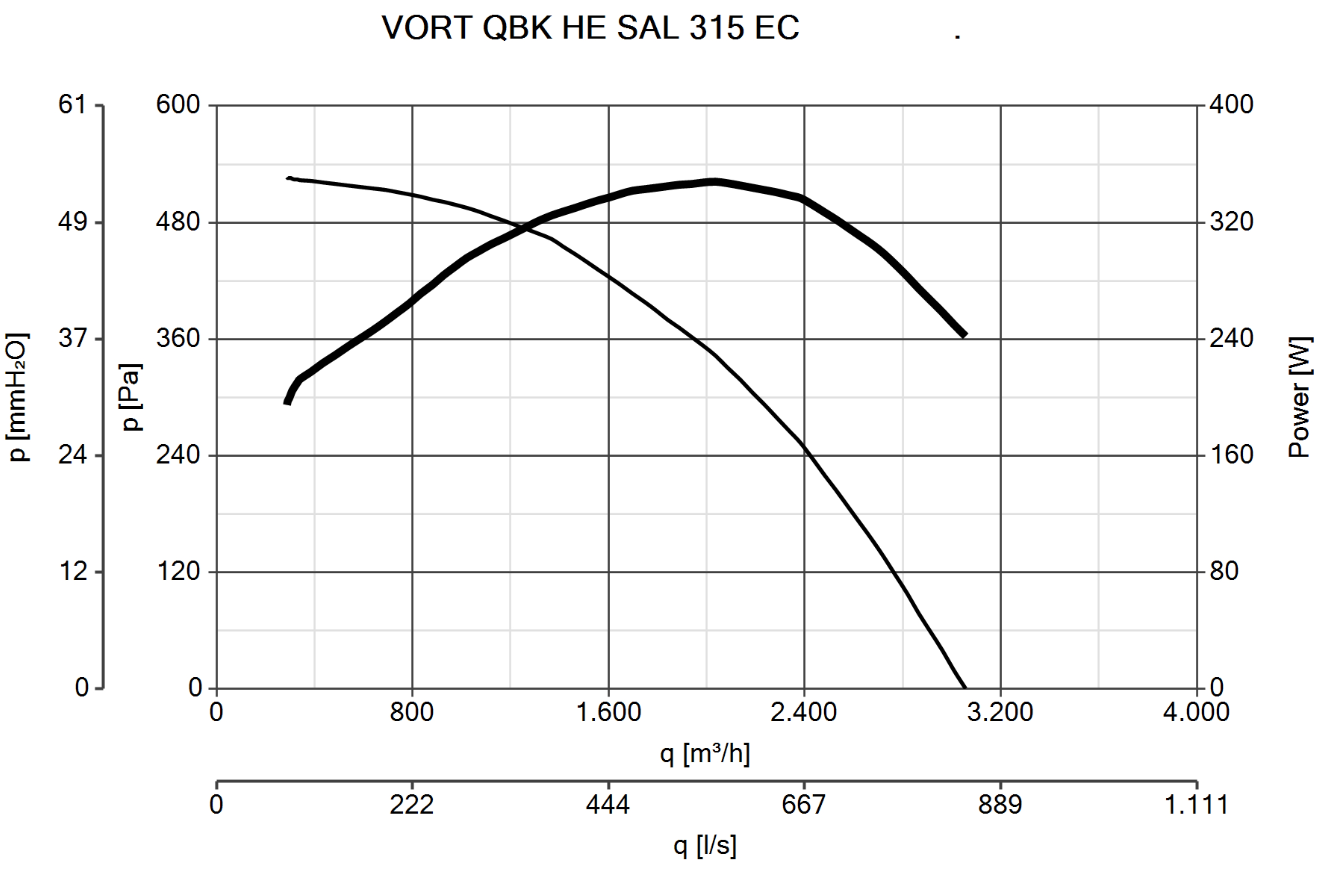

Max airflow (l/s)849
-
Max airflow (m³/h)3057
-
Max pressure (mmH2O)53,70
-
Max pressure (Pa)526,6
-
RPM2000
-
Sound power Lw [dB(A)]67,00
-
Sound pressure Lp [dB (A)] at 3 m46,5
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Type of heat recovery system HRSnessuno
-
Drive typecon variatore di velocità: VSD
-
Declared typeUVNR-U
-
Supplier's name or trade mark:Vortice
-
SFPint (W/m3/s)426,26
-
Heat recovery nominal efficiency (%)N.A.
-
([m3/s)0,37
-
Real absorbed electric power (KW)0,16
-
Face velocity at nominal airflow (m/s)4,68
-
Nominal external pressure (Pa)0
-
Inner pressure drop of ventilation components (Pa)191,59
-
Inner pressure drop of components not related to ventilation (Pa)N.A.
-
Fan static efficiency according to 327/2011/UE regulation (%)46,18%
-
Declared maximum internal leakage rate of the ventilation unit casing (%)N.A.
-
Declared maximum external leakage rate of the ventilation unit casing (%)N.A.
-
Filter energy performance or classificationN.A.
-
Description of visual filter warning:N.A.
-
Casing sound power level LWA [dB(A)]67,00
-

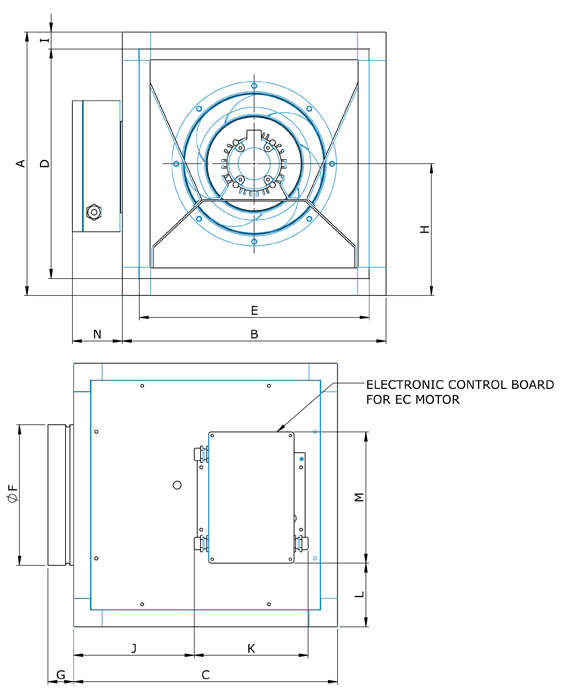

Size A (mm)525
-
Size B (mm)525
-
Size C (mm)525
-
Size D (mm)465
-
Size E (mm)465
-
Size F (mm)298
-
Size G (mm)46
-
Size H (mm)262,5
-
Size I (mm)30
-
Size J (mm)262
-
Size K (mm)201
-
Size L (mm)142
-
Size M (mm)232
-
Size N (mm)88
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product

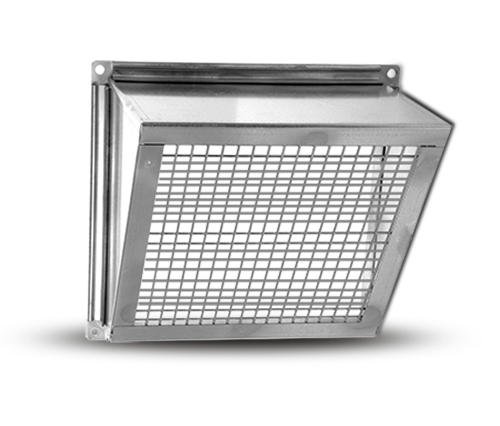

QBK-HE GP 315
Protection grid to be applied on outlet port of VORT QBK HE SAL 315 and VORT QBK HE COMFORT 315 fans.

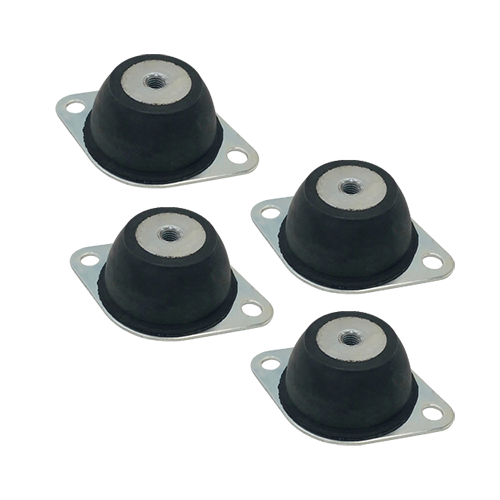

QBK SAVIB 40
