Description

• Cabinet: frames made of aluminium profiles; sandwich panels made of zinc-coated, 0,6 mm thick steel plates, lined with 23 mm thick rockwool.

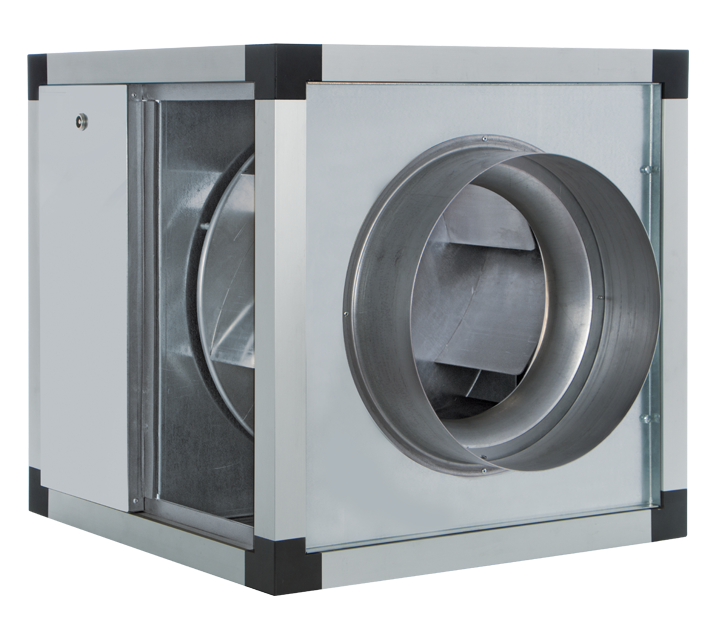

• Circular part of inlet.
• Rectangular outlet. A specific optional adapter allows connection to circular pipes.
• Nominal diameter 355 mm.

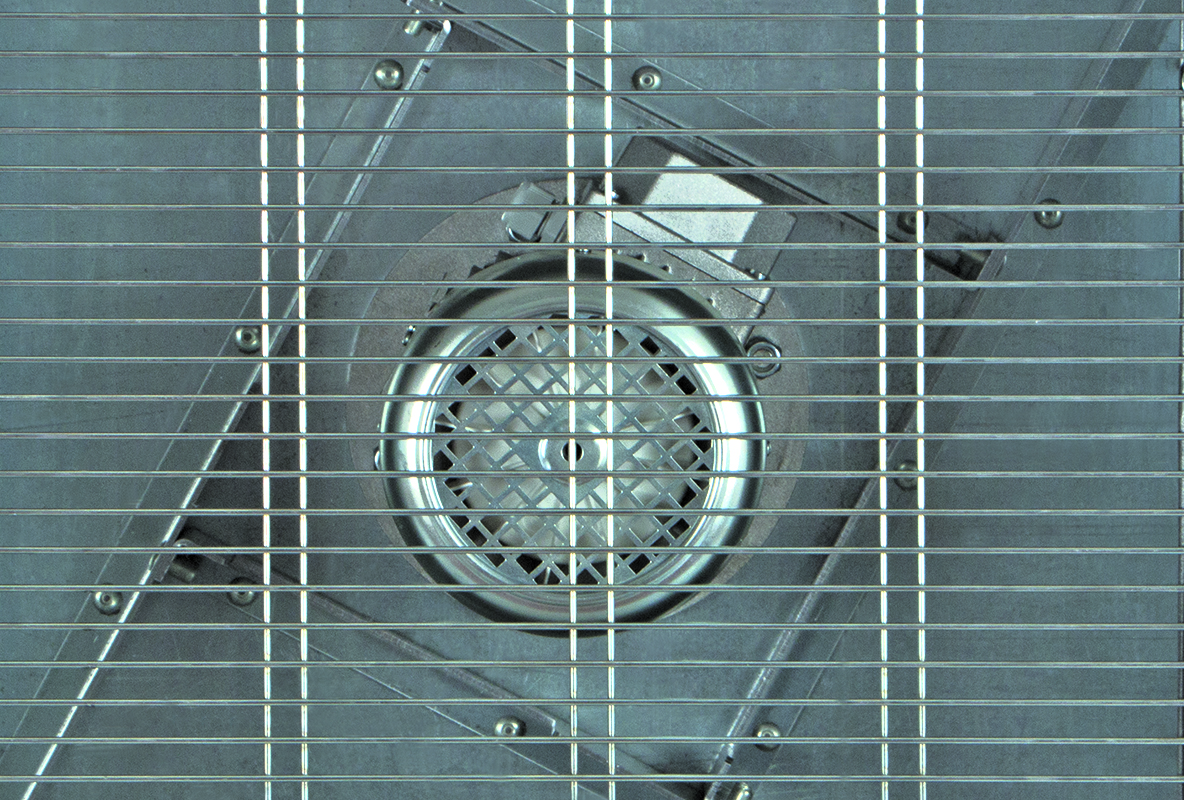

• Single-phase ball bearings AC motor, located outside the airflow and separated from the impeller by a metal panel.

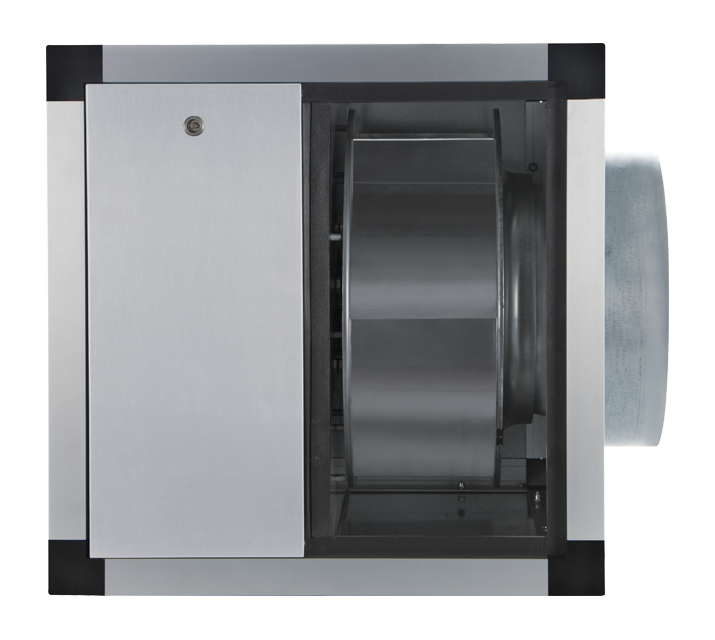

• Backward curved centrifugal impeller, dynamically balanced (ISO 1940, 6.3 class).

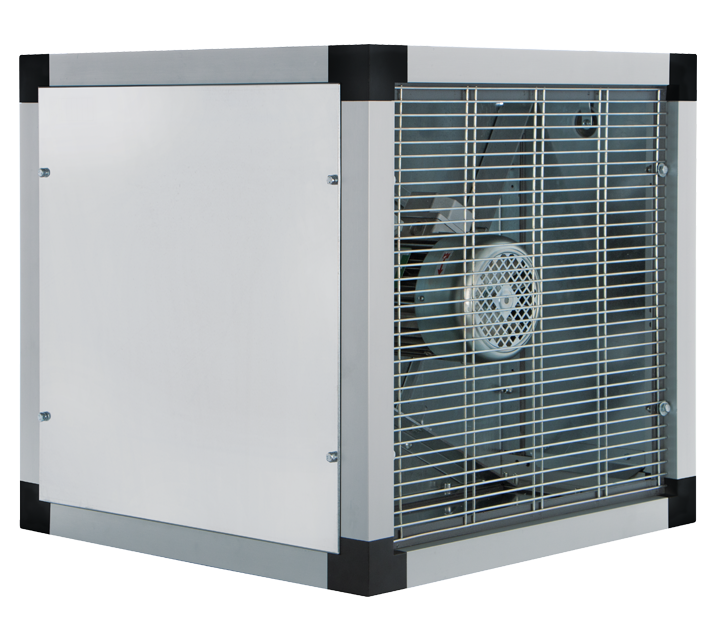

• Motor protection guard made of galvanised steel.

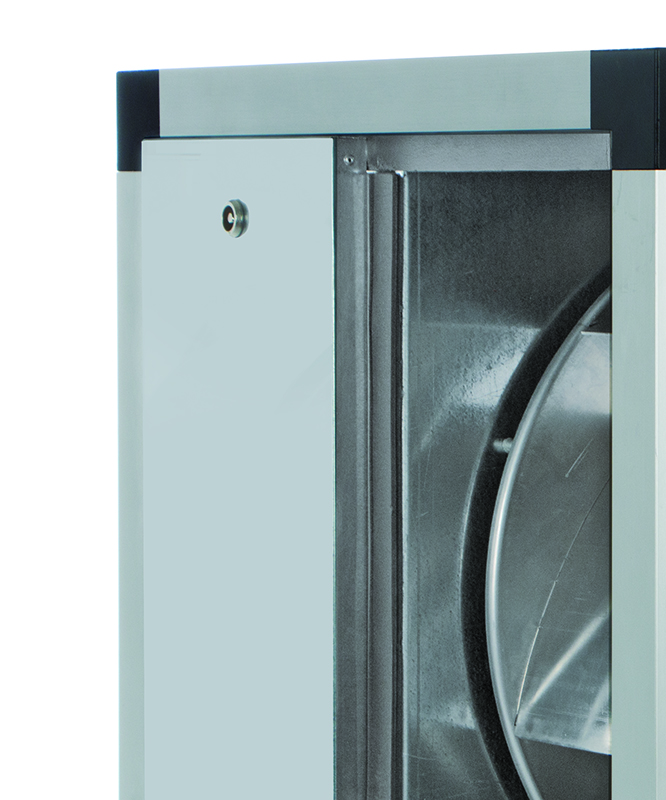

• Inspection panel with handle and triangular key.

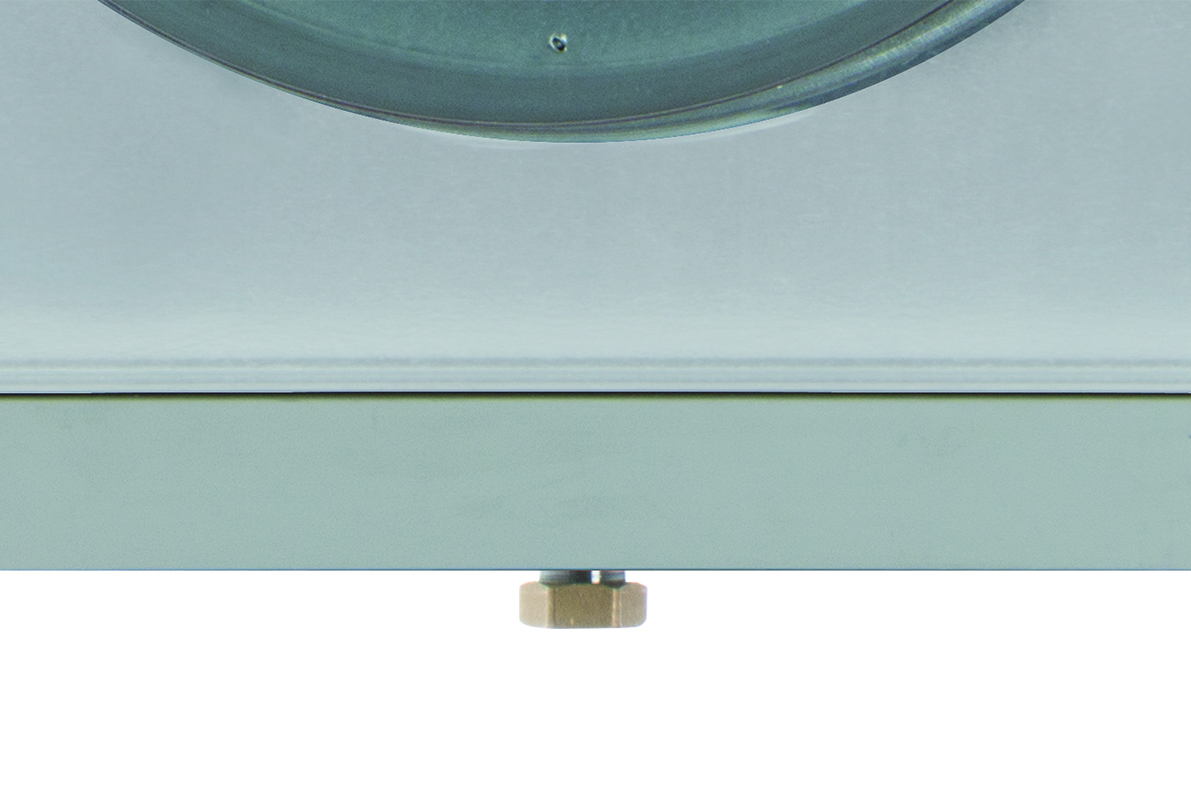

• Condensate tray made of galvanised steel with drain point and blank nut for draining.
• Temperature of extracted air up to 120°C.
• Maximum environment air temperature: 70 ° C (if controlled by IRM5 5B controller code 12864, maximum temperature drops to 55 ° C).
• Speed adjustable through Vortice’s speed controllers.
Read full descriptionClose description

Certifications

vort_qbk_sal_kc_ambiente01
vort_qbk_sal_kc_ambiente02

Technical Data Sheet

  • Absorbed current at 220 V (A)
    3,52
  • Absorbed current at 240 V (A)
    3,41
  • Absorbed power at 220 V (W)
    770
  • Absorbed power at 240 V (W)
    820
  • Frequency (Hz)
    50
  • Insulation class
  • IP
    55
  • Max ambient temperature for continuous operation (°C)
    70
  • Max temperature of exhaust air (continuous operation)
    120
  • Motor class
    F
  • Motor protection IP
    55
  • Nominal diameter (mm)
    355
  • Number of poles
    4
  • Voltage (V)
    220-240
  • Weight (Kg)
    50
  • Max airflow (l/s)
    1194
  • Max airflow (m³/h)
    4300
  • Max pressure (mmH2O)
    46.3
  • Max pressure (Pa)
    454
  • RPM
    1355
  • Sound power Lw [dB(A)]
    77,8
  • Sound pressure Lp [dB (A)] at 3 m
    57,3

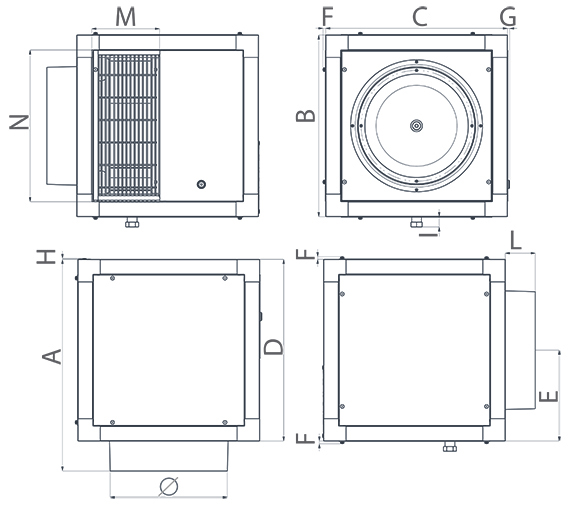

  • Size A (mm)
    671
  • Size B (mm)
    590
  • Size C (mm)
    590
  • Size D (mm)
    590
  • Size E (mm)
    295
  • Size F (mm)
    8
  • Size G (mm)
    6
  • Size H (mm)
    3
  • Size I (mm)
    28
  • Size L (mm)
    82
  • Size M (mm)
    280
  • Size N (mm)
    510
  • Size O (mm)
    Ø 353
quota
