Technical Data Sheet

  • Filter class on extract
    M5
  • Filter class on supply
    F7
  • Frequency (Hz)
    50
  • Max absorbed power (W)
    1450
  • Nominal power (W)
    950
  • Number of phases (Ph)
    1
  • Voltage (V)
    230
  • Weight (Kg)
    203
  • Max airflow (m³/h)
    1620
  • Sound power Lw [dB(A)]
    79,9
  • Sound pressure level at 1m Lp [dB (A)]
    64,4
  • Ø (mm)
    250

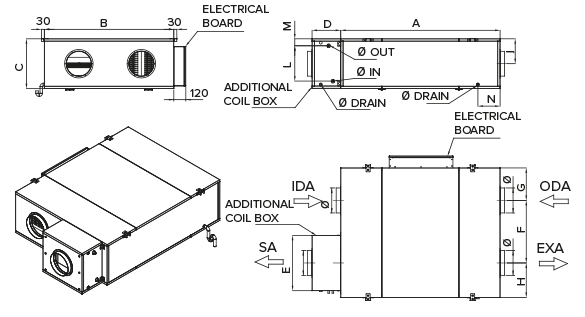

  • Size A (mm)
    1600
  • Size B (mm)
    1300
  • Size C (mm)
    500
  • Size D (mm)
    288
  • Size E (mm)
    555
  • Size F (mm)
    629
  • Size G (mm)
    326
  • Size H (mm)
    345
  • Size I (mm)
    250
  • Size L (mm)
    355
  • Size M (mm)
    70
  • Size N (mm)
    223
