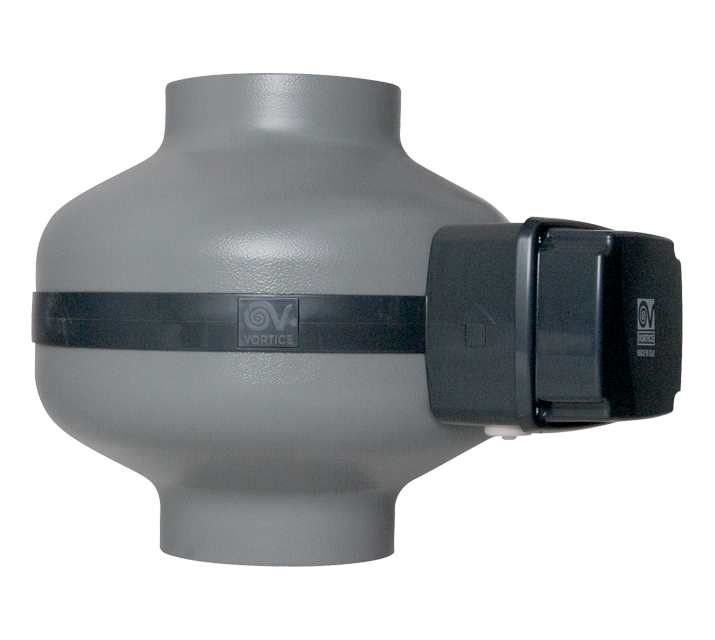

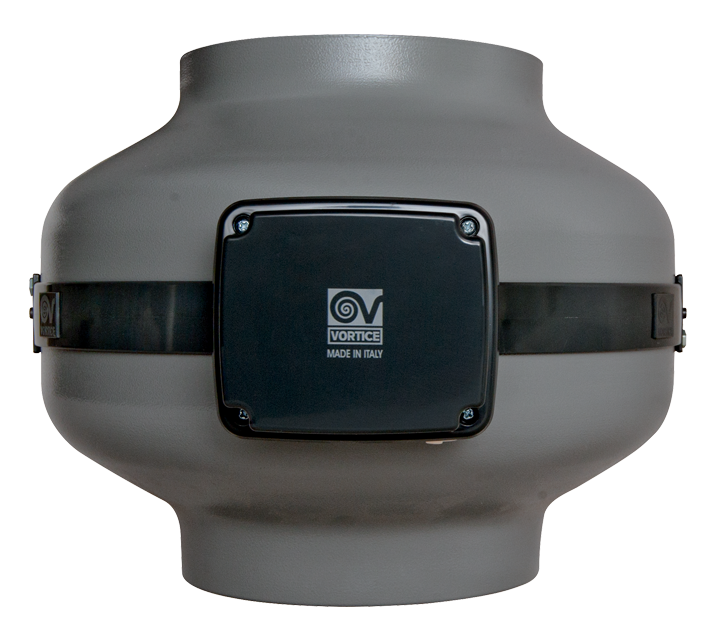

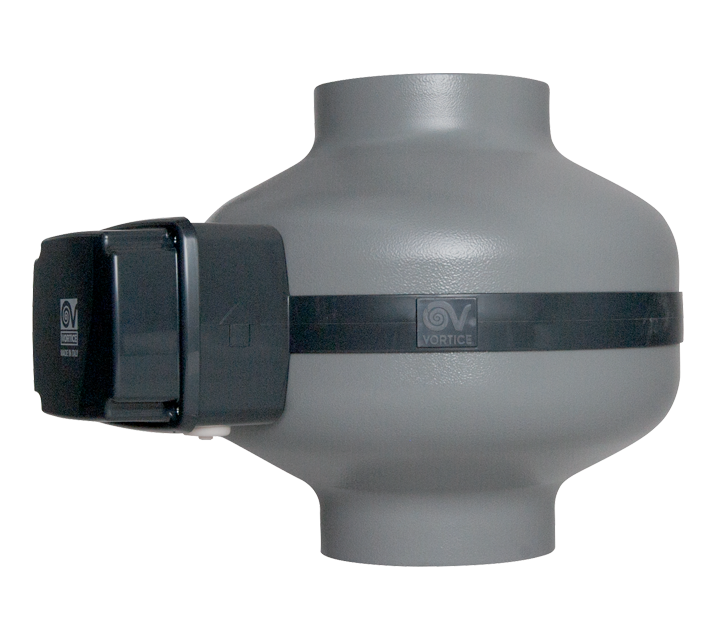

CA 125 ES - Vortice

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents
• Nominal diameter 125 mm
• High efficiency electronically controlled (EC) commutator motor coupled to a backward curved impeller, guaranteeing a wide range of adjustments and significantly reduced energy consumption, per unit of performance delivered.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence
• Zinc-coated steel brackets for wall mounting
• Speed control with 0-10 V signal

Read full descriptionClose description

Absorbed current at Max speed (reg. Min /Nominal/Max) (A)

0,29/0,53/0,75/
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)

0,12/0,20/0,35/
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)

29/55/80/
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)

11/19/35/
Frequency (Hz)

50
Insulation class

II°
IP

44
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

125
Voltage (V)

230
Weight (Kg)

2,6
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)

97/122/139/

Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)

350/440/500/
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)

220/280/370/
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)

61/78/103/
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)

34/47/49/
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)

333/461/480/
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)

14/23/38/
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)

137/225/373/
RPM at Max speed (reg. Min /Nominal/Max)

1820/2310/2620/
RPM at Min speed (reg. Min /Nominal/Max)

1180/1520/1930/
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]

38,4/45,9/49,7/
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]

25,3/33,2/40,3/

Size A (mm)

ø 255
Size B (mm)

239
Size C (mm)

330
Size D (mm)

ø 122
Size E (mm)

23
Size F (mm)

23
