Code 12206

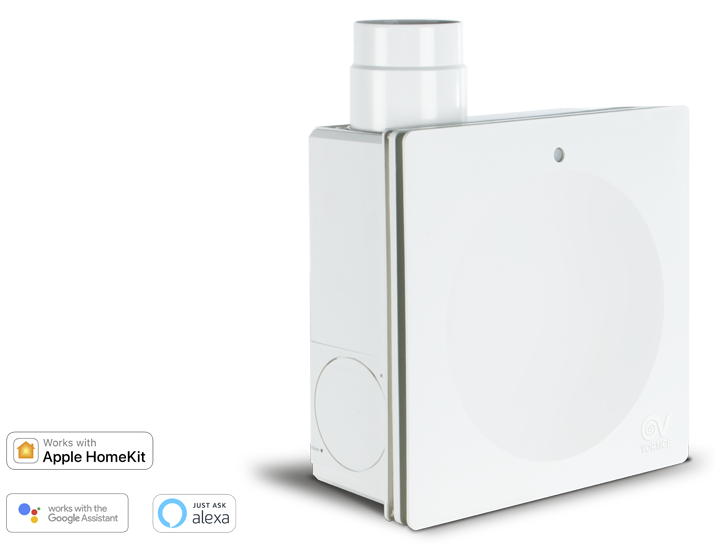

BRA.VO Qi

Accessorio_1

Description

Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • IP
    45
  • Max absorbed current at Max speed (A)
    0,22
  • Max absorbed current at Min speed (A)
    0,05
  • Max absorbed power at Max speed (W)
    22
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    80
  • Nominal power (W)
    20
  • Number of speeds
    3
  • Ø Discharge hole (mm)
    70
  • Power absorbed at 1st speed (W)
    3,5
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,5
  • Airflow at 1st speed (l/s)
    13,9
  • Airflow at 1st speed (m³/h)
    50
  • Max airflow at Max speed (l/s)
    33,3
  • Max airflow at Max speed (m³/h)
    120
  • Max airflow at Mid speed (m³/h)
    85
  • Max airflow at Min speed (l/s)
    23,6
  • Max pressure at Max speed (mmH20)
    18,3
  • Max pressure at Max speed (Pa)
    180
  • Max pressure at Mid speed (mmH2O)
    11,7
  • Max pressure at Mid speed (Pa)
    115
  • Max RPM
    2300
  • Min RPM
    1200
  • Pressure at 1st speed (mmH20)
    5,1
  • Pressure at 1st speed (Pa)
    50
  • RPM at Mid speed
    1800
  • Sound power LWA at Mid speed [dB (A)]
    49,6
  • Sound power at Min speed LWA [dB(A)]
    39,6
  • Sound power at Min speed LWA [dB(A)]
    56,8
  • Sound pressure Lp [dB (A)] 1m - mid speed
    41,6
  • Sound pressure at 1m at Max speed Lp [dB (A)]
    48,8
  • Sound pressure at 1m at Min speed Lp [dB (A)]
    31,7
  • Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    36,2
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    39,2
  • Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]
    19,1
  • Sound pressure at 3m at Min speed Lp [dB (A)]
    32,1
  • Sound pressure Lp at 3m at Mid speed [dB (A)]
    22,1

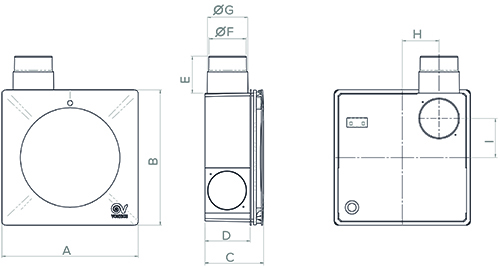

  • Size A (mm)
    262
  • Size B (mm)
    262
  • Size C (mm)
    115
  • Size D (mm)
    90
  • Size E (mm)
    80
  • Size F (mm)
    Ø 73
  • Size G (mm)
    Ø 79
  • Size H (mm)
    71,5
  • Size I (mm)
    76
