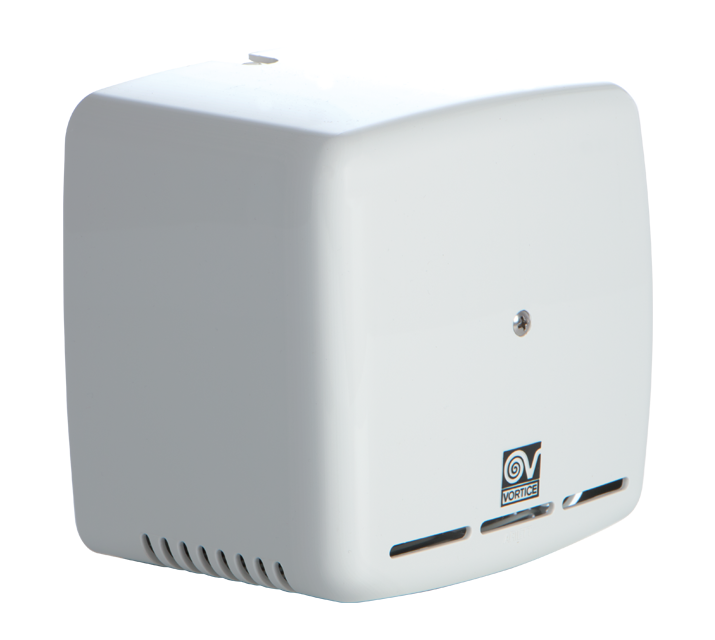

Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter: 100 mm
• Motor with thermal overload protection and shaft turning in ball bearings.
• Maximum air flow 70 m3/h
• Incorporates electronic presence detector with infrared sensor, and electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’), after the room has been vacated.
• Non-return damper fitted to outlet port.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
• Nominal diameter: 100 mm
• Motor with thermal overload protection and shaft turning in ball bearings.
• Maximum air flow 70 m3/h
• Incorporates electronic presence detector with infrared sensor, and electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’), after the room has been vacated.
• Non-return damper fitted to outlet port.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,14
-
Max absorbed power (W)18
-
Max ambient temperature for continuous operation (°C)40
-
Nominal diameter (mm)100
-
Voltage (V)230
-
Weight (Kg)1,5
-
Max airflow (l/s)19,4
-
Max airflow (m³/h)70
-
Max pressure (mmH2O)12
-
Max pressure (Pa)118
-
RPM2315
-
Sound pressure Lp [dB (A)] at 3 m40
-

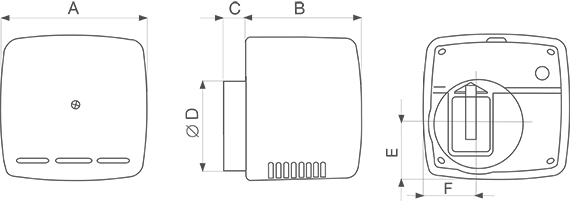

Size A (mm)156
-
Size B (mm)123
-
Size C (mm)25
-
Size D (mm)Ø 97
-
Size E (mm)60
-
Size F (mm)60
