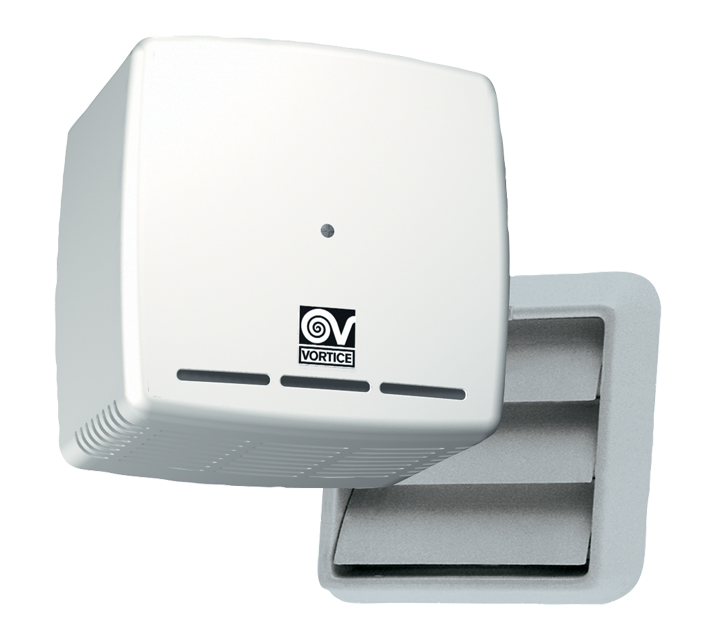

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter: 100 mm
• 2 speed motor with thermal overload protection and shaft turning in ball bearings, coupled to a forward-bladed centrifugal impeller.
• Minimum air flow: 20 m3/h
Maximum air flow 43 m3/h
• Non-return damper fitted to outlet port.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at Max speed (A)
    0,04
  • Max absorbed current at Min speed (A)
    0,02
  • Max absorbed power at Max speed (W)
    8
  • Max ambient temperature for continuous operation (°C)
    25
  • Ø Discharge hole (mm)
    97
  • Power absorbed at 1st speed (W)
    5
  • Voltage (V)
    230
  • Weight (Kg)
    1,2
  • Airflow at 1st speed (l/s)
    5,6
  • Airflow at 1st speed (m³/h)
    20
  • Max airflow at Max speed (l/s)
    11,9
  • Max airflow at Max speed (m³/h)
    43
  • Max pressure at Max speed (mmH20)
    10
  • Max pressure at Max speed (Pa)
    98
  • Max RPM
    1870
  • Min RPM
    1260
  • Pressure at 1st speed (mmH20)
    8
  • Pressure at 1st speed (Pa)
    78
  • Sound pressure at 1m at Max speed Lp [dB (A)]
    41,5
  • Sound pressure at 1m at Min speed Lp [dB (A)]
    30
  • Size A (mm)
    156
  • Size B (mm)
    123
  • Size C (mm)
    25
  • Size D (mm)
    97
  • Size E (mm)
    60
  • Size F (mm)
    60
