Description
• Material: UV resistant plastic.
• Nominal diameter: 100 mm
• Motor with stating capacitor, equipped with thermal protection.
• Maximum air flow: 90 m3/h

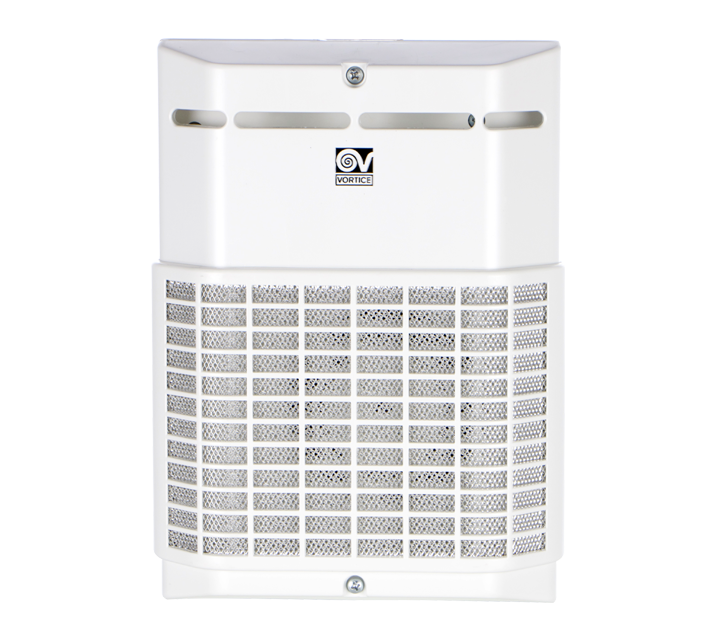

• Protection grid and mesh multi-layer aluminum filter on the front of the product, easily removable and washable.

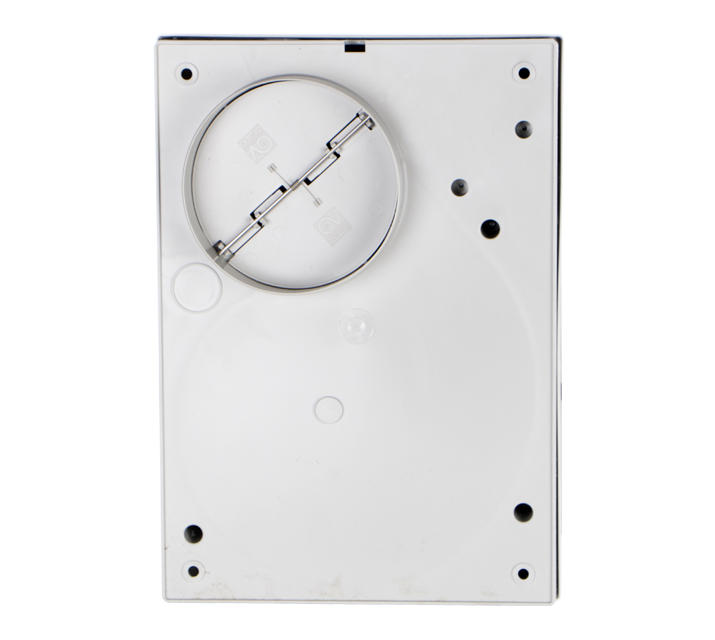

• Butterfly clasp to prevent back flow when unit is turned off.
• Vortice speed controller.
• Nominal diameter: 100 mm
• Motor with stating capacitor, equipped with thermal protection.
• Maximum air flow: 90 m3/h
• Protection grid and mesh multi-layer aluminum filter on the front of the product, easily removable and washable.
• Butterfly clasp to prevent back flow when unit is turned off.
• Vortice speed controller.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
Max absorbed current (A)0,10
-
Max absorbed power (W)20
-
Nominal diameter (mm)100
-
Ø Discharge hole (mm)97
-
Voltage (V)220-240
-
Weight (Kg)1,25
-
Max airflow (l/s)25
-
Max airflow (m³/h)90
-
Max pressure (mmH2O)11,5
-
Max pressure (Pa)113
-
RPM1790
-
Sound pressure Lp [dB (A)] at 3 m47
-

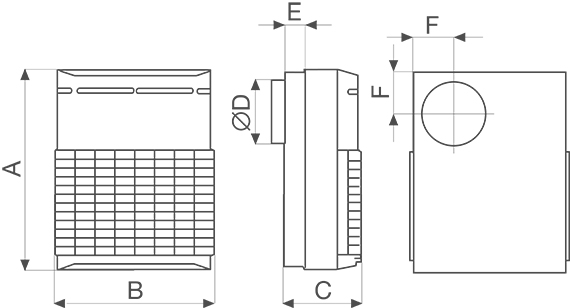

Size A (mm)260
-
Size B (mm)185
-
Size C (mm)117
-
Size D (mm)Ø 97
-
Size E (mm)25
-
Size F (mm)65
