C 46/4 T E - Vortice

Description

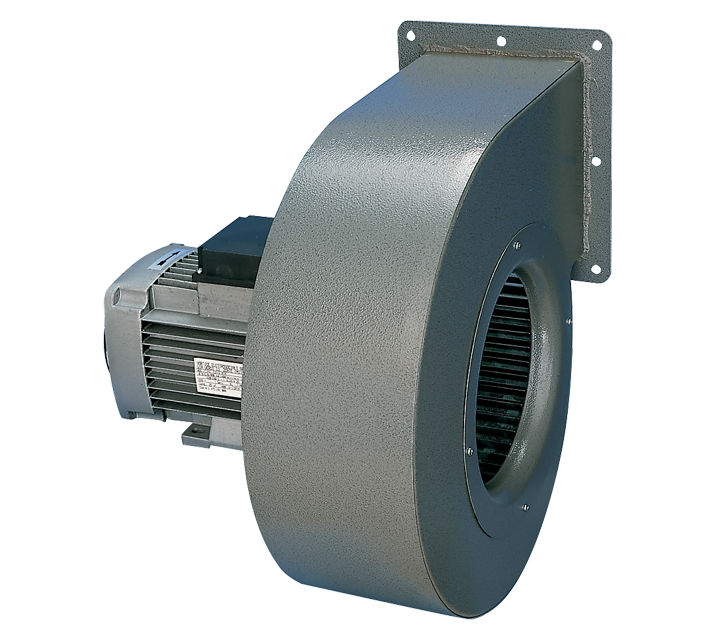

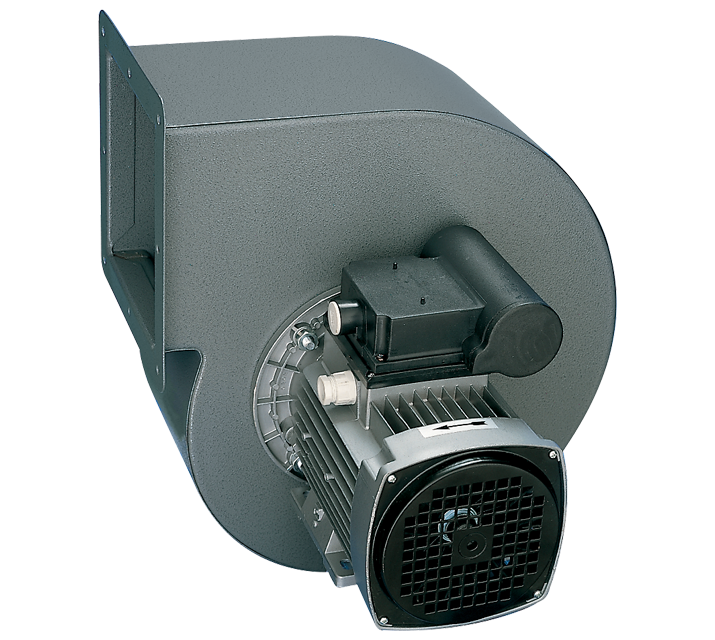

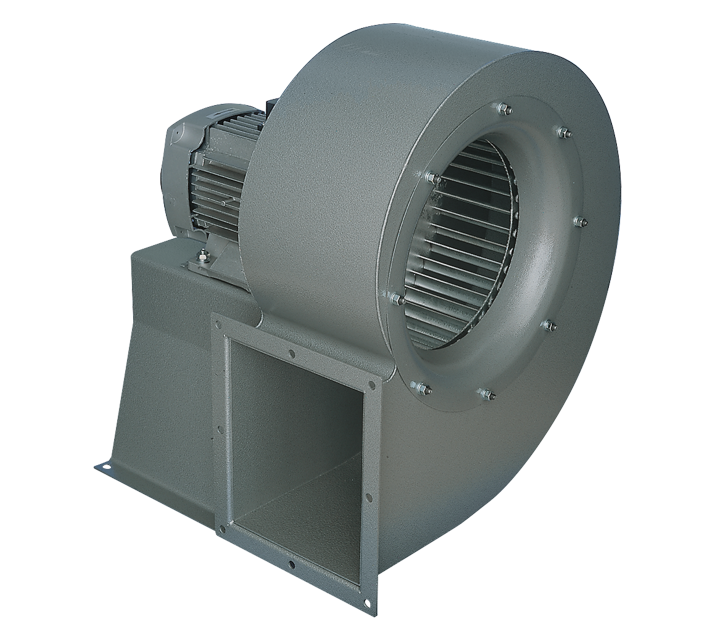

• Frame and scroll: painted pressed steel, with multiple fixing holes configured to allow alignment of the motor in 8 different positions relative to the outlet port.
• Three-phase AC motor with 1 operating speed and shaft turning in ball bearings.

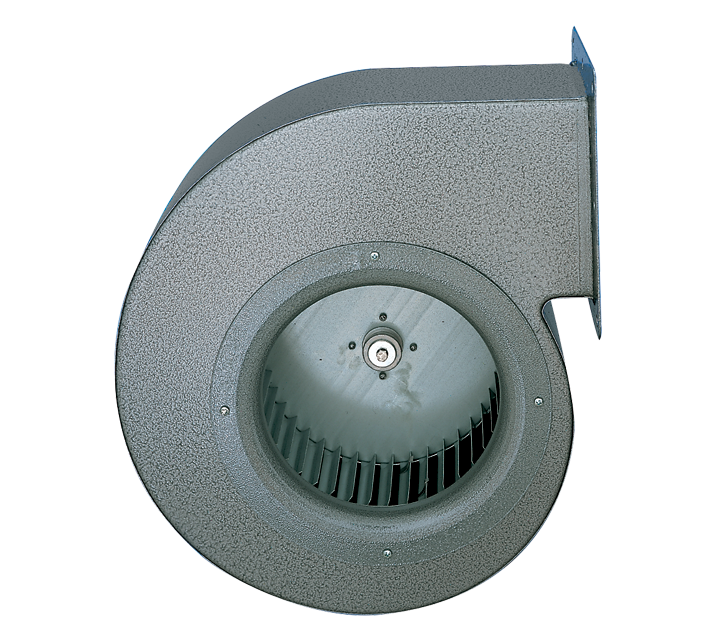

• Centrifugal impeller with forward-curved blades of zinc-coated steel, dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3).
• Maximum air flow: 6800 m3/h.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

I°
Max absorbed current (A)

5.50
Max absorbed power (W)

3400
Max ambient temperature for continuous operation (°C)

30
Motor protection IP

55
Number of phases (Ph)

3
Number of poles

4

Voltage (V)

400
Weight (Kg)

61.0
Max airflow (l/s)

1847
Max airflow (m³/h)

6650
Max pressure (mmH2O)

83
Max pressure (Pa)

814
RPM

1400
Sound pressure Lp [dB (A)] at 3 m

76,5

Dimension Q (mm)

27
Dimension R (mm)

270
Size A (mm)

592
Size B (mm)

675
Size C (mm)

566
Size D (mm)

306
Size E (mm)

265
Size F (mm)

11,5
Size G (mm)

442
Size H (mm)

236
Size L (mm)

277
Size M (mm)

ø 288
Size N (mm)

250
Size P (mm)

244,5
Size S (mm)

190
