Description

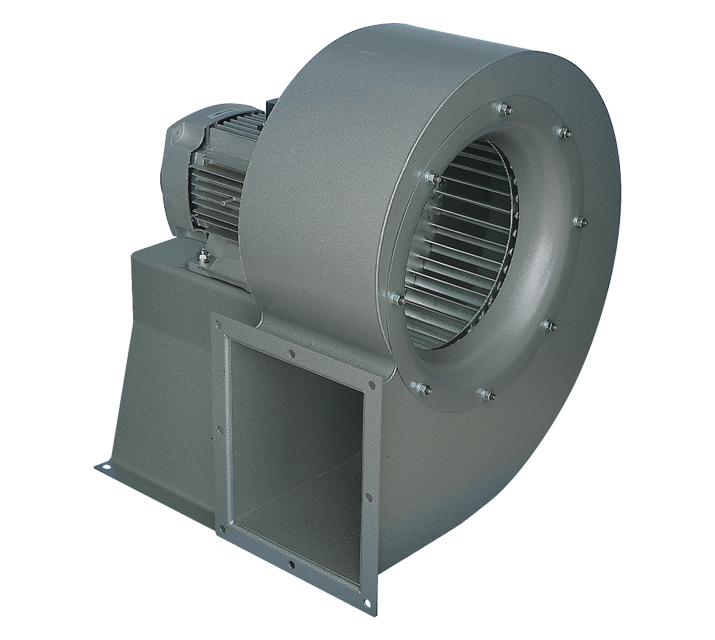

• Frame and scroll: painted pressed steel, with multiple fixing holes configured to allow alignment of the motor in 8 different positions relative to the outlet port.

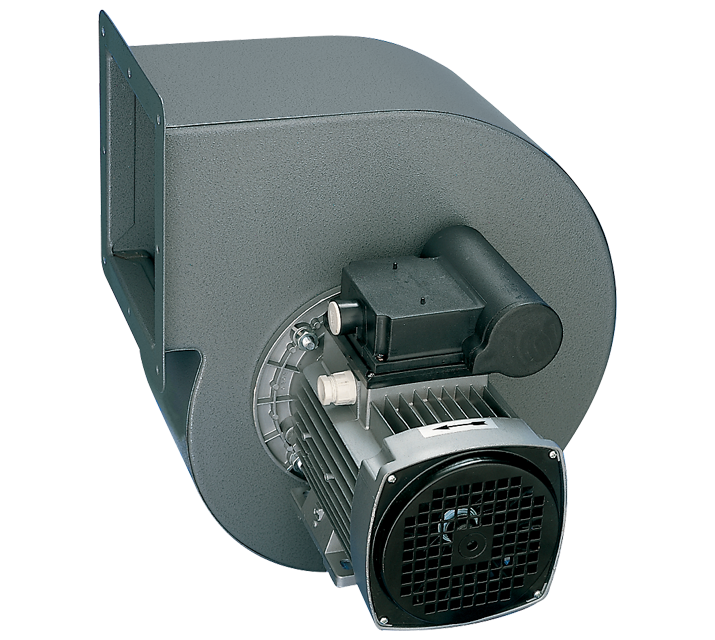

• Three-phase AC motor with 1 operating speed and shaft turning in ball bearings.

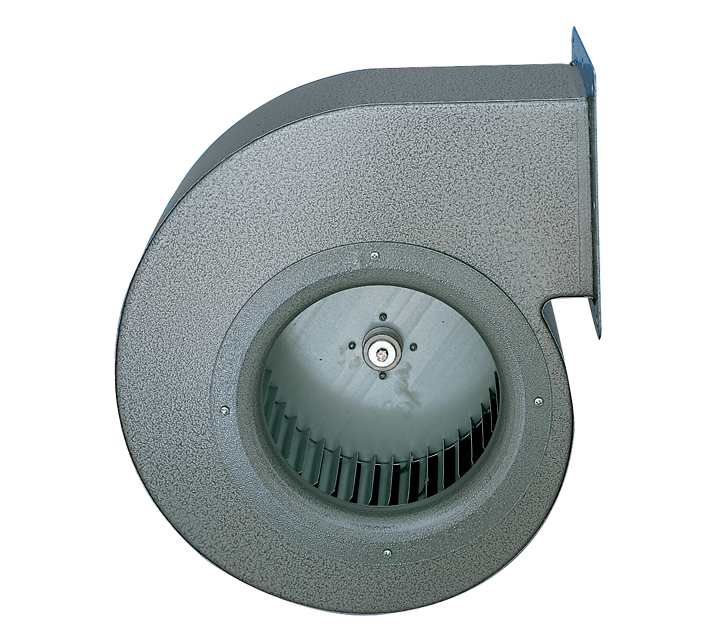

• Centrifugal impeller with forward-curved blades of zinc-coated steel, dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3).
• Maximum air flow: 4500 m3/h.
Read full descriptionClose description
Accessorio_5
Accessorio_6
Accessorio_7

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • Max absorbed current (A)
    4,35
  • Max absorbed power (W)
    1900
  • Max ambient temperature for continuous operation (°C)
    50
  • Motor protection IP
    55
  • Number of phases (Ph)
    3
  • Number of poles
    4
  • Voltage (V)
    400
  • Weight (Kg)
    23,3
  • Max airflow (l/s)
    1250
  • Max airflow (m³/h)
    4500
  • Max pressure (mmH2O)
    74
  • Max pressure (Pa)
    726
  • RPM
    1400
  • Sound pressure Lp [dB (A)] at 3 m
    70,5

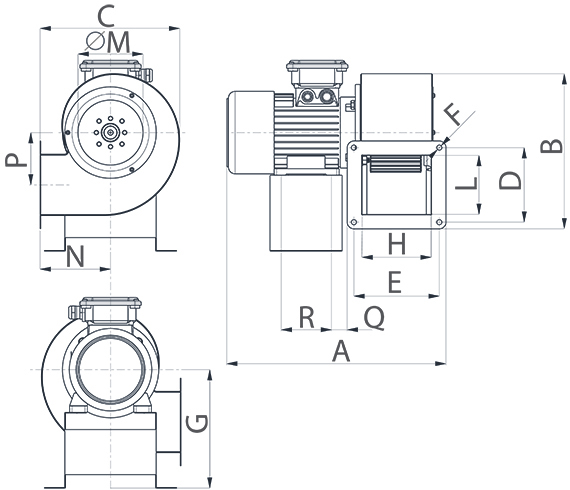

  • Dimension Q (mm)
    56
  • Dimension R (mm)
    125
  • Size A (mm)
    549
  • Size B (mm)
    557,5
  • Size C (mm)
    484,5
  • Size D (mm)
    228
  • Size E (mm)
    228
  • Size F (mm)
    9
  • Size G (mm)
    90
  • Size H (mm)
    200
  • Size L (mm)
    200
  • Size M (mm)
    ø 240
  • Size N (mm)
    222
  • Size P (mm)
    217
  • Size S (mm)
    140
Accessorio_8
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
