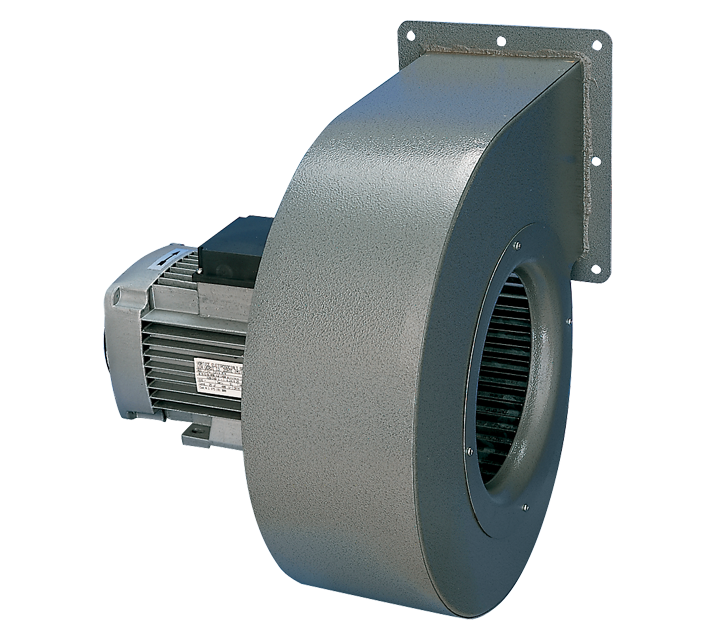

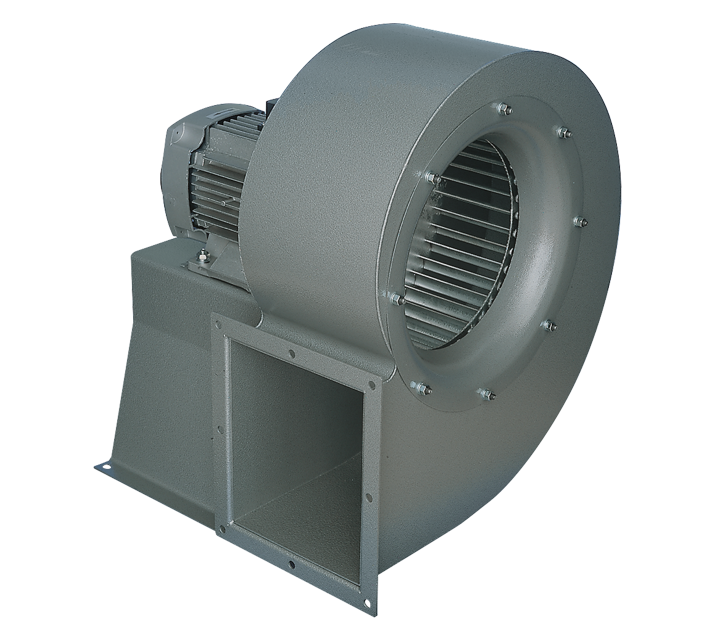

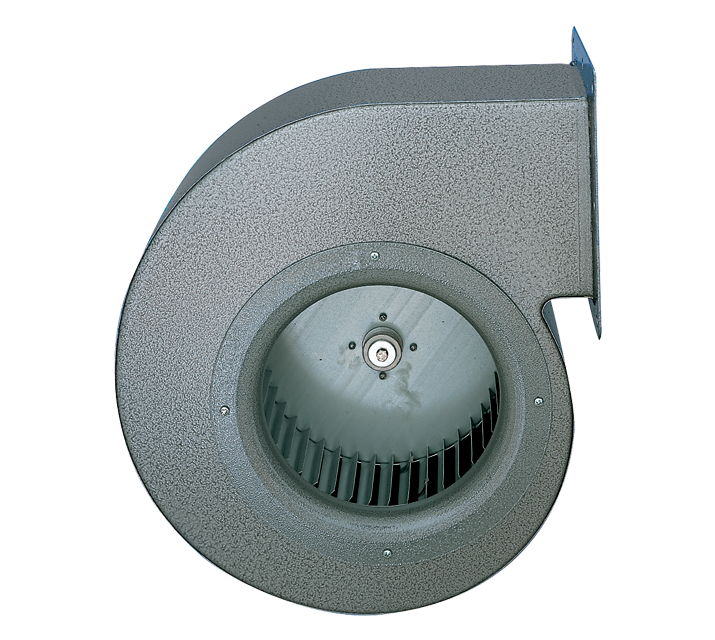

Description

• Frame and scroll: painted pressed steel, with multiple fixing holes configured to allow alignment of the motor in 8 different positions relative to the outlet port.
• Three-phase AC motor with 1 operating speed and shaft turning in ball bearings.
• Centrifugal impeller with forward-curved blades of zinc-coated steel, dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3).
• Maximum air flow: 655 m3/h.
Read full descriptionClose description
Accessorio_5
Accessorio_6
Accessorio_7

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • Max absorbed current (A)
    0,190
  • Max absorbed power (W)
    110
  • Max ambient temperature for continuous operation (°C)
    50
  • Motor protection IP
    55
  • Number of phases (Ph)
    3
  • Number of poles
    4
  • Voltage (V)
    400
  • Weight (Kg)
    8,1
  • Max airflow (l/s)
    182
  • Max airflow (m³/h)
    655
  • Max pressure (mmH2O)
    13,2
  • Max pressure (Pa)
    176
  • RPM
    1400
  • Sound pressure Lp [dB (A)] at 3 m
    55
  • Dimension Q (mm)
    45
  • Dimension R (mm)
    90
  • Size A (mm)
    352
  • Size B (mm)
    308
  • Size C (mm)
    272
  • Size D (mm)
    126
  • Size E (mm)
    137
  • Size F (mm)
    8,5
  • Size G (mm)
    71
  • Size H (mm)
    117
  • Size L (mm)
    108
  • Size M (mm)
    ø 132
  • Size N (mm)
    131
  • Size P (mm)
    111
  • Size S (mm)
    112
Accessorio_8
