C 30/2 T E - Vortice

Description

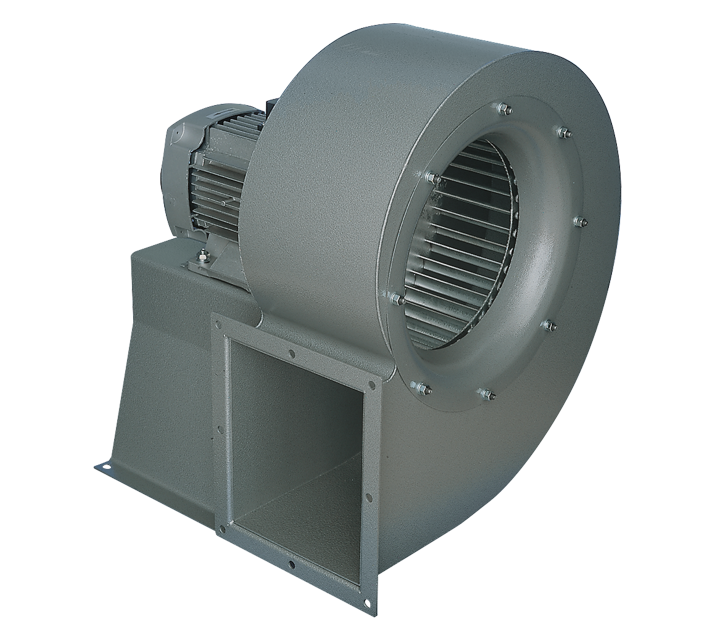

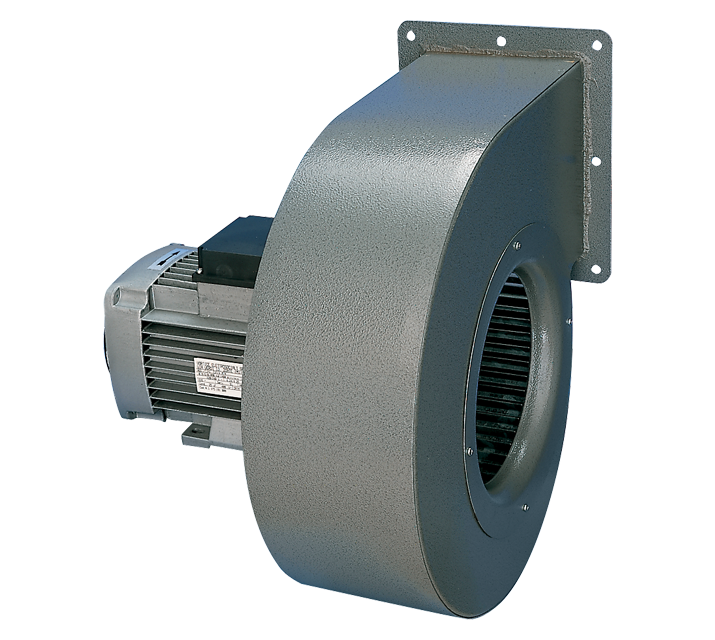

• Frame and scroll: painted pressed steel, with multiple fixing holes configured to allow alignment of the motor in 8 different positions relative to the outlet port.

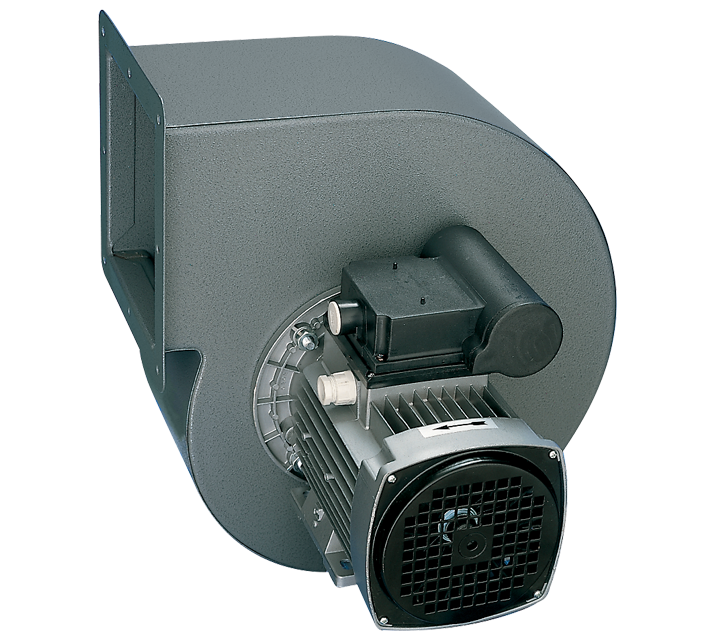

• Three-phase AC motor with 1 operating speed and shaft turning in ball bearings.

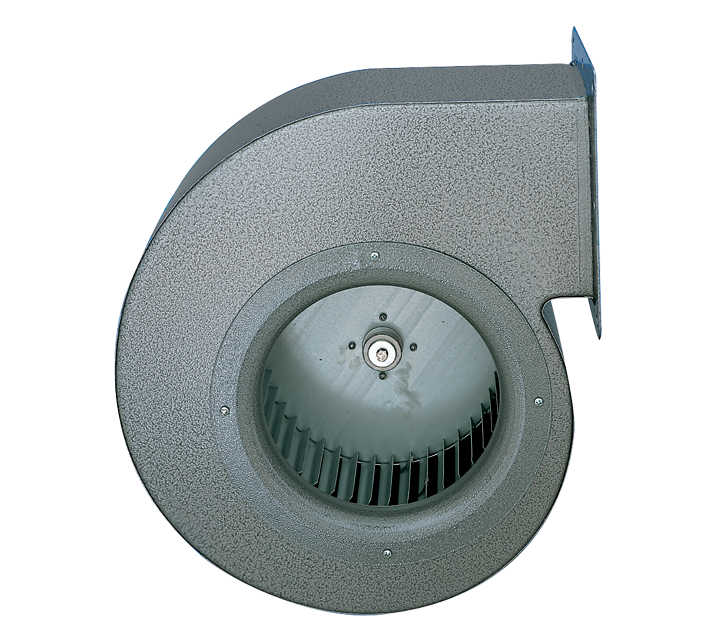

• Centrifugal impeller with forward-curved blades of zinc-coated steel, dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3).
• Maximum air flow: 1350 m3/h.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

I°
Max absorbed current (A)

1,50
Max absorbed power (W)

720
Max ambient temperature for continuous operation (°C)

50
Motor protection IP

55
Number of phases (Ph)

3
Number of poles

2

Voltage (V)

400
Weight (Kg)

8,1
Max airflow (l/s)

375
Max airflow (m³/h)

1350
Max pressure (mmH2O)

85
Max pressure (Pa)

834
RPM

2800
Sound pressure Lp [dB (A)] at 3 m

71

Dimension Q (mm)

45
Dimension R (mm)

90
Size A (mm)

366
Size B (mm)

308
Size C (mm)

272
Size D (mm)

126
Size E (mm)

137
Size F (mm)

8,5
Size G (mm)

71
Size H (mm)

117
Size L (mm)

108
Size M (mm)

ø 132
Size N (mm)

131
Size P (mm)

111
Size S (mm)

112
