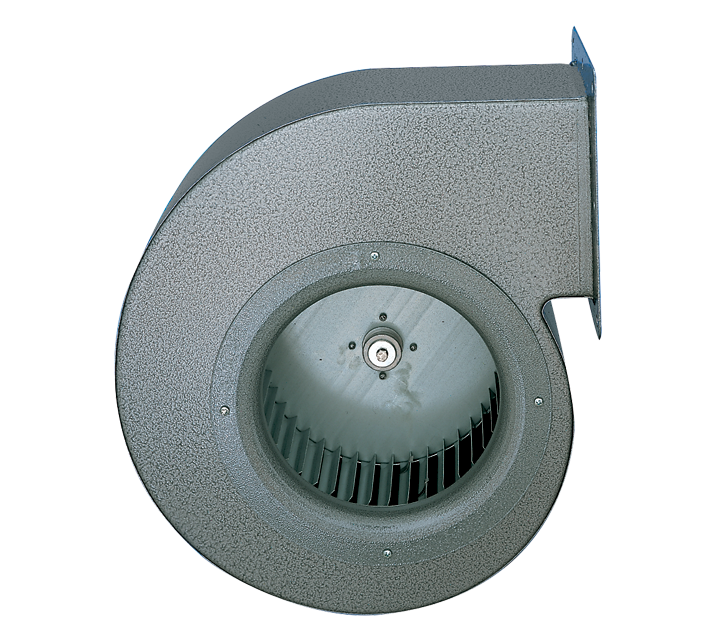

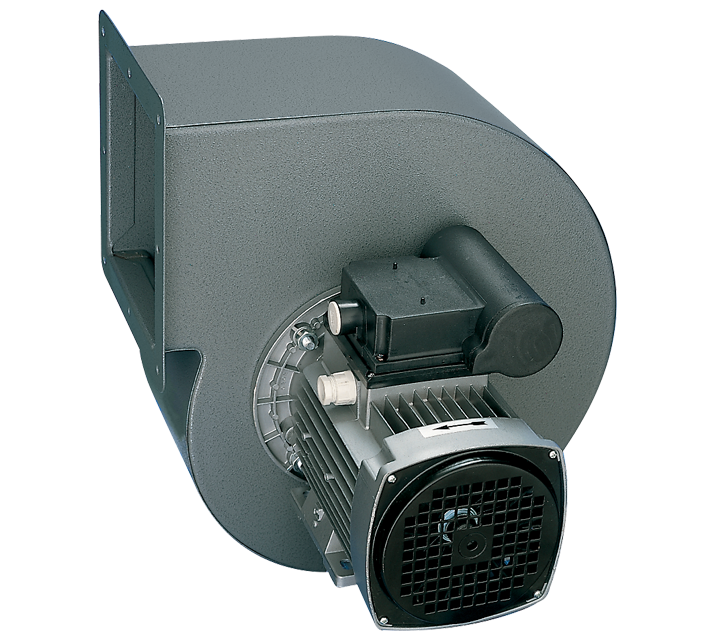

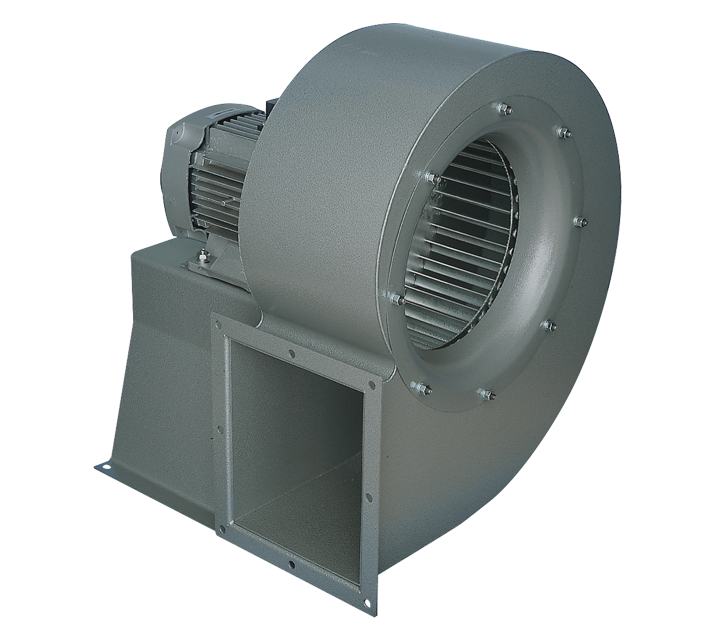

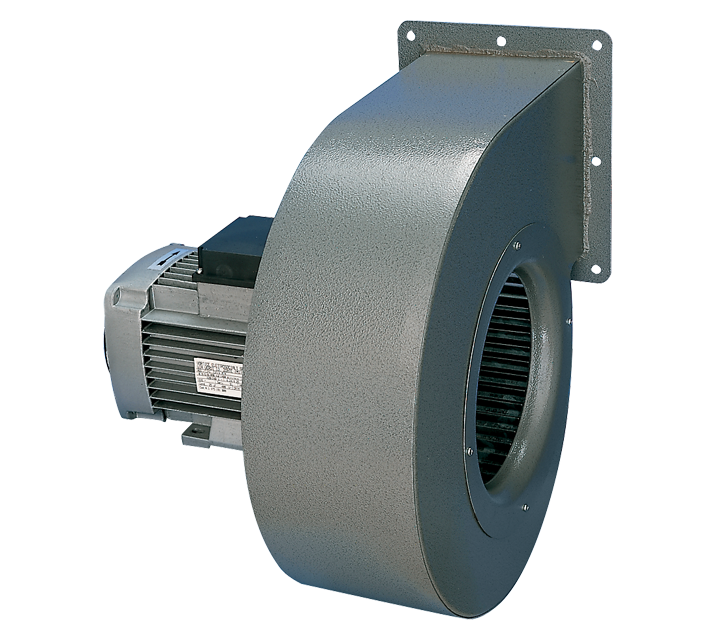

Description

• Frame and scroll: painted pressed steel, with multiple fixing holes configured to allow alignment of the motor in 8 different positions relative to the outlet port.
• Three-phase AC motor with 1 operating speed and shaft turning in ball bearings.
• Centrifugal impeller with forward-curved blades of zinc-coated steel, dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3).
• Maximum air flow: 244 m3/h.
Read full descriptionClose description
Accessorio_5
Accessorio_6
Accessorio_7

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • Max absorbed current (A)
    0.54
  • Max absorbed power (W)
    330
  • Max ambient temperature for continuous operation (°C)
    50
  • Motor protection IP
    55
  • Number of phases (Ph)
    3
  • Number of poles
    2
  • Voltage (V)
    400
  • Weight (Kg)
    5.8
  • Max airflow (l/s)
    222
  • Max airflow (m³/h)
    800
  • Max pressure (mmH2O)
    52.7
  • Max pressure (Pa)
    517
  • RPM
    2800
  • Sound pressure Lp [dB (A)] at 3 m
    66.0
  • Dimension Q (mm)
    45
  • Dimension R (mm)
    90
  • Size A (mm)
    350
  • Size B (mm)
    258
  • Size C (mm)
    232
  • Size D (mm)
    123
  • Size E (mm)
    123
  • Size F (mm)
    8,5
  • Size G (mm)
    71
  • Size H (mm)
    102
  • Size L (mm)
    98
  • Size M (mm)
    ø 108
  • Size N (mm)
    117
  • Size P (mm)
    87
  • Size S (mm)
    112
