C 10/2 M - Vortice

Description

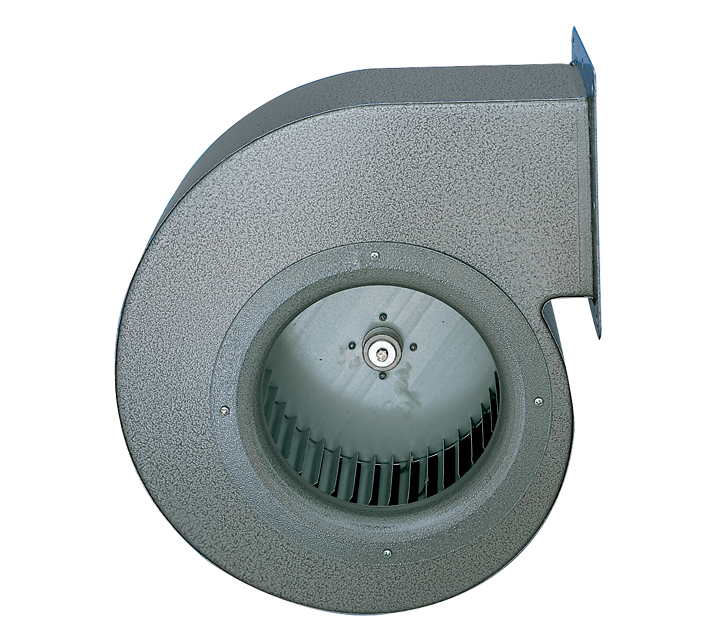

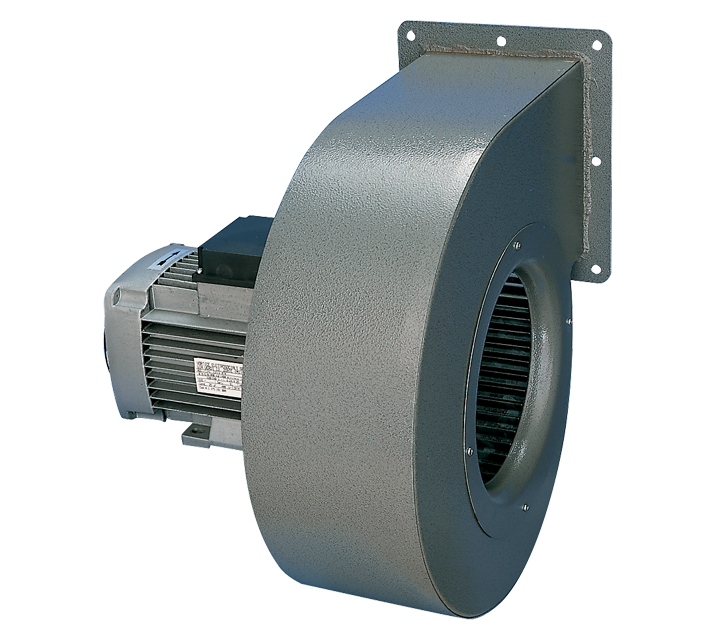

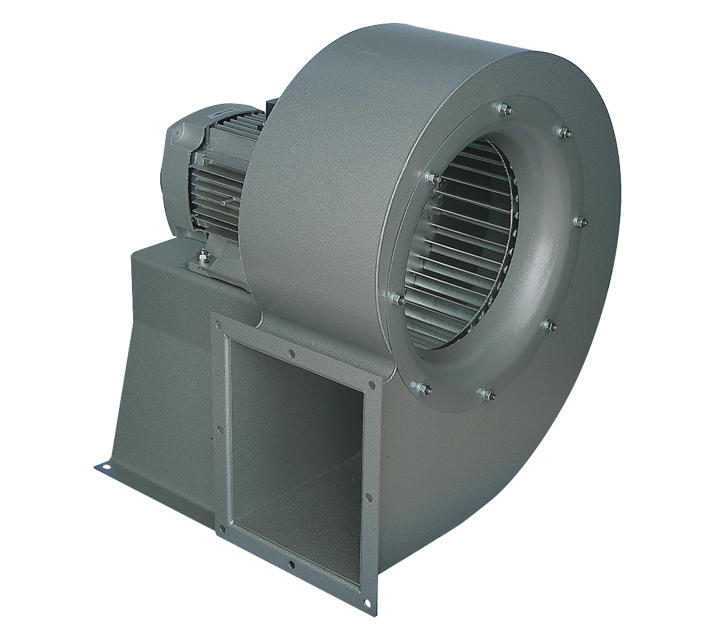

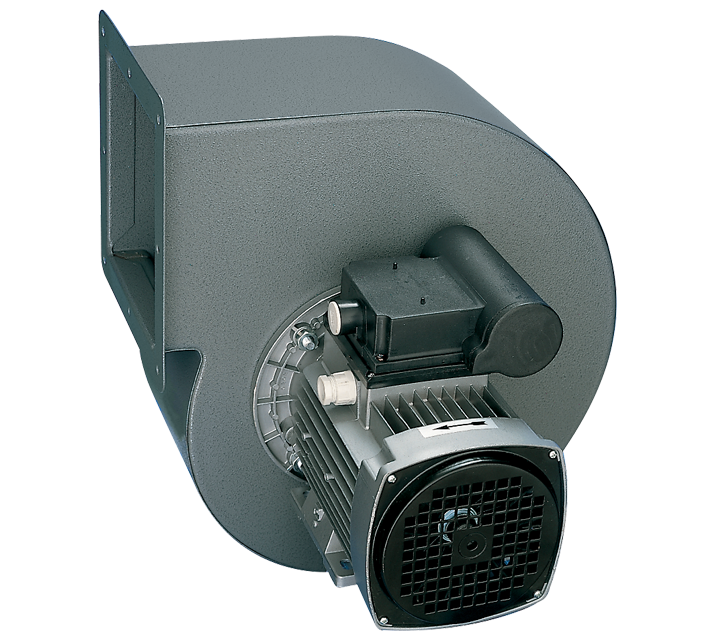

• Frame and scroll: painted pressed steel, with multiple fixing holes configured to allow alignment of the motor in 8 different positions relative to the outlet port.
• Single phase AC motor with 1 operating speed and shaft turning in ball bearings.
• Centrifugal impeller with forward-curved blades of zinc-coated steel, dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3).
• Maximum air flow: 300 m3/h.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

I°
Max absorbed current (A)

0,45
Max absorbed power (W)

100
Max ambient temperature for continuous operation (°C)

50
Motor protection IP

55
Number of poles

2
Voltage (V)

230

Weight (Kg)

2,7
Max airflow (l/s)

83,3
Max airflow (m³/h)

300
Max pressure (mmH2O)

25
Max pressure (Pa)

245
RPM

2800
Sound pressure Lp [dB (A)] at 3 m

55,5

Dimension Q (mm)

36
Dimension R (mm)

71
Number of clamps

4
Size A (mm)

260
Size B (mm)

186
Size C (mm)

171
Size D (mm)

72
Size E (mm)

82
Size F (mm)

6,5
Size G (mm)

56
Size H (mm)

68
Size L (mm)

63
Size M (mm)

ø 80
Size N (mm)

81
Size P (mm)

66,5
Size S (mm)

90
