Technical Data Sheet

  • Absorbed current at 230 V (A)
    8,07
  • Absorbed current at 400 V (A)
    4,64
  • Frequency (Hz)
    50
  • IP
    55
  • Max absorbed power (W)
    2200
  • Motor class
    F
  • Operating temperature (°C)
    60
  • Voltage (V)
    230-400
  • Weight (Kg)
    54
  • Max airflow (m³/h)
    6130
  • RPM
    1430

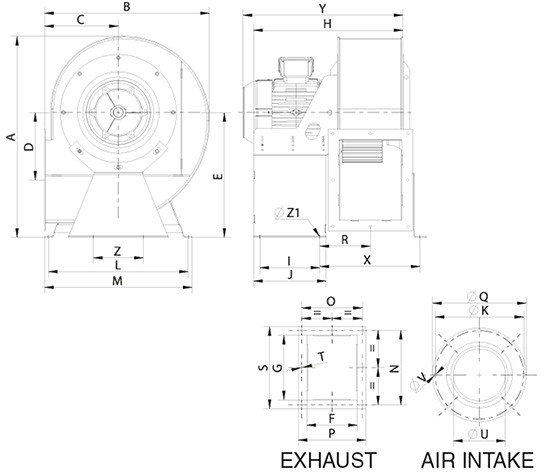

  • Dimension Q (mm)
    382
  • Dimension R (mm)
    171
  • Dimension U (mm)
    Ø 203
  • Dimension V (mm)
    Ø 11
  • Dimension Y (mm)
    539,5
  • Dimension Z (mm)
    N.A.
  • Dimension Z1 (mm)
    Ø 13
  • DimensioneX (mm)
    N.A.
  • Size A (mm)
    640
  • Size B (mm)
    531
  • Size C (mm)
    249
  • Size D (mm)
    180
  • Size E (mm)
    406
  • Size F (mm)
    198
  • Size G (mm)
    319
  • Size H (mm)
    538
  • Size I (mm)
    240
  • Size J (mm)
    290
  • Size K (mm)
    354,5
  • Size L (mm)
    457
  • Size M (mm)
    482
  • Size N (mm)
    360
  • Size O (mm)
    240
  • Size P (mm)
    274
  • Size S (mm)
    395
  • Size T (mm)
    Ø 11
