Technical Data Sheet

  • Absorbed current at 230 V (A)
    7,97
  • Absorbed current at 400 V (A)
    4,58
  • Frequency (Hz)
    50
  • IP
    55
  • Max absorbed power (W)
    2200
  • Motor class
    F
  • Operating temperature (°C)
    60
  • Voltage (V)
    230-400
  • Weight (Kg)
    32
  • Max airflow (m³/h)
    2560
  • RPM
    2800

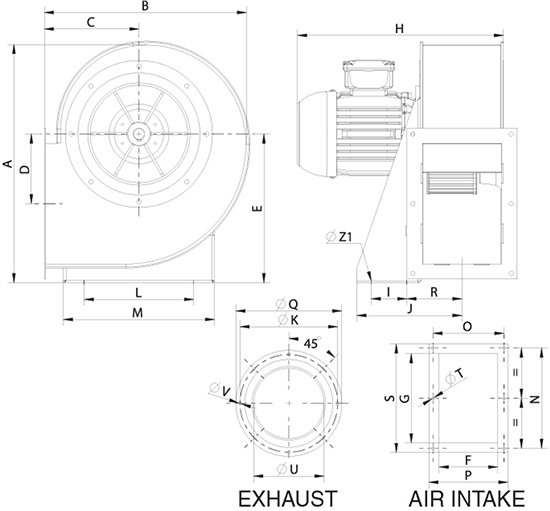

  • Dimension Q (mm)
    306
  • Dimension R (mm)
    114,5
  • Dimension U (mm)
    Ø 203
  • Dimension V (mm)
    Ø 9
  • Dimension Z1 (mm)
    Ø 13
  • Size A (mm)
    496
  • Size B (mm)
    420
  • Size C (mm)
    197
  • Size D (mm)
    142
  • Size E (mm)
    310
  • Size F (mm)
    165
  • Size G (mm)
    254
  • Size H (mm)
    463
  • Size I (mm)
    74
  • Size J (mm)
    202
  • Size K (mm)
    282
  • Size L (mm)
    228
  • Size M (mm)
    315
  • Size N (mm)
    290
  • Size O (mm)
    205
  • Size P (mm)
    229
  • Size S (mm)
    314
  • Size T (mm)
    Ø 9
